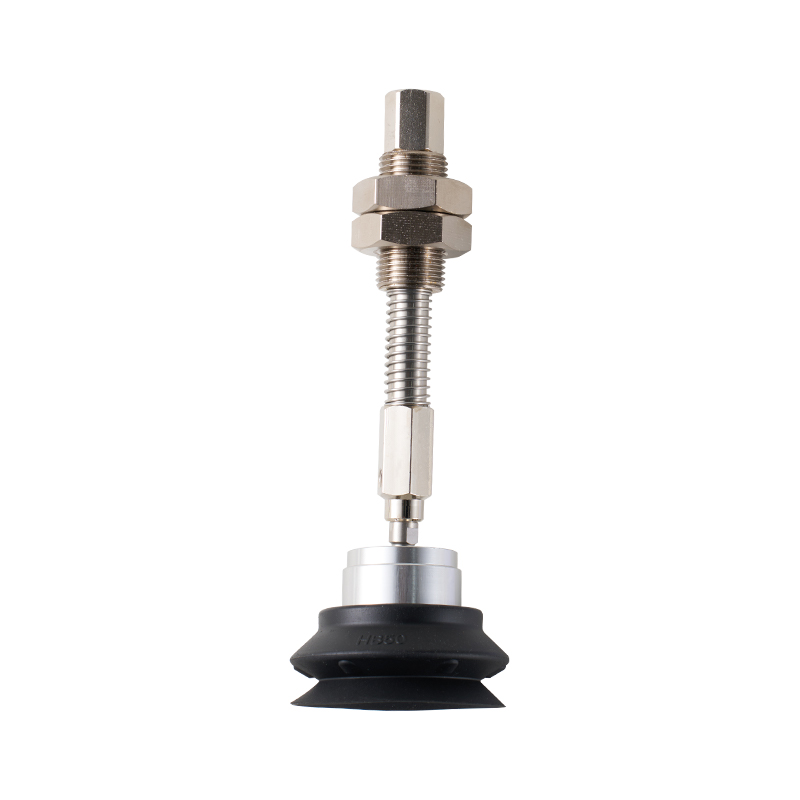

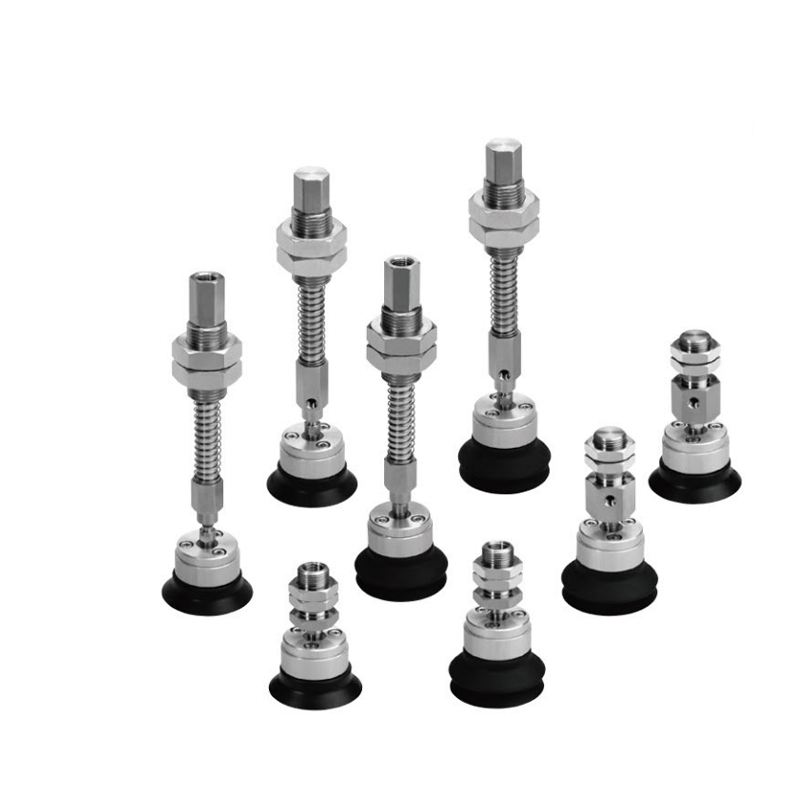

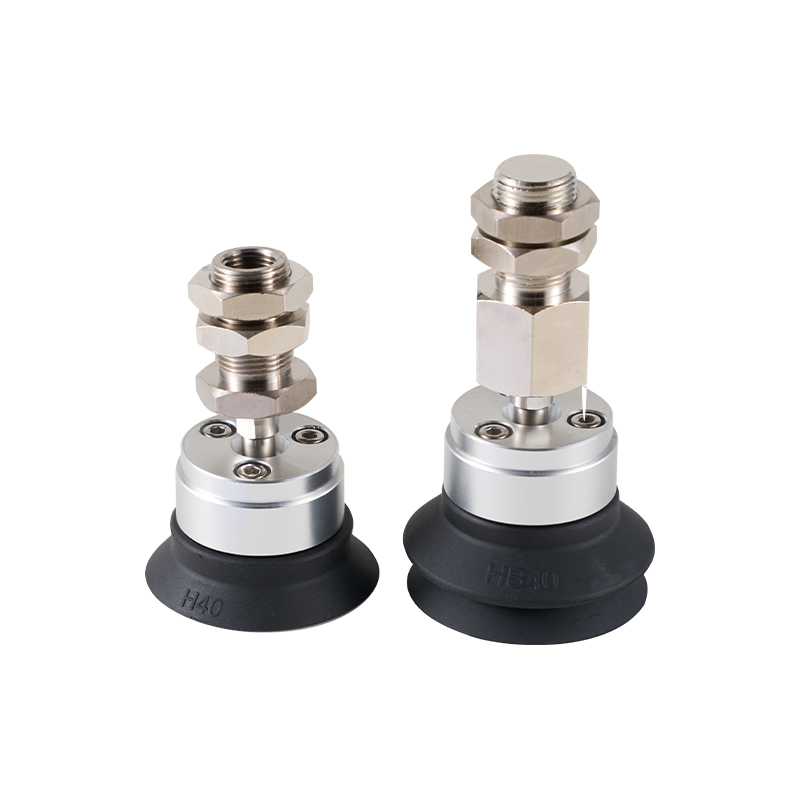

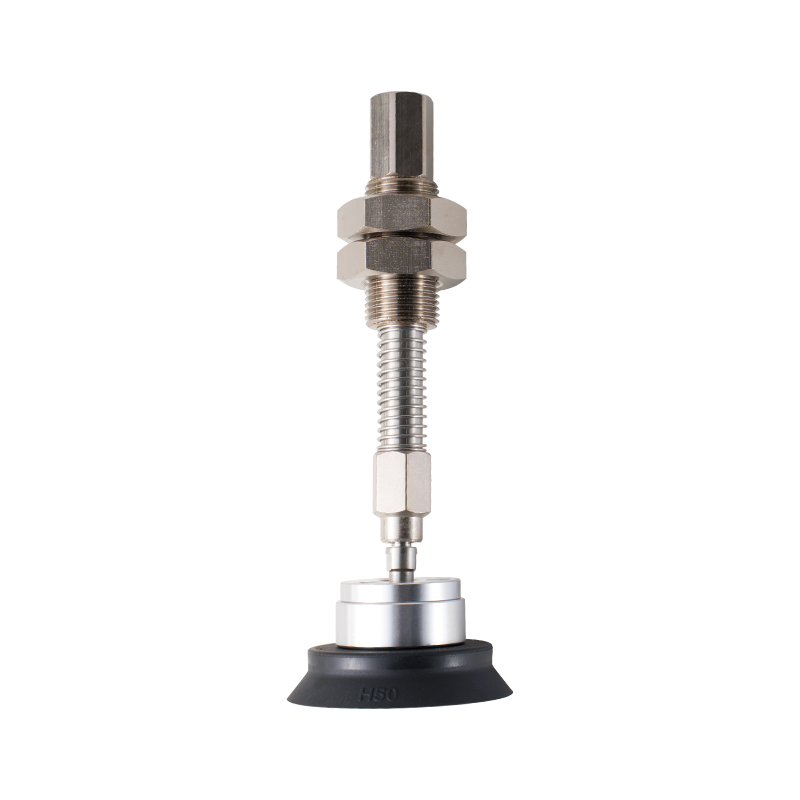

ZP2 Series Heavy Duty Swing Vacuum Suction Cup (Ø32~Ø125)

Ang ZP2 series heavy-duty swing vacuum suction cups (Ø32~Ø125) ay idinisenyo para sa malalaking load at malalaking inclination na kondisyon sa mga pang-industriyang sitwasyon. Nakakamit nila ang adaptive fitting ng workpiece surface sa pamamagitan ng isang suspendido na mekanismo ng kompensasyon at angkop para sa paglipat at pagpoposisyon ng mga matibay na materyales tulad ng mga metal sheet at mga bahagi ng engineering.

Mga pangunahing tampok:
Dynamic na istraktura ng kompensasyon
Ang mga built-in na multi-directional swing joints ay nagbibigay-daan sa suction cup na ayusin ang posture nito nang awtomatiko sa loob ng inclination range na ±15°, na inaalis ang panganib ng vacuum leakage na dulot ng workpiece deformation o positioning deviation.

Heavy-duty reinforced na disenyo
Ang multi-layer reinforced skeleton at high tear-resistant rubber substrate ay pinagsama-samang hinulma upang mapabuti ang structural rigidity at maaaring magdala ng single-point impact load na lampas sa 300% ng mga conventional suction cup.

Pagganap ng global sealing
Ang variable-diameter groove lip structure ay pinagsama sa isang labyrinth sealing ring upang mapanatili ang isang stable na vacuum degree (≥85% ng paunang halaga) sa mga kumplikadong ibabaw tulad ng magaspang na ibabaw at mamantika na ibabaw.

Mabilis na interface ng pagtugon
Pinagsamang pilot airflow channel, oras ng pagtugon sa pagsipsip ≤0.8s (karaniwang kondisyon sa pagtatrabaho), built-in na anti-siphon valve group upang maiwasan ang power failure at material drop.

Modular adapter system
Nagbibigay ng maraming detalye ng mga interface ng pag-install gaya ng M6~M12 na mga thread/mabilis na pagbabago ng flanges, at sumusuporta sa plug-and-play na pagsasama sa robot end effector o truss system.

E-mail: manager@cktworld.com
I-download
NAUNA：CTB Series Non-Contact Suction Cup
SUSUNOD：ZHP Series Heavy Duty Vacuum Suction Cup na May Vacuum Generator

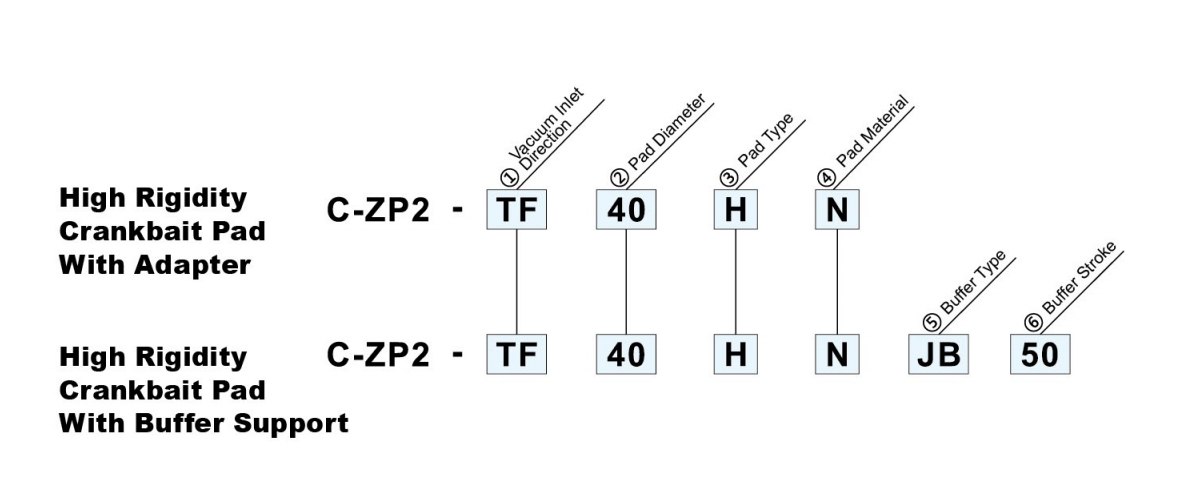

  • ①Vacuum Port
    Direksyon     		④Pad Materyal □
    TF Patayo N NBR
    XF Lateral S Silicone na goma
    ⑤Uri ng Buffer
    JB Patayo vaccum
    pumapasok

    ②Pad Diameter(mm) O/
    ③Pad Tape☆     		H* ako* J* K*
    32 40 50 63 80 100 125
    Ø32 Ø40 Ø50 Ø63 Ø80 Ø100 Ø125
    H Flat na may tadyang ● ● ● ●
    HB 2 bellows ● ● ● ●
    Buffer            stroke 25 25   mm ● ● ● ●
    50 50   mm ● ● ● ●
    75 75   mm ● ● ● ●
    100 100    mm - - ● ●

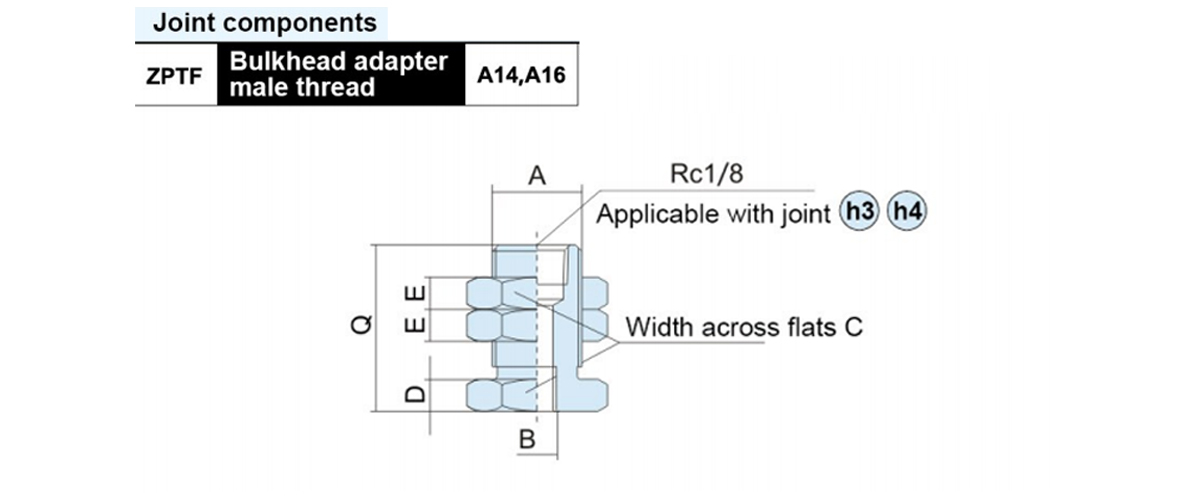

  • Mode A B C D E Q Timbang(g)
    ZPTF-A14 M14×1 M6×1 19 5 5 26 42.5
    ZPTF-A16 M16×1.5 M10×1.25 22 6 6 31 62.5

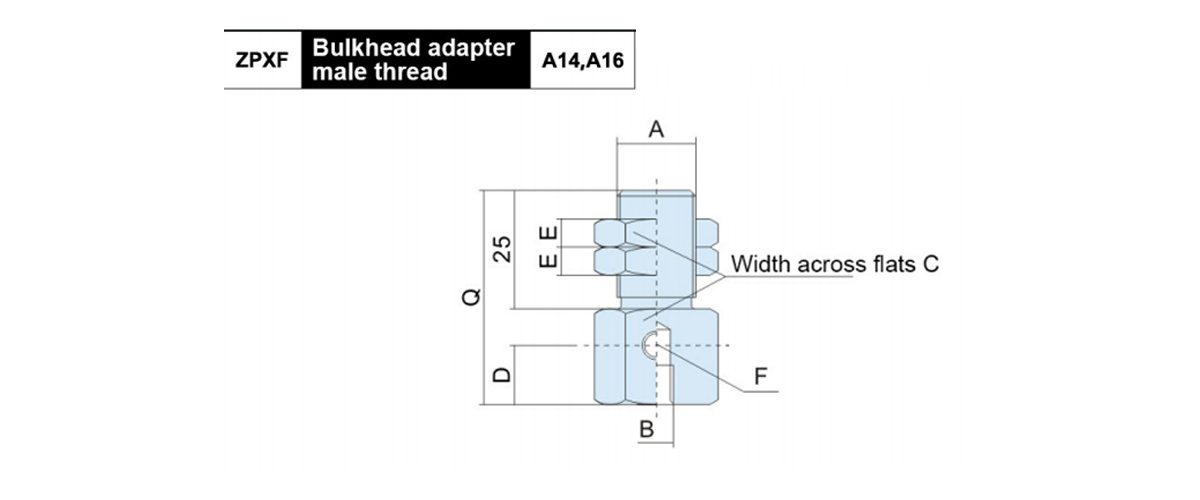

    Mode A B C D E F Q Timbang(g)
    ZPXF-A14 M14×1 M6×1 19 5 5 M5×0.8 26 78.5
    ZPXF-A16 M16×1.5 M10×1.25 22 6 6 Rc1/8 31 136.5

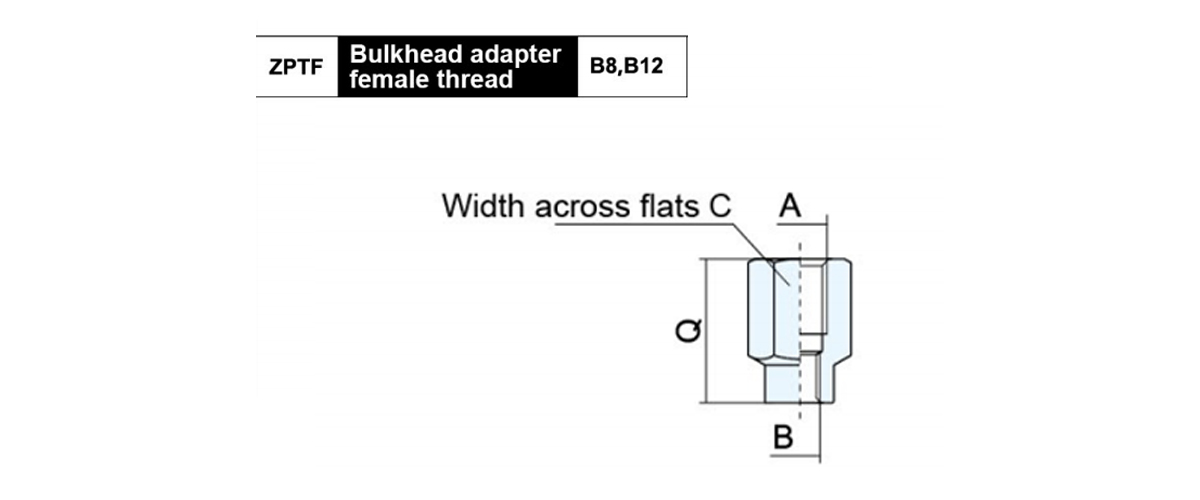

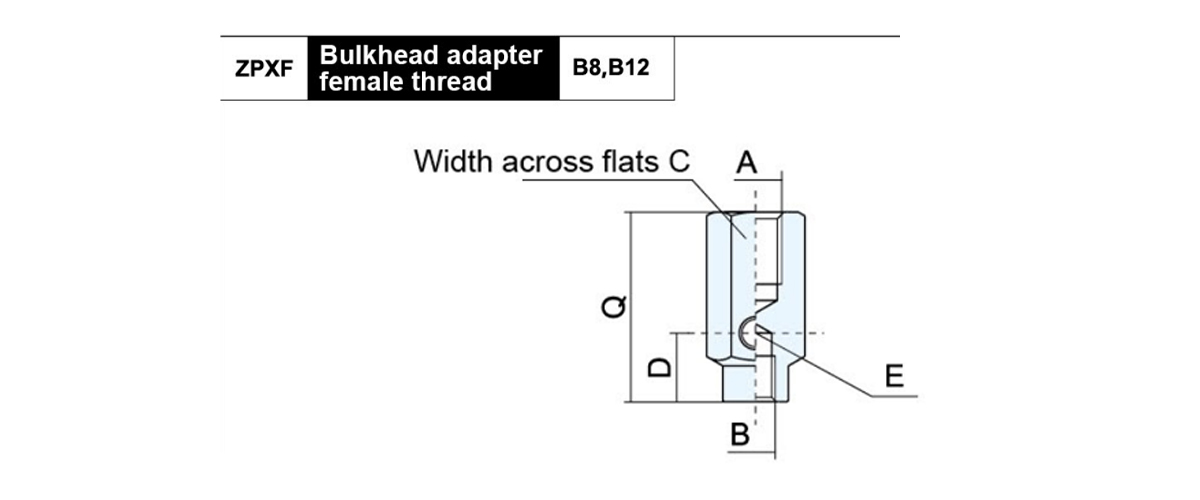

    Mode A B C Q Timbang(g)
    ZPTF-B8 M8×1.25 M6×1 13 21 16.5
    ZPTF-B12 M12×1.75 M10×1.25 17 26 32

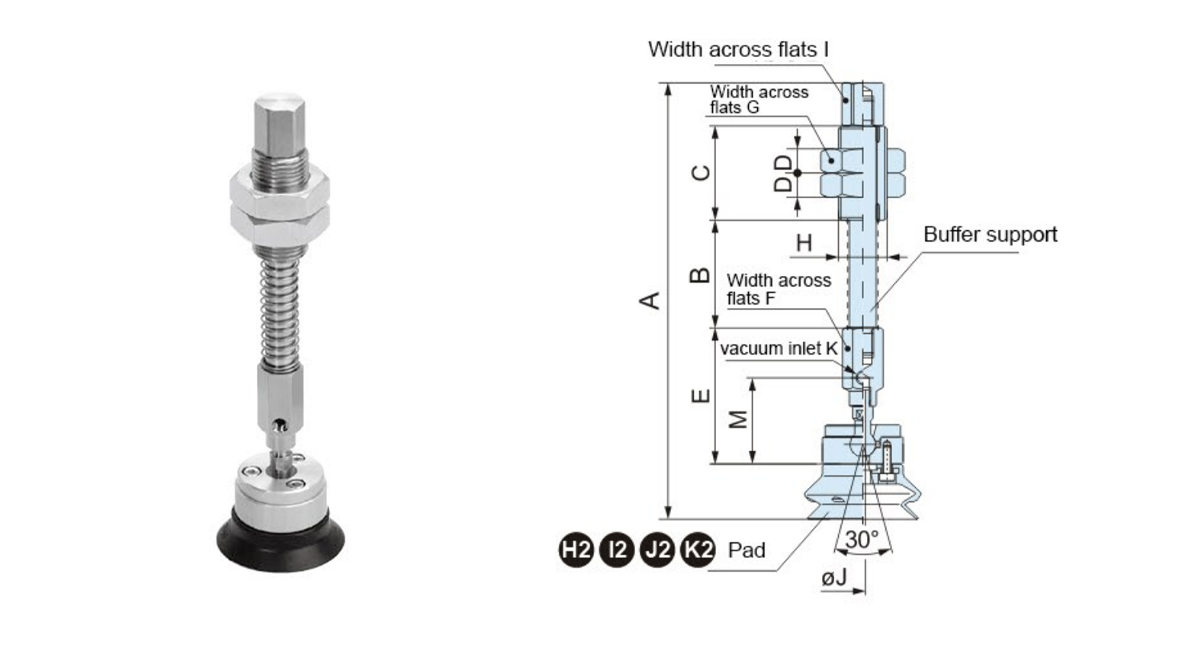

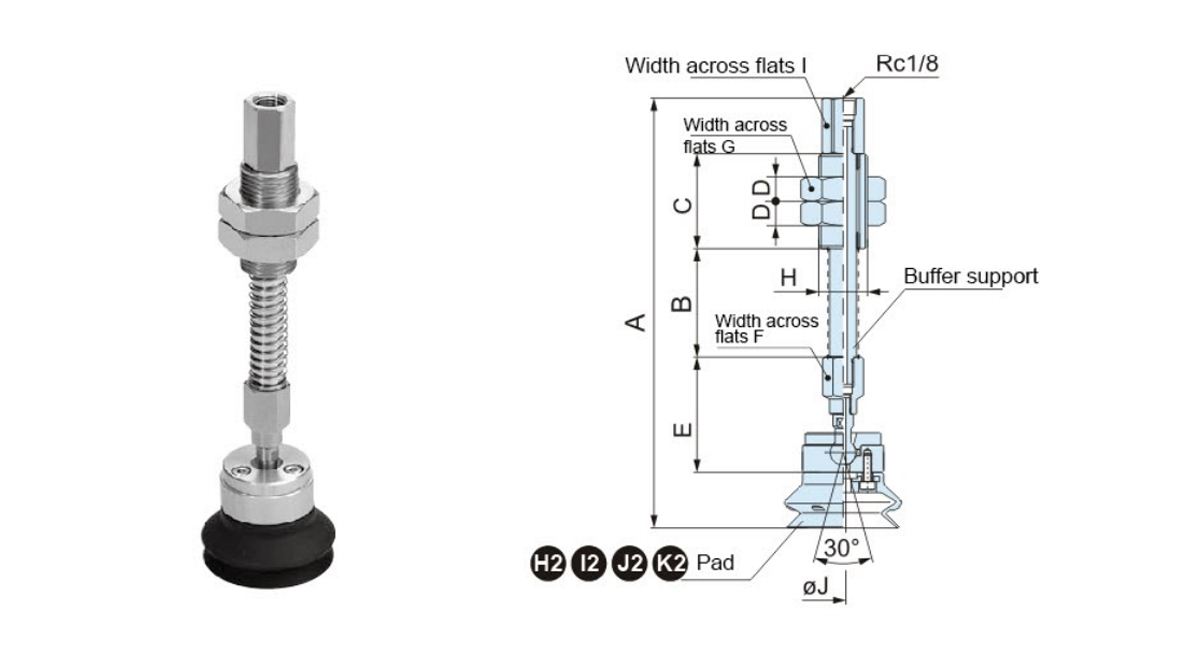

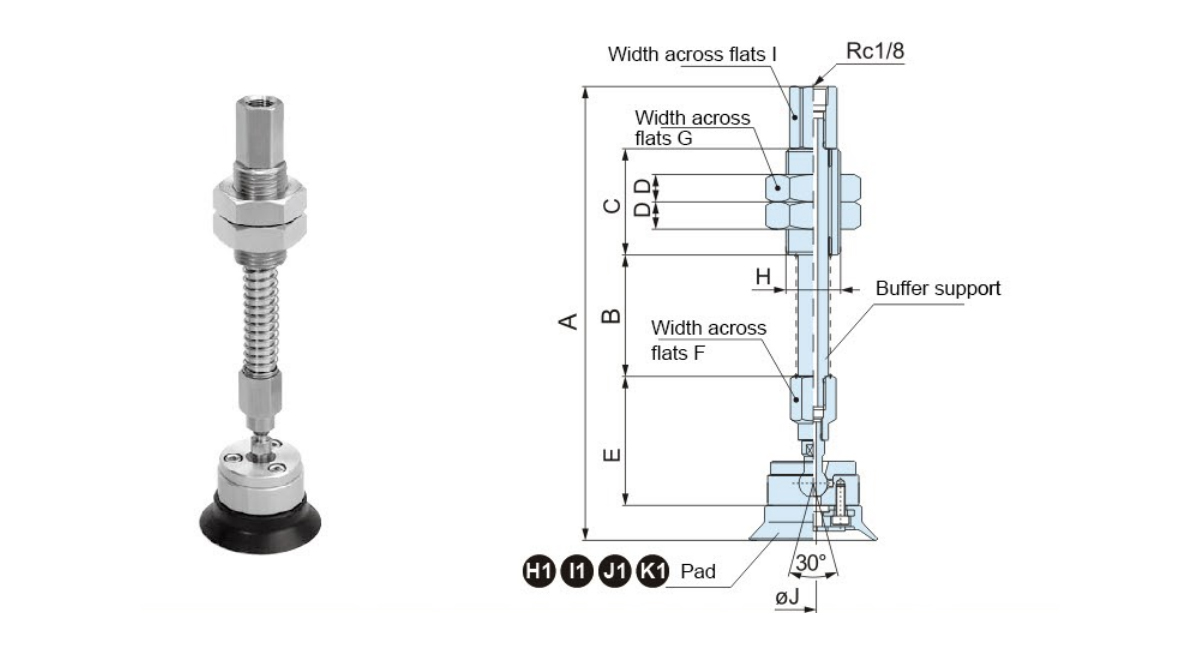

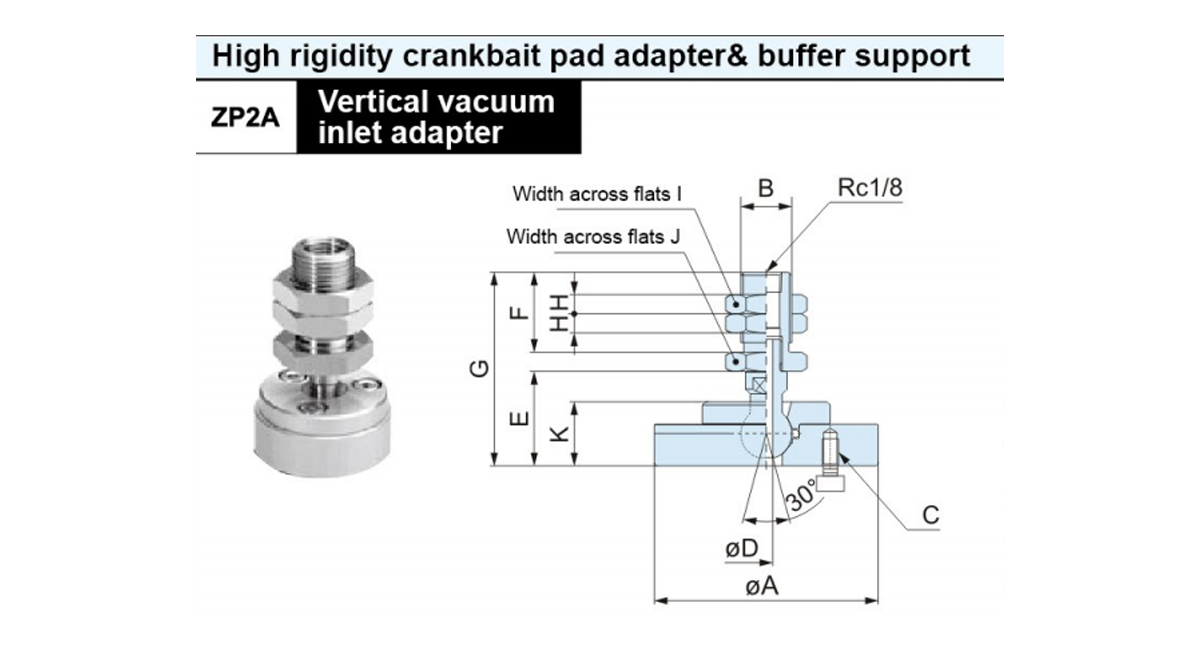

    Mode ØA B C ØD E F G H I J K Naaangkop Pad
    ZP2A-TF0 30 M14×1 3-M2.5×0.45 2 21.5 21 47.5 5 19 19 14.5 H1 H2
    ZP2A-TF1 3-M3×0.5 I1 I2
    ZP2A-TF2 50 M16×1.5 4-M4×0.7 4 28.5 25 59.5 6 22 22 19 J1 J2
    ZP2A-TF3 70 4-M5×0.8 29.5 60.5 20 K1 K2

    Mode ØA B C ØD E F G H I J K Naaangkop Pad
    ZP2A-TF0 30 M14×1 3-M2.5×0.45 2 21.5 21 47.5 5 19 19 14.5 H1 H2
    ZP2A-TF1 3-M3×0.5 I1 I2
    ZP2A-TF2 50 M16×1.5 4-M4×0.7 4 28.5 25 59.5 6 22 22 19 J1 J2
    ZP2A-TF3 70 4-M5×0.8 29.5 60.5 20 K1 K2

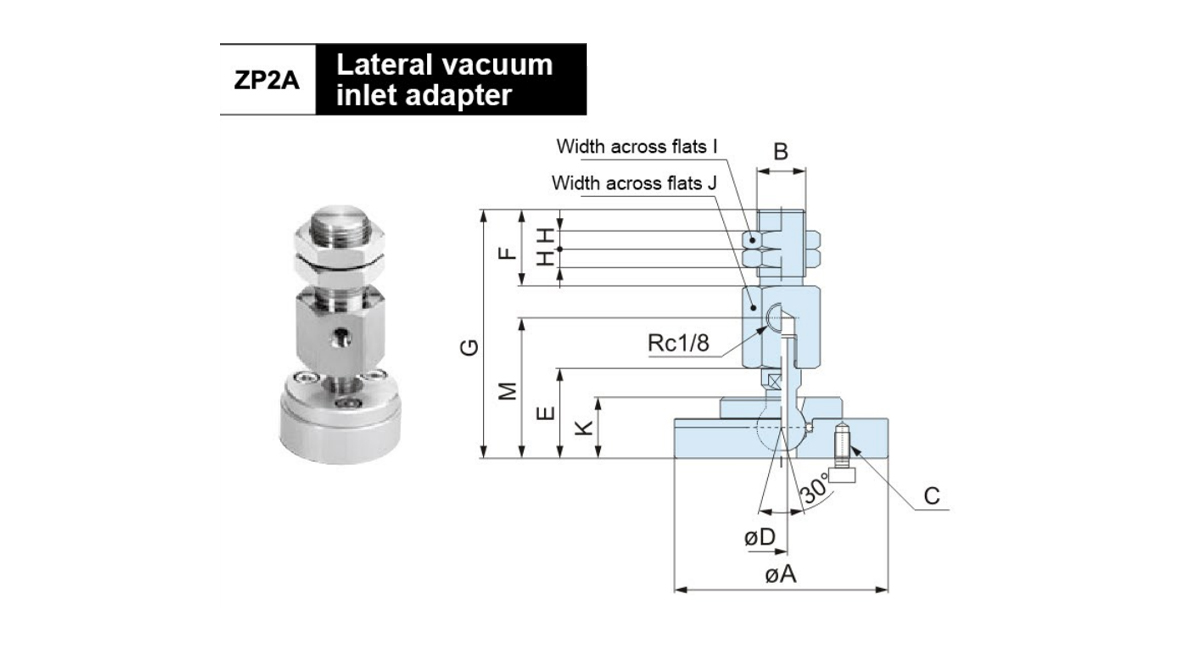

    Mode ØA B C ØD E F G H 1 J K M Naaangkop Pad
    ZP2A-XF0 30 M14×1 3-M2.5×0.45 2 21.5 21 59.5 5 19 19 14.5 32 H1 H2
    ZP2A-XF1 3-M3×0.5 I1 I2
    ZP2A-XF2 50 M16×1.5 4-M4×0.7 4 28.5 25 80.5 6 22 22 19 45 J1 J2
    ZP2A-XF3 70 4-M5×0.8 29.5 81.5 20 46 K1 K2

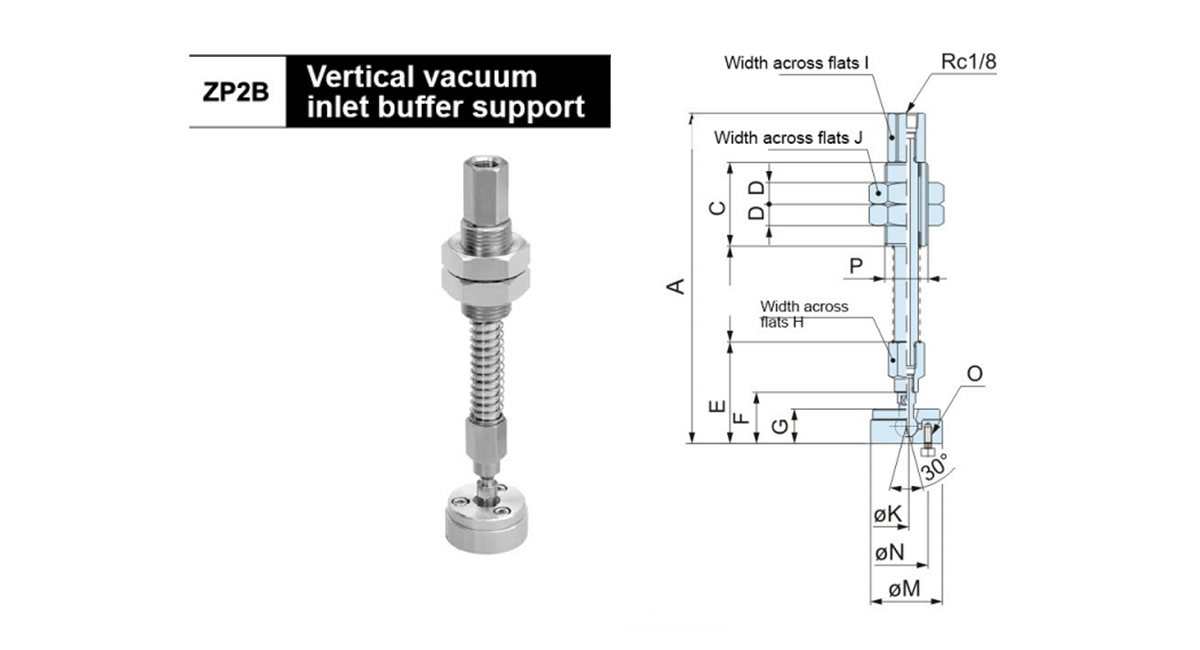

    Mode A B C D E F G H
    I     		J ØK ØM
    ØN
    0     		P Naaangkop
    Pad
    ZP2B-TF0JB25 138 40 35 9 42.5 21.5 14.5 13 14 27 2 30 14 3-M2.5×0.45 M18×1.5 H1 H2
    ZP2B-TF0JB50 173 75
    ZP2B-TFOJB75 209 111
    ZP2B-TF1JB25 138 40 18 3-M3×0.5 I1 I2
    ZP2B-TF1JB50 173 75
    ZP2B-TF1JB75 209 111
    ZP2B-TF2JB25 172.5 44 50 9.5 54.5 28.5 19 17 17 30 4 50 34 4-M4×0.7 M22×1.5 J1 J2
    ZP2B-TF2JB50 208.5 80
    ZP2B-TF2JB75 248.5 120
    ZP2B-TF2JB100 283.5 155
    ZP2B-TF3JB25 173.5 44 55.5 29.5 20 17 17 30 4 70 40 4-M5×0.8 K1 K2
    ZP2B-TF3JB50 209.5 80
    ZP2B-TF3JB75 249.5 120
    ZP2B-TF3JB100 284.5 155

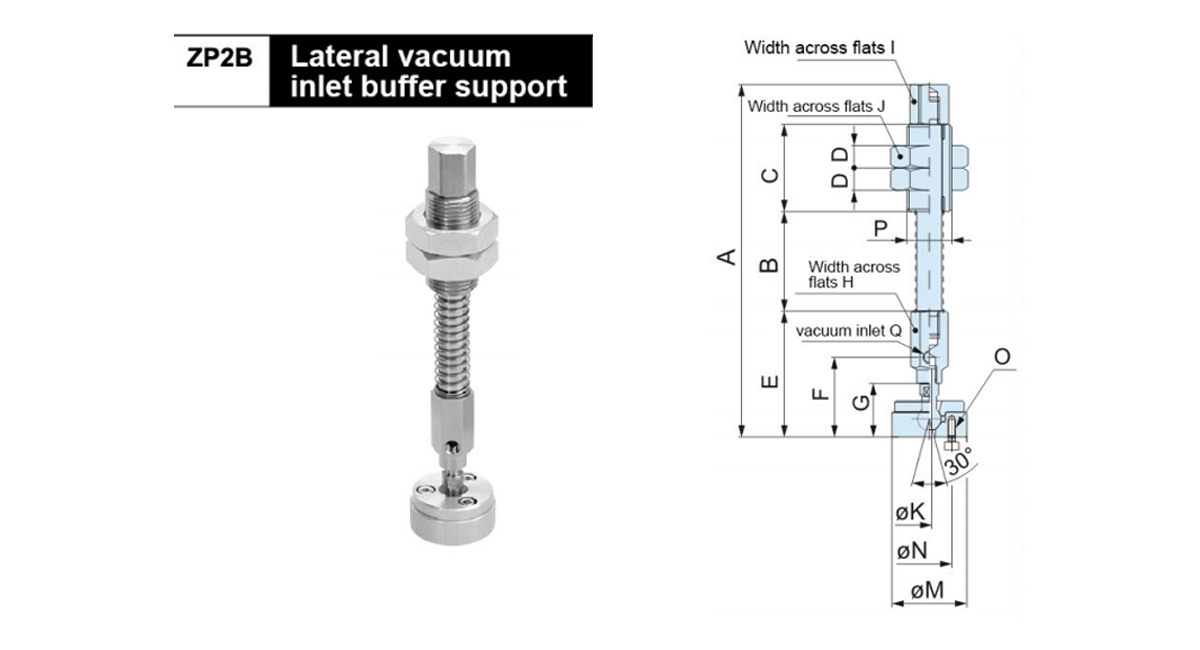

    Mode A B C D E F G H 1 J ØK ØM ØN 0 P Q Naaangkop
    Pad
    ZP2B-XF0JB25 141.5 40 35 9 50.5 32 21.5 13 14 27 2 30 14 3-M2.5×0.45 M18×1.5 M5×0.8 H1 H2
    ZP2B-XF0JB50 176.5 75
    ZP2B-XFOJB75 212.5 111
    ZP2B-XF1JB25 141.5 40 18 3-M3×0.5 I1 I2
    ZP2B-XF1JB50 176.5 75
    ZP2B-XF1JB75 212.5 111
    ZP2B-XF2JB25 182.5 44 50 9.5 67.5 45 28.5 22 17 30 4 50 34 4-M4×0.7 M22×1.5 Rc1/8 J1 J2
    ZP2B-XF2JB50 218.5 80
    ZP2B-XF2JB75 258.5 120
    ZP2B-XF2JB100 293.5 155
    ZP2B-XF3JB25 182.5 44 68.5 46 29.5 22 17 30 4 70 40 4-M5×0.8 K1 K2
    ZP2B-XF3JB50 218.5 80
    ZP2B-XF3JB75 258.5 120
    ZP2B-XF3JB100 293.5 155

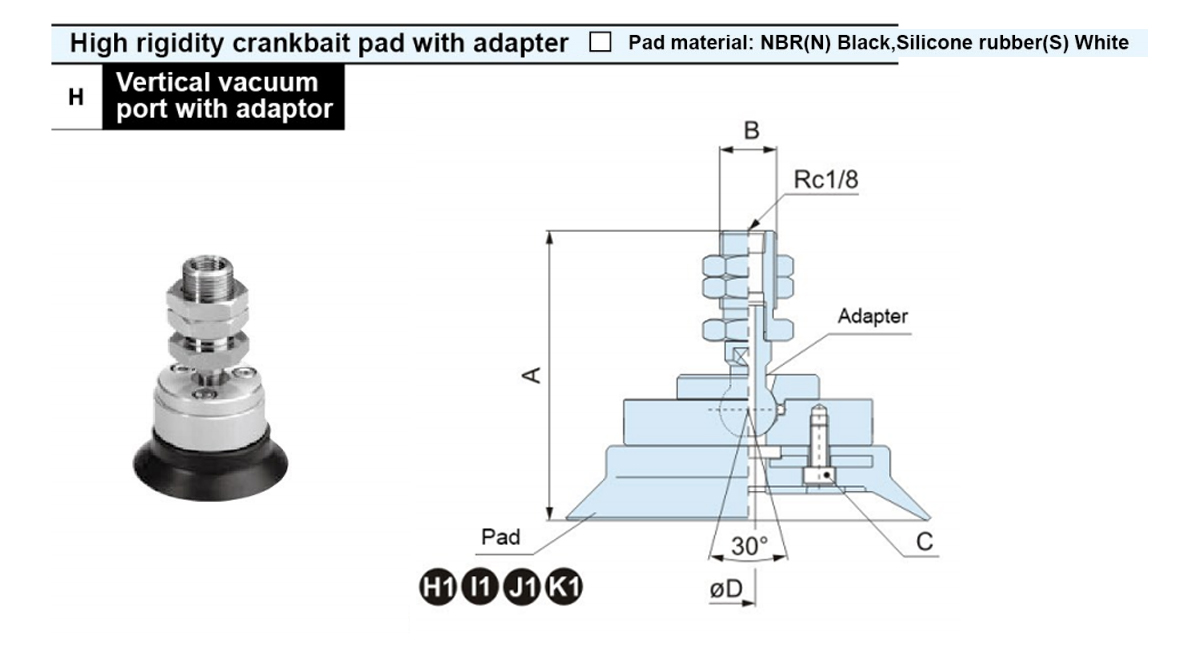

    Mode A B C ØD Modeloo ng Adapter
    C-ZP2-TF32H□ 55.5 M14×1 3-M2.5×0.45 2 ZP2A-TF0
    C-ZP2-TF40H□ 59 3-M3×0.5 ZP2A-TF1
    C-ZP2-TF50H□
    C-ZP2-TF63H□ 74 M16×1.5 4-M4×0.7 4 ZP2A-TF2
    C-ZP2-TF80H□ 76
    C-ZP2-TF100H□ 81.5 4-M5×0.8 ZP2A-TF3

    C-ZP2-TF125H□

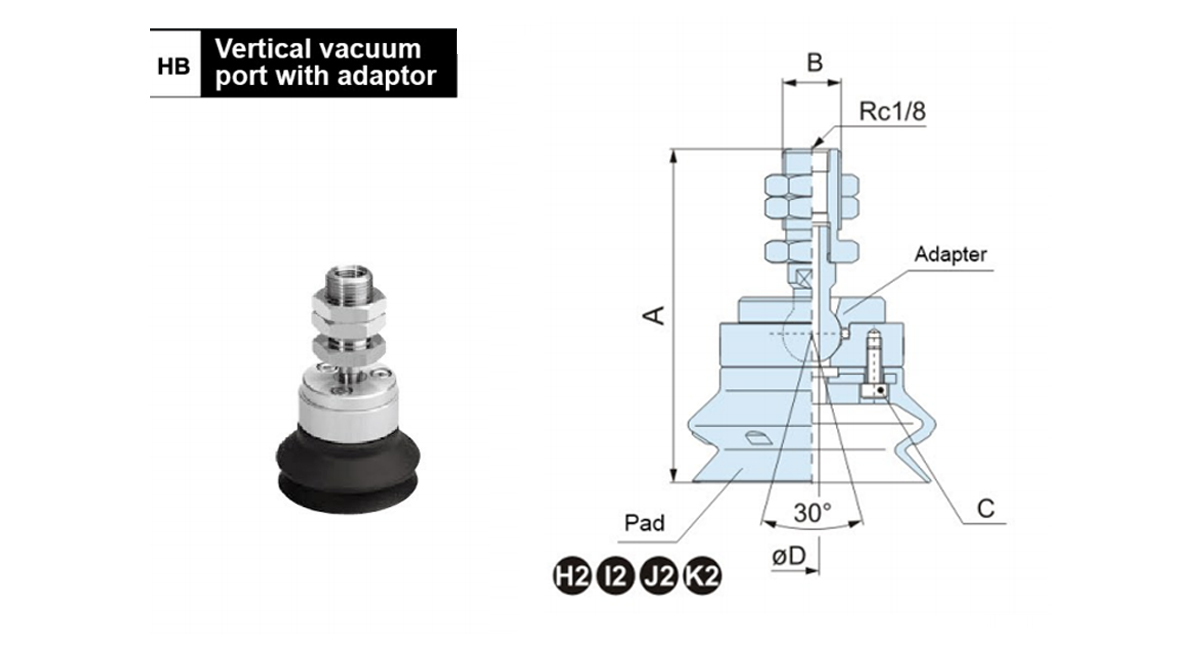

    Mode A B C ØD Modeloo ng Adapter
    C-ZP2-TF32HB□ 66 M14×1 3-M2.5×0.45 2 ZP2A-TF0
    C-ZP2-TF40HB□ 68 3-M3×0.5 ZP2A-TF1
    C-ZP2-TF50HB□ 71.5
    C-ZP2-TF63HB□ 91 M16×1.5 4-M4×0.7 4 ZP2A-TF2
    C-ZP2-TF80HB□ 96.5
    C-ZP2-TF100HB□ 108 4-M5×0.8 ZP2A-TF3
    C-ZP2-TF125HB 116.5

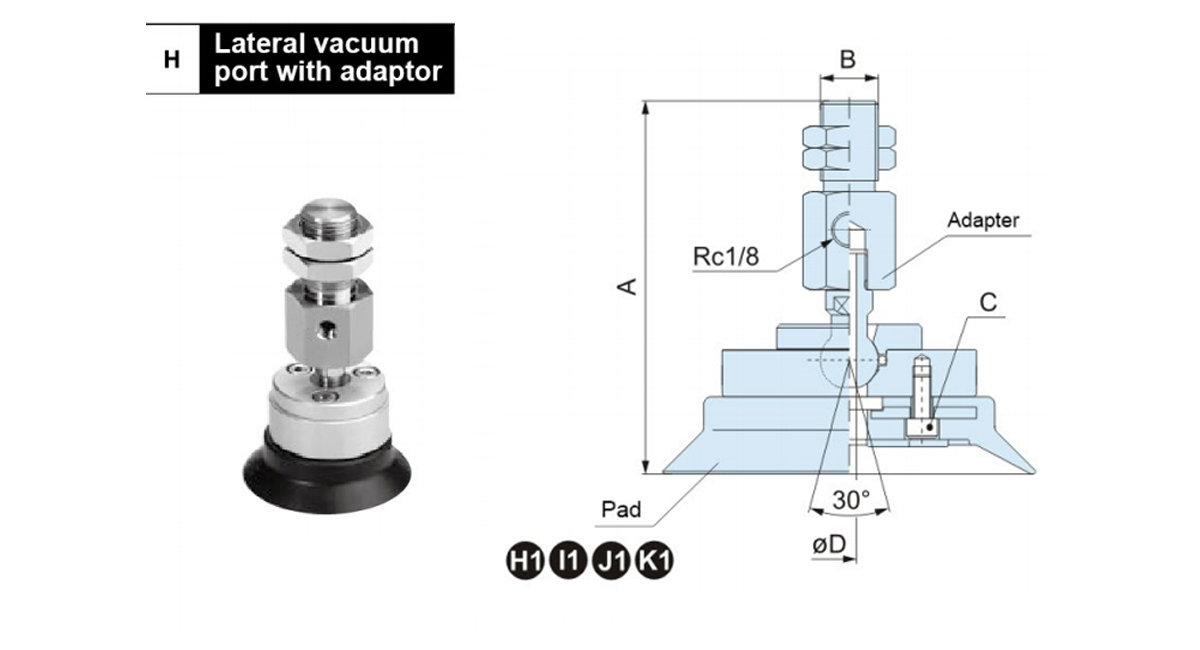

    Mode A B C ØD Modeloo ng Adapter
    C-ZP2-XF32H□ 67.5 M14×1 3-M2.5×0.45 2 ZP2A-XF0
    C-ZP2-XF40H□ 71 3-M3×0.5 ZP2A-XF1
    C-ZP2-XF50H□
    C-ZP2-XF63H□ 95 M16×1.5 4-M4×0.7 4 ZP2A-XF2
    C-ZP2-XF80H□ 97
    C-ZP2-XF100H□ 102.5 4-M5×0.8 ZP2A-XF3
    C-ZP2-XF125H□

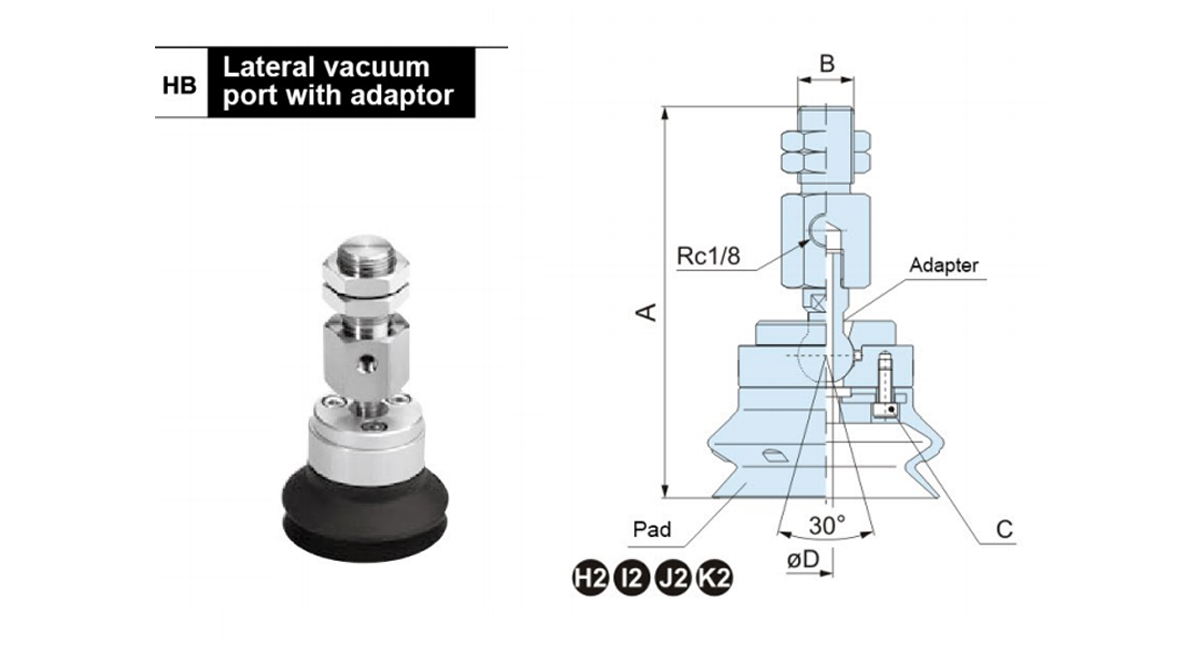

    Mode A B C ØD Modeloo ng Adapter
    C-ZP2-XF32HB□ 78 M14×1 3-M2.5×0.45 2 ZP2A-XF0
    C-ZP2-XF40HB□ 80 3-M3×0.5 ZP2A-XF1
    C-ZP2-XF50HB□ 83.5
    C-ZP2-XF63HB□ 112 M16×1.5 4-M4×0.7 4 ZP2A-XF2
    C-ZP2-XF80HB□ 117.5
    C-ZP2-XF100HB□ 129 4-M5×0.8 ZP2A-XF3
    C-ZP2-XF125HB□ 137.5

    Mode A B C D E F G H I ØJ Buffer Support Model
    C-ZP2-TF32H□JB25 146 40 35 9 42.5 13 27 M18×1.5 14 2 ZP2B-TFOJB25
    C-ZP2-TF32H□ JB50 181 75 ZP2B-TFOJB50
    C-ZP2-TF32H□JB75 217 111 ZP2B-TFOJB75
    C-ZP2-TF40H□JB25 149.5 40 ZP2B-TF1JB25
    C-ZP2-TF40H□JB50 184.5 75 ZP2B-TF1JB50
    C-ZP2-TF40H□JB75 220.5 111 ZP2B-TF1JB75
    C-ZP2-TF50H□JB25 149.5 40 ZP2B-TF1JB25
    C-ZP2-TF50H□JB50 184.5 75 ZP2B-TF1JB50
    C-ZP2-TF50H□JB75 220.5 111 ZP2B-TF1JB75
    C-ZP2-TF63H□JB25 187 44 50 9.5 54.5 17 30 M22×1.5 17 4 ZP2B-TF2JB25
    C-ZP2-TF63H□JB50 223 80 ZP2B-TF2JB50
    C-ZP2-TF63H□JB75 263 120 ZP2B-TF2JB75
    C-ZP2-TF63H□JB100 298 155 ZP2B-TF2JB100
    C-ZP2-TF80H□JB25 189 44 ZP2B-TF2JB25
    C-ZP2-TF80H□JB50 225 80 ZP2B-TF2JB50
    C-ZP2-TF80H□JB75 265 120 ZP2B-TF2JB75
    C-ZP2-TF80H□JB100 300 155 ZP2B-TF2JB100
    C-ZP2-TF100H□JB25 194.5 44 55.5 ZP2B-TF3JB25
    C-ZP2-TF100H□JB50 230.5 80 ZP2B-TF3JB50
    C-ZP2-TF100H□JB75 270.5 120 ZP2B-TF3JB75
    C-ZP2-TF100H□JB100 305.5 155 ZP2B-TF3JB100
    C-ZP2-TF125H□JB25 194.5 44 ZP2B-TF3JB25
    C-ZP2-TF125H□JB50 230.5 80 ZP2B-TF3JB50
    C-ZP2-TF125H□JB75 270.5 120 ZP2B-TF3JB75
    C-ZP2-TF125H□JB100 305.5 155 ZP2B-TF3JB100

    Mode A B C D E F G H I ØJ Buffer Support Model
    C-ZP2-TF32HB□ JB25 156.5 40 35 9 42.5 13 27 M18×1.5 14 ZP2B-TFOJB25
    C-ZP2-TF32HB□ JB50 191.5 75 ZP2B-TFOJB50
    C-ZP2-TF32HB□ JB75 227.5 111 ZP2B-TFOJB75
    C-ZP2-TF40HB□ JB25 158.5 40 ZP2B-TF1JB25
    C-ZP2-TF40HB□ JB50 193.5 75 2 ZP2B-TF1JB50
    C-ZP2-TF40HB□JB75 229.5 111 ZP2B-TF1JB75
    C-ZP2-TF50HB□ JB25 158.5 40 ZP2B-TF1JB25
    C-ZP2-TF50HB□ JB50 193.5 75 ZP2B-TF1JB50
    C-ZP2-TF50HB□ JB75 229.5 111 ZP2B-TF1JB75
    C-ZP2-TF63HB□ JB25 204 44 50 9.5 54.5 30 M22×1.5 17 4 ZP2B-TF2JB25
    C-ZP2-TF63HB□ JB50 240 80 ZP2B-TF2JB50
    C-ZP2-TF63HB□ JB75 280 120 17 ZP2B-TF2JB75
    C-ZP2-TF63HB□ JB100 315 155 ZP2B-TF2JB100
    C-ZP2-TF80HB□ JB25 209.5 44 ZP2B-TF2JB25
    C-ZP2-TF80HB□ JB50 245.5 80 ZP2B-TF2JB50
    C-ZP2-TF80HB□ JB75 285.5 120 ZP2B-TF2JB75
    C-ZP2-TF80HB□JB100 320.5 155 ZP2B-TF2JB100
    C-ZP2-TF100HB□ JB25 221 44 55.5 ZP2B-TF3JB25
    C-ZP2-TF100HB□ JB50 257 80 ZP2B-TF3JB50
    C-ZP2-TF100HB□ JB75 297 120 ZP2B-TF3JB75
    C-ZP2-TF100HB□ JB100 332 155 ZP2B-TF3JB100
    C-ZP2-TF125HB□ JB25 229.5 44 ZP2B-TF3JB25
    C-ZP2-TF125HB□ JB50 265.5 80 ZP2B-TF3JB50
    C-ZP2-TF125HB□ JB75 305.5 120 ZP2B-TF3JB75
    C-ZP2-TF125HB□ JB100 340.5 155

    ZP2B-TF3JB100

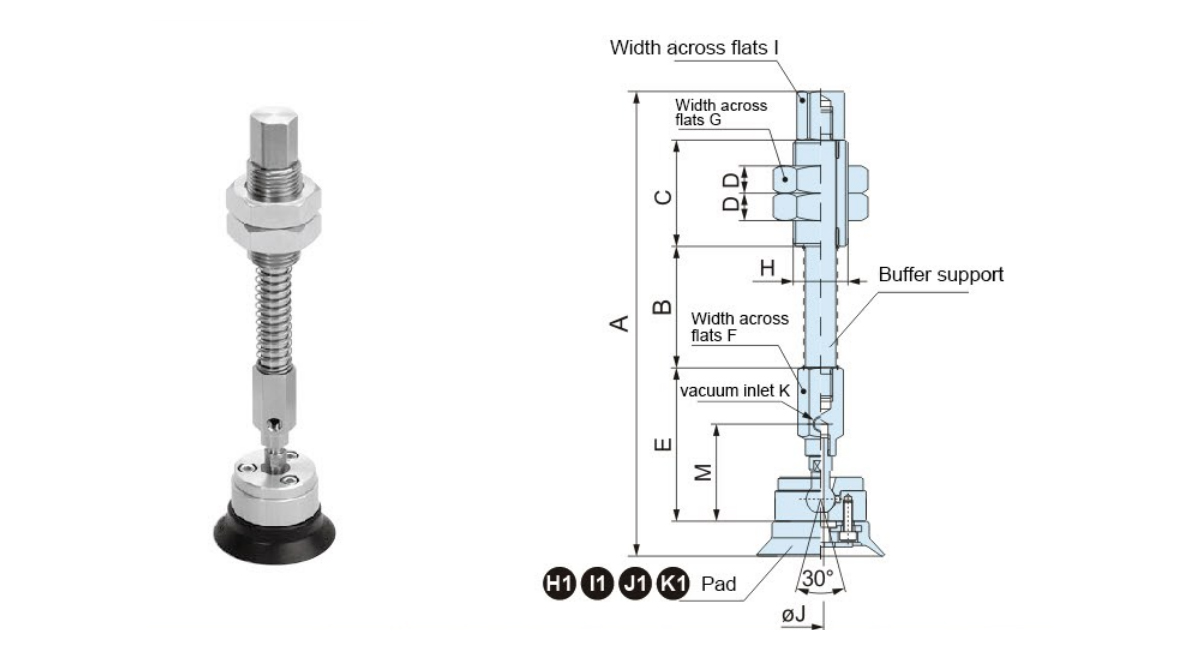

    Mode A B C D E F G H 1 ØJ K M Buffer Support Model
    C-ZP2-XF32H□JB25 149.5 40 35 9 50.5 13 27 M18×1.5 14 2 M5×0.8 32 ZP2B-XFOJB25
    C-ZP2-XF32H□JB50 184.5 75 ZP2B-XFOJB50
    C-ZP2-XF32H□JB75 220.5 111 ZP2B-XFOJB75
    C-ZP2-XF40H□JB25 153 40 ZP2B-XF1JB25
    C-ZP2-XF40H□JB50 188 75 ZP2B-XF1JB50
    C-ZP2-XF40H□JB75 224 111 ZP2B-XF1JB75
    C-ZP2-XF50H□JB25 153 40 ZP2B-XF1JB25
    C-ZP2-XF50H□JB50 188 75 ZP2B-XF1JB50
    C-ZP2-XF50H□JB75 224 111 ZP2B-XF1JB75
    C-ZP2-XF63H□JB25 197 44 50 9.5- 67.5 22 30 M22×1.5 17 4 Rc1/8 45 ZP2B-XF2JB25
    C-ZP2-XF63H□JB50 233 80 ZP2B-XF2JB50
    C-ZP2-XF63H□JB75 273 120 ZP2B-XF2JB75
    C-ZP2-XF63H□JB100 308 155 ZP2B-XF2JB100
    C-ZP2-XF80H□JB25 199 44 ZP2B-XF2JB25
    C-ZP2-XF80H□JB50 235 80 ZP2B-XF2JB50
    C-ZP2-XF80H□JB75 275 120 ZP2B-XF2JB75
    C-ZP2-XF80H□JB100 310 155 ZP2B-XF2JB100
    C-ZP2-XF100H□JB25 204.5 44 68.5 46 ZP2B-XF3JB25
    C-ZP2-XF100H□JB50 240.5 80 ZP2B-XF3JB50
    C-ZP2-XF100H□ JB75 280.5 120 ZP2B-XF3JB75
    C-ZP2-XF100H□ JB100 315.5 155 ZP2B-XF3JB100
    C-ZP2-XF125H□ JB25 204.5 44 ZP2B-XF3JB25
    C-ZP2-XF125H□ JB50 240.5 80 ZP2B-XF3JB50
    C-ZP2-XF125H□ JB75 280.5 120 ZP2B-XF3JB75
    C-ZP2-XF125H□ JB100 315.5 155 ZP2B-XF3JB100

    Model A B C D E F G H 1 ØJ K M Buffer Support Model
    C-ZP2-XF32HB□JB25 160 40 35 9 50.5 13 27 M18×1.5 14 2 M5×0.8 32 ZP2B-XFOJB25
    C-ZP2-XF32HB□JB50 195 75 ZP2B-XFOJB50
    C-ZP2-XF32HB□JB75 231 111 ZP2B-XFOJB75
    C-ZP2-XF40HB□JB25 162 40 ZP2B-XF1JB25
    C-ZP2-XF40HB□JB50 197 75 ZP2B-XF1JB50
    C-ZP2-XF40HB□JB75 233 111 ZP2B-XF1JB75
    C-ZP2-XF50HB□JB25 165.5 40 ZP2B-XF1JB25
    C-ZP2-XF50HB□JB50 200.5 75 ZP2B-XF1JB50
    C-ZP2-XF50HB□JB75 236.5 111 ZP2B-XF1JB75
    C-ZP2-XF63HB□JB25 214 44 50 9.5 67.5 22 30 M22×1.5 17 4 Rc1/8 45- ZP2B-XF2JB25
    C-ZP2-XF63HB□JB50 250 80 ZP2B-XF2JB50
    C-ZP2-XF63HB□JB75 290 120 ZP2B-XF2JB75
    C-ZP2-XF63HB□JB100 325 155 ZP2B-XF2JB100
    C-ZP2-XF80HB□JB25 219.5 44 ZP2B-XF2JB25
    C-ZP2-XF80HB□JB50 255.5 80 ZP2B-XF2JB50
    C-ZP2-XF80HB□JB75 295.5 120 ZP2B-XF2JB75
    C-ZP2-XF80HB□JB100 330.5 155 ZP2B-XF2JB100
    C-ZP2-XF100HB□ JB25 231 44 68.5 46 ZP2B-XF3JB25
    C-ZP2-XF100HB□ JB50 267 80 ZP2B-XF3JB50
    C-ZP2-XF100HB□ JB75 307 120 ZP2B-XF3JB75
    C-ZP2-XF100HB□ JB100 342 155 ZP2B-XF3JB100
    C-ZP2-XF125HB□ JB25 239.5 44 ZP2B-XF3JB25
    C-ZP2-XF125HB□ JB50 275.5 80 ZP2B-XF3JB50
    C-ZP2-XF125HB□ JB75 315.5 120 ZP2B-XF3JB75
    C-ZP2-XF125HB□JB100 350.5 155 ZP2B-XF3JB100
