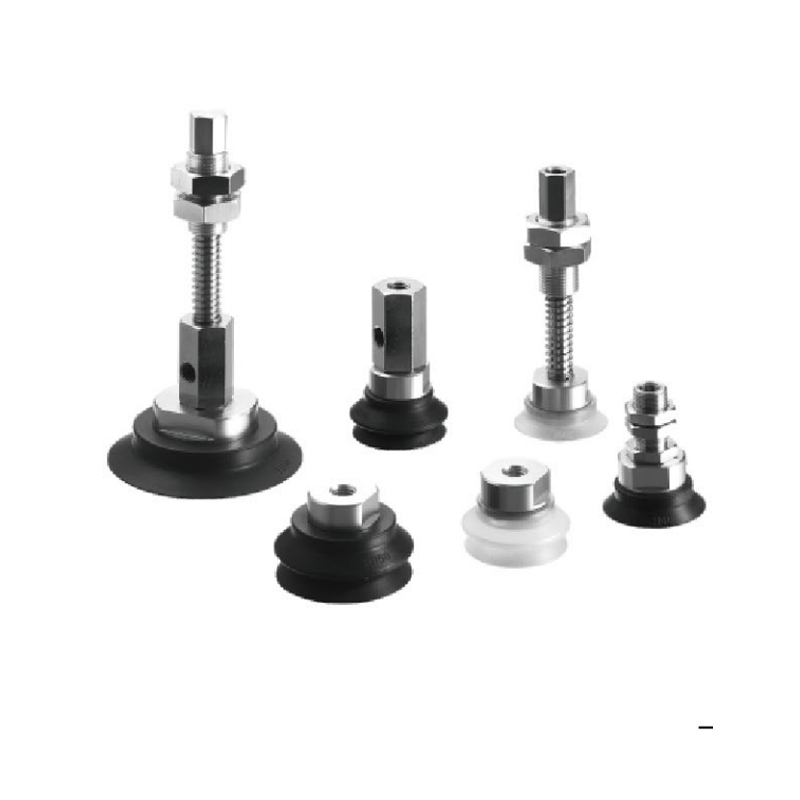

ZP Series Heavy Duty Vacuum Suction Cup na May Adapter at Buffer Bracket (Ø32~Ø340)
  • ZP Series Heavy Duty Vacuum Suction Cup na May Adapter at Buffer Bracket (Ø32~Ø340)
ZP Series Heavy Duty Vacuum Suction Cup, Adapter at Buffer Bracket

ZP Series Heavy Duty Vacuum Suction Cup na May Adapter at Buffer Bracket (Ø32~Ø340)

Ang ZP Series Heavy Duty Vacuum Suction Cup With Adapter & Buffer Bracket (Ø32~Ø340) ay kumakatawan sa isang pinagsama-samang solusyon sa paghawak ng vacuum na idinisenyo upang matugunan ang hinihingi na mga pangangailangan sa pang-industriyang gripping. Pinagsasama nito ang core heavy-duty suction cup, key interface adapter at kinakailangang buffer bracket sa isa, na sumasaklaw sa malawak na hanay ng mga laki, at idinisenyo upang magbigay ng maaasahan at madaling ibagay na vacuum gripping base unit para sa paghawak ng mabibigat, hindi regular o makinis na workpiece.

Mga Pangunahing Tampok:
Kakayahang umangkop sa mga kondisyon ng high-load: Ang pangunahing konsepto ng disenyo ay umiikot sa pagtaas ng pinakamataas na limitasyon ng load bearing capacity ng vacuum system upang matugunan ang mabibigat na pangangailangan sa paghawak ng workpiece na lampas sa kapasidad ng mga ordinaryong suction cup at matugunan ang mga hamon sa lakas ng mga pang-industriyang site.

Malawak na laki ng saklaw ng spectrum: Nagbibigay ng iba't ibang opsyon sa katawan ng suction cup mula sa mas maliliit na sukat hanggang sa napakalaking lugar (na sumasaklaw sa hanay ng Ø32 hanggang Ø340), na maaaring flexible na tumugma sa iba't ibang laki ng workpiece, contour at mga kinakailangan sa pamamahagi ng timbang.

Pinagsamang interface ng adapter: Ang karaniwang adapter ay nagsisilbing isang nakalaang transfer hub sa pagitan ng suction cup body at ng downstream na vacuum system (gaya ng generator, distributor) o actuator (gaya ng dulo ng robot arm), na tinitiyak ang mahusay na koneksyon sa daanan ng gas at pisikal na compatibility.

Naka-embed na mekanismo ng buffer: Ang built-in na elemento ng buffer bracket ay ang kakanyahan ng disenyo. Ang pangunahing halaga nito ay nakasalalay sa pagsipsip ng epekto ng kinetic energy sa sandali ng pakikipag-ugnay at ang mababang dalas na panginginig ng boses sa panahon ng operasyon, na makabuluhang binabawasan ang mekanikal na stress sa ibabaw ng workpiece, istraktura ng suction cup at upstream na kagamitan.

Pagtutugma ng system integration: Ang disenyo ng pangkalahatang solusyon ay nagbibigay ng priyoridad sa kaginhawahan ng pagsasama sa mga pangunahing platform ng automation (tulad ng mga dulo ng braso ng robot at mga slide ng guide rail), na binabawasan ang pagiging kumplikado ng pagbagay sa engineering para sa pag-deploy ng field.

Katatagan at tibay: Ang pagpili ng mga bahagi at disenyo ng istruktura ay nakatuon sa pagpapabuti ng pangmatagalang pagganap ng serbisyo sa tuluy-tuloy na mga siklo ng mabibigat na karga, mga potensyal na banggaan at karaniwang mga pang-industriyang kapaligiran, na tinitiyak ang isang matatag na ikot ng pagpapatakbo.

Garantiyang pagganap ng vacuum sealing: Ang suction cup lip structure at material formulation ay na-optimize para sa heavy-load na application, na nagsusumikap na makamit at mapanatili ang isang epektibong vacuum sealing state sa mga kumplikadong surface (nagbibigay-daan sa isang partikular na antas ng hindi pagkakapantay-pantay).

Mga pangkalahatang sitwasyon ng aplikasyon: Ginagawa nitong natural na angkop ang konsepto ng disenyo ng seryeng ito para sa iba't ibang sitwasyong pang-industriya na kinasasangkutan ng mga metal sheet, malalaking composite na materyales, mabibigat na packaging unit, molds, atbp. na nangangailangan ng malakas at banayad na paghawak at pagpapakawala.

E-mail: manager@cktworld.com
I-download
NAUNA：Walang nakaraang artikulo
SUSUNOD：ZP Series Heavy Duty Vacuum Suction Cup (Ø32~Ø340)

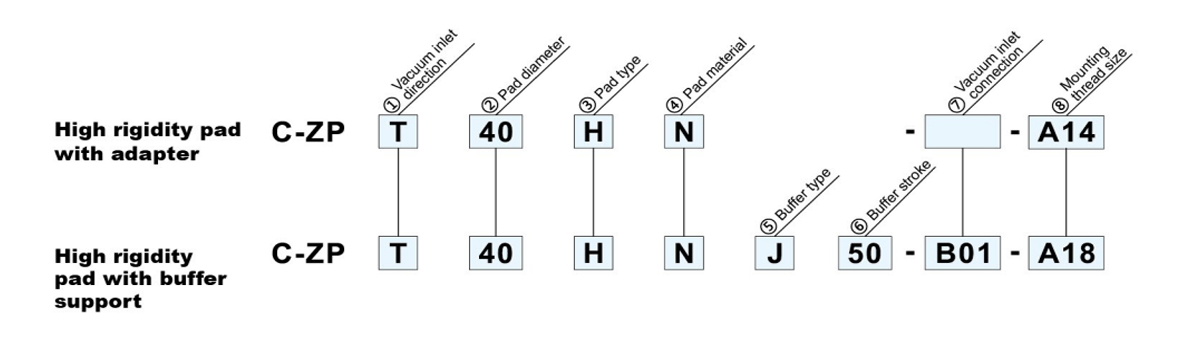

  • ④Pad material □ ②  Pad diameter(mm)○/③Uri ng pad☆ H* ako* J* K* M* N1 O1
    N NBR 32 40 50 63 80 100 125 150 200 250 300 340
    S Siicone goma Ø32 Ø40 Ø50 Ø63 Ø80 Ø100 Ø125 Ø150 Ø200 Ø250 Ø300 Ø340
    Flat na may tadyang ● ● ● ● ● ● ● ● ●

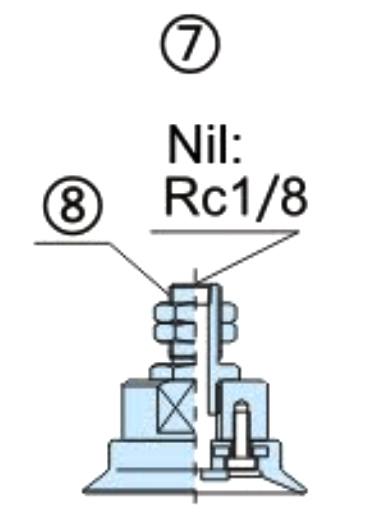

    ① Vacuum  inlet
    direksyon         HB     		2 bellows ● ● ● ● ●
    Gamit ang adapter T Patayo ⑦Vacuum inlet na koneksyon B5 M5×0.8 ●
    B8 M8×1.25 ● ● ●
    B10 M10×1.5 ● ● ●
    B12 M12×1.75 ● ●
    B16 M16×1.5 ● ● ● ●
    B18 M18×1.5 ● ● ●
    B04 Rp1/2 ●
    ⑧Mounting thread A14* M14×1.5 ● ●
    A16 M16×1.5 ● ●

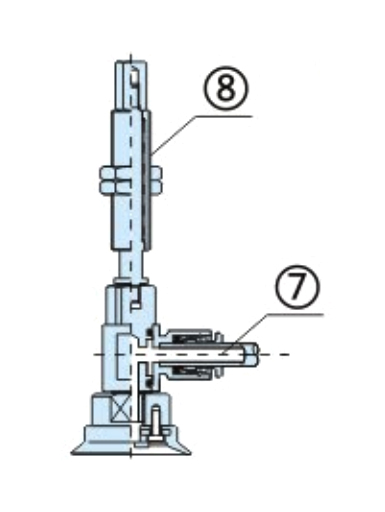

    X Lateral B8 M8×1.25 ● ● ●
    B10 M10×1.5 ● ● ● ●
    B12 M12×1.75 ● ● ●
    ⑦Papasok ng vacuum B01 Rc1/8 ● ● ● ●
    R 04 Ø4 ● ●
    06 Ø6 ● ●
    08 Ø8 ● ●
    ⑧Mounting thread A6 M6×1.0 ● ●
    A8 M8×1.0 ● ●
    B6 M6×1.0 ● ●
    B8 M8×1.25 ● ●
    Gamit ang Customized buffer ⑤
    ●     		J Paikot-ikot ● ●
    K Hindi  na
    paikutin     		● ●
    T Patayo ⑥Buffer storke 10 10   mm ● ●
    20 20   mm ● ●
    30 30   mm ● ●
    50 50   mm ● ●
    ⑦Papasok ng vacuum connection◇ B5 M5×0.8 ● ●
    B01 Rc1/8 ● ●

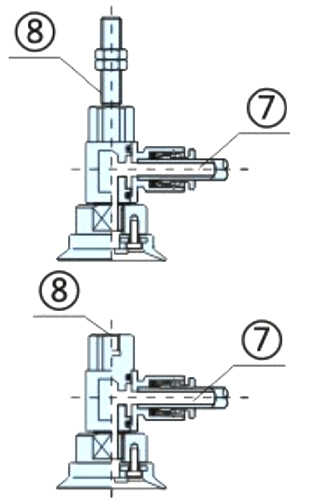

    R Lateral 04 Ø4 ● ●
    06 Ø6 ● ●
    08 Ø8 ● ●
    ⑧ A14 M14×1.0 ● ●
    Gamit ang buffer ⑤
    ●     		J ● ● ● ●
    JB ● ● ● ●
    JF ● ●

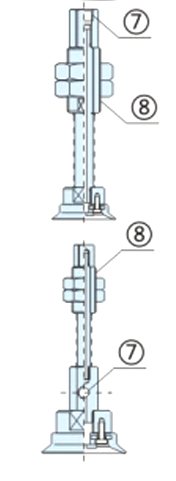

    T Patayo ⑥Buffer storke 20 20   mm ● ●
    25 25   mm ● ● ● ●
    50 50   mm ● ● ● ● ●
    75 75   mm ● ● ●
    X Lateral
    100 100   mm ● ●
    ⑦ B01 Rc1/8 ● ● ● ● ● ●
    B02 Rc1/4
    ⑧Mounting thread size A18 M18×1.5 ● ● ● ● ●
    A22 M22×1.5 ● ●
    A30 M30×1.5
    *A14-3: Pasadyang pag-install ng pinahabang uri ng turnilyo

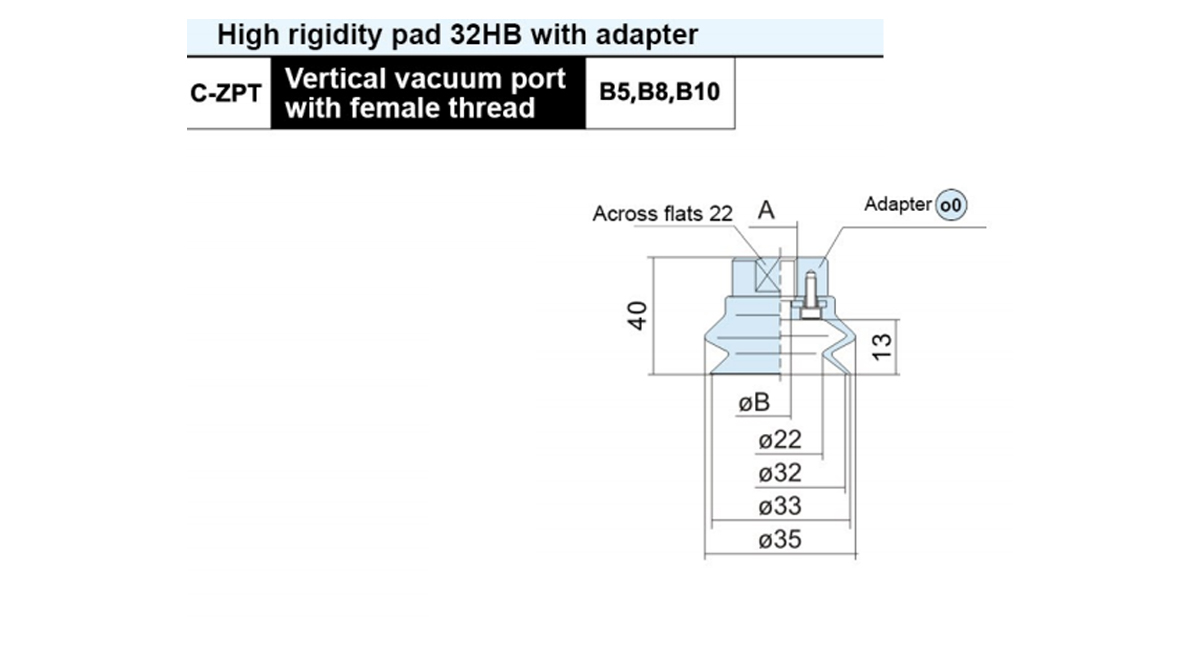

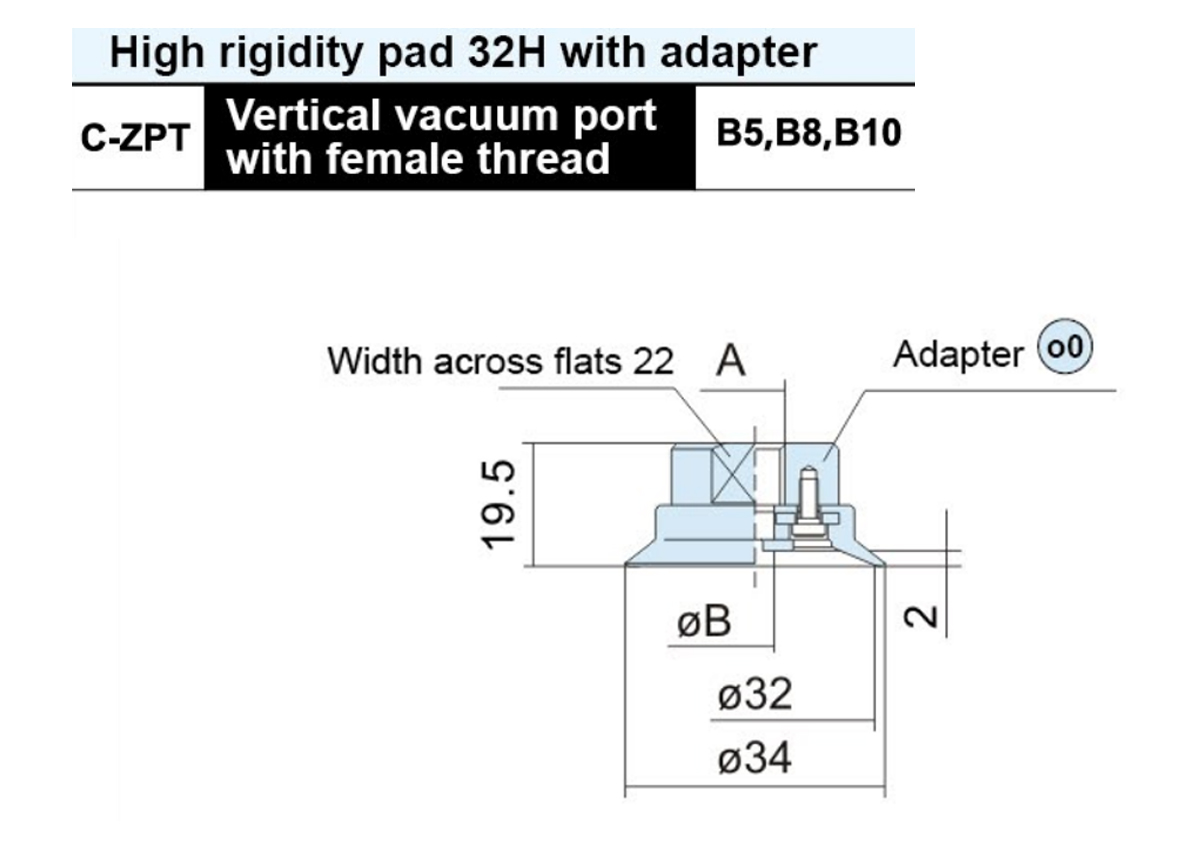

  • Model A ØB Adaptor Model
    C-ZPT32H □ -B5 M5×0.8 4.2 ZPT0-B5
    C-ZPT32H □ -B8 M8×1.25 5 ZPT0-B8
    C-ZPT32H □ -B10 M10×1.5 ZPT0-B10
    □ Pad material:NBR(N)S,Silicone(S)

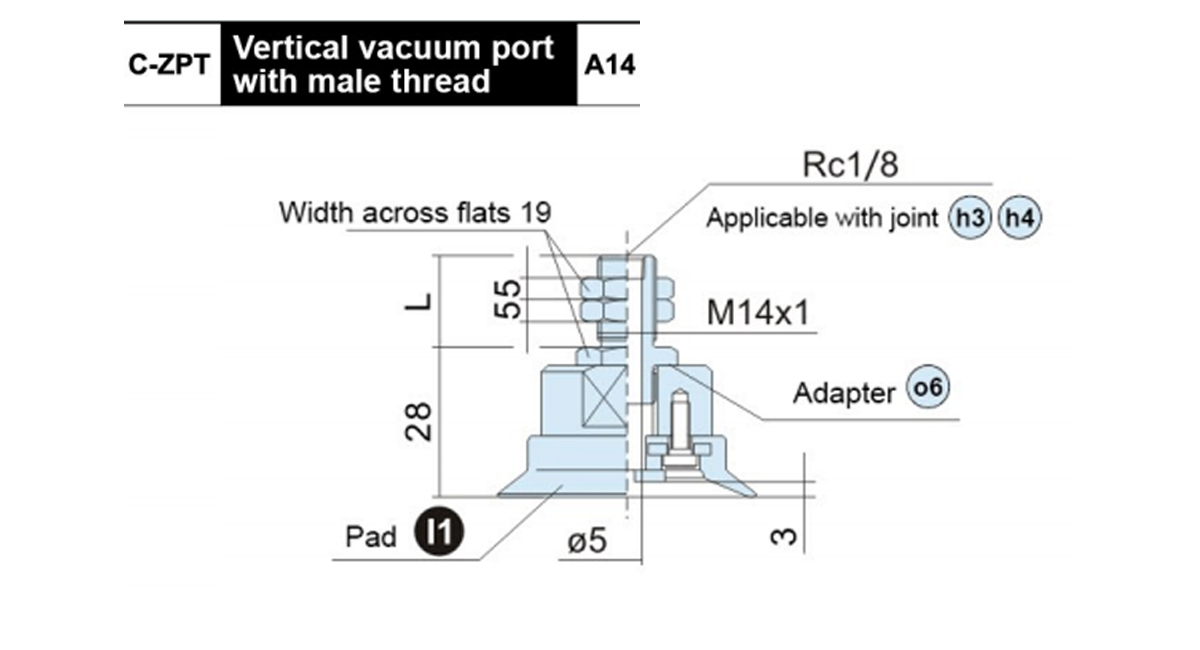

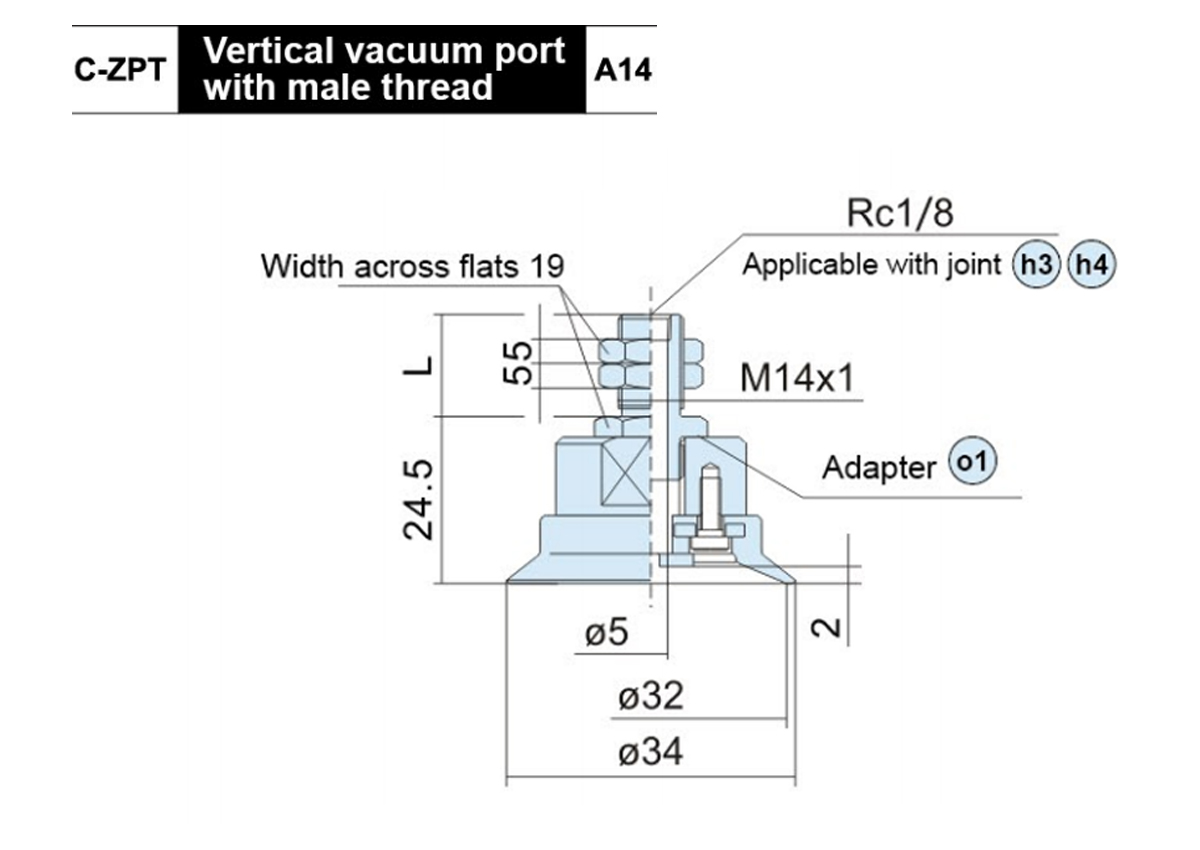

    Model L Adaptor Model
    C-ZPT32H □- A14 25 ZPT0-A14
    C-ZPT32H □- A14-3 40 ZPT0-A14-3
    □ Pad material:NBR(N)S.Silicone(S)

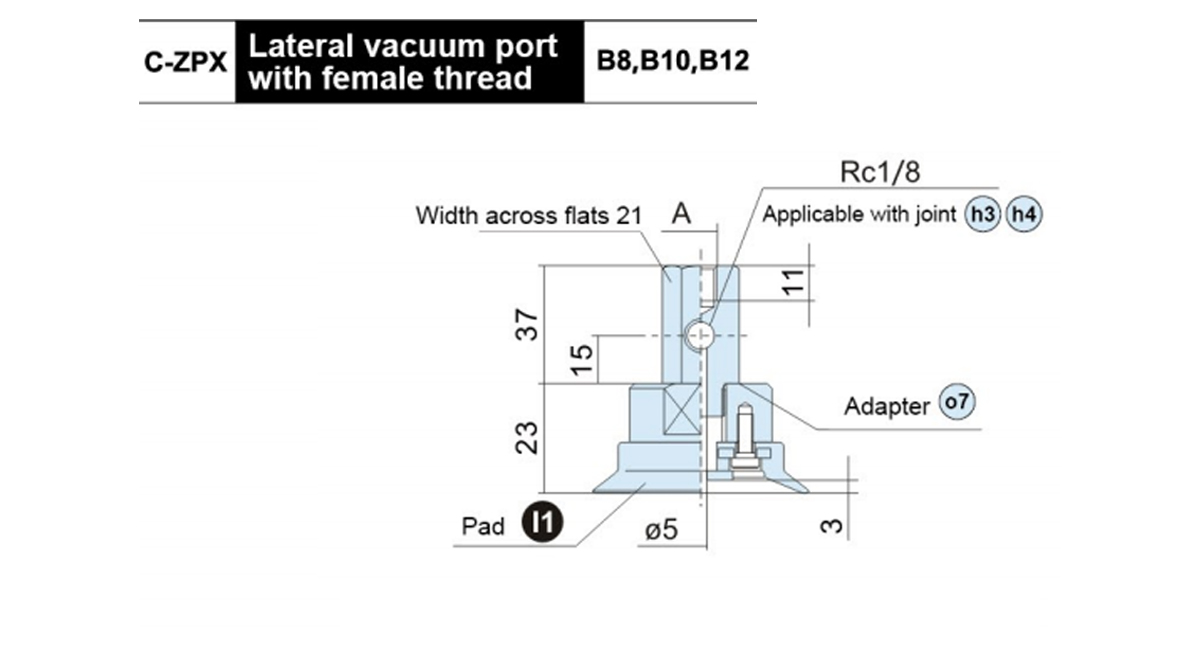

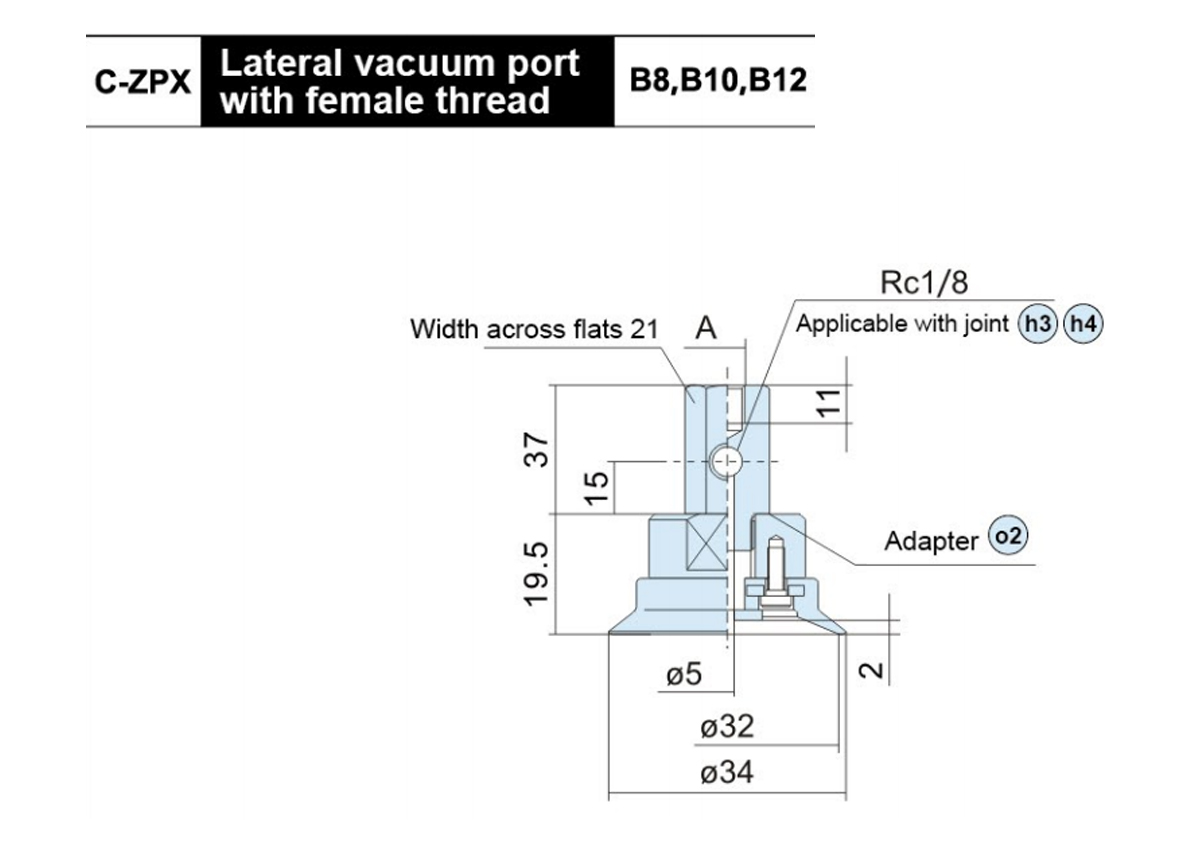

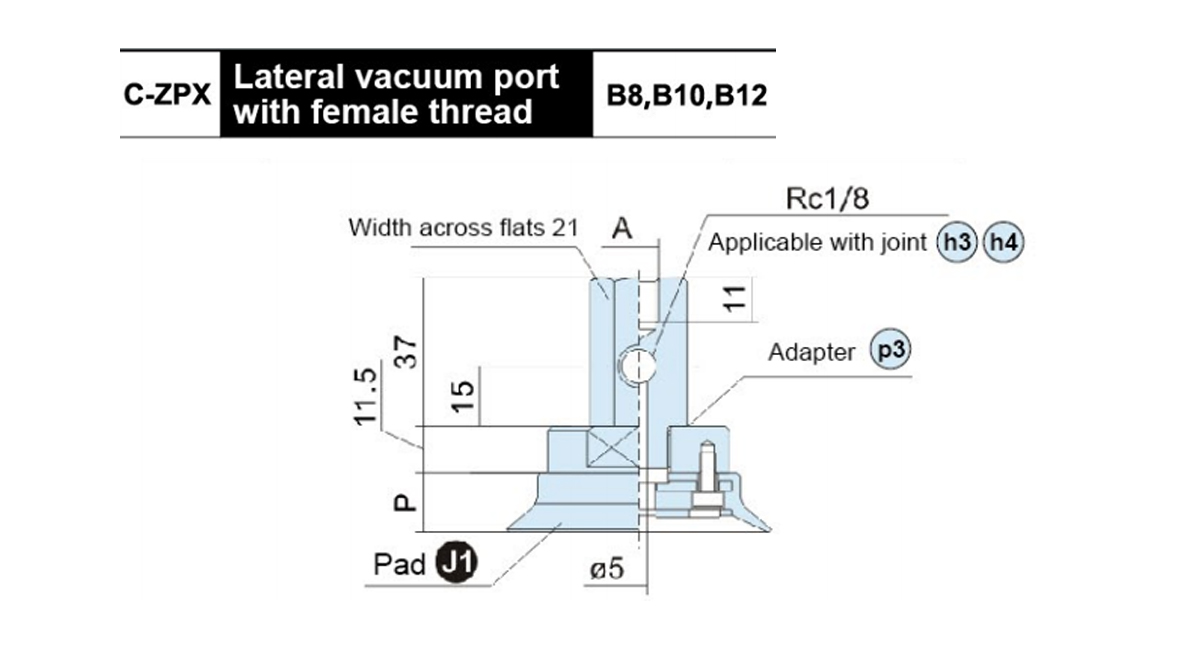

    Model A Adaptor Model
    C-ZPX32H □- B8 M8×1.25 ZPX0-B01-B8
    C-ZPX32H □- B10 M10×1.5 ZPX0-B01-B10
    C-ZPX32H □- B12 M12×1.75 ZPX0-B01-B12
    □Pad material:NBR(N)S,Silicone(S)

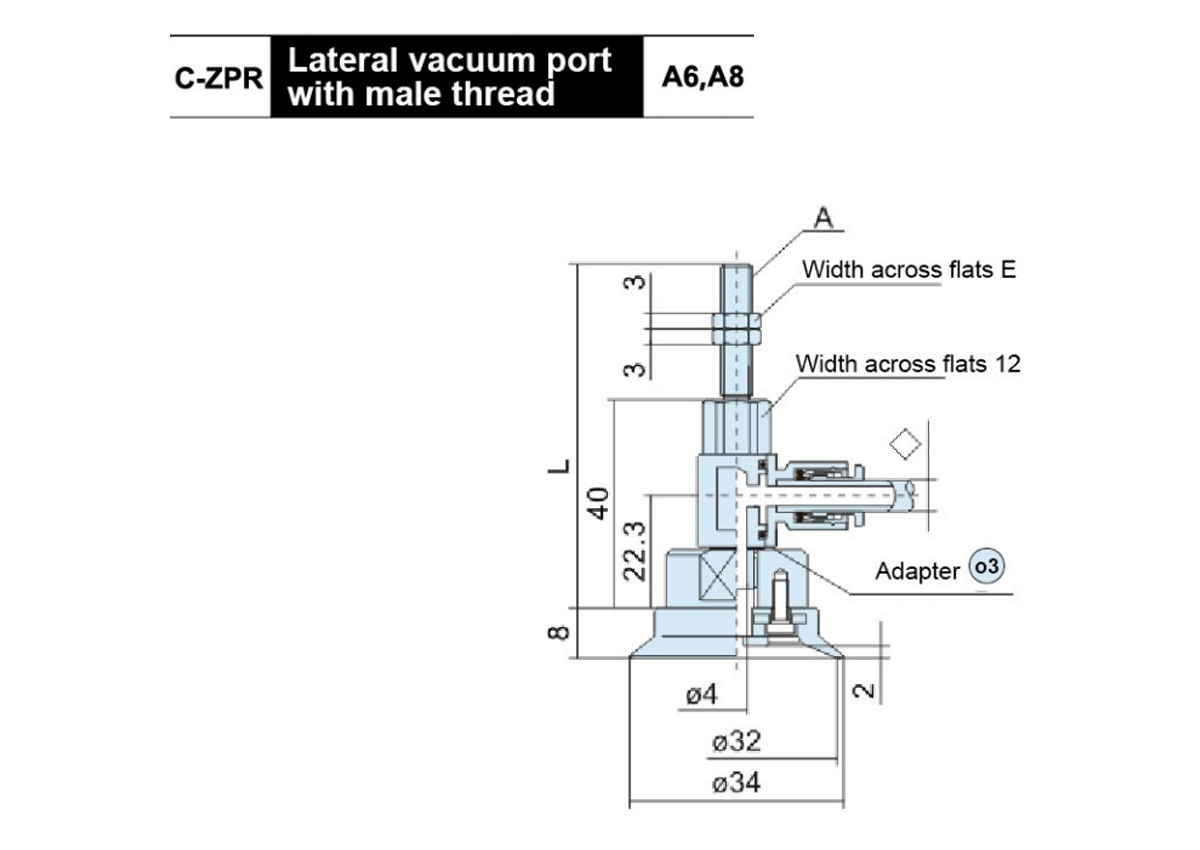

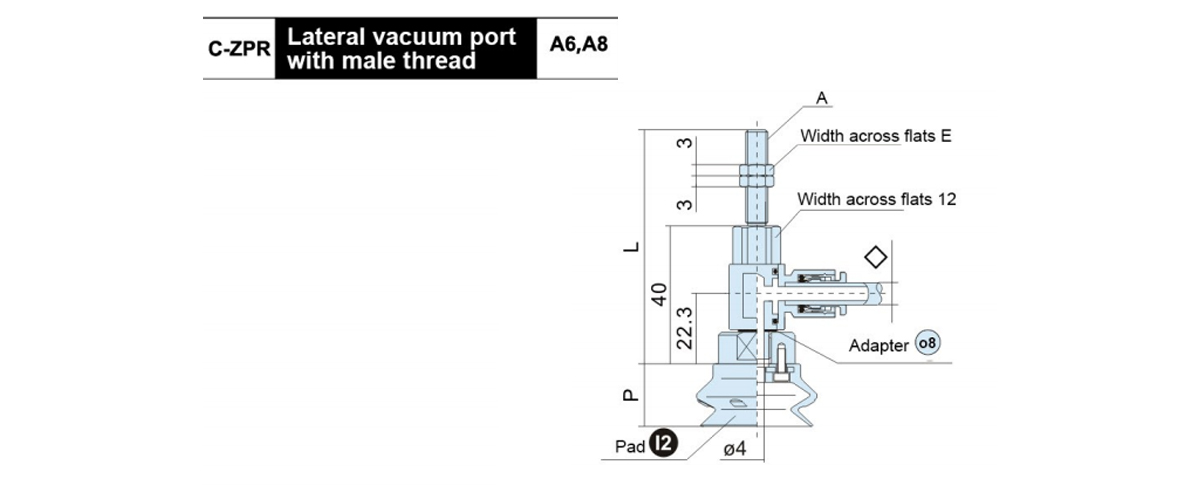

    Model A E L Adaptor Model
    C-ZPR32H □-◇ -A6 M6×1.0 8 66 ZPROH-◇-A6
    C-ZPR32H □-◇- A8 M8×1.0 12 56 ZPROH-◇-A8
    □Pad material:NBR(N)S,Silicone(S)   ◇Vacuum inlet connection:04,06,08

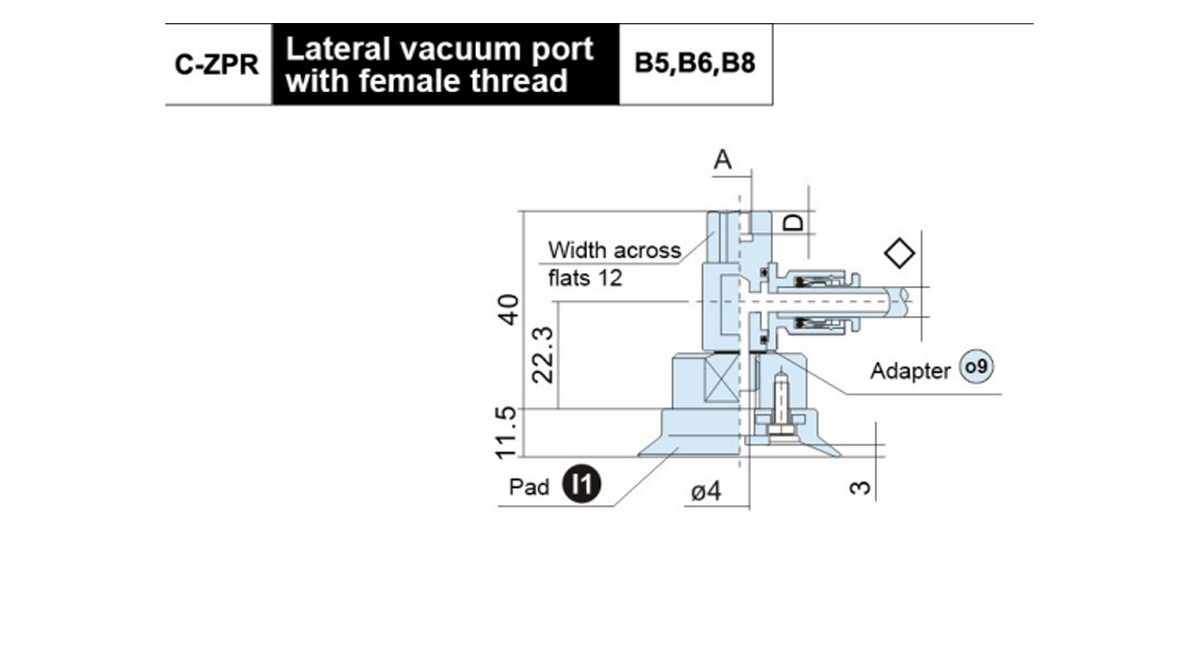

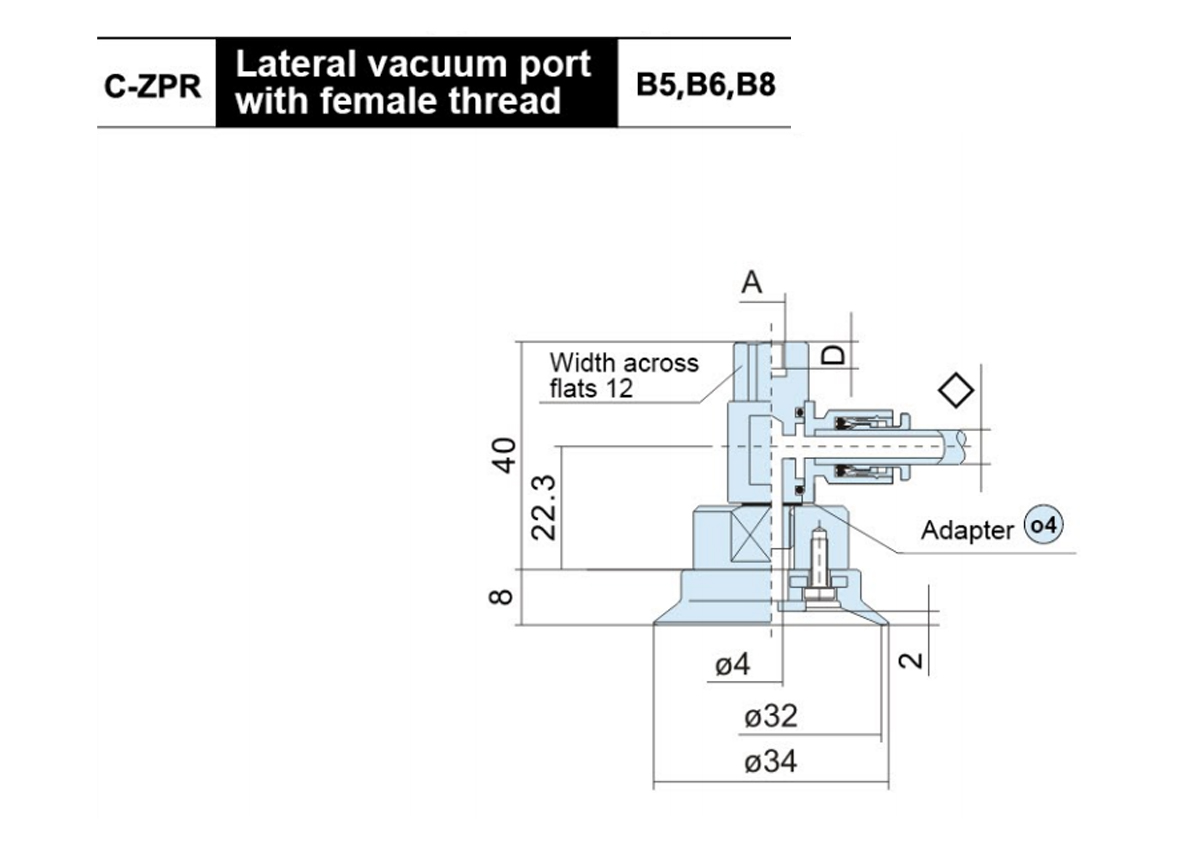

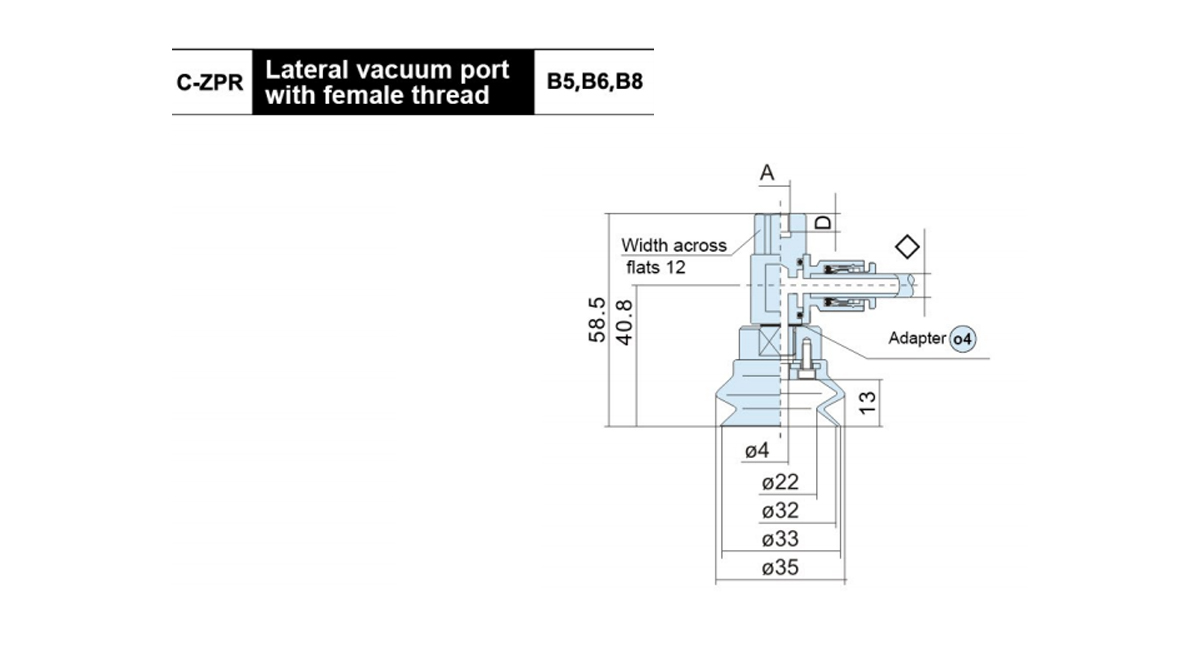

    Model A D Adaptor Model
    C-ZPR32H □-◇- B5 M5×0.8 5 ZPROH-◇-B5
    C-ZPR32H □-◇- B6 M6×1.0 6 ZPROH-◇-B6
    C-ZPR32H □-◇- B8 M8×1.25 8 ZPROH-◇-B8
    □Pad material:NBR(N)S,Silicone(S)   ◇Vacuum inlet connection:04,06,08

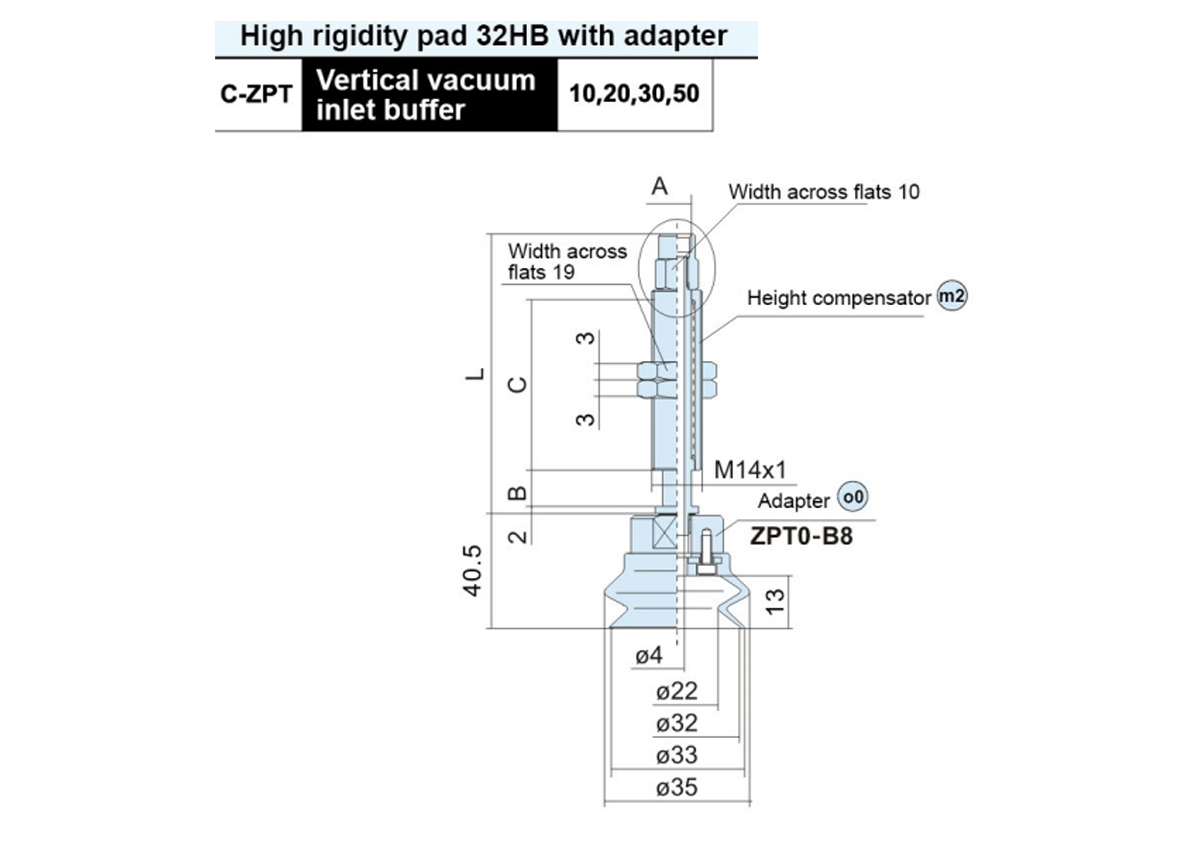

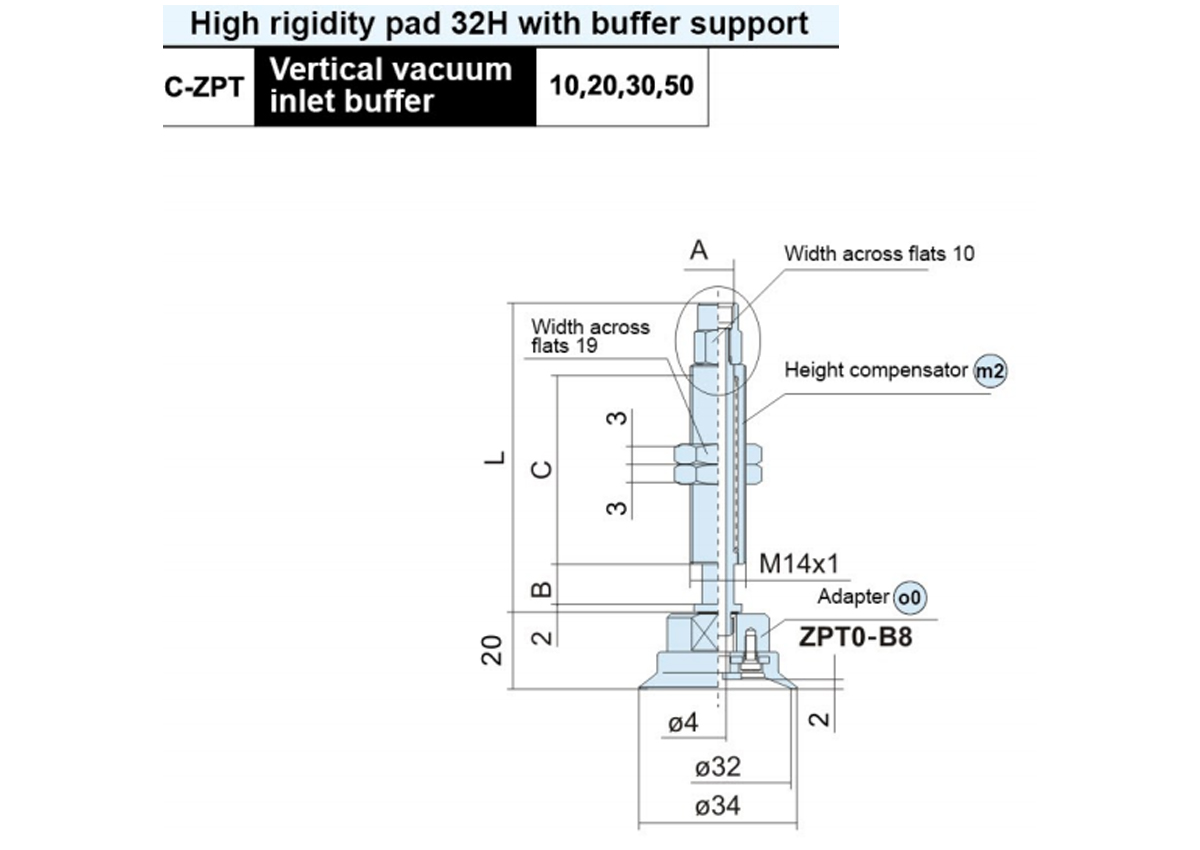

    Model A B C L m2 O0
    Buffer Support Model
    C-ZPT32H □● 10-B5-A14 M5×0.8 10 50 77 ZPT0-●10-B5-A14
    C-ZPT32H □● 20-B5-A14 20 81 ZPT0-●20-B5-A14
    C-ZPT32H □● 30-B5-A14 30 91 ZPT0-●30-B5-A14
    C-ZPT32H □● 50-B5-A14 50 75 136 ZPT0-●50-B5-A14
    C-ZPT32H □● 10-B01-A14 Rc1/8 10 50 78.5 ZPT0-●10-B01-A14
    C-ZPT32H □● 20-B01-A14 20 84 ZPT0-●20-B01-A14
    C-ZPT32H □● 30-B01-A14 30 94 ZPT0-●30-B01-A14
    C-ZPT32H □● 50-B01-A14 50 75 139 ZPT0-●50-B01-A14
    □Pad material:NBR(N)S,Silicone(S)     ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

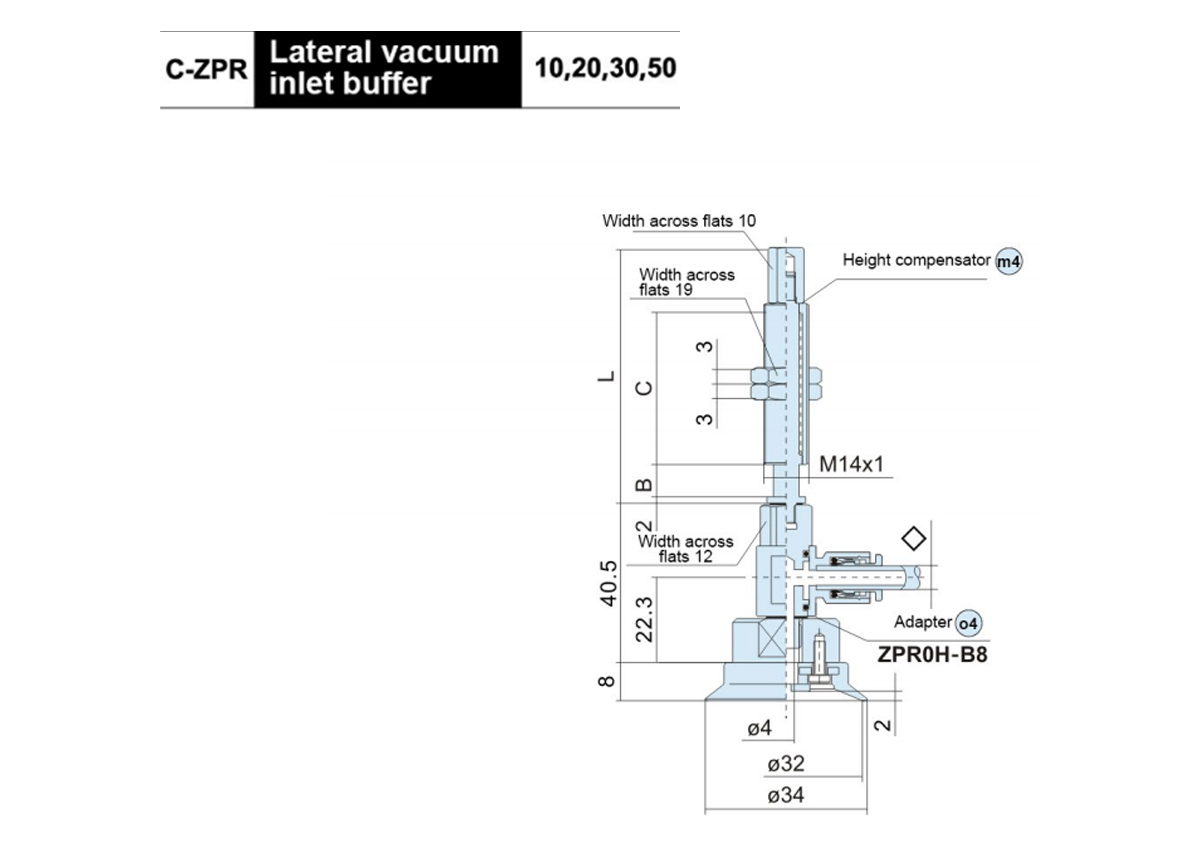

    Model B C L m4 O4
    Buffer Support Model
    C-ZPR32H □● 10 -◇ -A14 10 50 80 ZPR0 -●10-◇-A14
    C-ZPR32H □● 20 -◇- A14 20 77 ZPRO-●20-◇-A14
    C-ZPR32H □● 30 -◇ -A14 30 87 ZPRO-●30-◇-A14
    C-ZPR32H □● 50 -◇- A14 50 75 132 ZPR0- ●50-◇-A14
    □ Pad material:NBR(N)S,Silicone(S)
    ◇ Vacuum inlet connection:04,06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

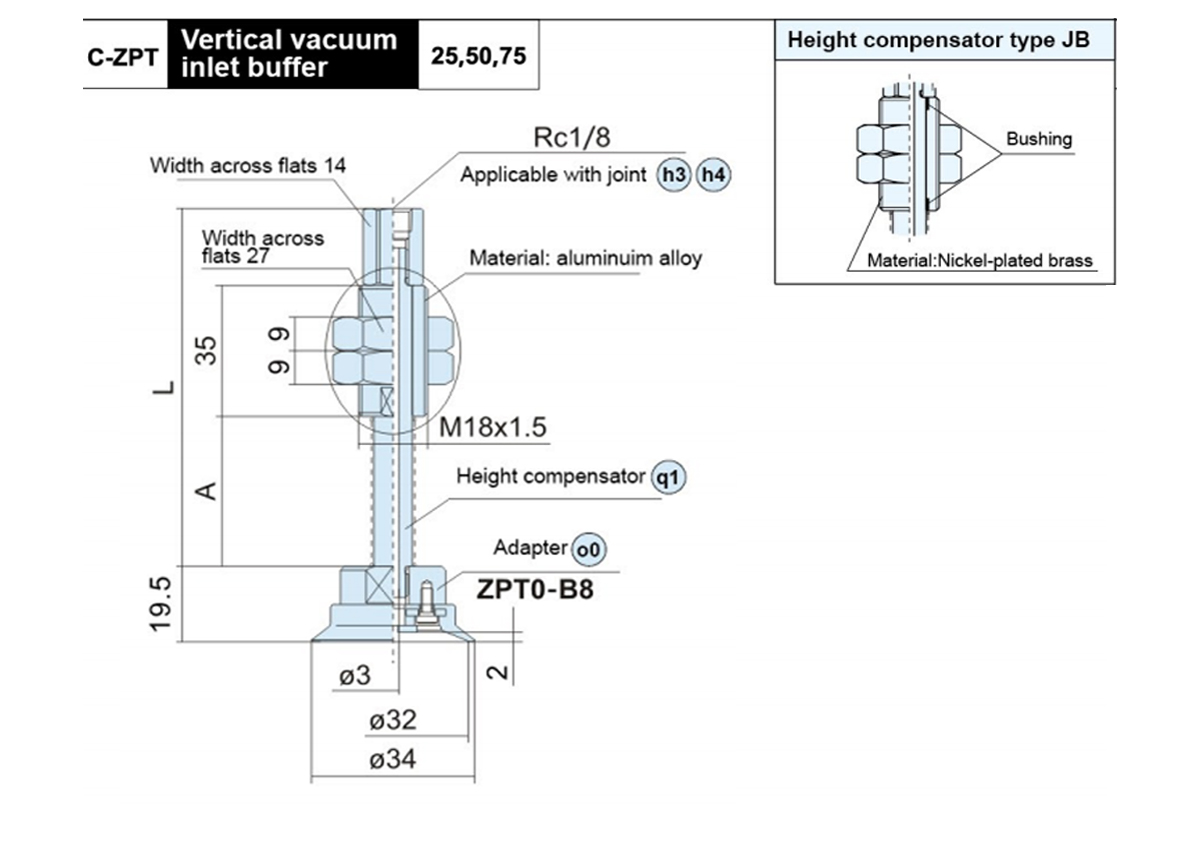

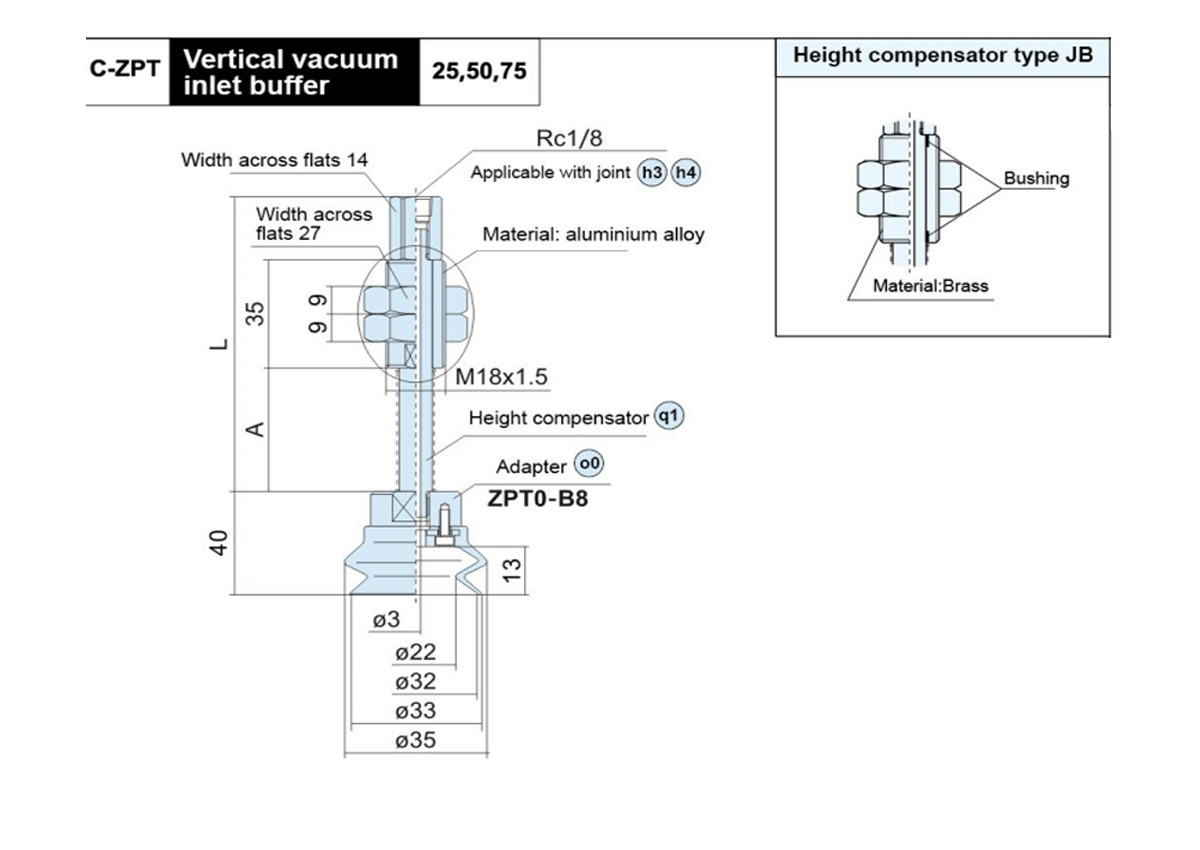

    Model A L q1 O0
    Buffer Support Model
    C-ZPT32H □● 25-B01-A18 40 95.5 ZPB0 ●25-B01-A18
    C-ZPT32H □● 50-B01-A18 75 130.5 ZPBO ●50-B01-A18
    C-ZPT32H □● 75-B01-A18 111 166.5 ZPB0 ●75-B01-A18
    □ Pad material:NBR(N)S,Silicone(S)  ● Height compensator type:Aluminium alloy(J)
    Brass(JB)

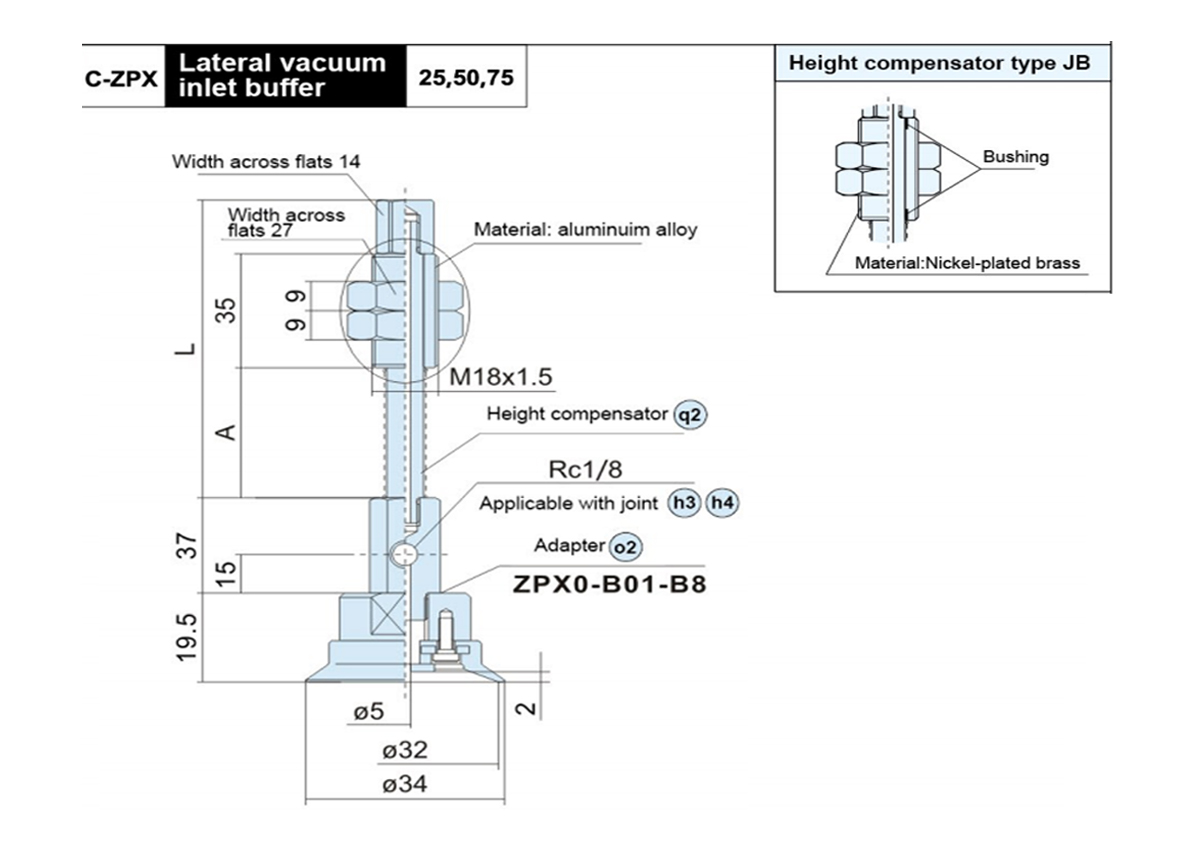

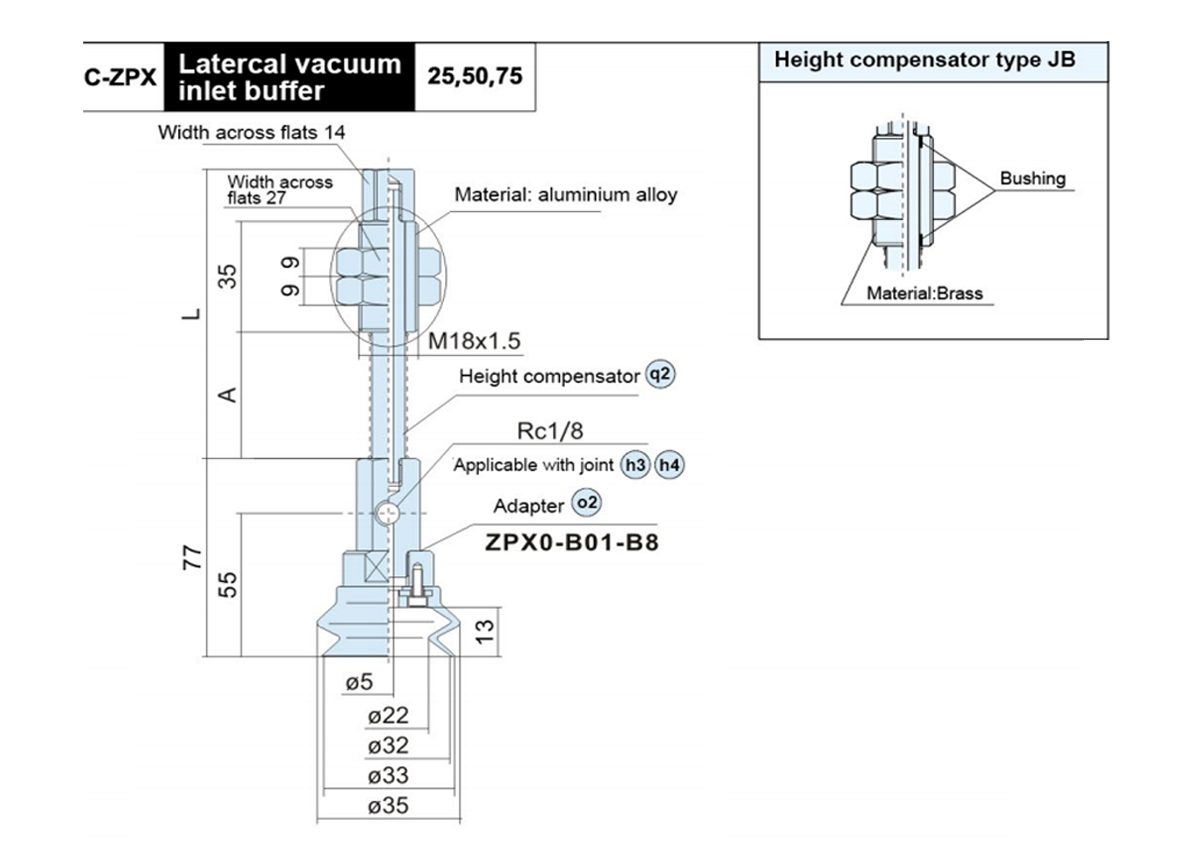

    Model A L q2 O2
    Buffer Support Model
    C-ZPX32H □● 25-B01-A18 40 91 ZPX0 ●25-B01-A18
    C-ZPX32H □● 50-B01-A18 75 126 ZPX0 ●50-B01-A18
    C-ZPX32H □● 75-B01-A18 111 162 ZPX0 ●75-B01-A18
    □ Pad material:NBR(N)S,Silicone(S) ●Height compensator type:Aluminium alloy(J)
    Brass(JB)

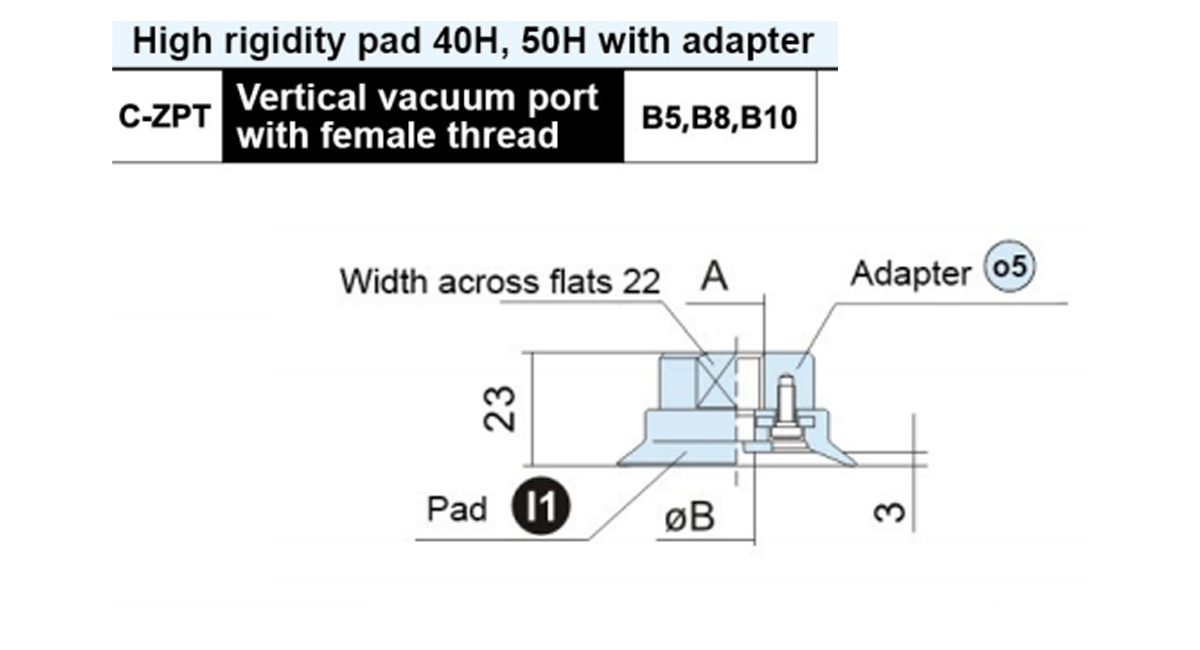

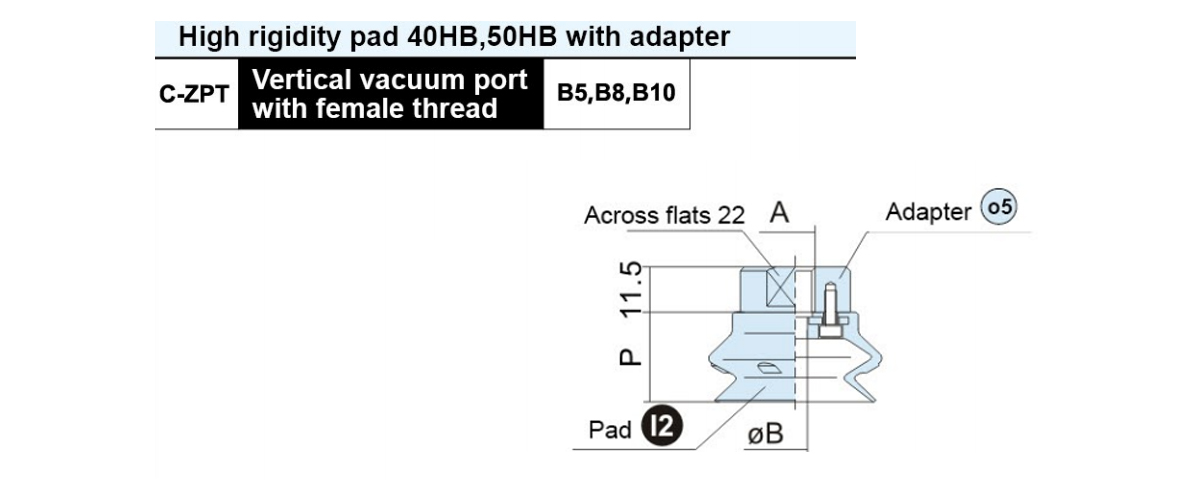

    Model A ØB Adaptor Model
    C-ZPT ○ H□- B5 M5×0.8 4.2 ZPT1-B5
    C-ZPT ○ H□- B8 M8×1.25 5 ZPT1-B8
    C-ZPT ○ H□- B10 M10×1.5 ZPT1-B10
    ○  Pad  diameter  symbol:40,50           □  Pad  material:NBR(N)Silicone  rubber(S)

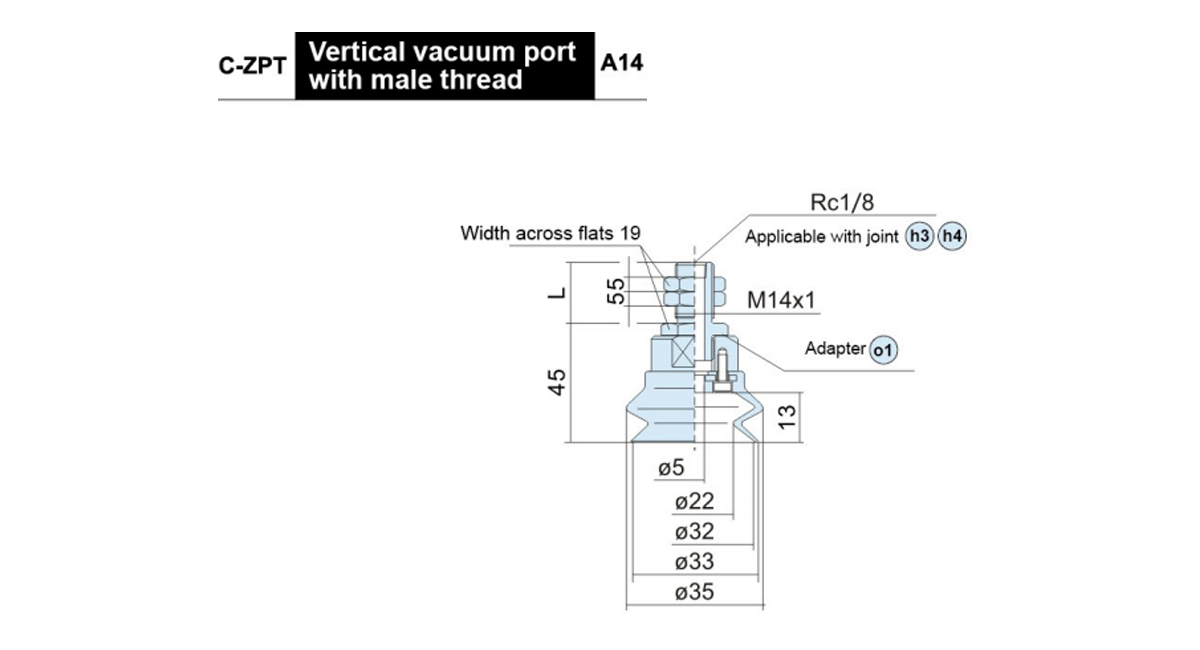

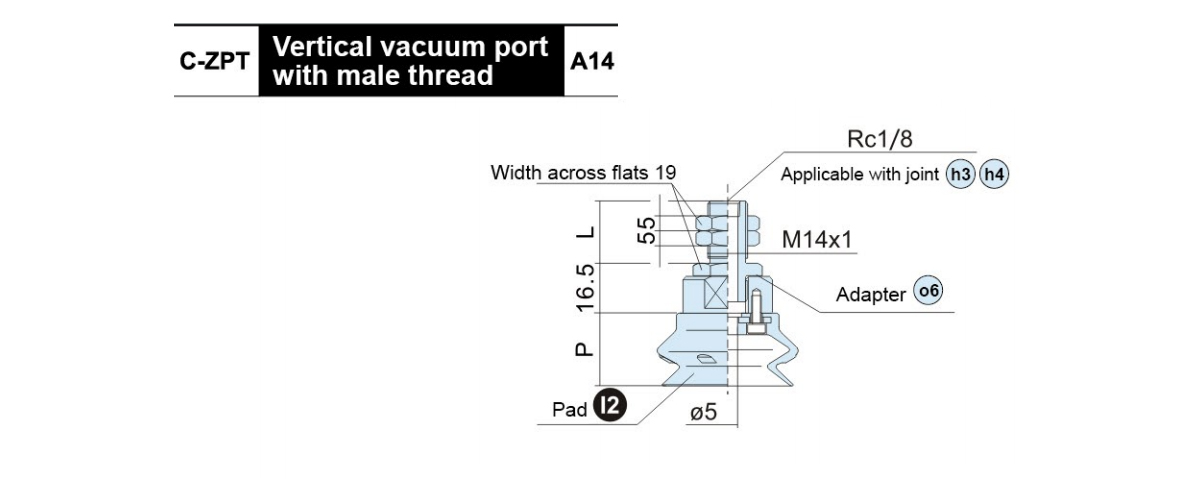

    Model L Adaptor Model
    C-ZPT ○ H□ -A14 25 ZPT1-A14
    C-ZPT ○ H□- A14-3 40 ZPT1-A14-3
    ○ Pad diameter symbol:40,50
    □ Pad material:NBR(N)Silicone rubber(S)

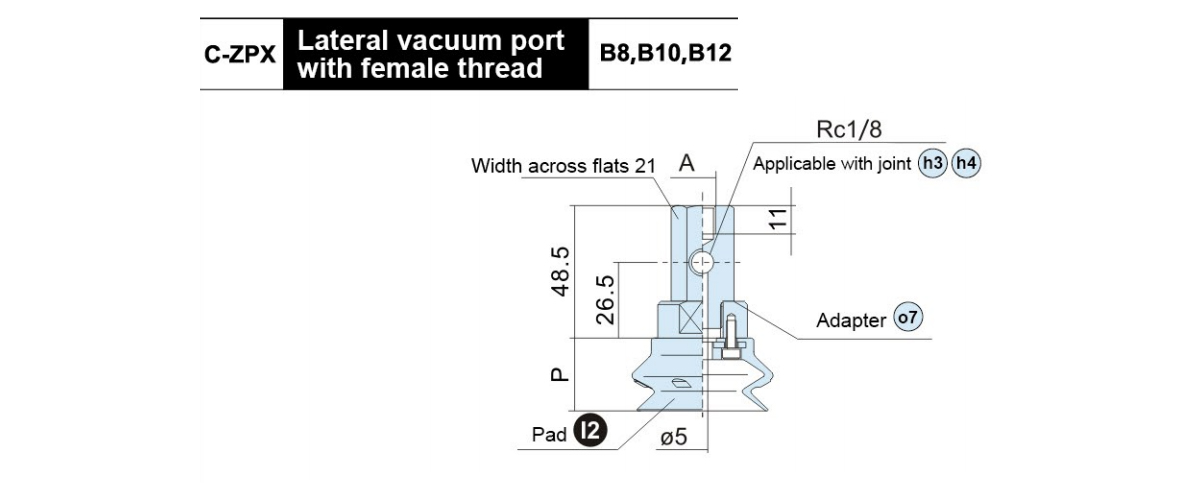

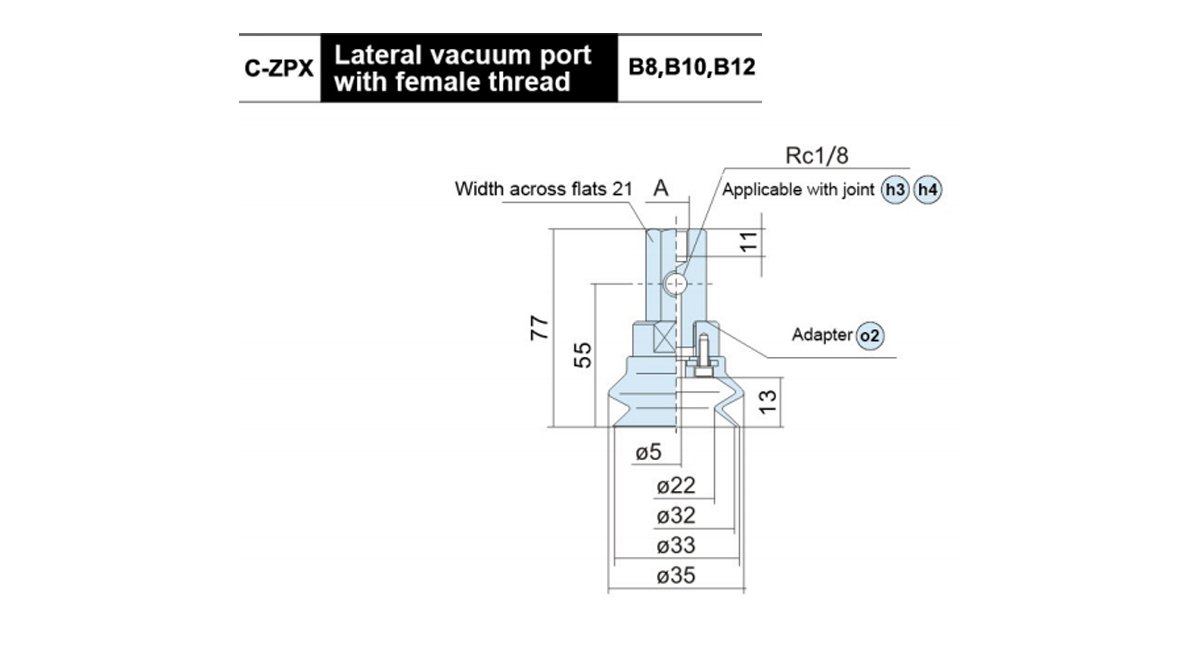

    Model A Adaptor Model
    C-ZPX ○ H □- B8 M8×1.25 ZPX1-B01-B8
    C-ZPX ○ H □- B10 M10×1.5 ZPX1-B01-B10
    C-ZPXH □- B12 M12×1.75 ZPX1-B01-B12
    ○Pad diameter symbol:40,50
    □ Pad material:NBR(N)Silicone rubber(S)

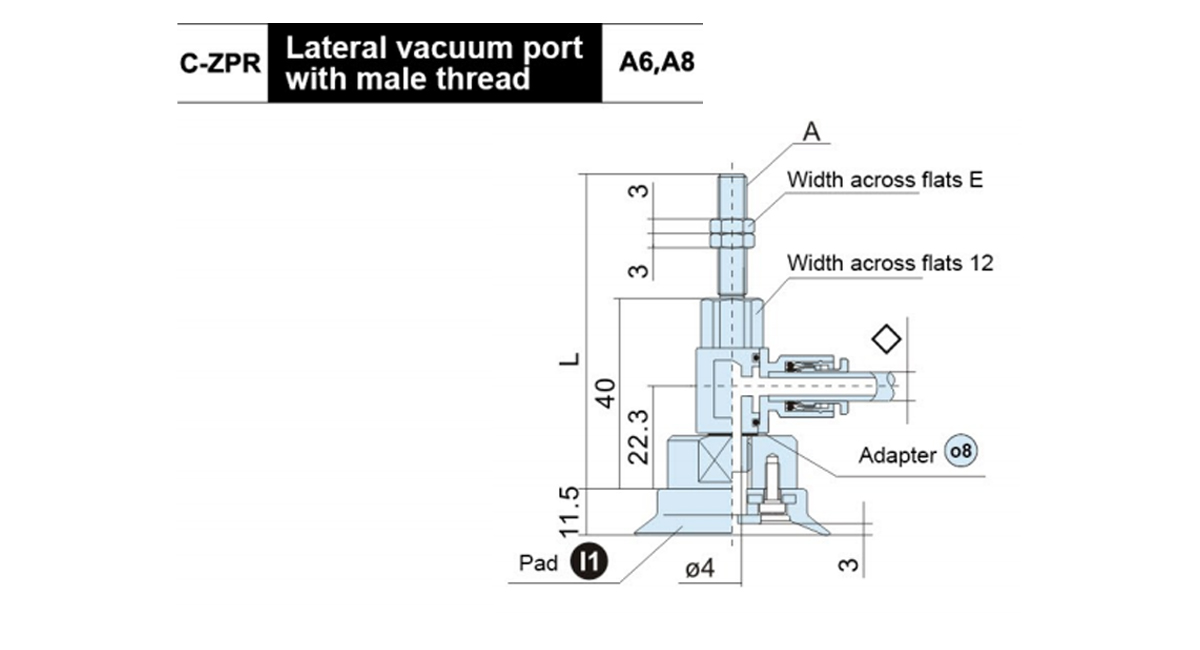

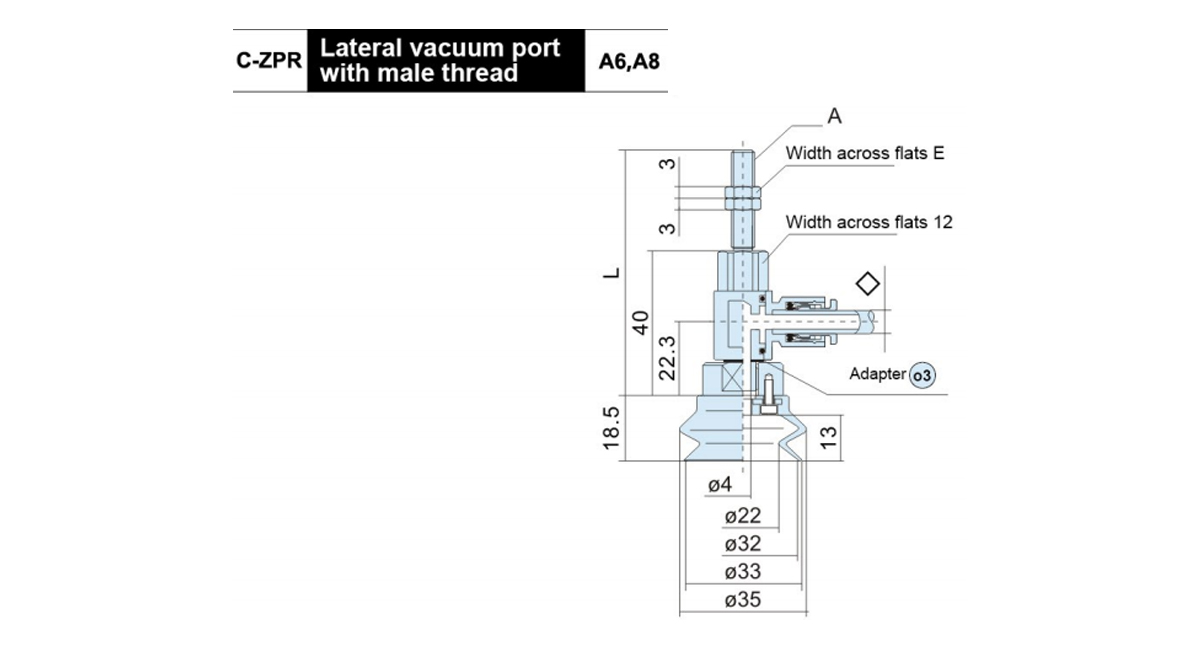

    Model A E L Adaptor Model
    C-ZPR ○ H □-◇ -A6 M6×1.0 8 66 ZPR1H -◇-A6
    C-ZPR ○ H □-◇ -A8 M8×1.0 12 56 ZPR1H -◇-A8
    ○Pad diameter symbol:40,50
    □ Pad material:NBR(N)Silicone rubber(S)
    Vacuum inlet connection:06,08

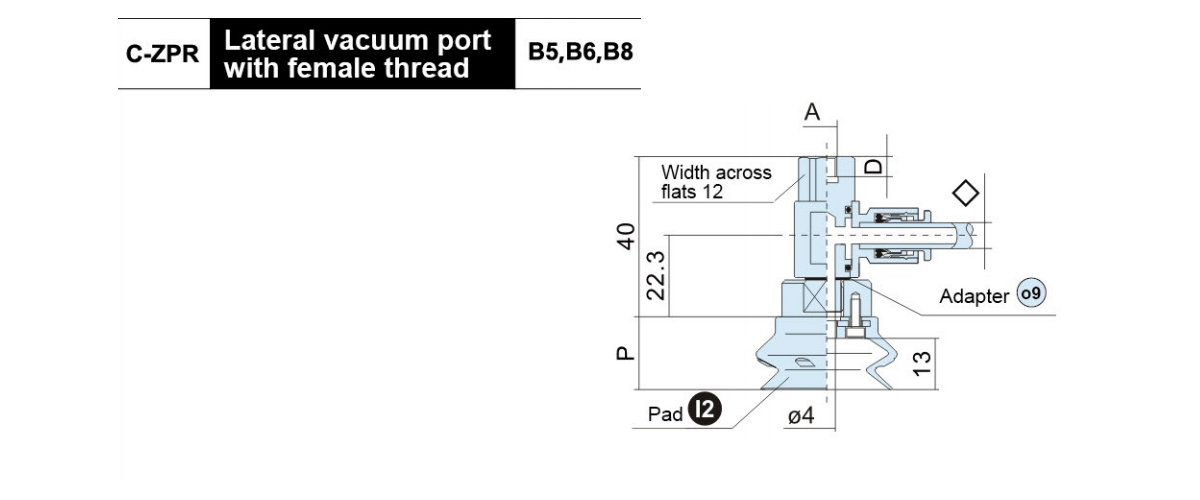

    Model A D Adaptor Model
    C-ZPR ○ H□-◇- B6 M6×1.0 6 ZPR1H -◇-B6
    C-ZPR ○ H□-◇ -B8 M8×1.25 8 ZPR1H -◇-B8
    ○Pad diameter symbol:40,50      □ Pad material:NBR(N)Silicone rubber(S)
    ◇Vacuum inlet connection:06,08

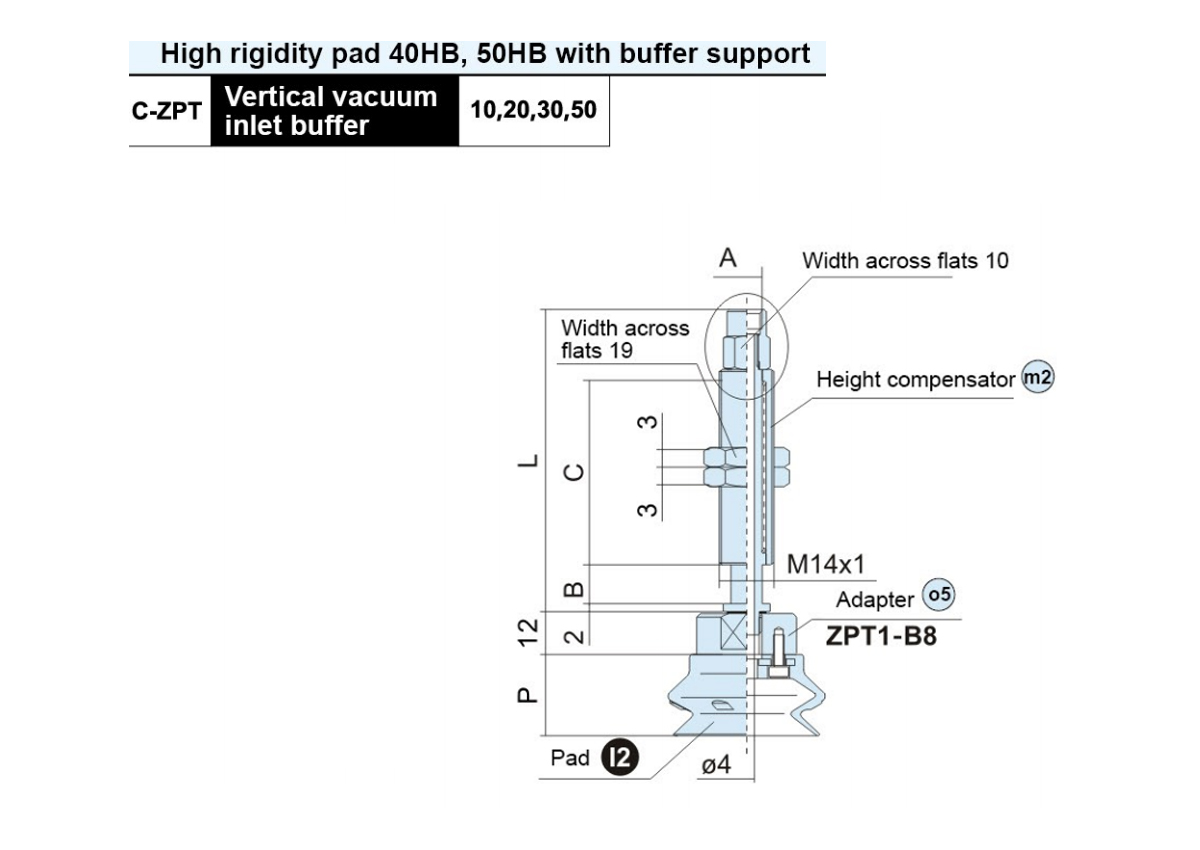

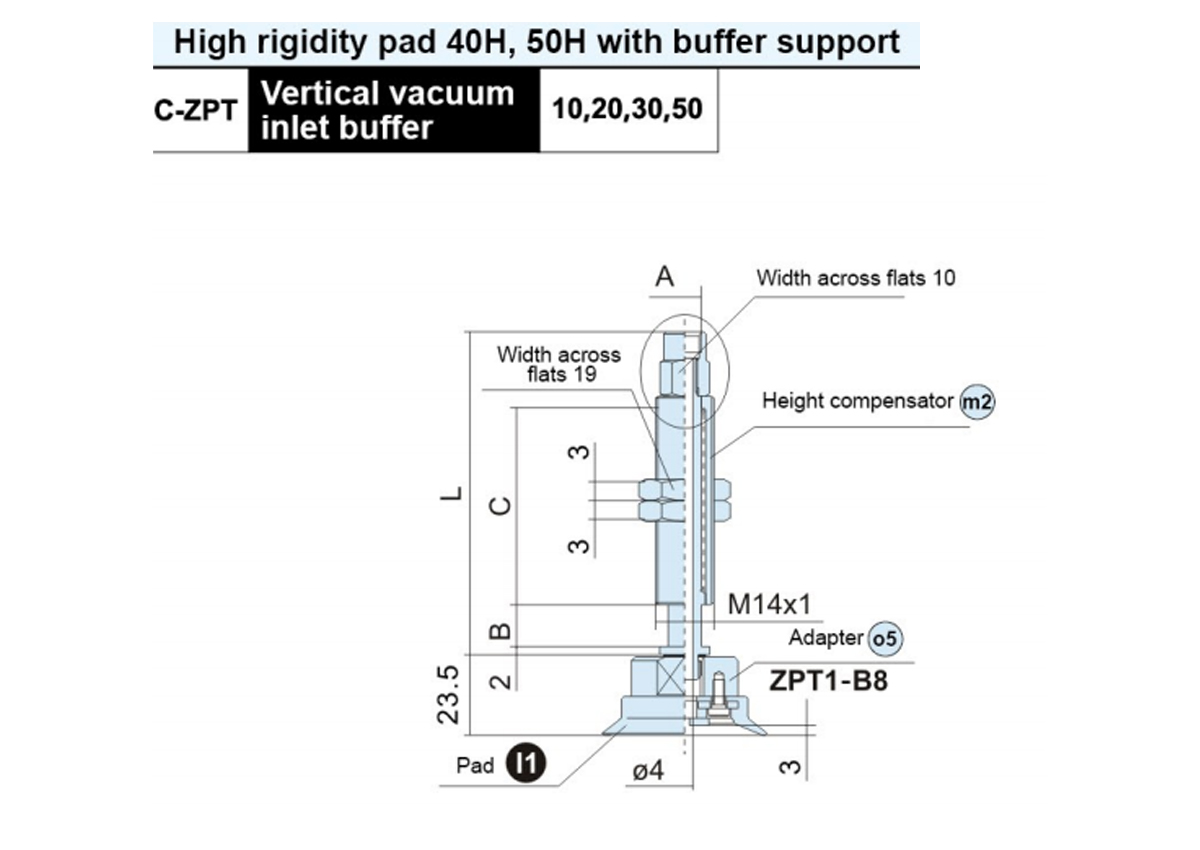

    Model A B C L m2 O5
    Buffer Support Model
    C-ZPT ○ H□● 10-B5-A14 M5×0.8 10 50 77 ZPT1-●10-B5-A14
    C-ZPT ○ H□● 20-B5-A14 20 81 ZPT1-●20-B5-A14
    C-ZPT ○ H□● 30-B5-A14 30 91 ZPT1-●30-B5-A14
    C-ZPT ○ H□● 50-B5-A14 50 75 136 ZPT1-●50-B5-A14
    C-ZPT ○ H□● 10-B01-A14 Rc1/8 10 50 78.5 ZPT1-●10-B01-A14
    C-ZPT ○ H□● 20-B01-A14 20 84 ZPT1-●20-B01-A14
    C-ZPT ○H□● 30-B01-A14 30 94 ZPT1-●30-B01-A14
    C-ZPT ○ H □● 50-B01-A14 50 75 139 ZPT1-●50-B01-A14
    ○Pad  diameter  symbol:40,50       □Pad  material:NBR(N)S,Silicone rubber(S)
    ● Height   compensator   type:Rotative(J),Unable   to   rotate(K)

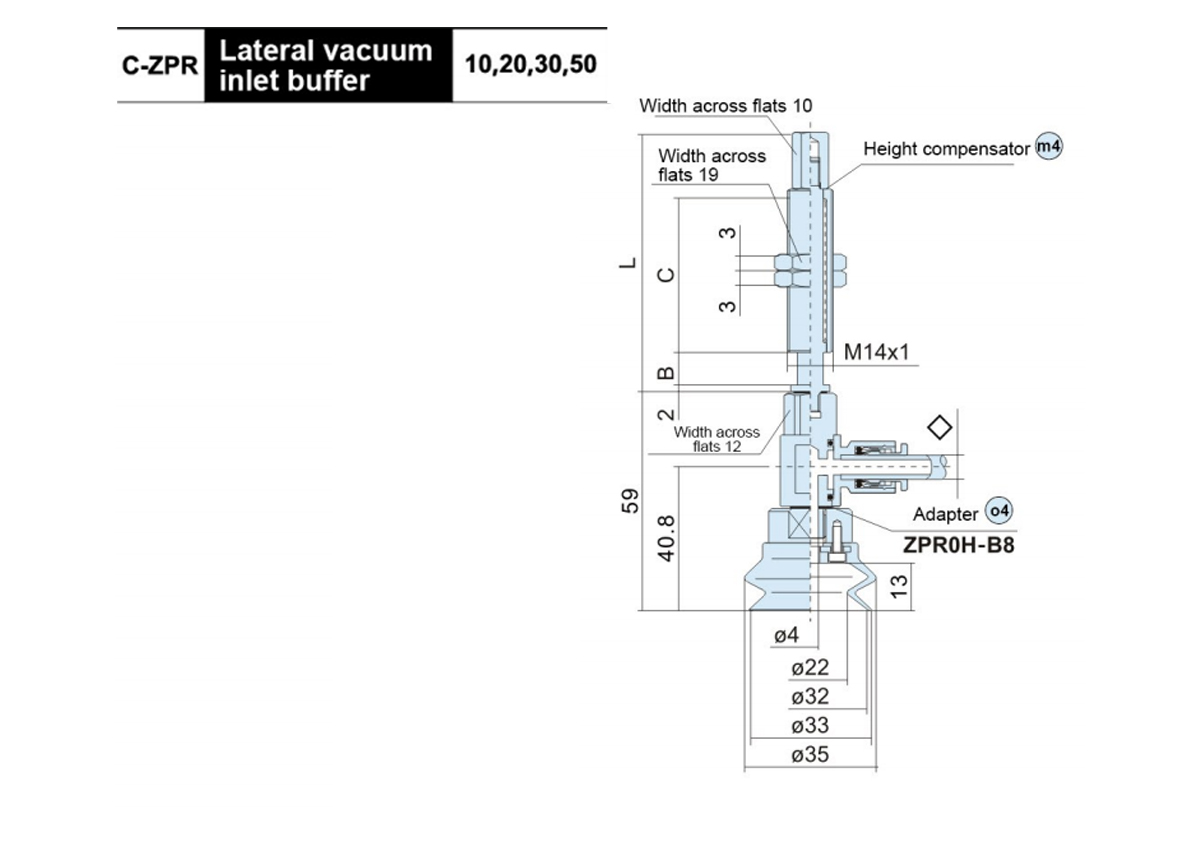

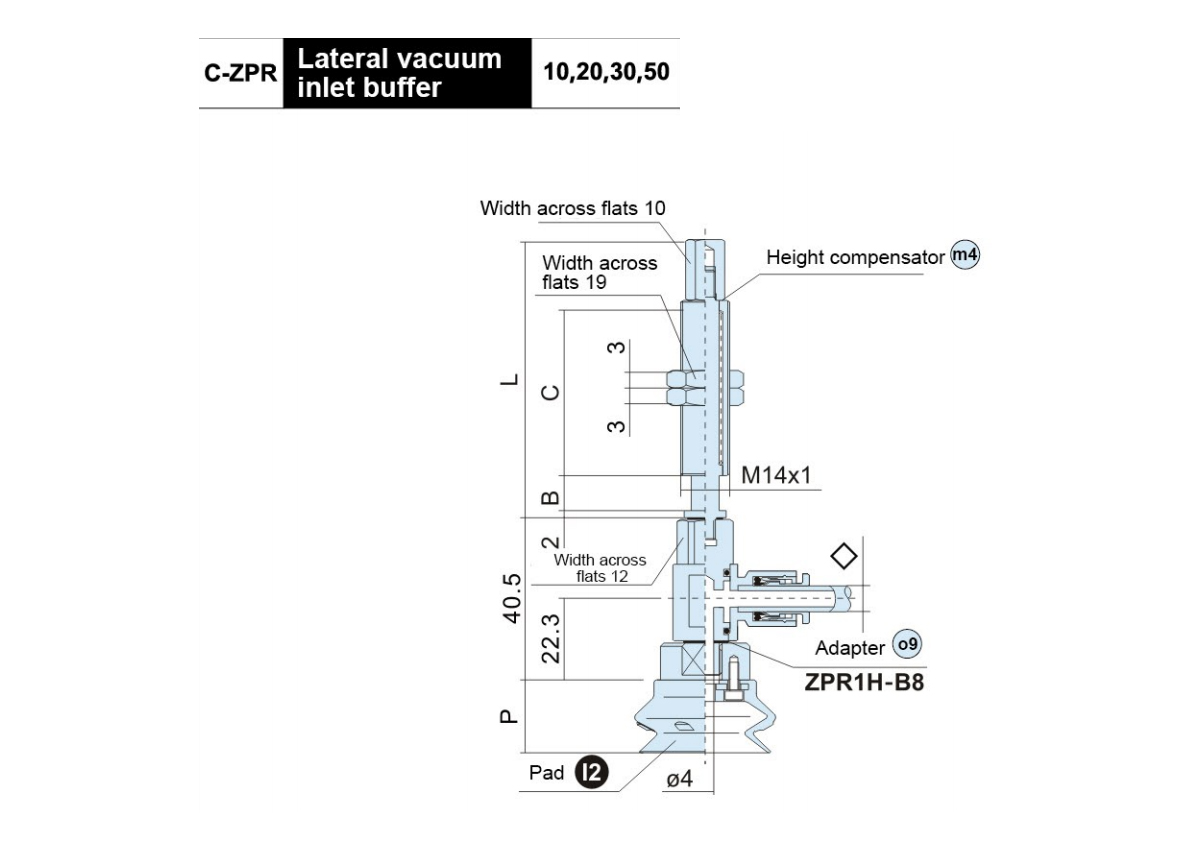

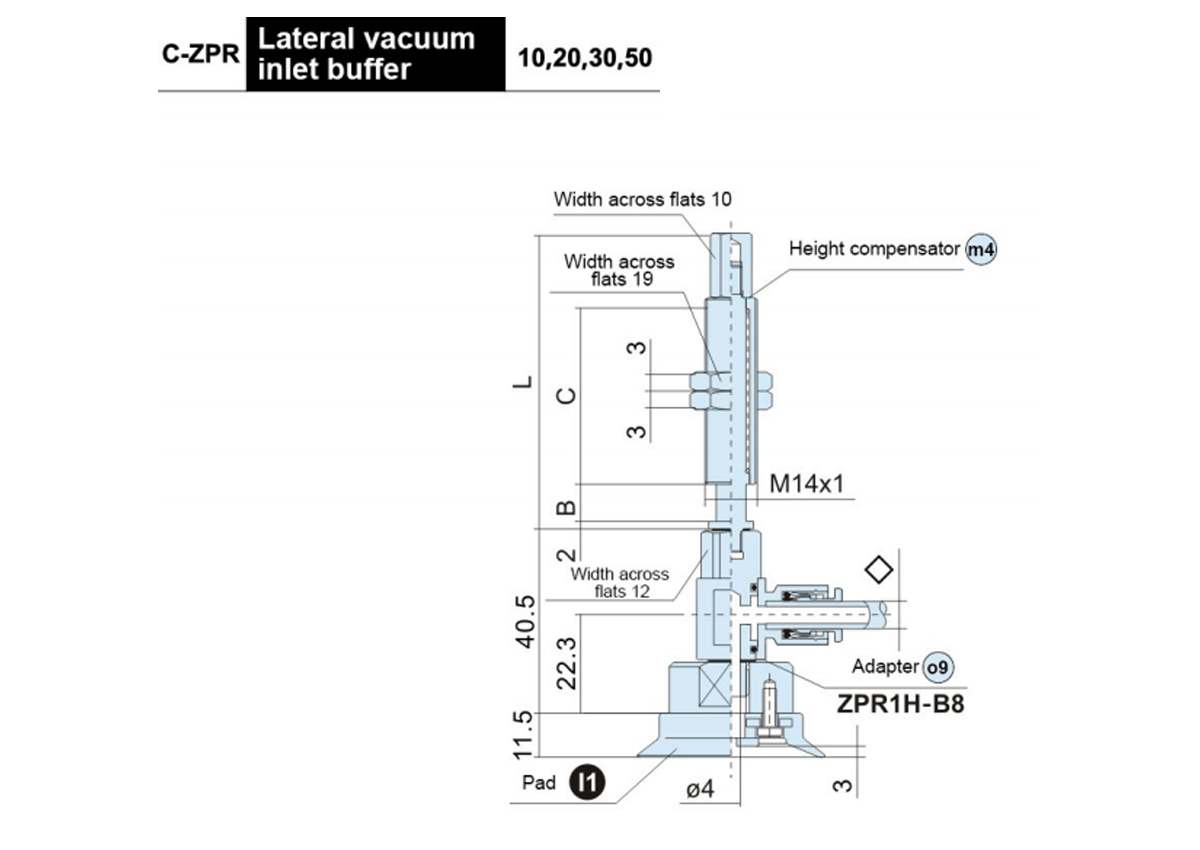

    Model B C L m4 O9
    Buffer Support Model
    C-ZPR ○ H□● 10 -◇- A14 10 50 80 ZPR1 -●10-◇ -A14
    C-ZPR ○ H□● 20 -◇ -A14 20 77 ZPR1-●20-◇-A14
    C-ZPR ○ H□● 30- ◇ -A14 30 87 ZPR1-●30-◇-A14
    C-ZPR ○ H □● 50 -◇ -A14 50 75 132 ZPR1-●50-◇-A14
    ○Pad diameter symbol:40,50                   □ Pad material:NBR(N)S,Silicone rubber(S)
    ◇ Vacuum inlet connection:06,08
    ●Height compensator type:Rotative(J),Unable to rotate(K)

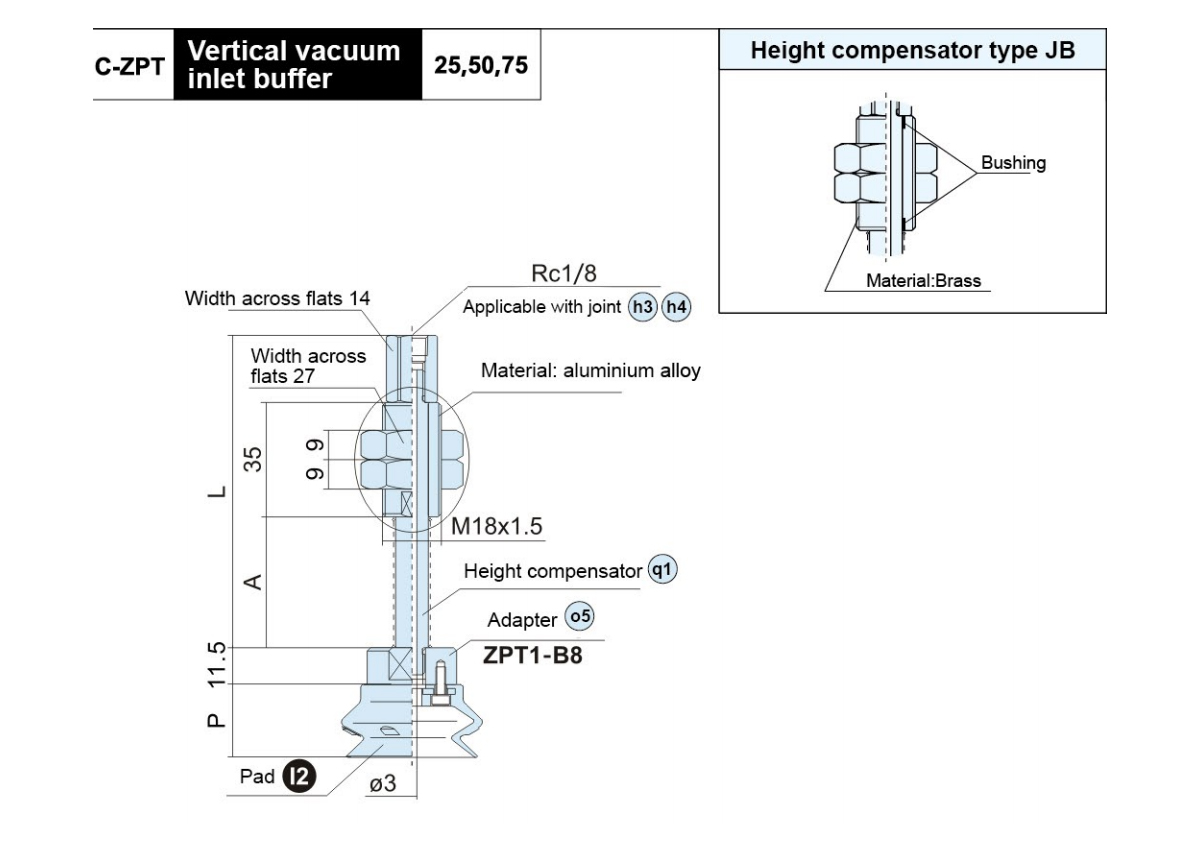

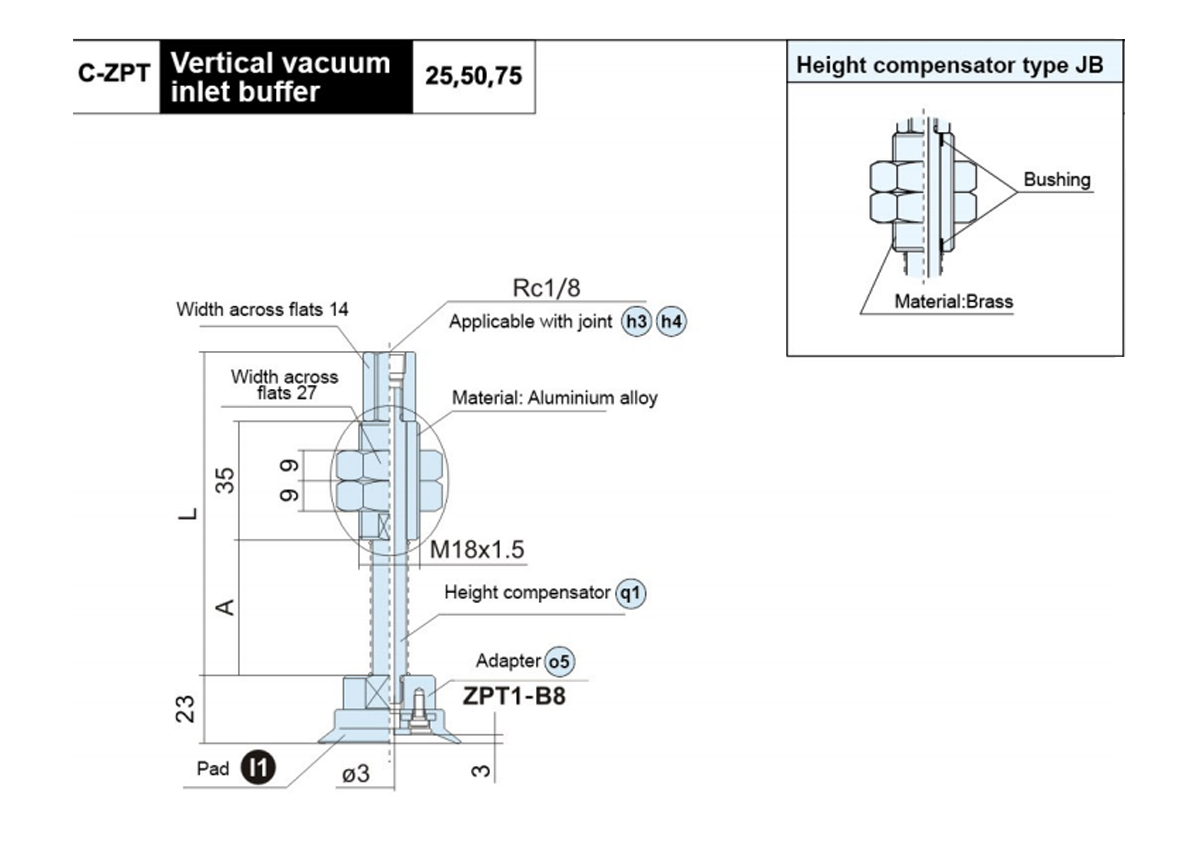

    Model A L q1 O5
    Buffer Support Model
    C-ZPT ○ H□● 25-B01-A18 40 95.5 ZPB1 ●25-B01-A18
    C-ZPT ○ H□● 50-B01-A18 75 130.5 ZPB1 ●50-B01-A18
    C-ZPT ○ H□● 75-B01-A18 111 166.5 ZPB1 ●75-B01-A18
    ○Pad diameter symbol:40,50            □ Pad material:NBR(N)S,Silicone rubber(S)
    Height compensator type:Aluminium alloy(J)
    Brass(JB)

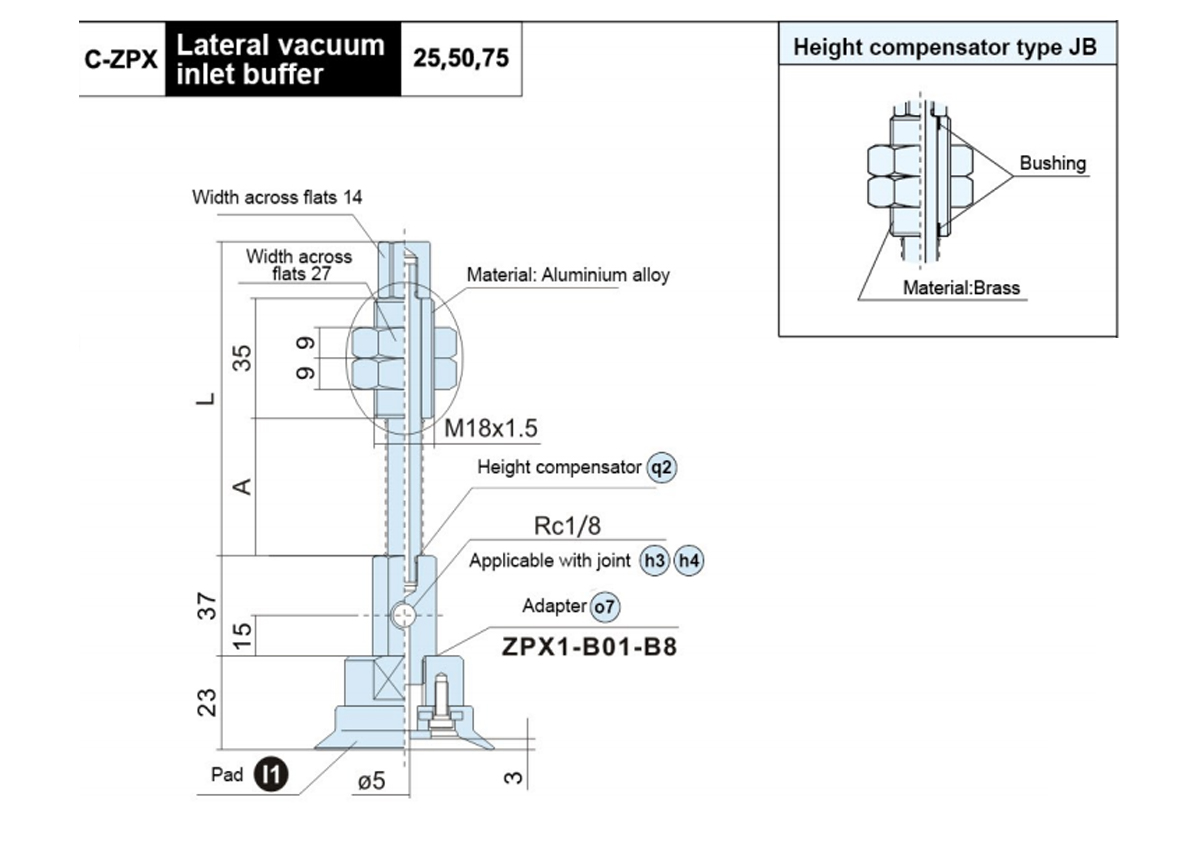

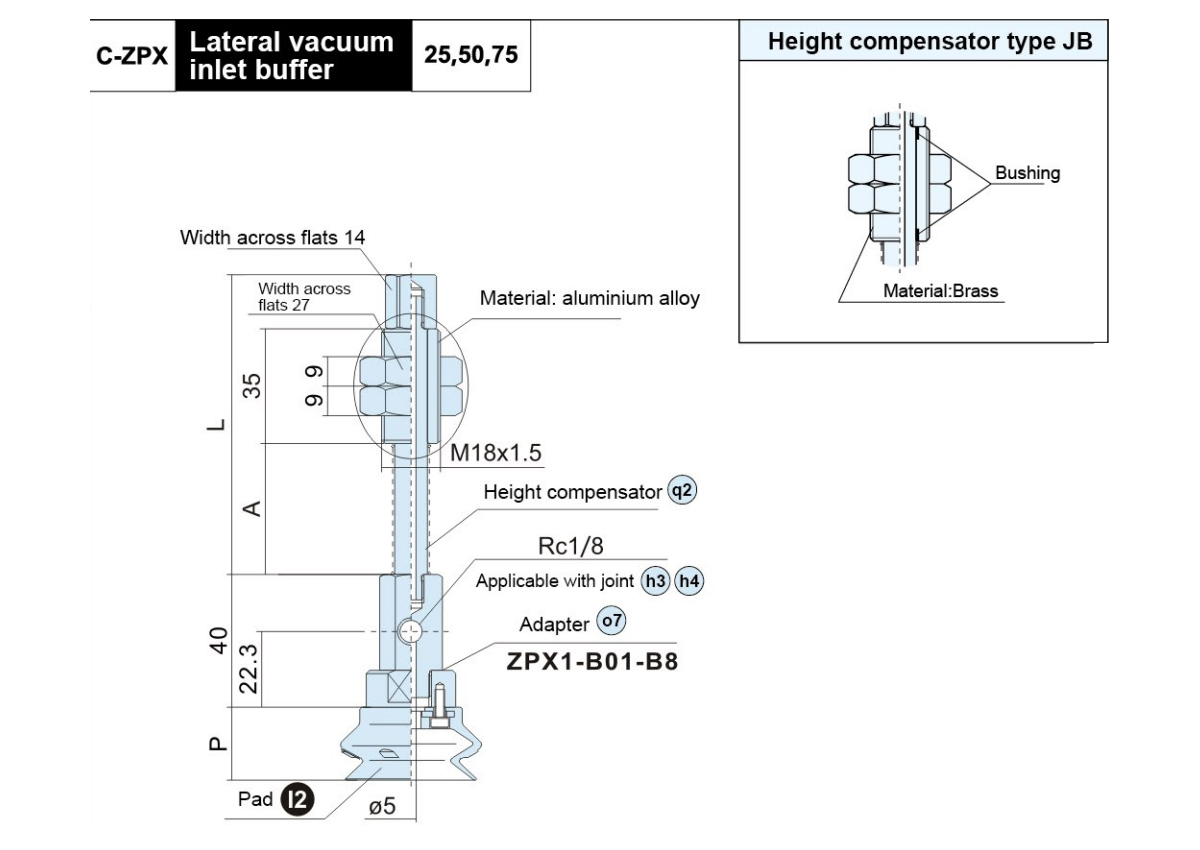

    Model A L q2 O7
    Buffer Support Model
    C-ZPX ○ H□● 25-B01-A18 40 91 ZPX1 ●25-B01-A18
    C-ZPX ○ H□● 50-B01-A18 75 126 ZPX1 ●50-B01-A18
    C-ZPX ○ H □● 75-B01-A18 111 162 ZPX1 ●75-B01-A18
    ○Pad diameter symbol:40,50            □ Pad material:NBR(N)S,Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J)
    Brass(JB)

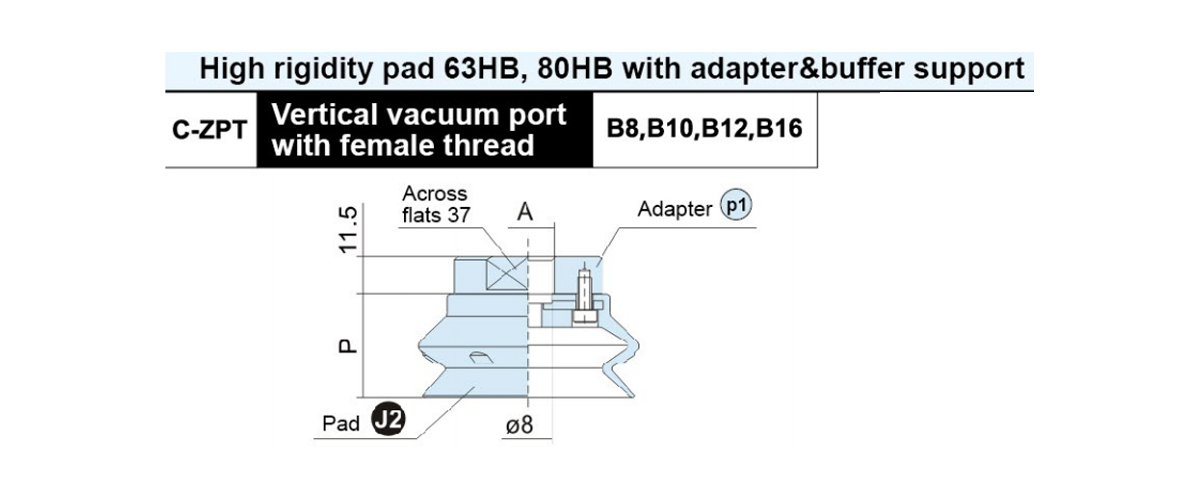

    Model A Pad
    Diameter     		P Adaptor
    Model
    63 80
    C-ZPT ○ H□-B8 M8×1.25 14.5 16.5 ZPT2-B8
    C-ZPT ○ H□-B10 M10×1.5 ZPT2-B10
    C-ZPT○H□-B12 M12×1.75 ZPT2-B12
    C-ZPT ○ H□-B16 M16×1.5 ZPT2-B16
    ○ Pad  diameter symbol:63,80
    □Pad    material:NBR(N),Silicone rubber(S)

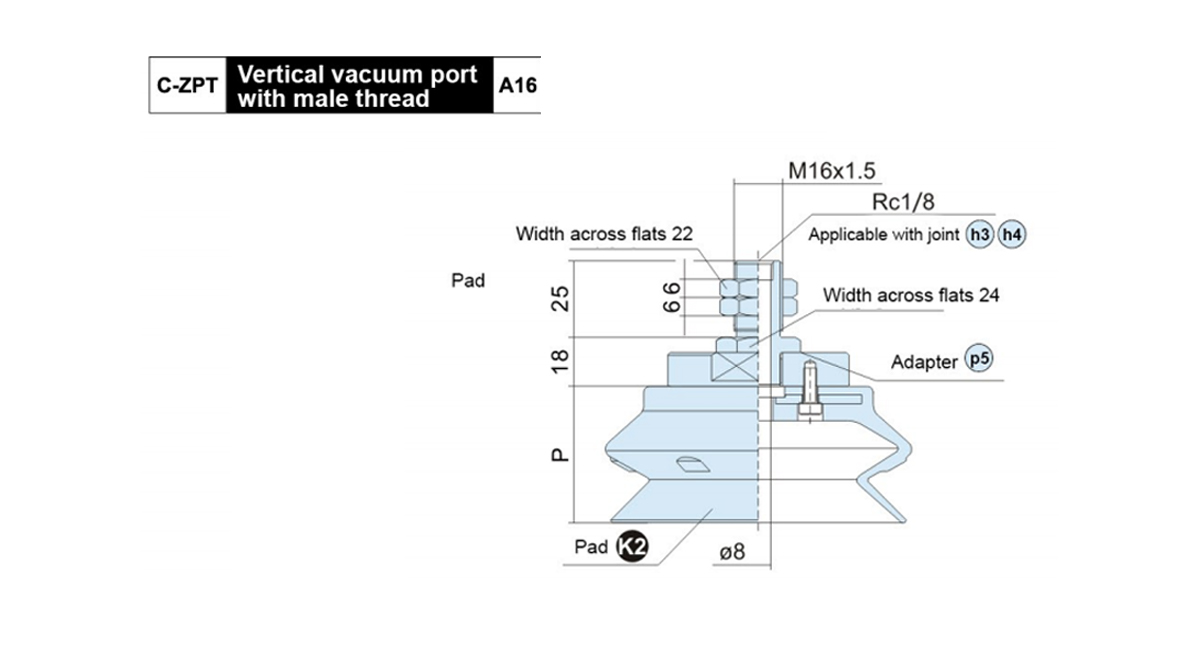

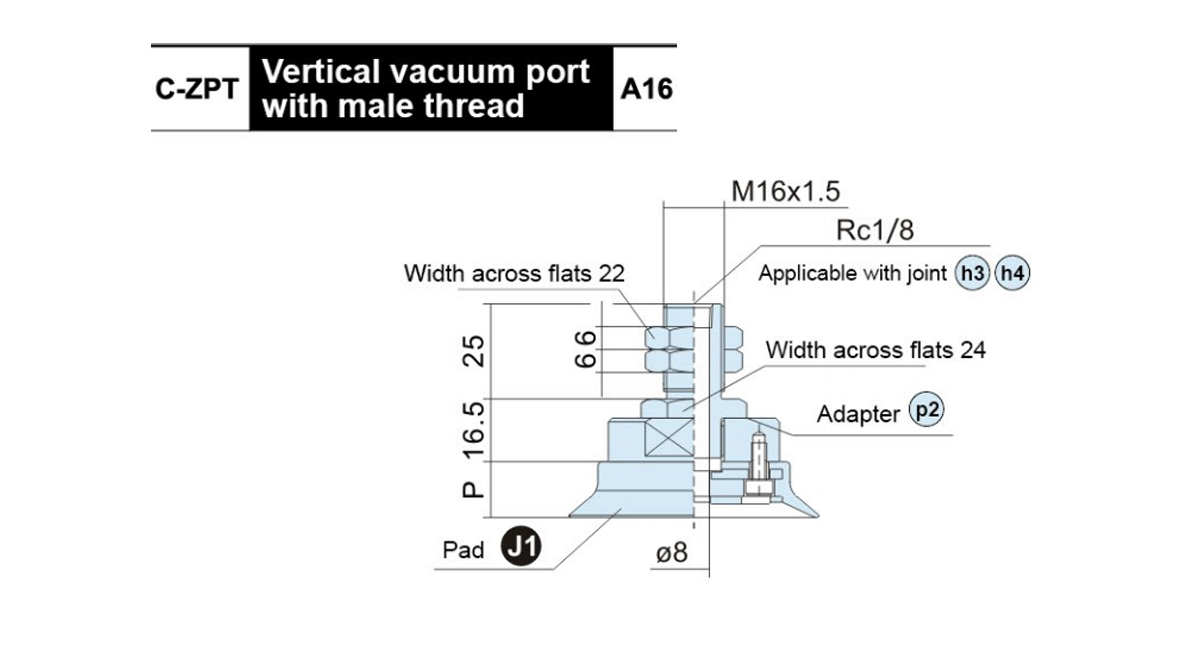

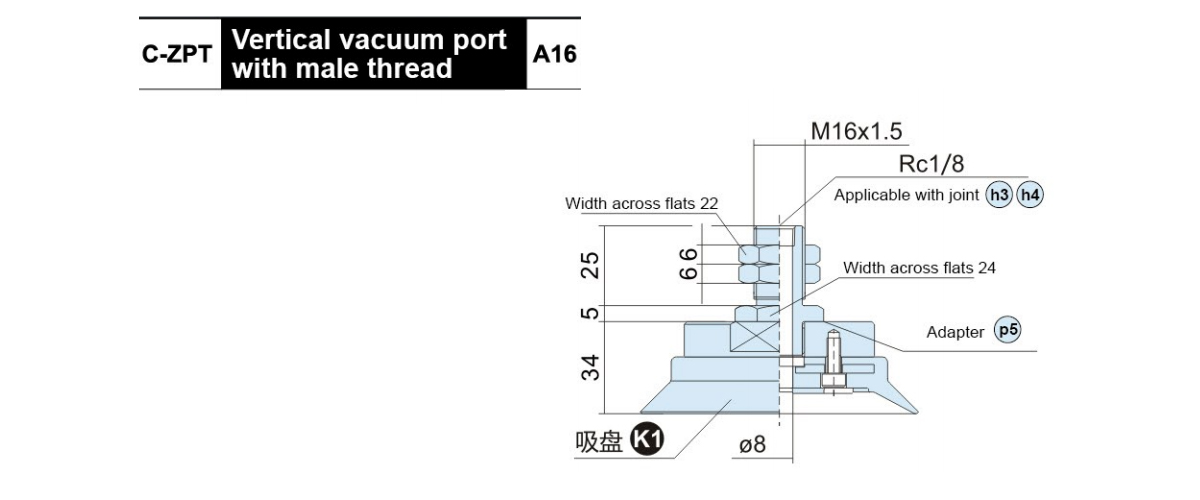

    Model P Adaptor Model
    C-ZPT63H □- A16 14.5 ZPT2-A16
    C-ZPT80H □-A16 16.5
    □ Pad material:NBR(N),Silicone rubber(S)

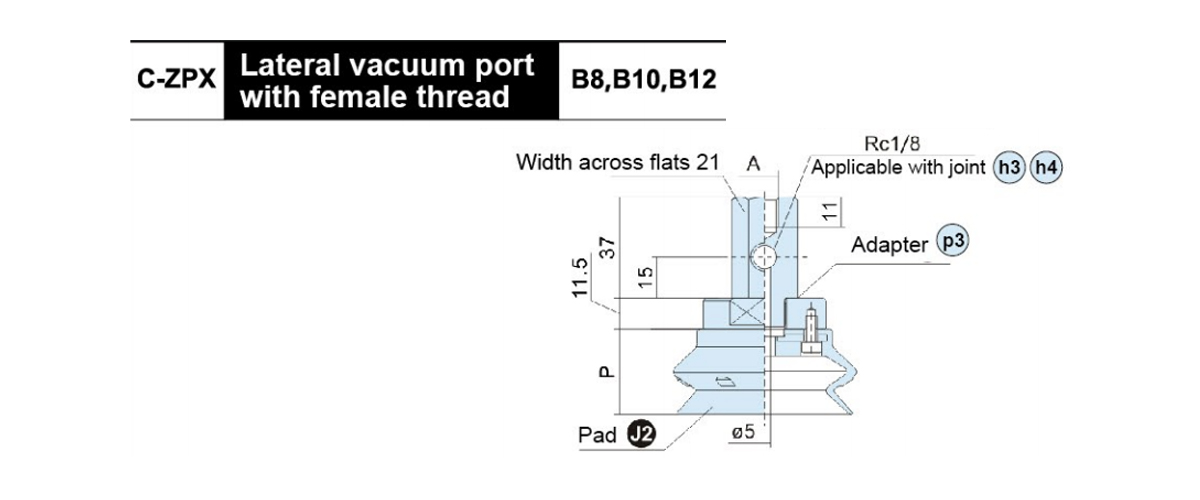

    Model A Pad Diameter P
    63 80
    C-ZPX ○ H□- B01-B8 M8×1.25 14.5 16.5
    C-ZPX ○ H□- B01-B10 M10×1.5
    C-ZPX ○ H □- B01-B12 M12×1.75
    ○ Pad diameter symbol:63,80
    □ Pad material:NBR(N),Silicone rubber(S)

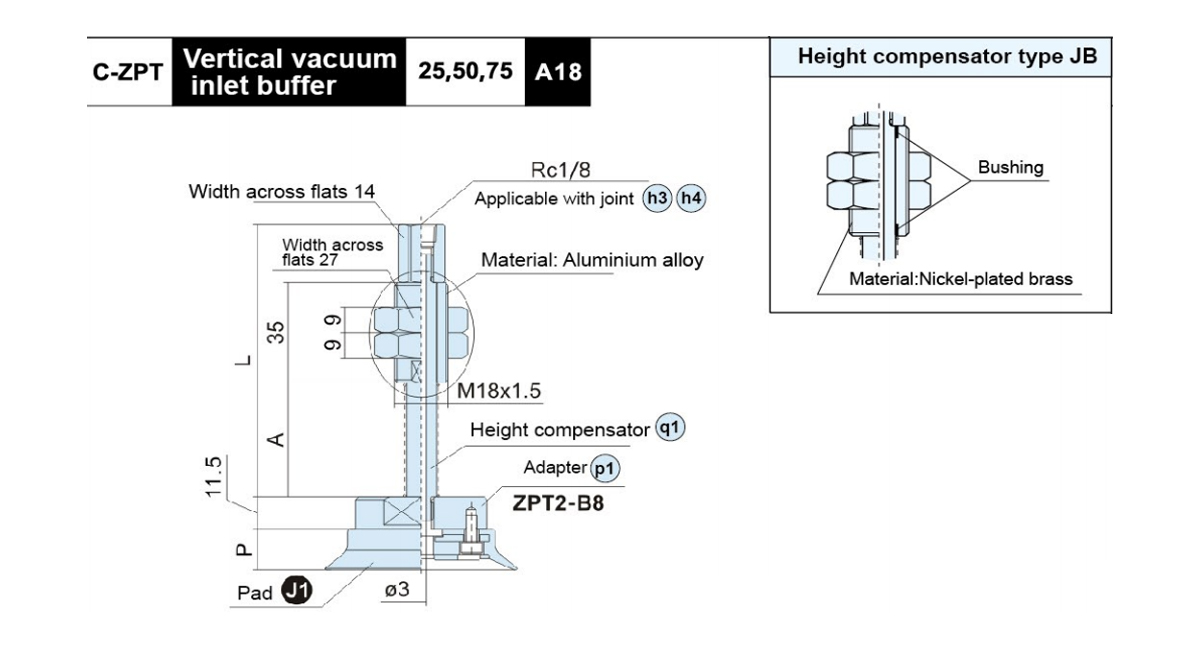

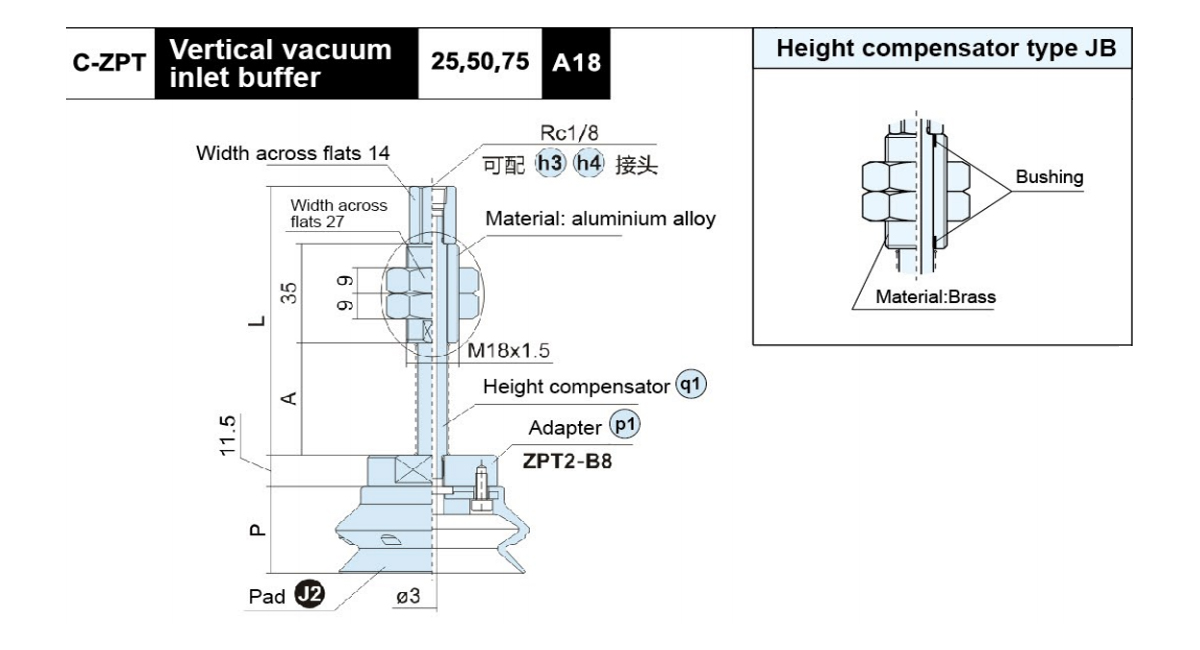

    Model A L Pad Diameter P q1 P1
    Buffer Support Model
    63 80
    C-ZPT ○ H□● 25-B01-A18 40 95.5 14.5 16.5 ZPB2 ● 25-B01-A18
    C-ZPT ○ H□● 50-B01-A18 75 130.5 ZPB2 ●50-B01-A18
    C-ZPT ○ H□● 75-B01-A18 111 166.5 ZPB2 ● 75-B01-A18
    ○ Pad diameter symbol:63,80        □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

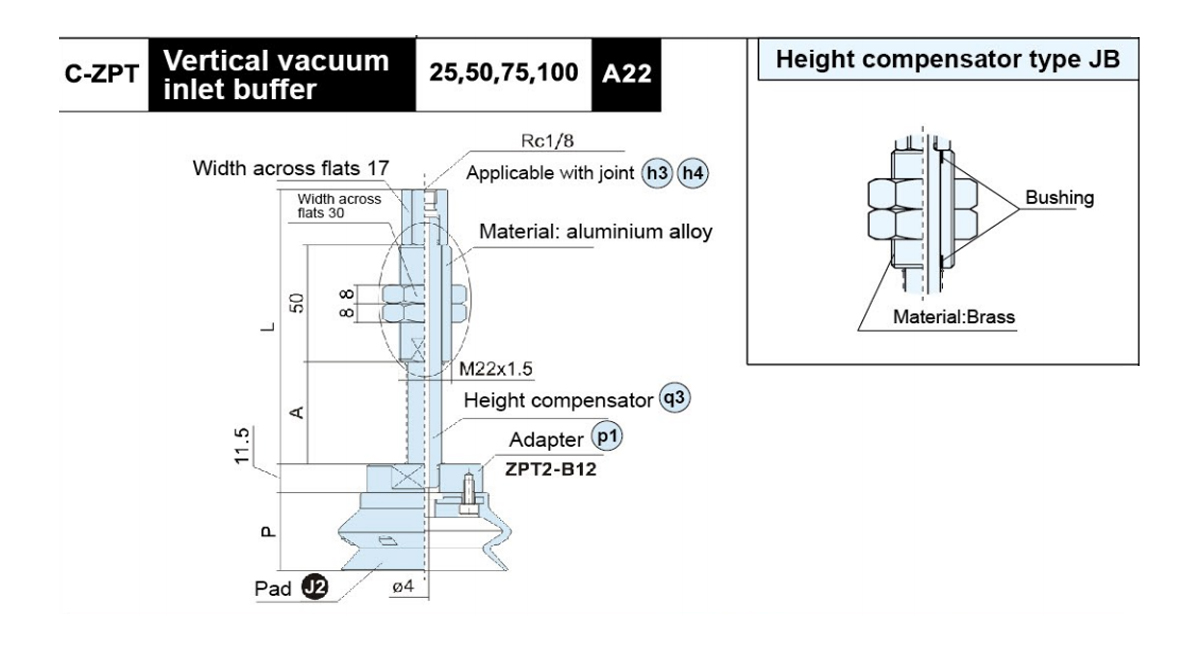

    Model A L Pad Diameter P q3 p1
    Buffer Support Model
    63 80
    C-ZPT ○ H□● 25-B01-A22 44 118 14.5 16.5 ZPB2 ●25-B01-A22
    C-ZPT ○ H□● 50-B01-A22 80 154 ZPB2●50-B01-A22
    C-ZPT ○ H□● 75-B01-A22 120 194 ZPB2●75-B01-A22
    C-ZPT ○ H□● 100-B01-A22 155 229 ZPB2 ●100-B01-A22
    ○ Pad diameter symbol:63,80        □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

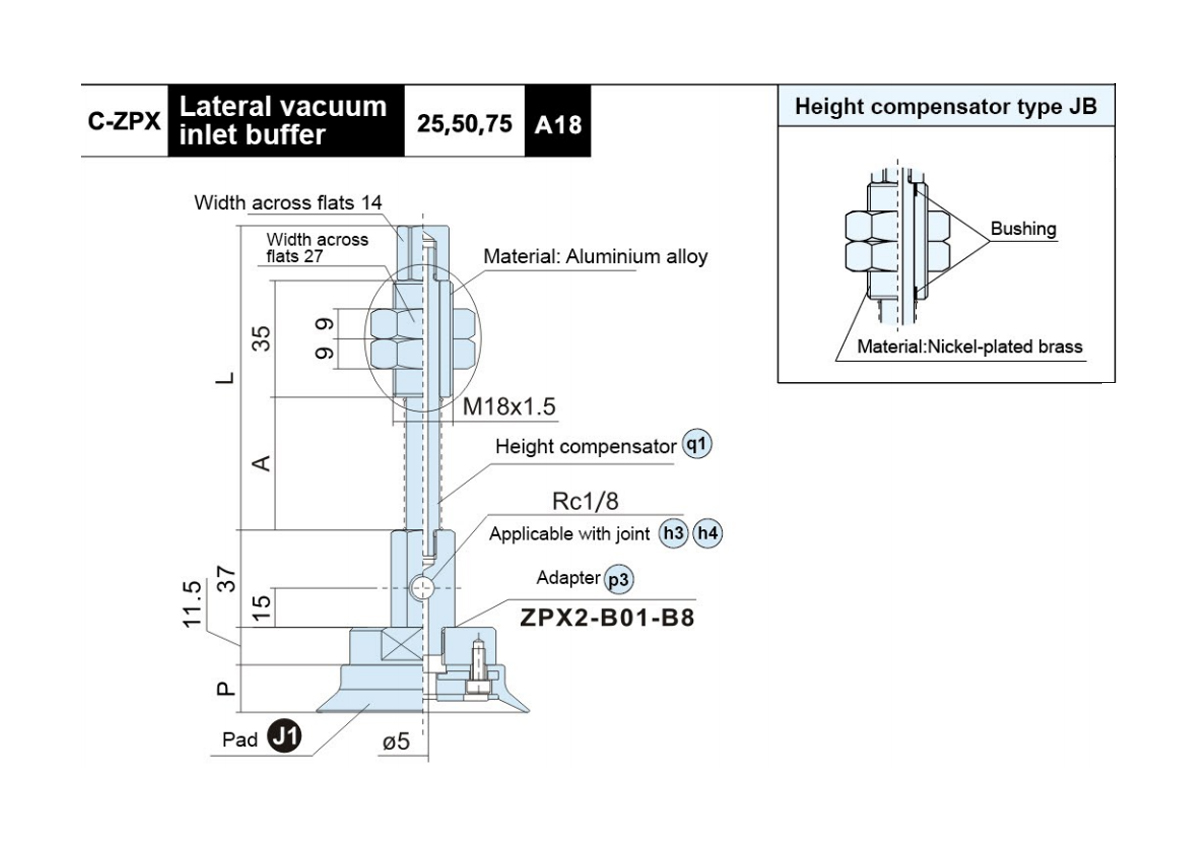

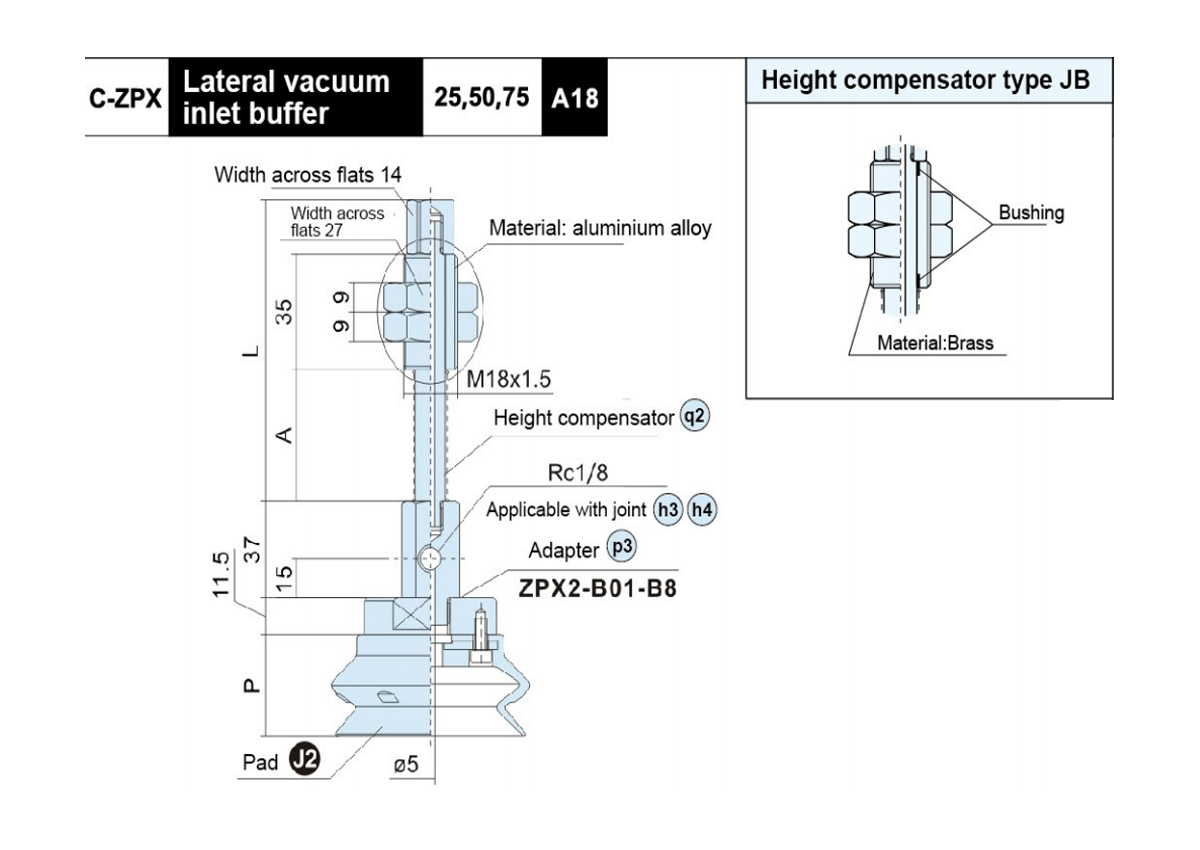

    Model A L Pad Diameter P q2 p3
    Buffer Support Model
    63 80
    C-ZPX ○ H □● 25-B01-A18 40 95.5 14.5 16.5 ZPX2 ●25-B01-A18
    C-ZPX ○ H □● 50-B01-A18 75 130.5 ZPX2 ●50-B01-A18
    C-ZPX ○ H □● 75-B01-A18 111 166.5 ZPX2 ●75-B01-A18
    ○ Pad diameter symbol:63,80        □ Pad material:NBR(N),Silicone rubber(S)
    ●Height compensator type:Aluminium alloy(J),Brass(JB)

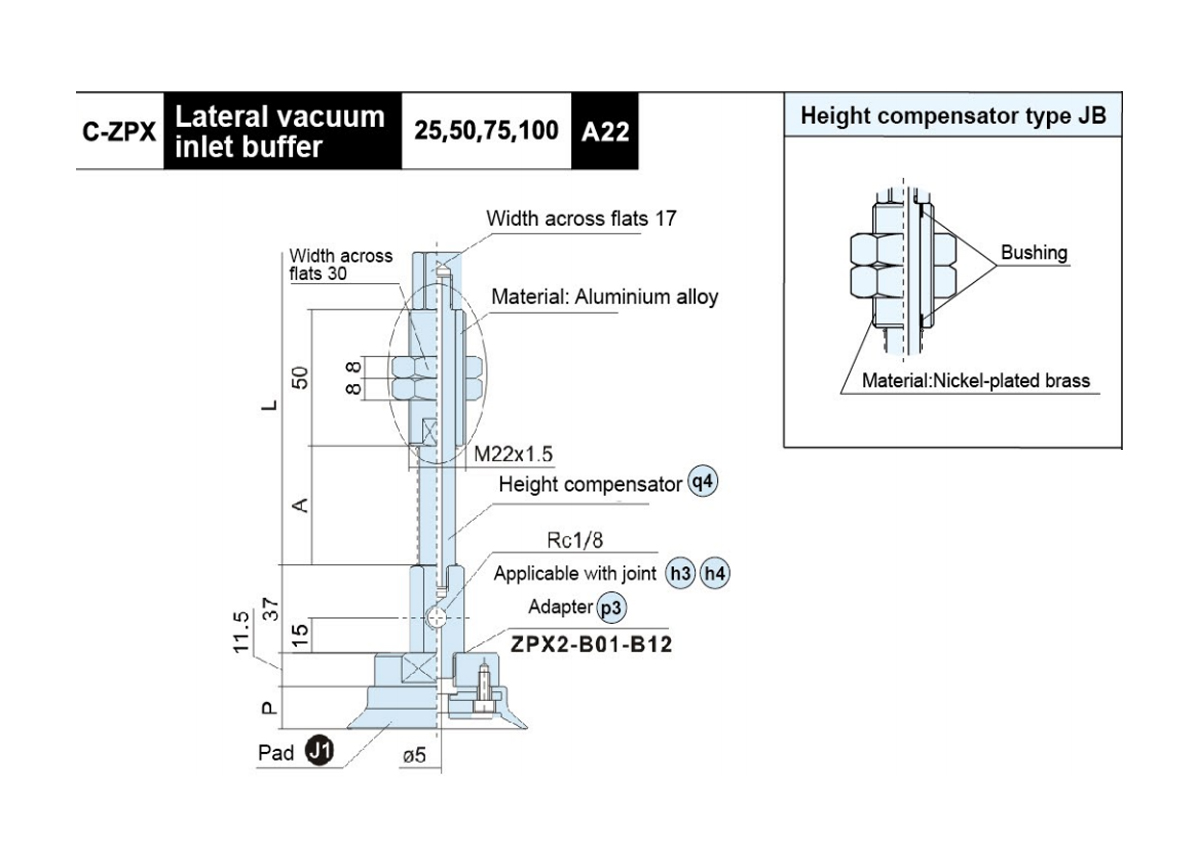

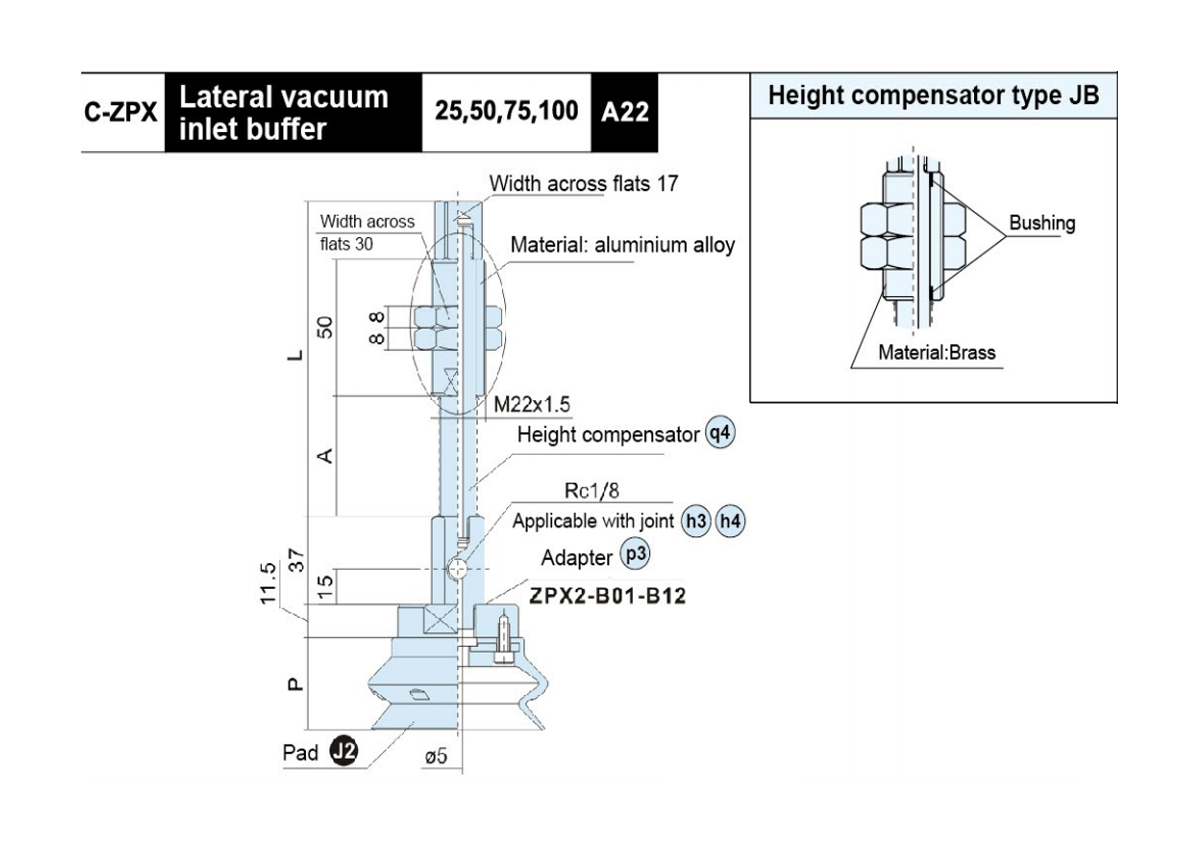

    Model A L Pad Diameter          P q4 p3
    Buffer Support Model
    63 80
    C-ZPX ○ H □● 25-B01-A22 44 118 14.5 16.5 ZPX2●25-B01-A22
    C-ZPX ○ H □● 50-B01-A22 80 154 ZPX2●50-B01-A22
    C-ZPX ○ H □● 75-B01-A22 120 194 ZPX2●75-B01-A22
    C-ZPX ○ H □● 100-B01-A22 155 229 ZPX2●100-B01-A22
    ○ Pad diameter symbol:63,80        □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

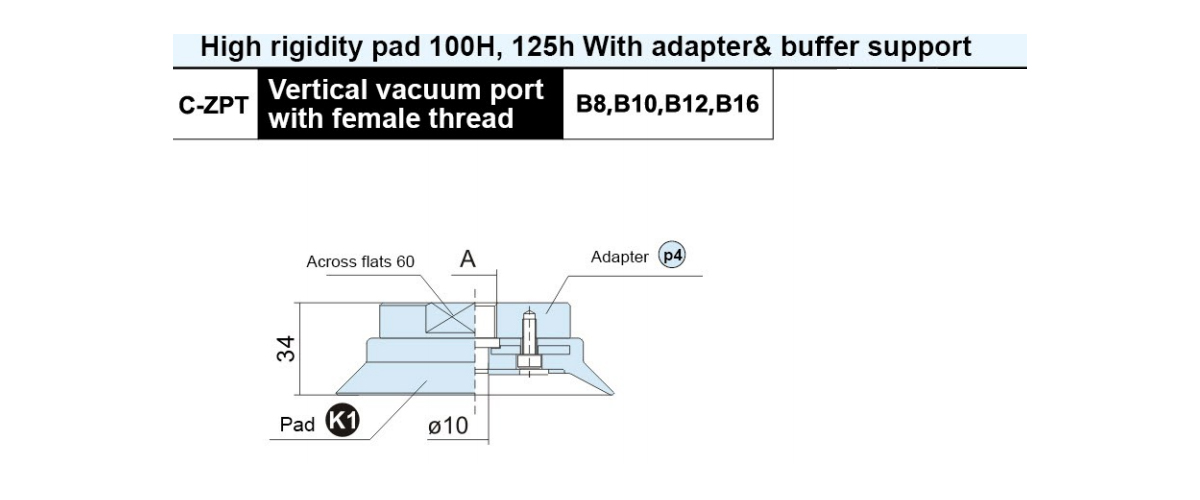

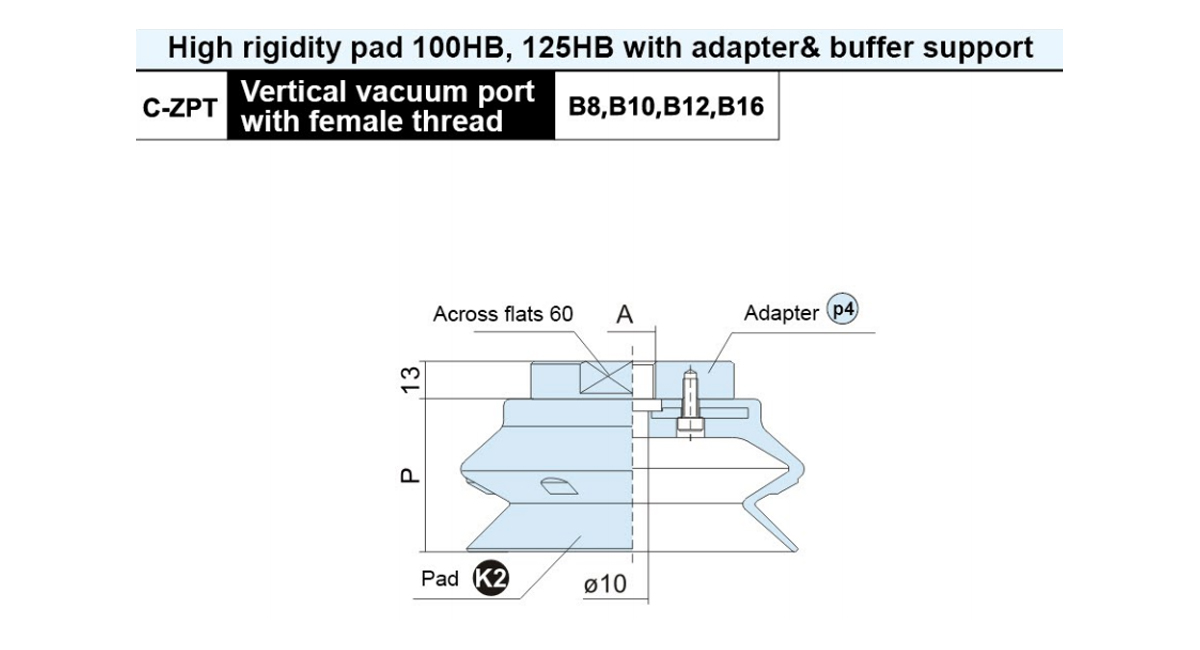

    Model A Adaptor Model
    C-ZPT ○ H□- B12 M12×1.75 ZPT3-B12
    C-ZPT ○ H □- B16 M16×1.5 ZPT3-B16
    ○ Pad diameter symbol:100,125
    □ Pad material:NBR(N),Silicone rubber(S)

    Model Adaptor Model
    C-ZPT100H □-A16 ZPT3-A16
    C-ZPT125H □-A16
    □ Pad material:NBR(N),Silicone rubber(S)

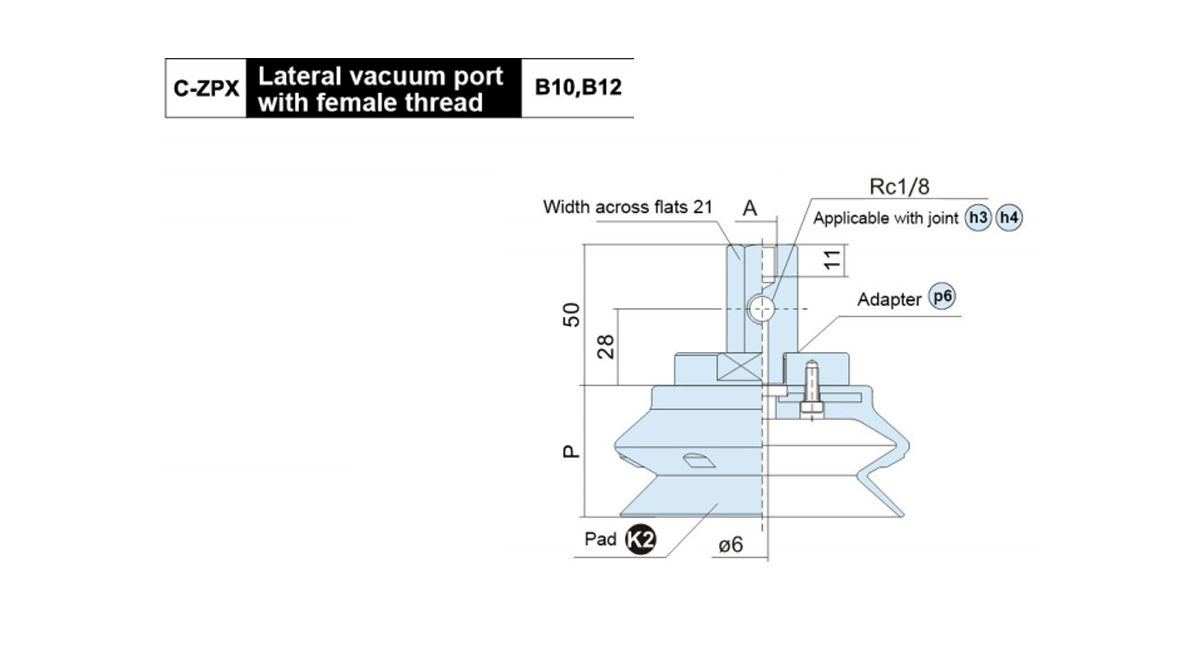

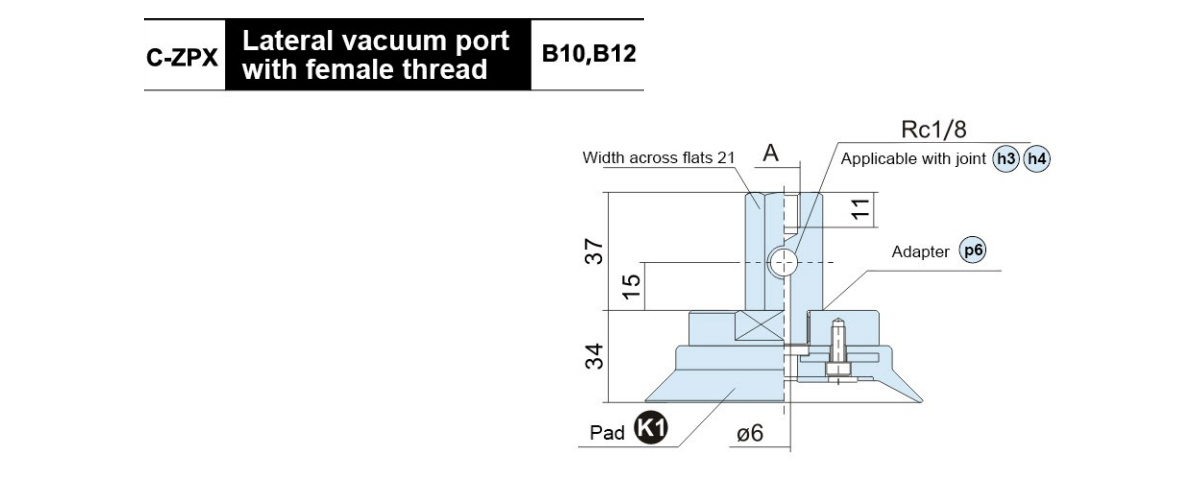

    Model A Adaptor Model
    C-ZPX ○ H□- B01-B10 M10×1.5 ZPX3-B01-B10
    C-ZPX ○ H□- B01-B12 M12×1.75 ZPX3-B01-B12
    ○ Pad diameter symbol:100,125
    □ Pad material:NBR(N),Silicone rubber(S)

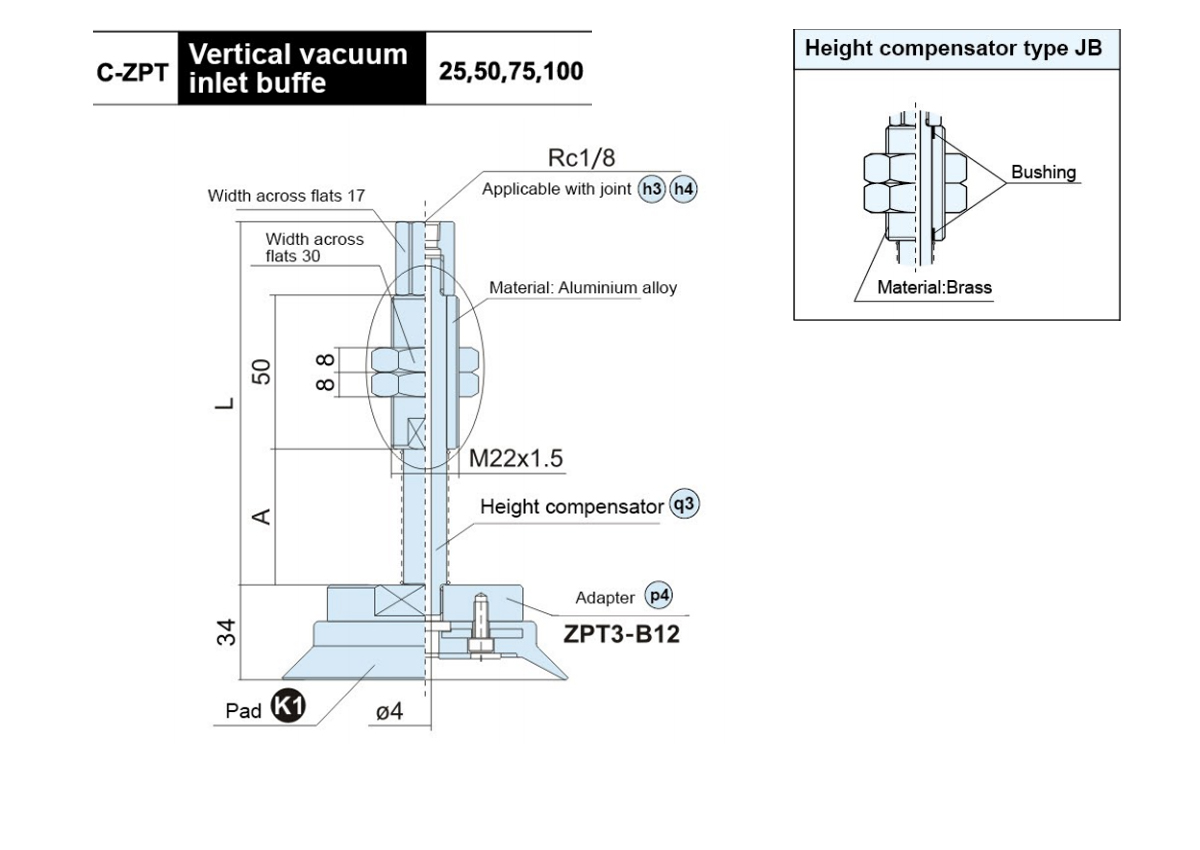

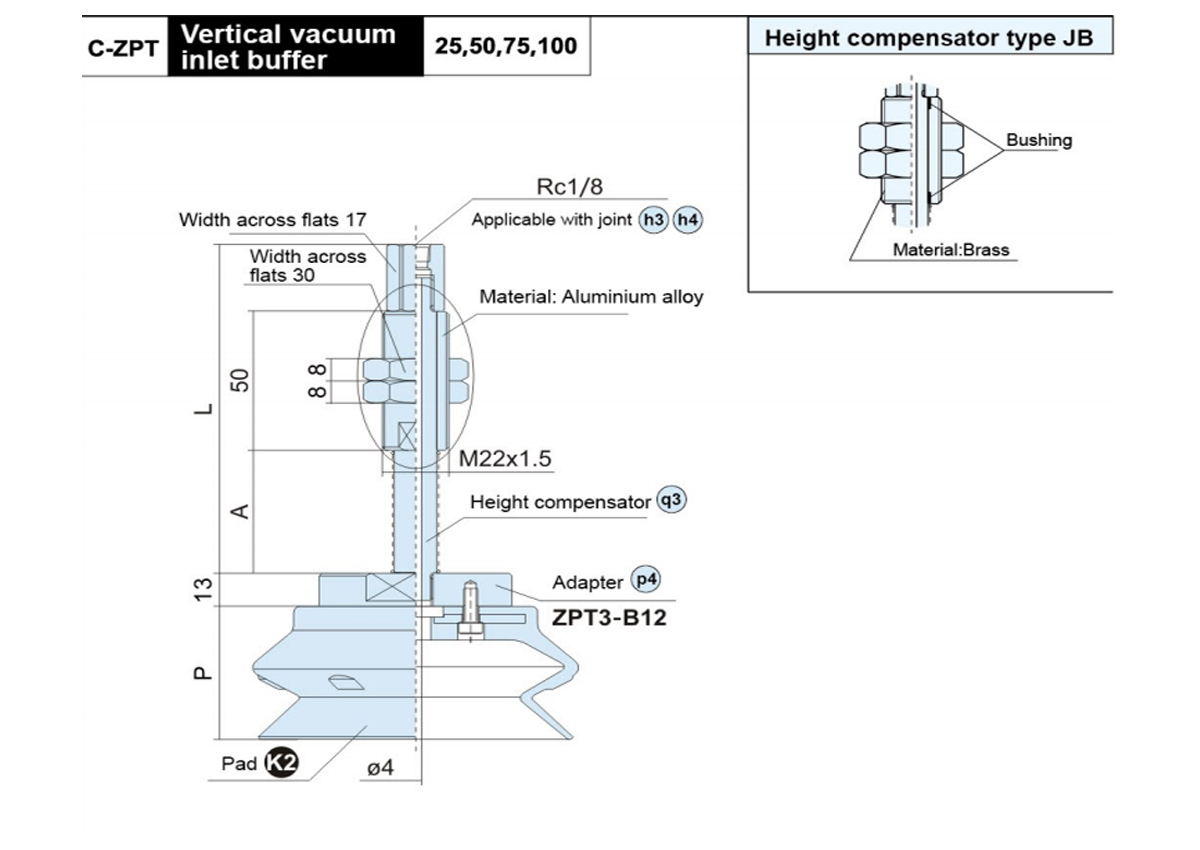

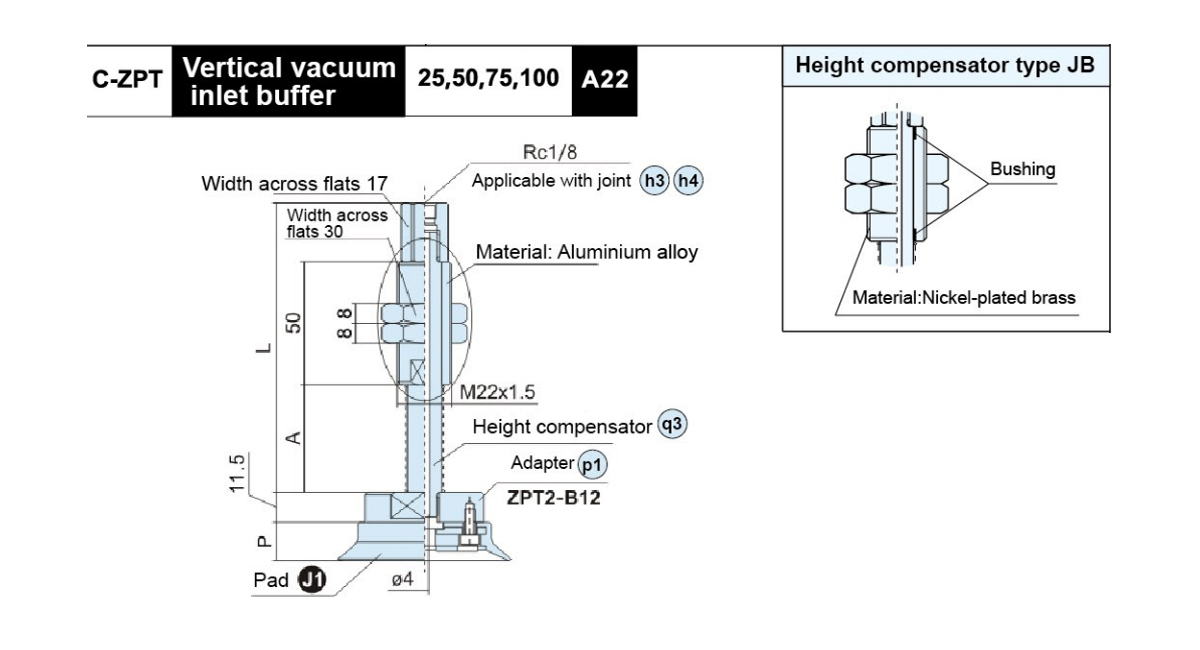

    Model A L q3 p4
    Adaptor Model
    C-ZPT ○ H □● 25-B01-A22 44 118 ZPB3 ●25-B01-A22
    C-ZPT ○ H □● 50-B01-A22 80 154 ZPB3 ●50-B01-A22
    C-ZPT ○ H □● 75-B01-A22 120 194 ZPB3●75-B01-A22
    C-ZPT ○ H □● 100-B01-A22 155 229 ZPB3●100-B01-A22

    ○  Pad  diameter symbol:100,125

    □   Pad   material:NBR(N),Silicone   rubber(S)
    ●  Height  compensator type:Aluminium  alloy(J)
    Brass(JB)

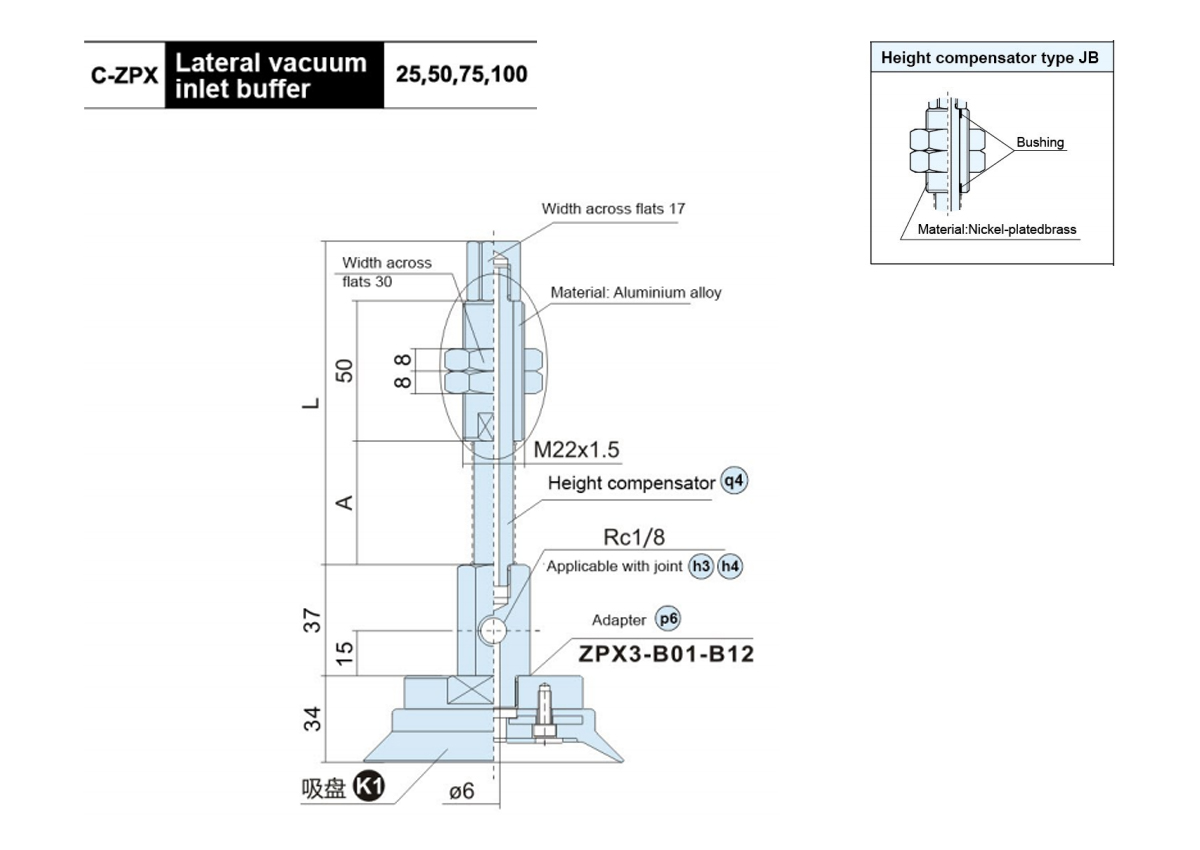

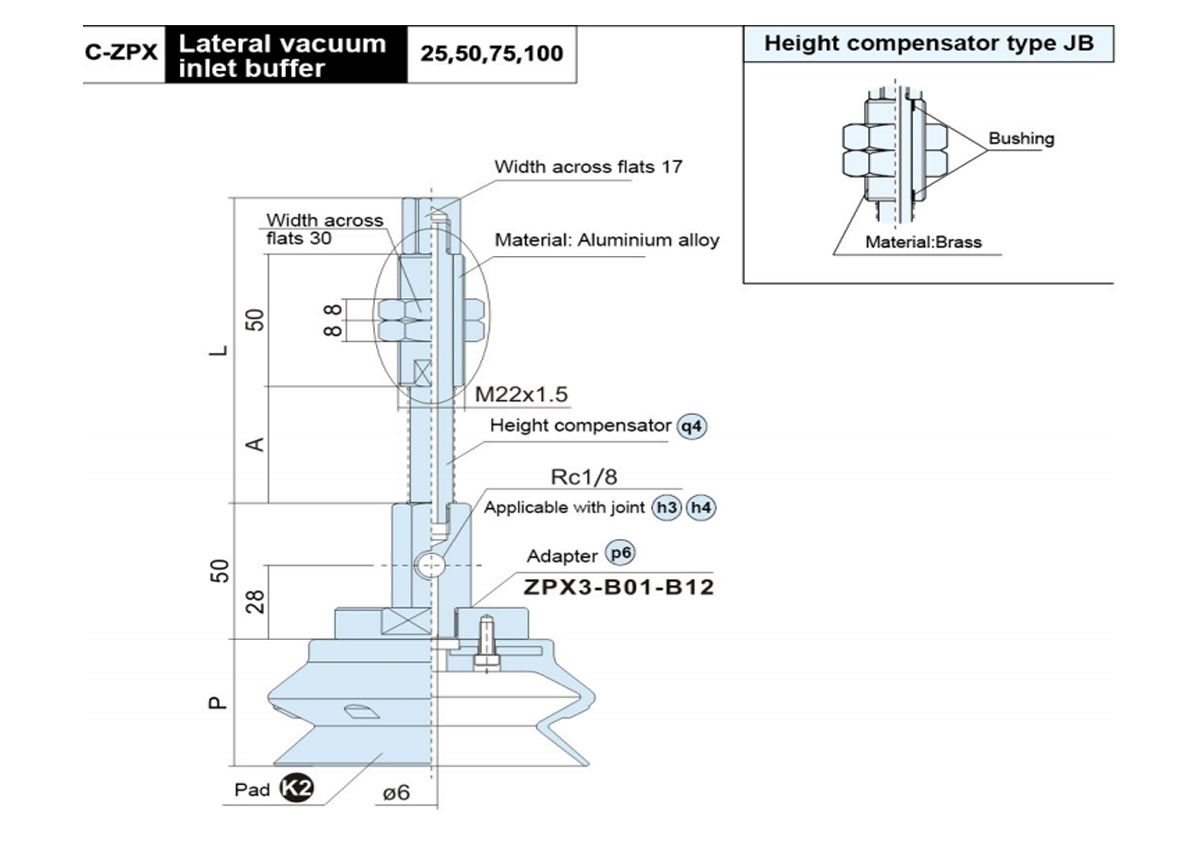

    Model A L q4 p6
    Adaptor Model
    C-ZPX ○ H□● 25-B01-A22 44 118 ZPX3 ●25-B01-A22
    C-ZPX ○ H□● 50-B01-A22 80 154 ZPX3 ●50-B01-A22
    C-ZPX ○H□● 75-B01-A22 120 194 ZPX3 ●75-B01-A22
    C-ZPX ○H□● 100-B01-A22 155 229 ZPX3 ●100-B01-A22

    ○   Pad   diameter   symbol:100,125

    □    Pad  material:NBR(N),Silicone     rubber(S)
    ●   Height   compensator   type:Aluminium   alloy(J)
    Brass(JB)

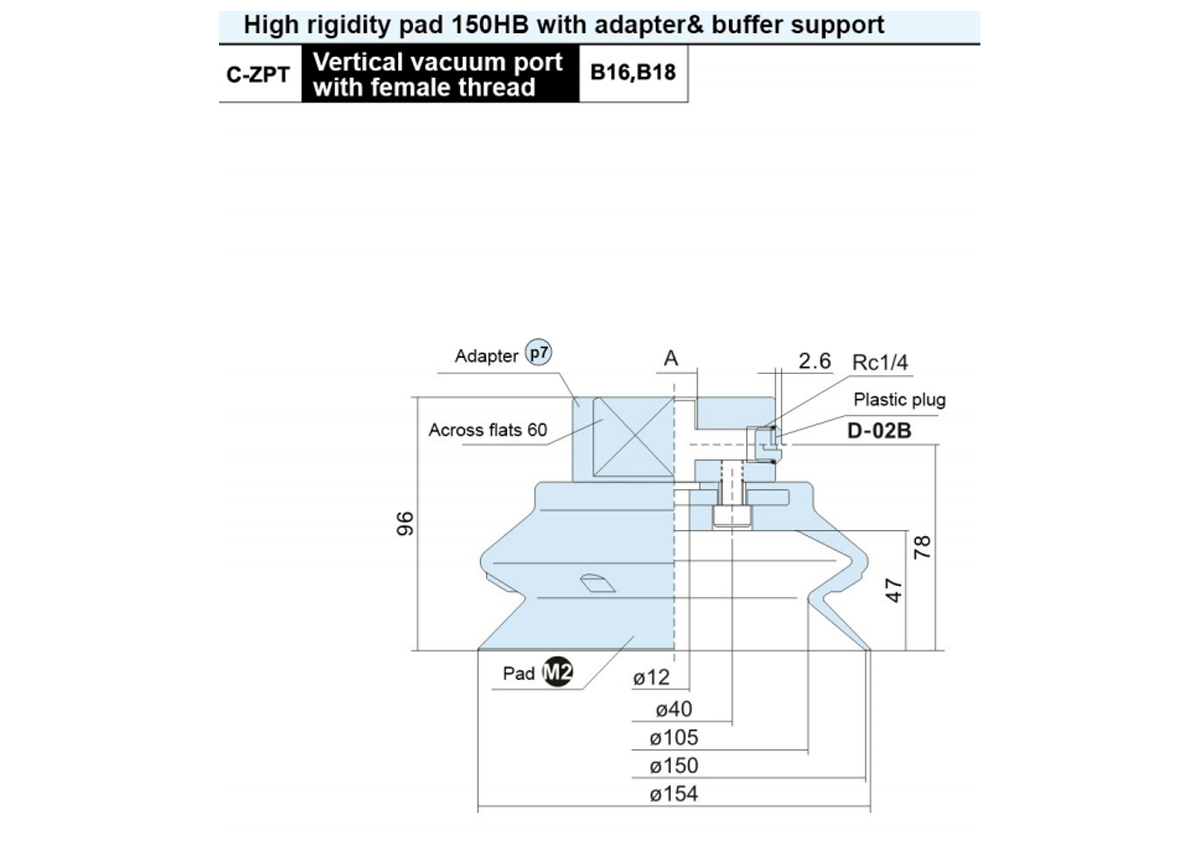

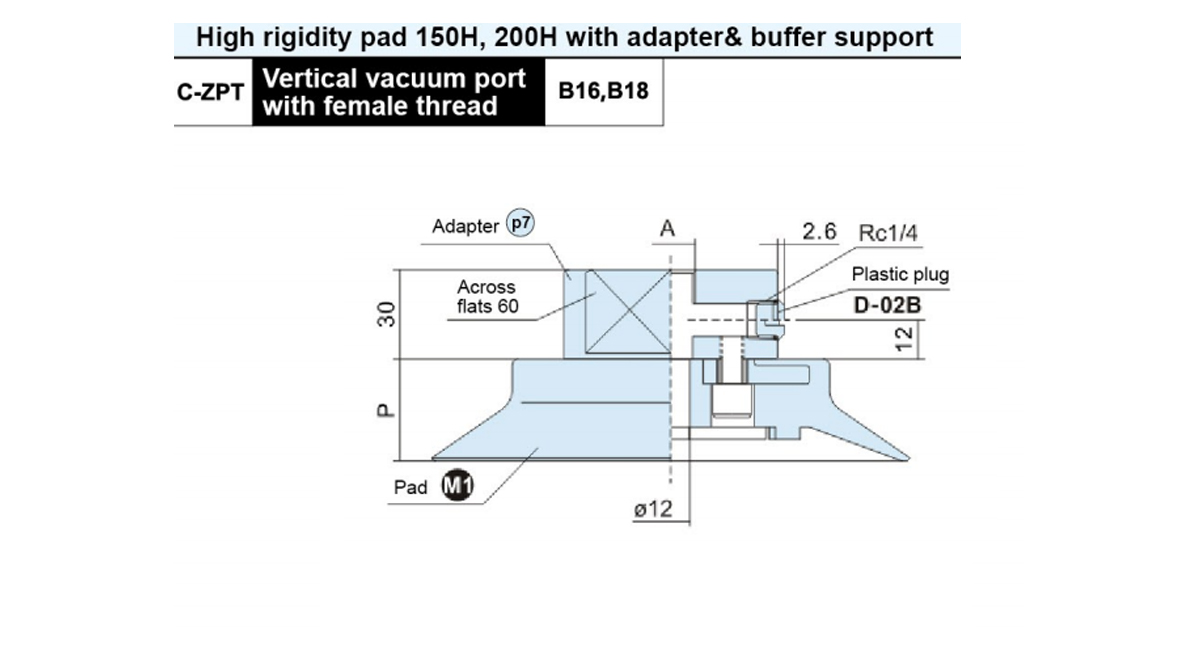

    Model A Pad Diameter P Adaptor Model
    150 200
    C-ZPT ○ H□-B16 M16×1.5 33 36 ZPT4-B16
    C-ZPT ○ H□-B18 M18×1.5 ZPT4-B18
    ○ Pad diameter symbol:150,200       □ Pad material:NBR(N),Silicone rubber(S)

    Model A L Pad Diameter      P q5 p7
    Buffer Support Model
    150 200
    C-ZPT ○ H □ JF20-B02-A30 35 118 33 36 ZPB4JF20-B02-A30
    C-ZPT ○ H □ JF50-B02-A30 75 154 ZPB4JF50-B02-A30
    ○ Pad diameter symbol:150,200       □ Pad material:NBR(N),Silicone rubber(S)

    Model Adaptor Model

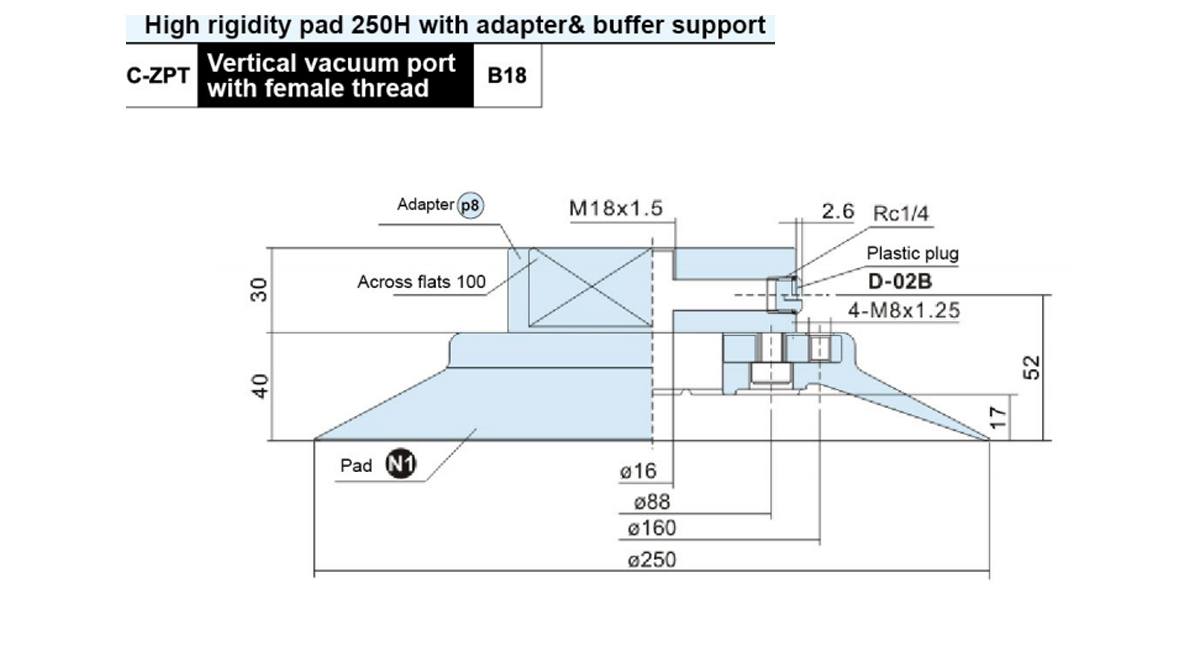

    C-ZPT250H□-B18 ZPT5-B18
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A L q5 p8
    Buffer Support Model

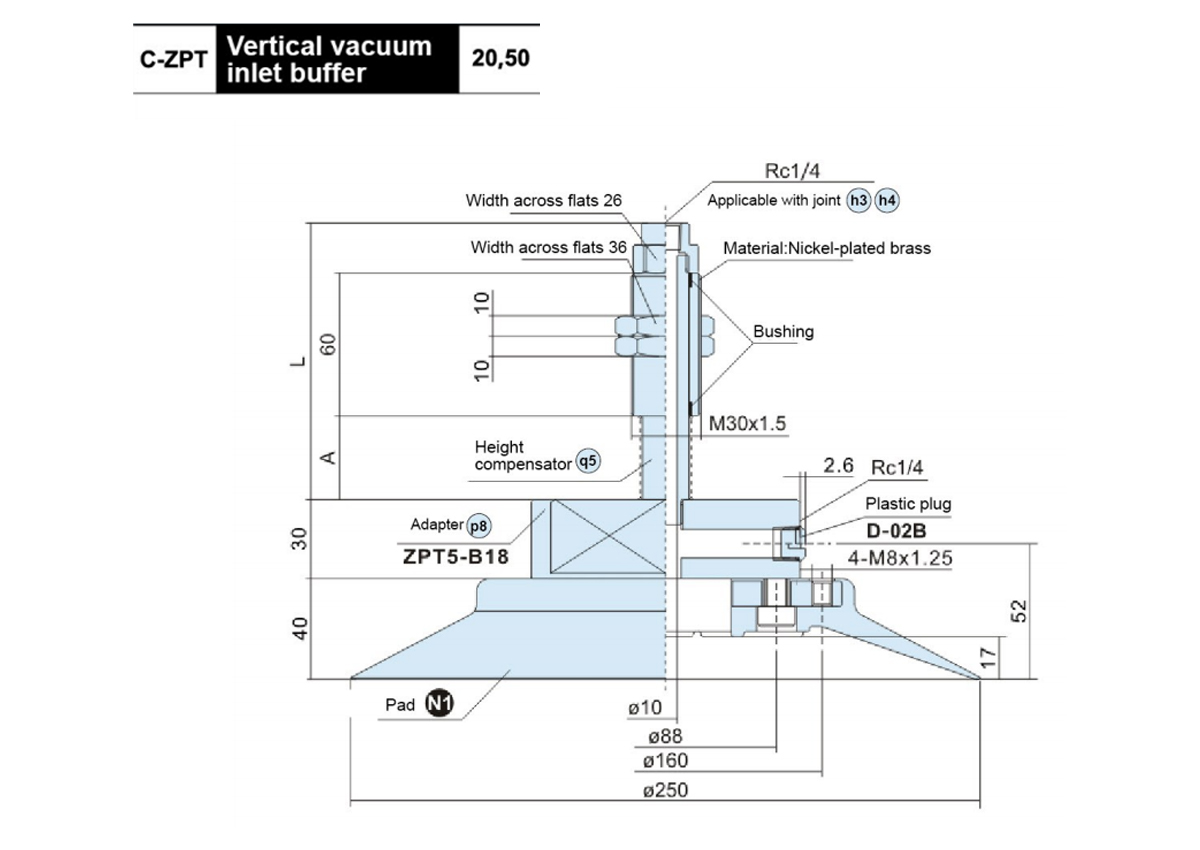

    C-ZPT250H□JF20-B02-A30 35 118 ZPB5JF20-B02-A30
    C-ZPT250H□JF50-B02-A30 75 154 ZPB5JF50-B02-A30
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A ØB Adaptor Model
    C-ZPT32HB □ -B5 M5×0.8 4.2 ZPT0-B5
    C-ZPT32HB □ -B8 M8×1.25 5 ZPT0-B8
    C-ZPT32HB □- B10 M10×1.5 ZPT0-B10
    □ Pad material:NBR(N),Silicone rubber(S)

    Model L Adaptor Model
    C-ZPT32HB □ -A14 25 ZPT0-A14
    C-ZPT32HB □-A14-3 40 ZPT0-A14-3
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A Adaptor Model
    C-ZPX32HB □- B8 M8×1.25 ZPX0-B01-B8
    C-ZPX32HB □-B10 M10×1.5 ZPX0-B01-B10
    C-ZPX32HB □- B12 M12×1.75 ZPX0-B01-B12
    □Pad material:NBR(N),Silicone rubber(S)

    Model A E L Adaptor Model
    C-ZPR32HB □-◇ -A6 M6×1.0 8 66 ZPROH-◇-A6
    C-ZPR32HB □-◇- A8 M8×1.0 12 56 ZPROH-◇-A8
    □Pad material:NBR(N),Silicone rubber(S)     ◇ Vacuum inlet connection:04,06,08

    Model A D Adaptor Model
    C-ZPR32HB □-◇- B5 M5×0.8 5 ZPROH-◇-B5
    C-ZPR32HB □-◇- B6 M6×1.0 6 ZPROH-◇-B6
    C-ZPR32HB □-◇ -B8 M8×1.25 8 ZPROH-◇-B8
    □Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum   inlet   connection:04,06,08

    Model A B C L m2 O0
    Buffer Support Model
    C-ZPT32HB □● 10-B5-A14 M5×0.8 10 50 77 ZPTO-●10-B5-A14
    C-ZPT32HB □● 20-B5-A14 20 81 ZPT0-●20-B5-A14
    C-ZPT32HB □● 30-B5-A14 30 91 ZPT0-●30-B5-A14
    C-ZPT32HB □● 50-B5-A14 50 75 136 ZPT0-●50-B5-A14
    C-ZPT32HB □● 10-B01-A14 Rc1/8 10 50 78.5 ZPT0-●10-B01-A14
    C-ZPT32HB □● 20-B01-A14 20 84 ZPT0-●20-B01-A14
    C-ZPT32HB □● 30-B01-A14 30 94 ZPT0-●30-B01-A14
    C-ZPT32HB □● 50-B01-A14 50 75 139 ZPT0-●50-B01-A14
    ●Height compensator type:Rotative(J)                     □Pad   material:NBR(N),Silicone   rubber(S)
    Unable to rotate(K)

    Model B C L m4 O4
    Buffer Support Model
    C-ZPR32HB □● 10 -◇- A14 10 50 80 ZPR0-●10-◇ -A14
    C-ZPR32HB □● 20 -◇ -A14 20 77 ZPRO-●20-◇-A14
    C-ZPR32HB □● 30 -◇- A14 30 87 ZPR0-●30-◇-A14
    C-ZPR32HB □● 50 -◇ -A14 50 75 132 ZPR0-●50-◇-A14
    □Pad material:NBR(N),Silicone rubber( )  ●Height compensator type:Rotative(J)
    ◇Vacuum inlet connection:04,06,08                                     Unable to rotate(K)

    Model A L q1 O0
    Buffer Support Model
    C-ZPT32HB □● 25-B01-A18 40 95.5 ZPB0 ● 25-B01-A18
    C-ZPT32HB □● 50-B01-A18 75 130.5 ZPB0 ● 50-B01-A18
    C-ZPT32HB □● 75-B01-A18 111 166.5 ZPB0 ● 75-B01-A18
    □Pad material:NBR(N),Silicone rubber(S)
    ●Height compensator type:Aluminium alloy(J),Brass(JB)

    Model A L q2 O2
    Buffer Support Model
    C-ZPX32HB □● 25-B01-A18 40 91 ZPX0 ● 25-B01-A18
    C-ZPX32HB □● 50-B01-A18 75 126 ZPX0 ● 50-B01-A18
    C-ZPX32HB □● 75-B01-A18 111 162 ZPX0 ● 75-B01-A18
    □Pad material:NBR(N),Silicone rubber(S)
    ●Height compensator type:Aluminium alloy(J),Brass(JB)

    Model A B Pad Diameter    P Adaptor Model
    40 50
    C-ZPT ○ HB □ -B5 M5×0.8 4.2 20.5 24 ZPT1-B5
    C-ZPT ○ HB □- B8 M8×1.25 5 ZPT1-B8
    C-ZPT ○ HB □- B10 M10×1.5 ZPT1-B10
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)

    Model L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT ○ HB □ -A14 25 20.5 24 ZPT1-A14
    C-ZPT ○ HB □ -A14-3 40 ZPT1-A14-3
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)

    Model A ○Pad Diameter   P Adaptor Model
    40 50
    C-ZPX ○ HB □- B8 M8×1.25 20.5 24 ZPX1-B01-B8
    C-ZPX ○ HB □- B10 M10×1.5 ZPX1-B01-B10
    C-ZPX ○ HB □ -B12 M12×1.75 ZPX1-B01-B12
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR ○ HB □-◇ -A6 M6×1.0 8 66 20.5 24 ZPR1H-◇-A6
    C-ZPR ○ HB □-◇ -A8 M8×1.0 12 56 ZPR1H-◇-A8
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)
    ◇Vacuum inlet connection:06,08

    Model A D ○Pad Diameter     P Adaptor Model
    40 50
    C-ZPR ○ HB □-◇- B6 M6×1.0 6 20.5 24 ZPR1H-◇-B6
    C-ZPR ○ HB □-◇- B8 M8×1.25 8 ZPR1H-◇-B8
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)
    ◇ Vacuum inlet connection:06,08

    Model A B C L ○ Pad Diameter  P m2 O5
    Buffer Support Model
    40 50
    C-ZPT ○ HB □● 10-B5-A14 M5×0.8 10 50 77 20.5 24 ZPT1-●10-B5-A14
    C-ZPT ○ HB□● 20-B5-A14 20 81 ZPT1-●20-B5-A14
    C-ZPT ○ HB □● 30-B5-A14 30 91 ZPT1-●30-B5-A14
    C-ZPT ○ HB□● 50-B5-A14 50 75 136 ZPT1-●50-B5-A14
    C-ZPT ○ HB□● 10-B01-A14 Rc1/8 10 50 78.5 ZPT1-●10-B01-A14
    C-ZPT ○ HB□● 20-B01-A14 20 84 ZPT1-●20-B01-A14
    C-ZPT ○ HB □● 30-B01-A14 30 94 ZPT1-●30-B01-A14
    C-ZPT ○ HB □● 50-B01-A14 50 75 139 ZPT1-●50-B01-A14
    ○ Pad diameter symbol:40,50           □  Pad  material:NBR(N),Silicone  rubber(S)
    ●     Height     compensator     type:Rotative(J),Unable     to     rotate(K)

    Model B C L ○ Pad  Diameter  P m4 O9
    Buffer Support Model
    40 50
    C-ZPT ○ HB□● 10 -◇ -A14 10 50 80 20.5 24 ZPR1-●10-◇-A14
    C-ZPT ○ HB □● 20 -◇ -A14 20 77 ZPR1-●20-◇-A14
    C-ZPT ○ HB □● 30 -◇ -A14 30 87 ZPR1-●30-◇-A14
    C-ZPT ○ HB □● 50 -◇- A14 50 75 132 ZPR1-●50-◇-A14
    ○Pad diameter symbol:40,50          □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    Vacuum inlet connection:06,08

    Model A L ○ Pad  Diameter  P q1 O 5
    Buffer Support Model
    40 50
    C-ZPT ○ HB □● 25-B01-A18 40 95.5 20.5 24 ZPB1 ●25-B01-A18
    C-ZPT ○ HB □● 50-B01-A18 75 130.5 ZPB1 ●50-B01-A18
    C-ZPT ○ HB □● 75-B01-A18 111 166.5 ZPB1 ●75-B01-A18
    ○ Pad diameter symbol:40,50      □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

    Model A L ○ Pad Diameter P q2 O7
    Buffer Support Model
    40 50
    C-ZPX ○ HB □● 25-B01-A18 40 95.5 20.5 24 ZPX1 ●25-B01-A18
    C-ZPX ○ HB □● 50-B01-A18 75 130.5 ZPX1 ●50-B01-A18
    C-ZPX ○ HB □● 75-B01-A18 111 166.5 ZPX1 ●75-B01-A18
    ○ Pad diameter symbol:40,50      □ Pad materal:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

    Model A ○ Pad Diameter P Adaptor
    Model
    63 80
    C-ZPT ○ HB□- B8 M8×1.25 31.5 37 ZPT2-B8
    C-ZPT ○ HB□-B10 M10×1.5 ZPT2-B10
    C-ZPT ○ HB□-B12 M12×1.75 ZPT2-B12
    C-ZPT ○ HB □- B16 M16×1.5 ZPT2-B16
    ○ Pad diameter symbol:63,80
    □   Pad  material:NBR(N),Silicone  rubber(S)

    Model P Adaptor Model
    C-ZPT63HB □- A16 31.5 ZPT2-A16
    C-ZPT80HB □-A16 37
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A ○ Pad Diameter  P
    63 80
    C-ZPX ○ HB□- B01-B8 M8×1.25 31.5 37
    C-ZPX ○ HB□- B01-B10 M10×1.5
    C-ZPX ○ HB□- B01-B12 M12×1.75
    ○ Pad diameter symbol:63,80
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A L ○ Pad Diameter  P q1 p1
    Buffer Support Model
    63 80
    C-ZPT ○ HB □● 25-B01-A18 40 95.5 31.5 37 ZPB2 ●25-B01-A18
    C-ZPT ○ HB □● 50-B01-A18 75 130.5 ZPB2 ●50-B01-A18
    C-ZPT ○ HB □● 75-B01-A18 111 166.5 ZPB2 ●75-B01-A18
    ○ Pad diameter symbol:63,80
    ● Height compensator type:Aluminium alloy(J)
    □ Pad material:NBR(N),Silicone rubber(S)
    Brass(JB)

    Model A L ○ Pad Diameter P q3 P
    Buffer Support Model
    63 80
    C-ZPT ○ HB□● 25-B01-A22 44 118 31.5 37 ZPB2 ●25-B01-A22
    C-ZPT ○ HB□● 50-B01-A22 80 154 ZPB2●50-B01-A22
    C-ZPT ○ HB □● 75-B01-A22 120 194 ZPB2●75-B01-A22
    C-ZPT ○ HB □● 100-B01-A22 155 229 ZPB2 ●100-B01-A22
    ○ Pad diameter symbol:63,80           ● Height compensator type:Aluminium alloy(J) Brass(JB)
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A L ○ Pad Diameter P q2 p3
    Buffer Support Model
    63 80
    C-ZPX ○ HB □● 25-B01-A18 40 95.5 31.5 37 ZPX2 ●25-B01-A18
    C-ZPX ○ HB □● 50-B01-A18 75 130.5 ZPX2 ●50-B01-A18
    C-ZPX ○ HB □● 75-B01-A18 111 166.5 ZPX2 ●75-B01-A18
    ○ Pad diameter symbol:63,80
    ● Height compensator type:Aluminium alloy(J)
    □ Pad material:NBR(N),Silicone rubber(S)
    Brass(JB)

    Model A L ○ Pad Diameter P q4 p3
    Buffer     Support Model
    63 80
    C-ZPX ○ HB□● 25-B01-A22 44 118 31.5 37 ZPX2 ●25-B01-A22
    C-ZPX ○ HB □● 50-B01-A22 80 154 ZPX2 ●50-B01-A22
    C-ZPX ○ HB □● 75-B01-A22 120 194 ZPX2 ●75-B01-A22
    C-ZPX ○ HB □● 100-B01-A22 155 229 ZPX2 ●100-B01-A22
    ○ Pad diameter symbol:63,80           ● Height compensator type:Aluminium alloy(J)  Brass(JB)
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A ○ Pad Diameter P Adaptor Model
    100 125
    C-ZPT ○ HB □ -B12 M12×1.75 47.5 56 ZPT3-B12
    ZPT3-B16
    C-ZPT ○ HB □- B16 M16×1.5
    ○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

    Model A L . Pad
    Diameter     		P q3 p4
    Bumper Support Model
    100 125
    C-ZPT O HB □● 25-B01-A22 44 118 47.5 56 ZPB3 ●25-B01-A22
    C-ZPT O HB □● 50-B01-A22 80 154 ZPB3●50-B01-A22
    C-ZPT O HB □● 75-B01-A22 120 194 ZPB3 ●75-B01-A22
    C-ZPT O HB □● 100-B01-A22 155 229 ZPB3 ●100-B01-A22
    ○ Pad diameter symbol:100,125    □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

    Model P Adaptor Model
    C-ZPT100HB □ -A16 47.5 ZPT3-A16
    C-ZPT125HB □ -A16 56
    □   Pad  material:NBR(N),Silicone  rubber(S)

    Model A ○Pad Diameter   P Adaptor Model
    100 125
    C-ZPX ○ HB□-B01-B10 M10×1.5 47.5 56 ZPX3-B01-B10
    C-ZPX ○ HB□-B01-B12 M12×1.75 ZPX3-B01-B12
    ○ Pad diameter symbol:100,125   □ Pad material:NBR(N),Silicone rubber(S)

    Model A L ○ Pad  Diameter  P q4 p6
    Bumper Support Model
    100 125
    C-ZPX ○ HB □● 25-B01-A22 44 118 47.5 56 ZPX3 ●25-B01-A22
    C-ZPX ○ HB □● 50-B01-A22 80 154 ZPX3 ●50-B01-A22
    C-ZPX ○ HB □● 75-B01-A22 120 194 ZPX3 ●75-B01-A22
    C-ZPX ○ HB □● 100-B01-A22 155 229 ZPX3 ●100-B01-A22
    ○ Pad diameter symbol:100,125    □ Pad material:NBR(N),Silicone rubber(S)
    ● Height compensator type:Aluminium alloy(J),Brass(JB)

    Model A Adaptor Model
    C-ZPT150HB □ -B16 M16×1.5 ZPT4-B16
    C-ZPT150HB □- B18 M18×1.5 ZPT4-B18
    □ Pad material:NBR(N),Silicone rubber(S)

    Model A L q5 p7
    Bumper Support Model

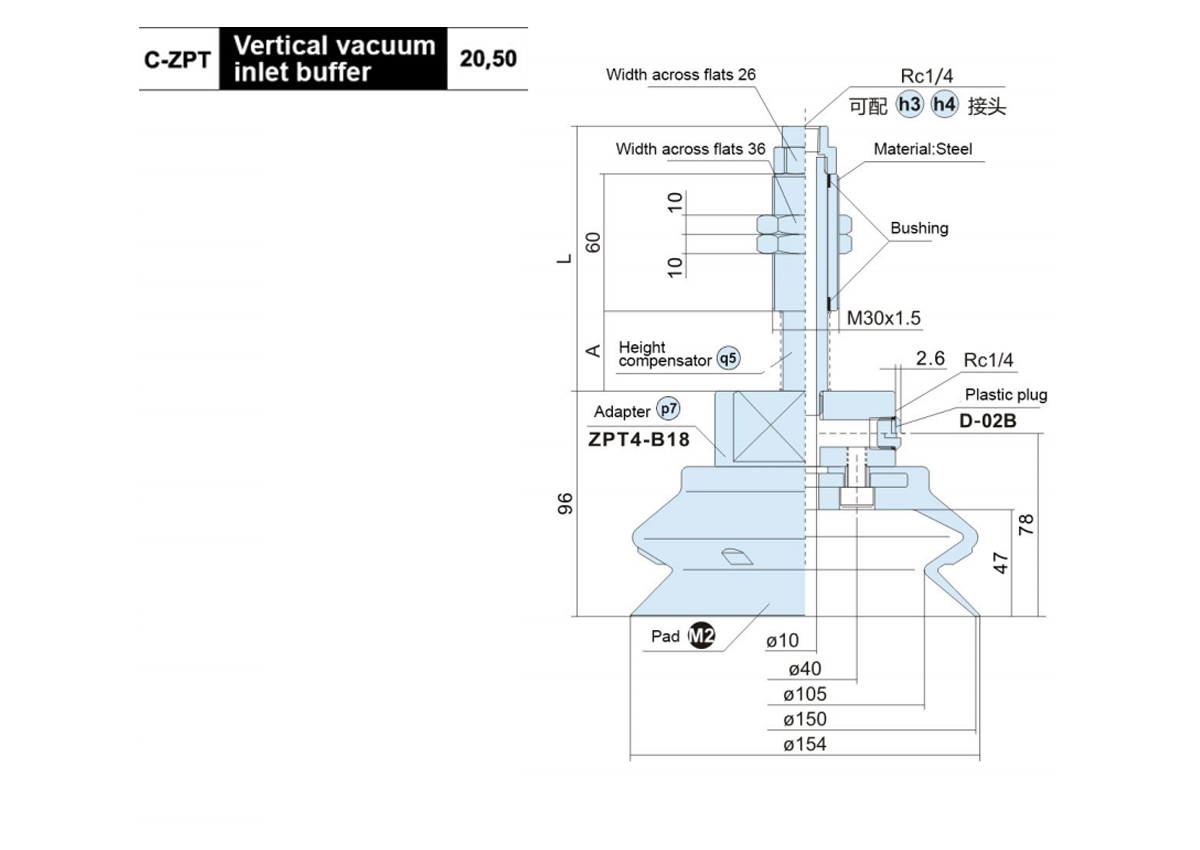

    C-ZPT150HB □ JF20-B02-A30 35 118 ZPB4JF20-B02-A30
    C-ZPT150HB □ JF50-B02-A30 75 154 ZPB4JF50-B02-A30
    □ Pad material:NBR(N),Silicone rubber(S)

Mga Kaugnay na Produkto

Blog at Balita

Ang Aming Pinakabagong Balita at
Blog

Tingnan Pa

Ang Tunay at Maaasahang Kalidad ay Likas na Namumukod-tangi.

Ang pagpili ay nagmumula sa tiwala, at ang pakikipagtulungan ay nagmumula sa katapatan.

  • T: Gaano kabilis kami makakakuha ng tugon pagkatapos naming magpadala sa iyo ng isang pagtatanong?

    Sasagot kami sa iyo sa loob ng 24 na oras pagkatapos matanggap ang pagtatanong sa mga araw ng trabaho.

  • T: Ikaw ba ay isang direktang tagagawa o isang kumpanya ng kalakalan?

    Kami ay isang tagagawa, at mayroon kaming sariling internasyonal na departamento ng pagbebenta. Para makagawa at makapagbenta tayo nang mag-isa.

  • T: Maaari ka bang gumawa ng mga pasadyang produkto?

    Oo, maaari kaming bumuo at gumawa ng mga produkto ayon sa mga guhit o sample na ibinigay ng mga customer.

  • T: Paano ginagarantiya ng iyong kumpanya ang kalidad ng produkto?

    Una sa lahat, gagawin namin ang inspeksyon pagkatapos ng bawat proseso. Para sa mga natapos na produkto, gagawin namin ang 100% na inspeksyon ayon sa mga kinakailangan ng mga customer at ang internasyonal na pamantayan.

  • T: Saan pangunahing iniluluwas ang iyong mga produkto?

    Ang aming mga produkto ay pangunahing ini-export sa Germany, United States, Denmark at higit sa isang dosenang bansa sa Europe at North America
