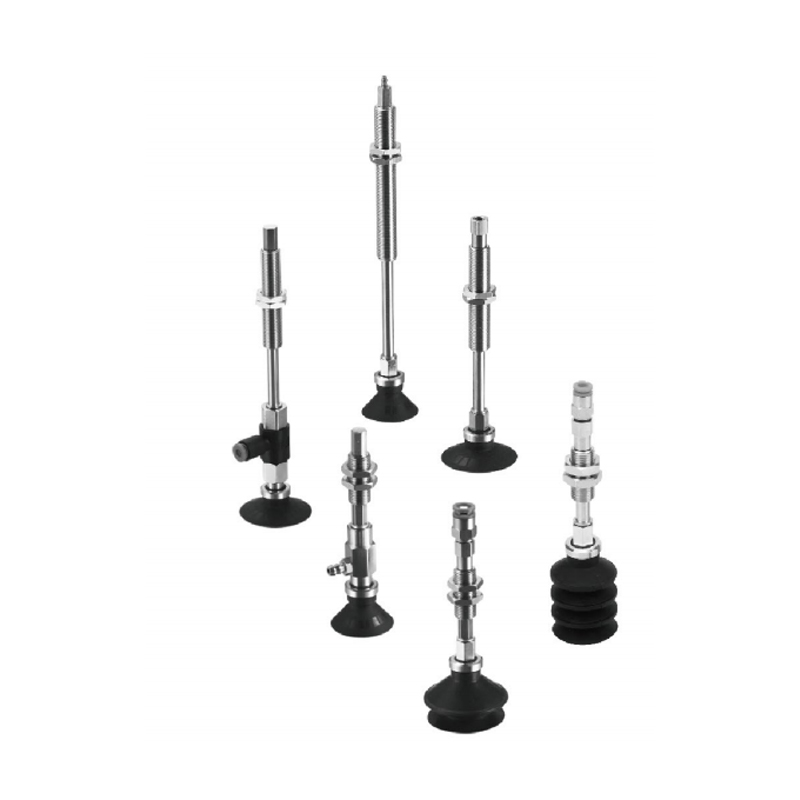

ZP Series Vacuum Suction Cup na May Snap Ring, Adapter at Buffer Bracket (Ø9~Ø50) ZP Series Vacuum Suction Cup na May Snap Ring, Adapter at Buffer Bracket (Ø9~Ø50)
  • ZP Series Vacuum Suction Cup na May Snap Ring, Adapter at Buffer Bracket (Ø9~Ø50)
  • ZP Series Vacuum Suction Cup na May Snap Ring, Adapter at Buffer Bracket (Ø9~Ø50)
ZP Series Vacuum Suction Cup na May Locking Ring, Adapter at Buffer Bracket

ZP Series Vacuum Suction Cup na May Snap Ring, Adapter at Buffer Bracket (Ø9~Ø50)

Ang ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50) ay isang vacuum suction cup assembly na may pinagsamang mekanismo ng locking ring at buffer function, na angkop para sa mga suction cup na may iba't ibang detalye (Ø9~Ø50) upang makamit ang matatag na pagkakahawak at proteksyon ng workpiece.

Mga Pangunahing Tampok
1. Locking at anti-dropping na disenyo: Ang built-in na mechanical locking ring ay awtomatikong humihigpit sa suction cup upang maiwasan ang hindi sinasadyang pag-dropout na dulot ng negatibong pagbabagu-bago ng presyon.
2. Flexible buffer structure: Ang built-in na elastic na elemento ay sumisipsip ng contact impact ng workpiece at binabawasan ang panganib ng pinsala sa precision surface.
3. Modular adapter interface: Ang standardized thread/quick-change interface ay compatible sa mainstream vacuum system at sumusuporta sa mabilis na pagpapalit ng mga detalye ng suction cup.
4. Manipis at compact na layout: Ang mababang disenyo ng taas ng pag-install ay angkop para sa maliit na layout ng espasyo at ino-optimize ang end load ng robot arm.
5. Malawak na saklaw ng mga kondisyon sa pagtatrabaho: Angkop para sa kumbensyonal na negatibong mga kondisyon ng presyon, tugma sa paghawak ng mga materyal na hindi buhaghag gaya ng metal/salamin/plastik.

E-mail: manager@cktworld.com
I-download
NAUNA：Walang nakaraang artikulo
SUSUNOD：ZP Series Vacuum Suction Cup na May Lock Ring (Ø9~Ø50)

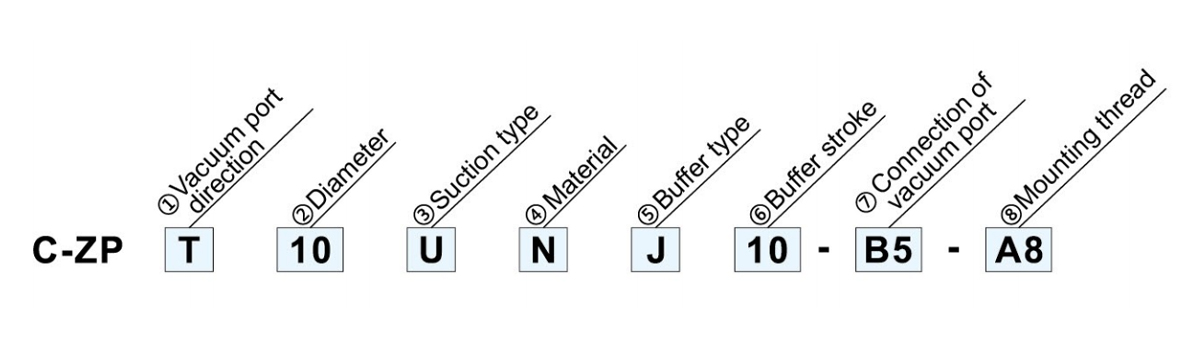

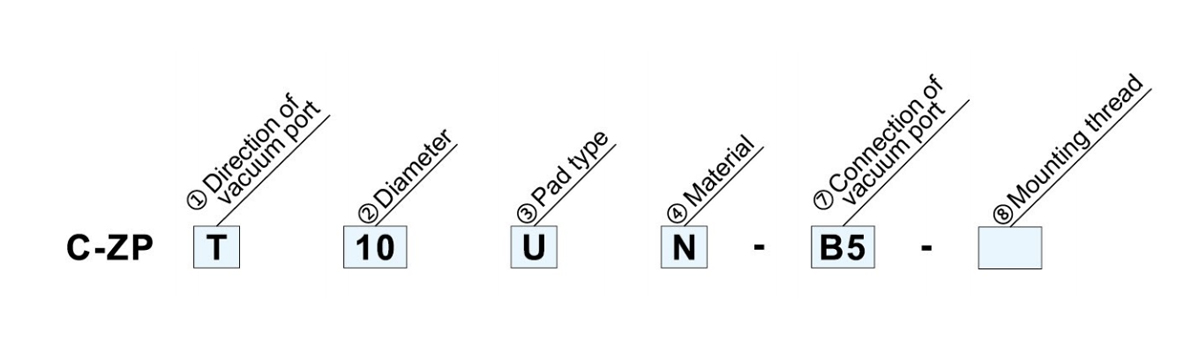

  • ④Materyal□ ② Diameter（mm）○/③Uri ng Pagsipsip☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U patag - ● ● - ● ● ● - ● ● ●
    C Gamit ang Rib - ● ● - ● ● ● - ● ● ●
    D Malalim - ● - - ● - ● - - ● -
    ①Direksyon ng
    vacuum    port     		B 2   Bellows - ● ● - ● ● ● - ● ● ●
    J 3/4 Bellows ● - - ● ● - ● ● - - -

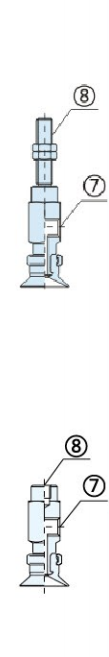

    T Patayo ⑦Koneksyon ng Vacuum Port Panlabas na thread A5 M5×0.8 ● - -
    A6 M6×1.0 ● ● ●
    A8 M8×1.0 - ● ●
    A01 R1/8 ● ● ●
    panloob na thread B5 M5×0.8 ● ● -
    B6 M6×1.0 ● ● ●
    B8 M8×1.25 - ● ●
    B01 Rc1/8 ● ● ●

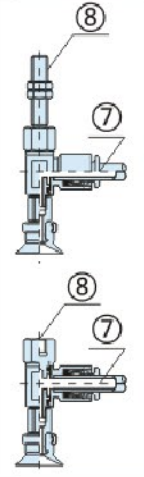

    R Lateral Mabilis konektor 04 Ø4 ● ●
    06 Ø6 ● ● ●
    08 Ø8 - ○ ●
    ⑧Pag-mount Thread Panlabas na thread A5 M5×0.8 ● - -
    A6 M6×1.0 ● ● ●
    A8 M8×1.0 - ● ·
    Panloob na thread B5 M5×0.8 ● ● -
    B6 M6×1.0 ● ● ●
    B8 M8×1.25 - ● ●
    Y ⑦ Connecton Ng Vacuum Port◇ B5 M5×0.8 ● ● ●
    Pagkakabit ng barb U4 φ4 PU hose ● ● -
    N4 φ4 Nylon hose ● ● -
    U6 φ6 PU hose ● ● ●
    N6 φ6 Nylon hose ● ● ●
    Panlabas na hexagon quick connector 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ●
    panloob hexagon quick connector 03S Ø3 ● - -

    23S

    		Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●

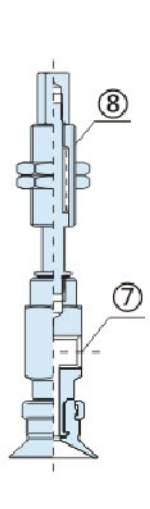

    ⑧ Mounting thread Panlabas
    thread     		A5 M5×0.8 ● - -
    A6 M6×1.0 ● ● ●
    A8 M8×1.0 - ● ●
    Panloob na thread B5 M5×0.8 ● ● -
    B6 M6×1.0 ● ● ●
    B8 M8×1.25 - ● ●

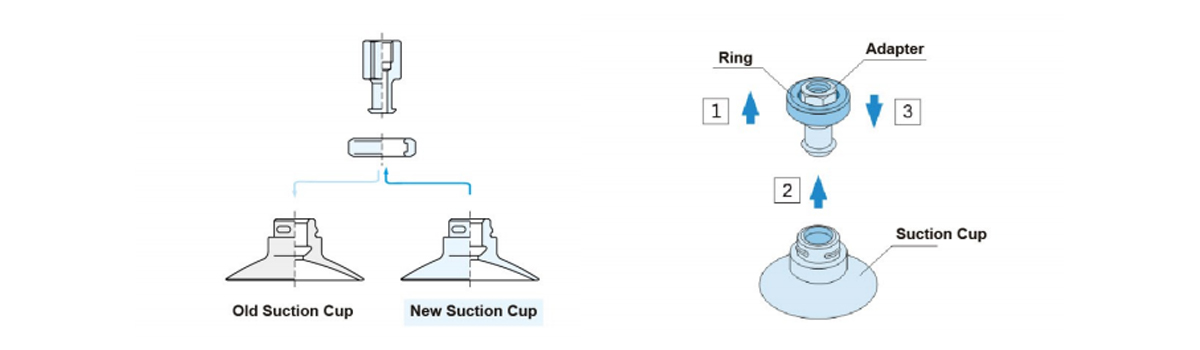

    Ang mga suction cup ay mga bahagi ng goma, at ang pagtanda ay hindi maiiwasan. Ang rate ng pagtanda ay depende sa mga salik tulad ng mga paraan ng paggamit, kapaligiran, at mga kondisyon ng temperatura. Dapat gawin ang regular na pagpapanatili. Kung may anumang pinsala, paghahati, pag-crack, o pagkasira, dapat na palitan kaagad ang suction cup. Kapag pinapalitan ang suction cup, mangyaring huwag sirain ang panlabas na ibabaw nito.

    HAKBANG:

    1. Tanggalin ang singsing.
    2. Tanggalin ang adaptor.
    3. Ayusin ang bagong suction cup na nawi at pagkatapos ay ipasok ang adapter na may bagong suction cup.

    ④Materyal□ ②Diameter(mm)○/③Uri ng Pagsipsip☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U patag - ● ● - ● ● ● - ● ● ●
    ⑤ Buffer     uri● C Kasama si Rib - ● ● - ● ● ● - ● ● ●
    J Paikot-ikot D Malalim ● - - ● - ● - - ● -
    K Hindi ma-rotate B 2 Bellows ● ● - ● ● ● - ● ● ●
    J 3/4 Bellows ● - - ● ● - · ● - - -
    ⑥Buffer stroke■ 10 10   mm ● ● ●
    20 20   mm ● ● ●
    30 30   mm ● ● ●
    ①Koneksyon ng vaccum port 40 40   mm ● ● -
    50 50   mm ● ● ●
    T Patayo ⑦Koneksyon  ng  vacuum port◇ Panloob na thread B5 M5×0.8 ● ● ●
    B01 Rc1/8 - - ●
    Pagkakabit ng barb U4 中4 PU hose ● - -
    N4 φ4 Nylon hose ● - -
    U6 φ6 PU hose ● ● ●
    N6 中6 Nylon hose ● ● ●
    Panlabas na hexagon quick connector 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●





    R     		Inner hexagon quick connector 03S Ø3 ● - -
    23S Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    Lateral Mabilis na connector 04 Ø4 ● ● -
    06 Ø6 ● ● ●
    08 Ø8 - ● ●
    Y Inner B5 M5×0.8 ● ● ●
    Pagkakabit ng barb U4 φ4 PU hose ● ● -
    N4 φ4 Nylon hose ● ● 一
    U6 φ6 PU hose ● ● ●
    N6 φ6 Nylon hose ● ● ●
    Panlabas na hexagon quick connector 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●
    Inner hexagon quick connector 03S Ø3 ● - -
    23S Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●

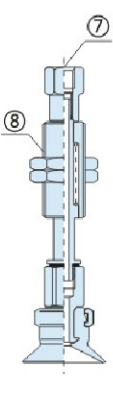

    ⑧Mounting thread Panlabas thread A10 M10×1.0 ● ● -
    A14 M14×1.0 - ● ●

    Mounting
    Thread     		Pag-mount Nut
    Tightening torque(N.m)     		Spring Buffer Force(N)
    0 Stroke Buong Stroke
    M10×1.0 2.5-3.5 1.0 3.0
    M14×1.0 6.5-7.5 2.0 5.0

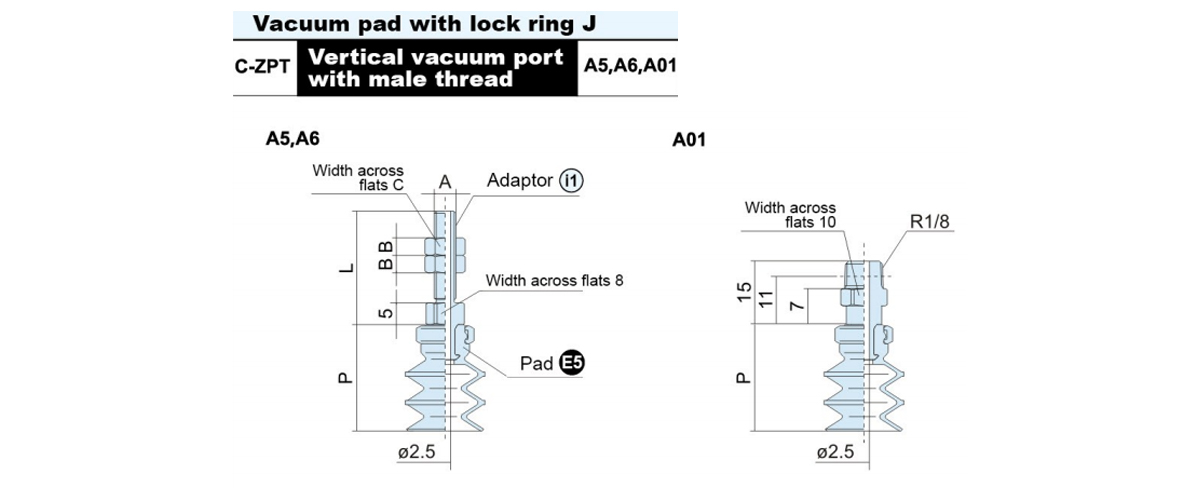

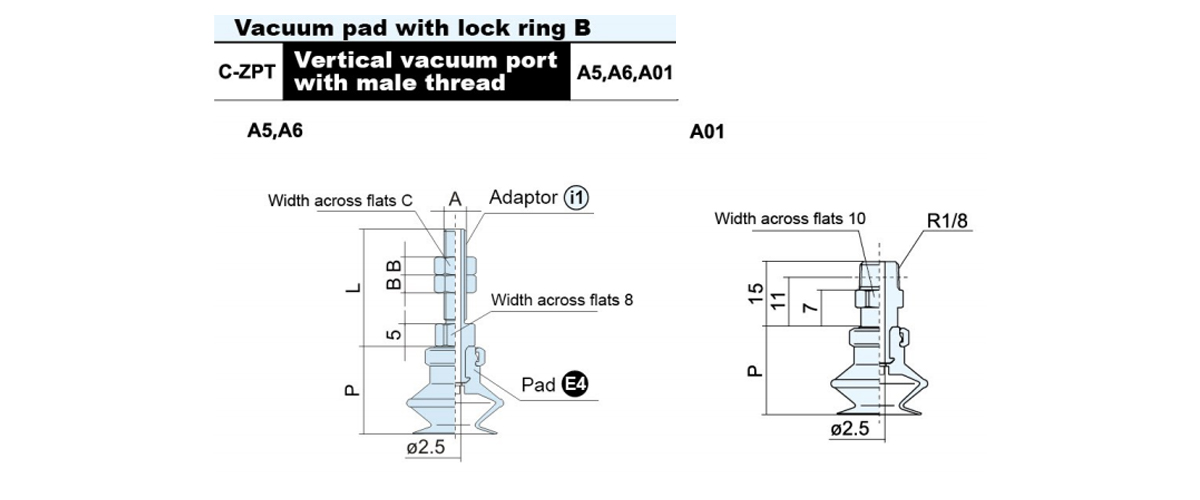

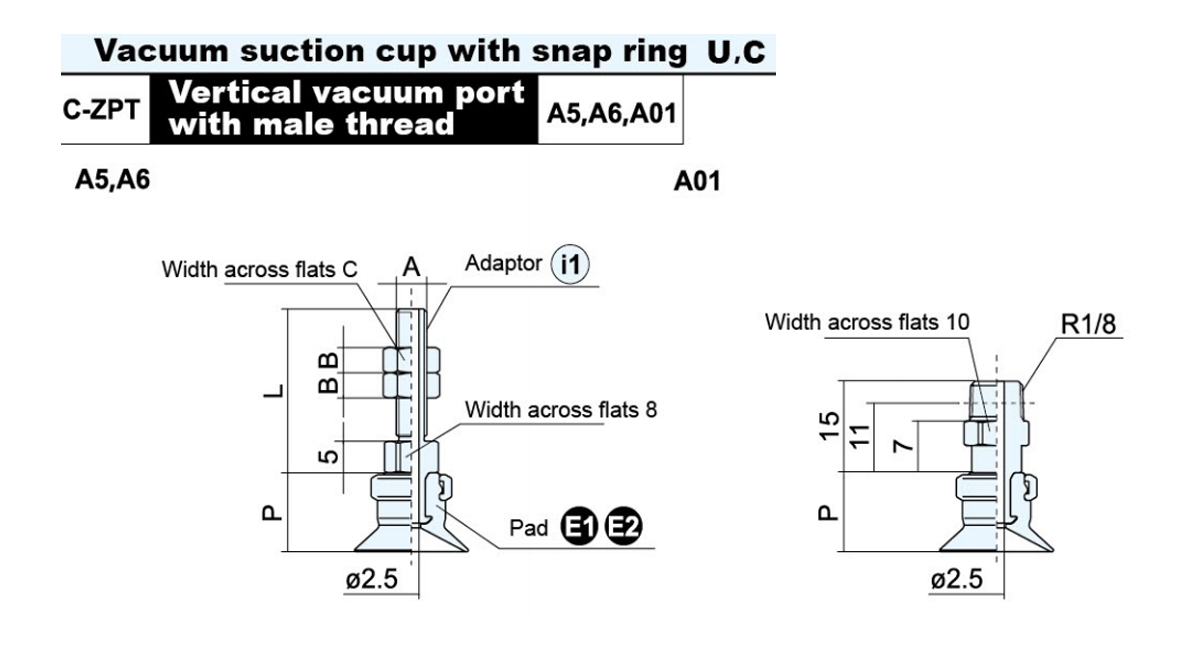

  • Model A B C L ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPT○☆□-A5 M5×0.8 7 4 26 12 12 12.5 ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

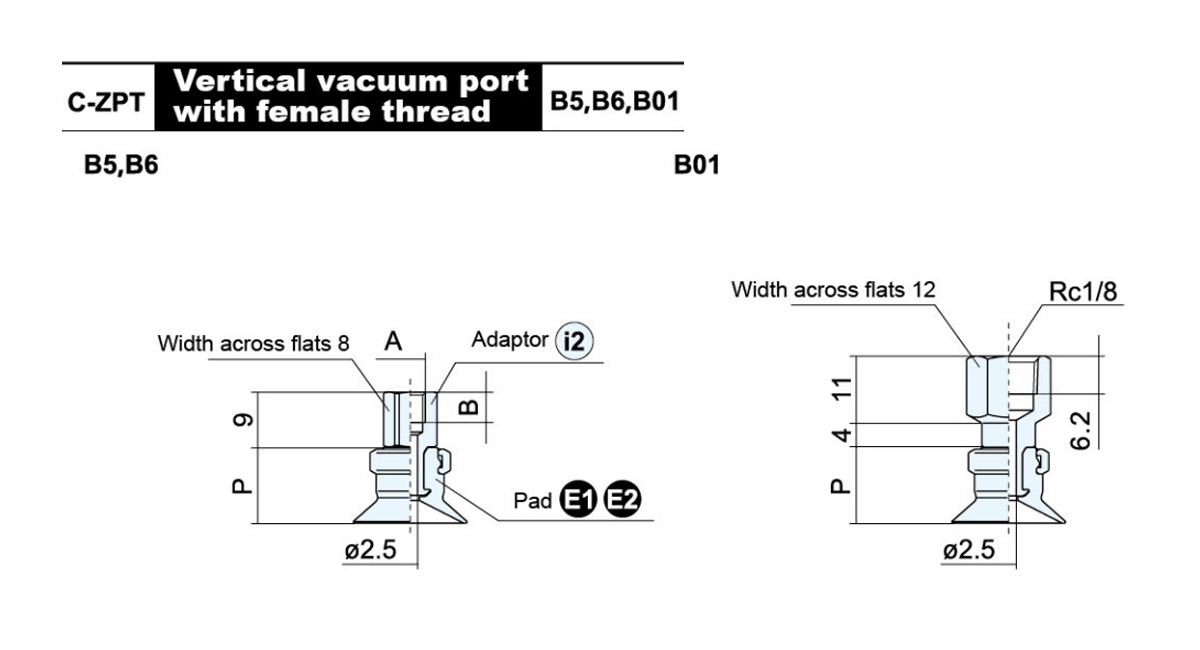

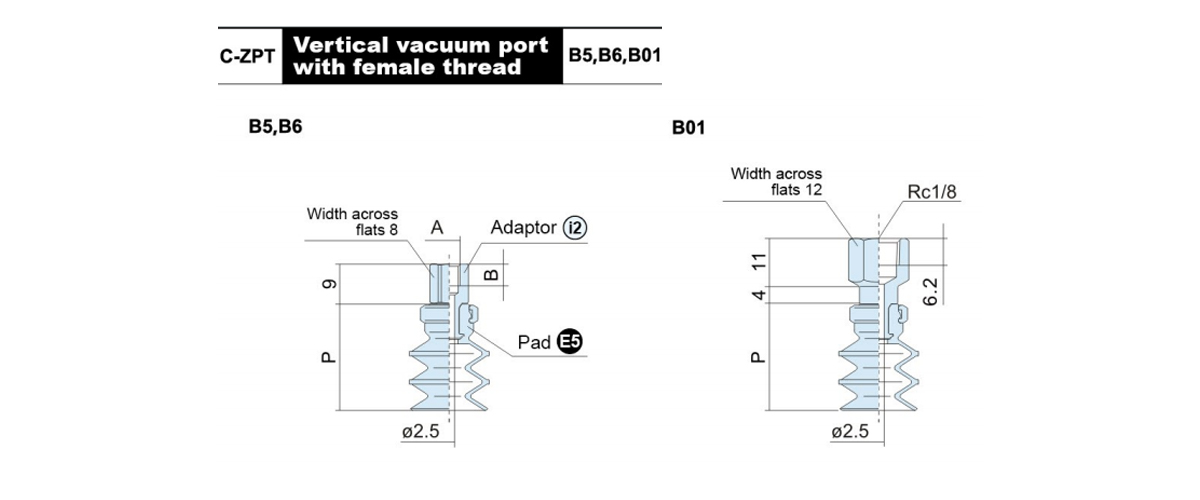

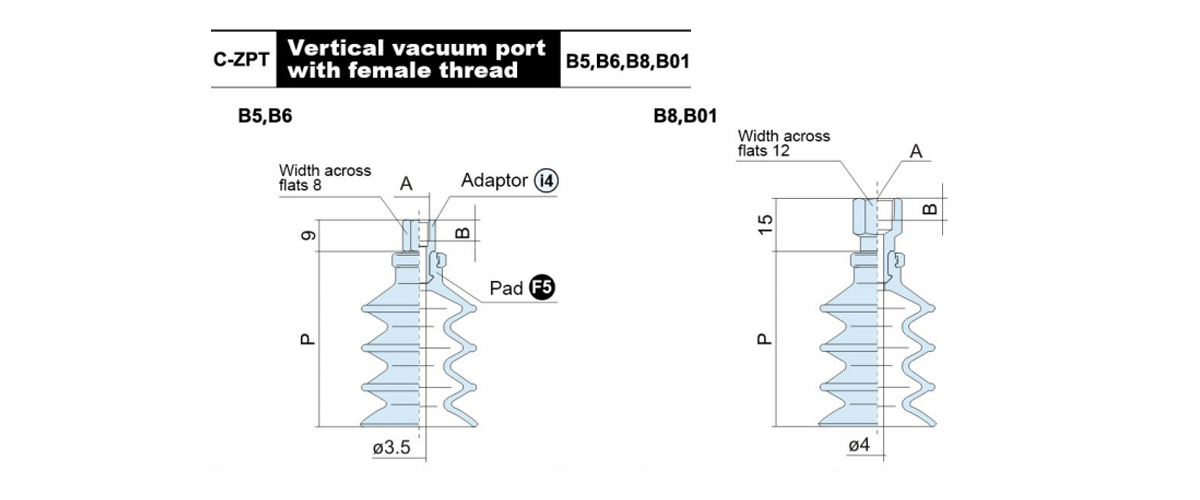

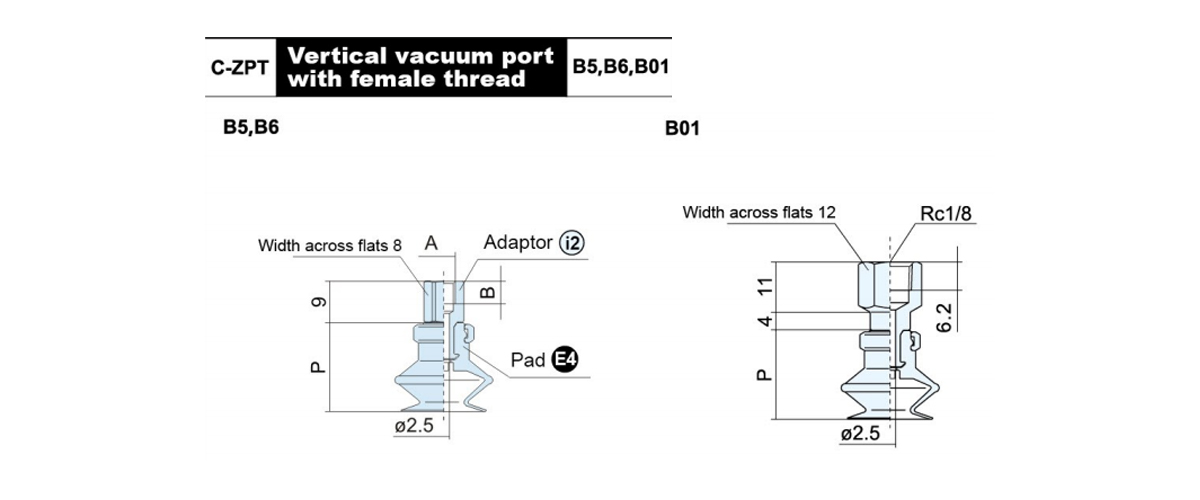

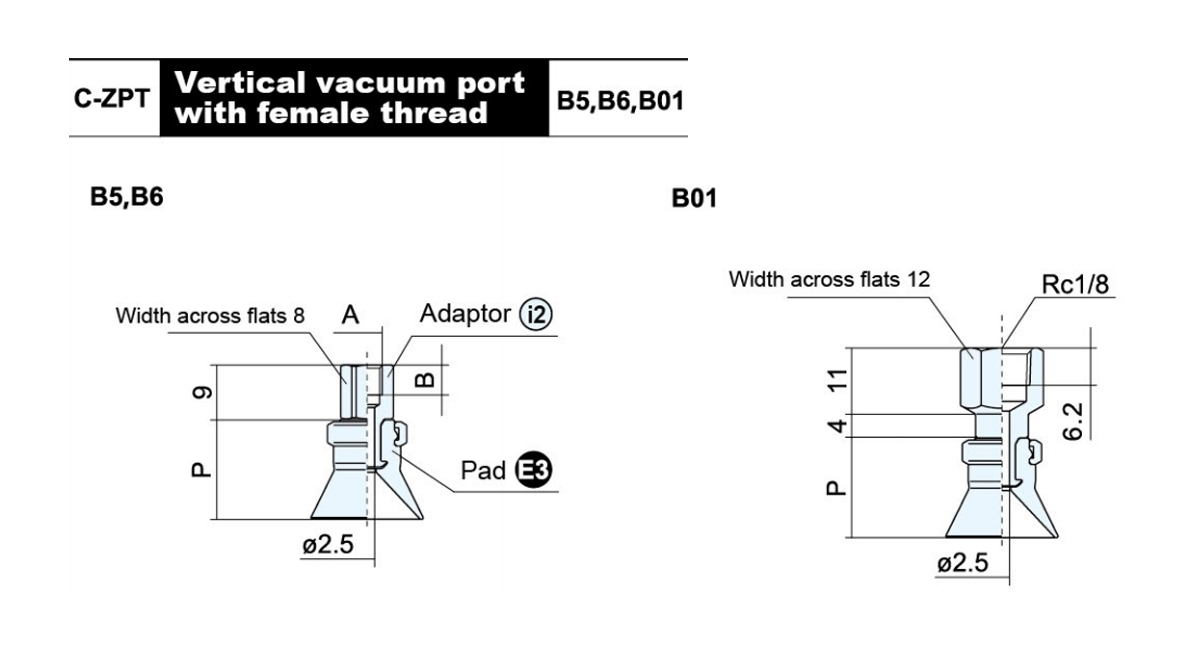

    Model A B ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPT○☆□-B5 M5×0.8 5 12 12 12.5 ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

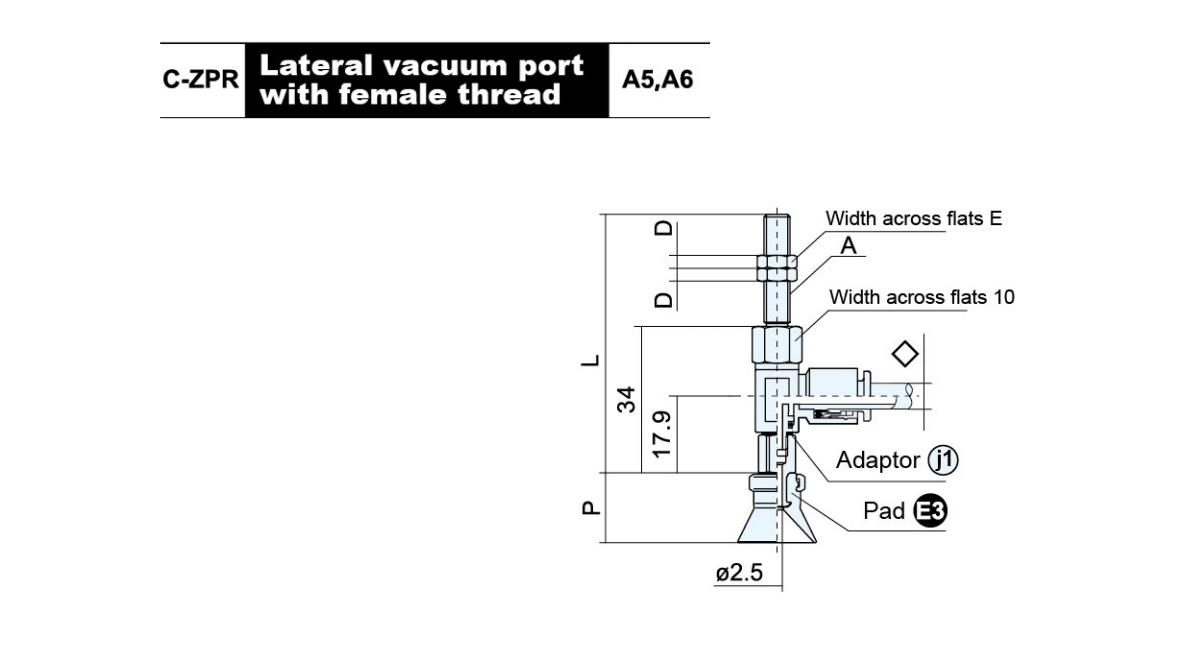

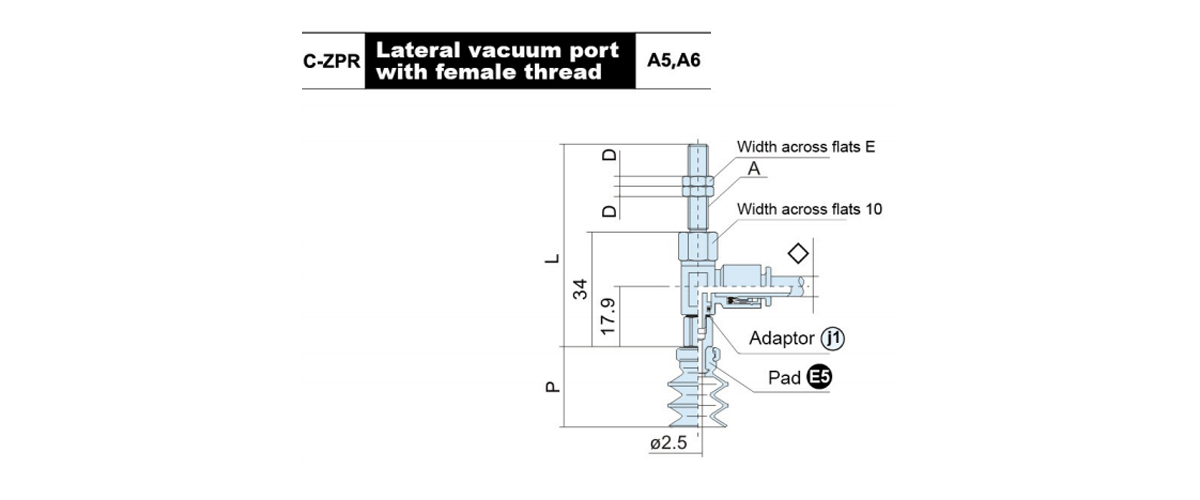

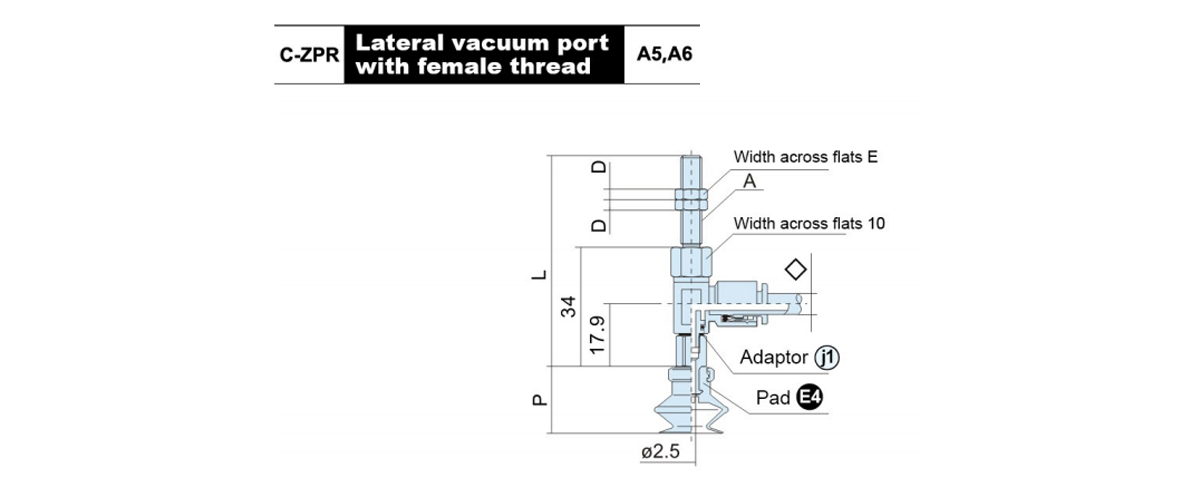

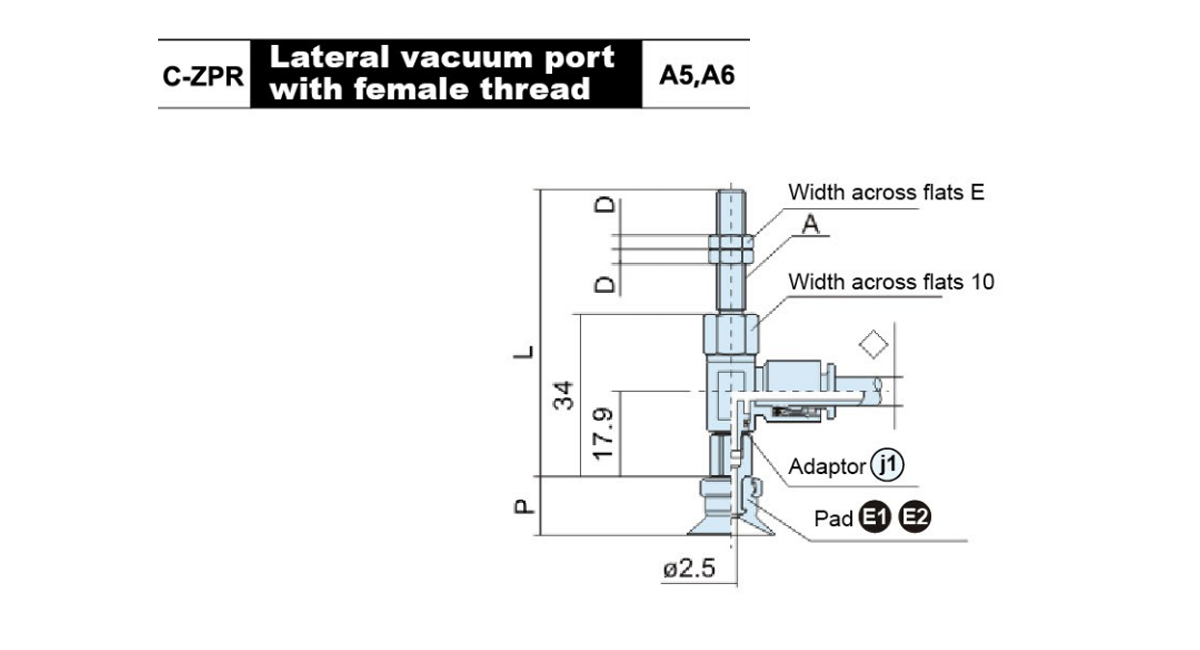

    Model A D E L ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPR○☆口 - ◇ -A5 M5×0.8 4 7 55 12 12 12.5 ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

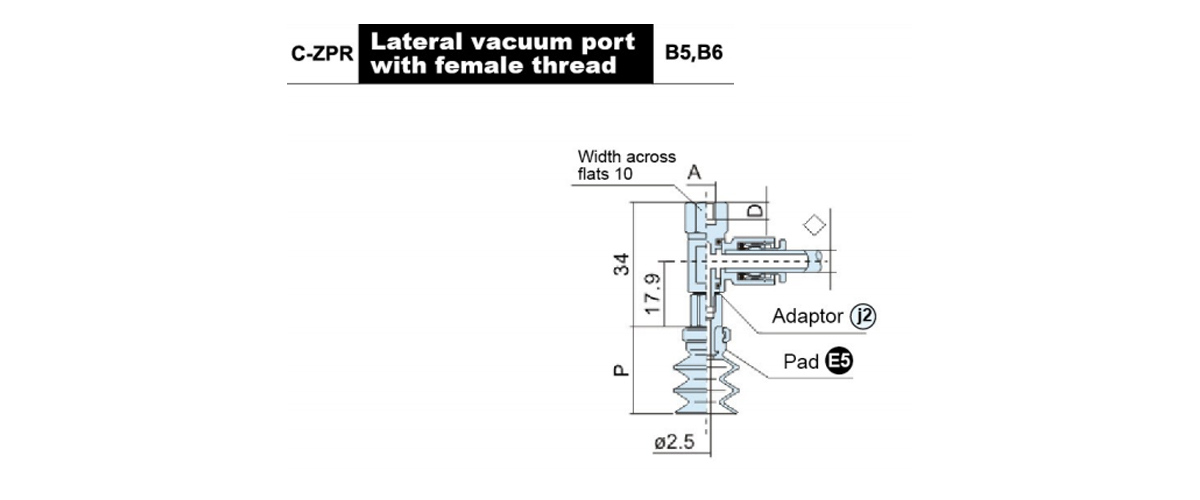

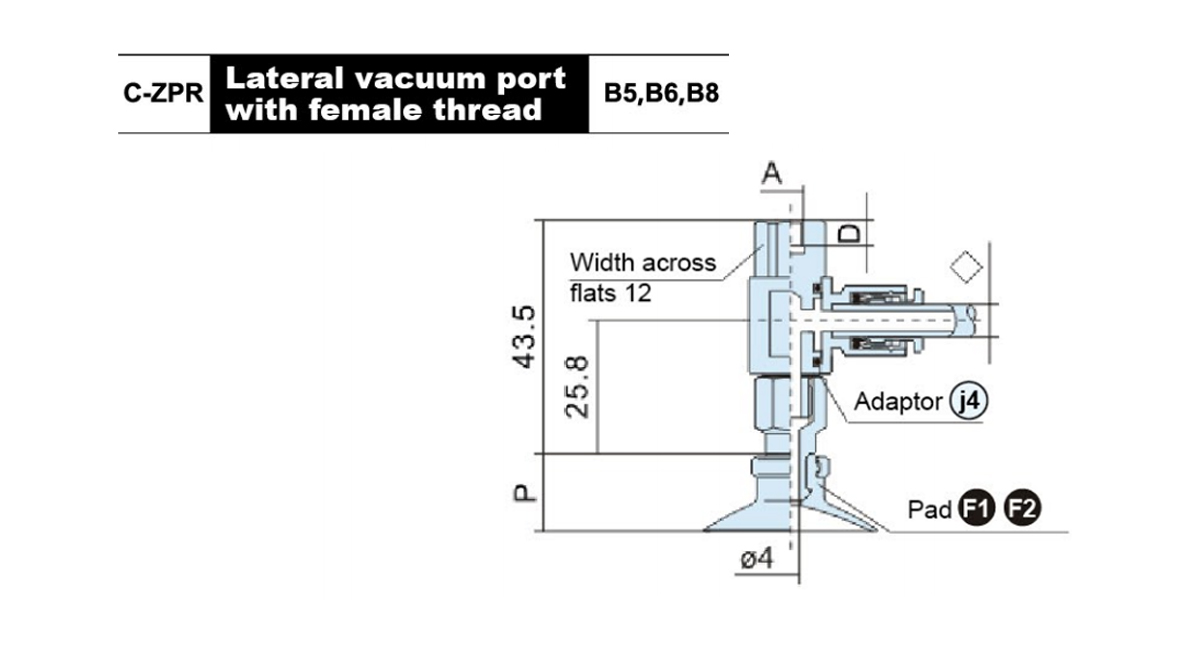

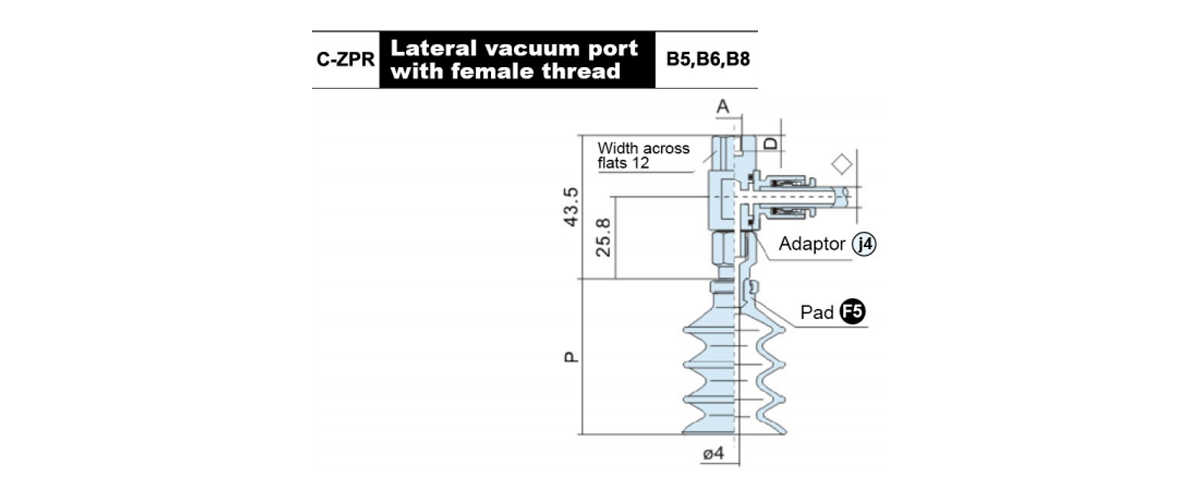

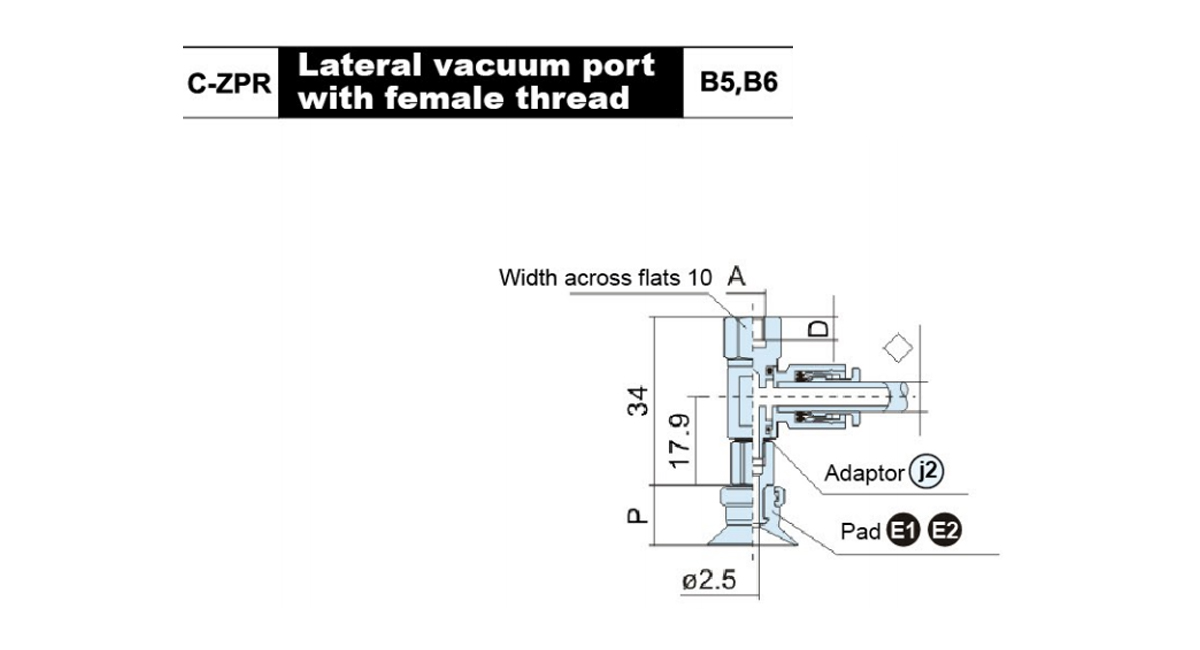

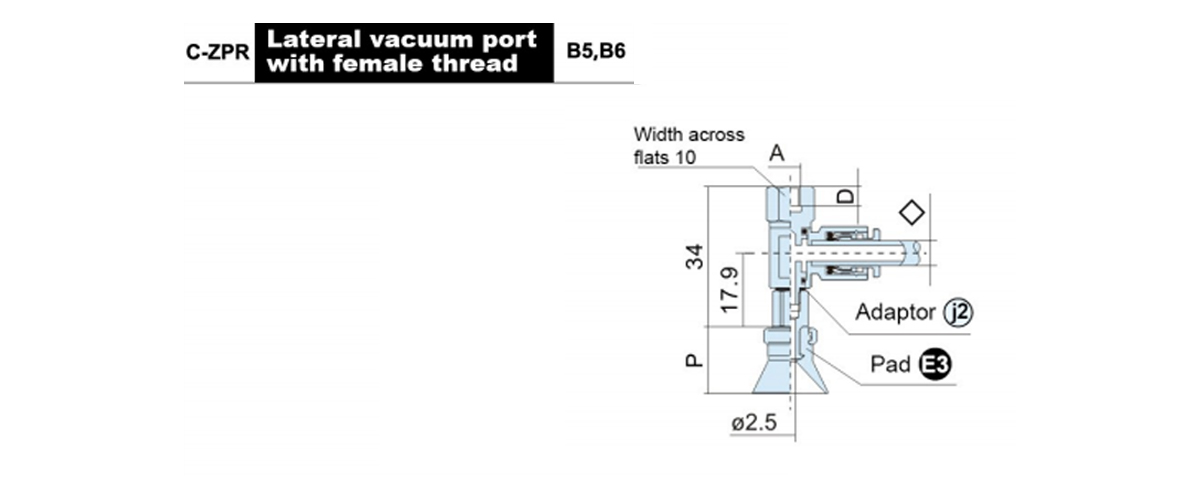

    Model A D ○Pad diameter P Adaptor Model
    10 13 16

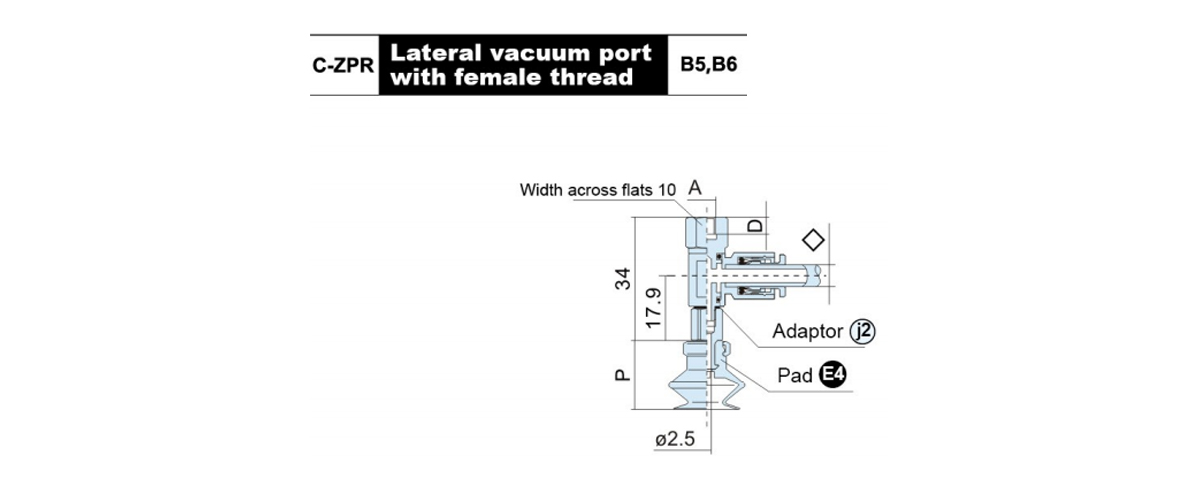

    C-ZPR○☆□-◇-B5 M5×0.8 5 12 12 12.5 ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

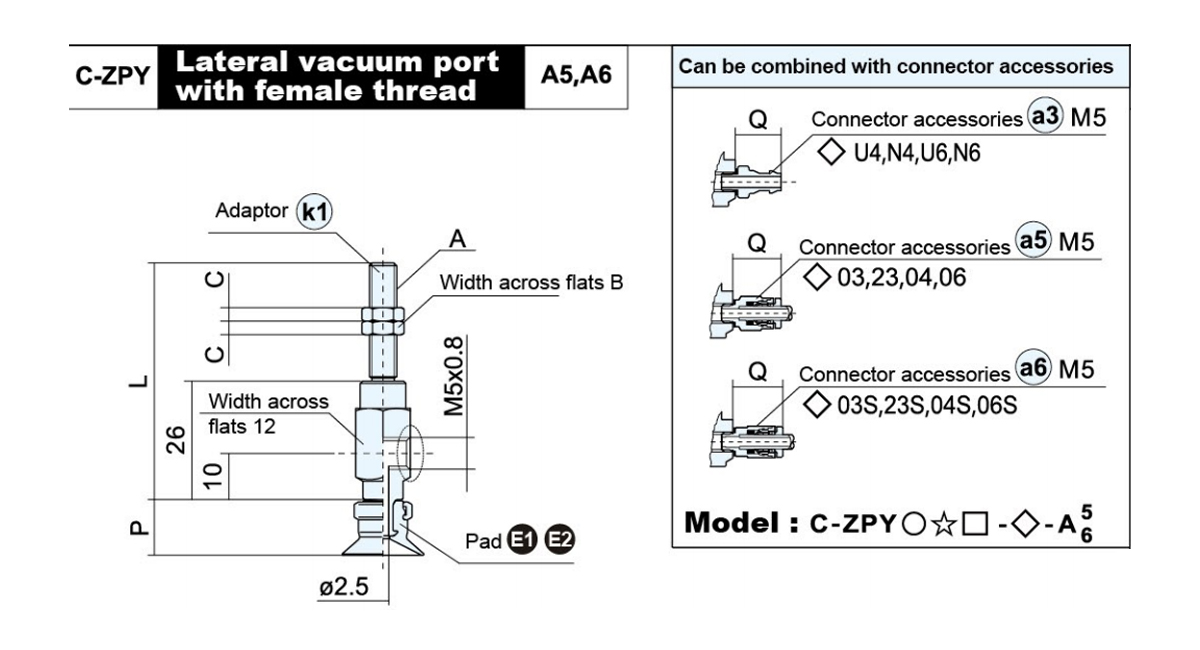

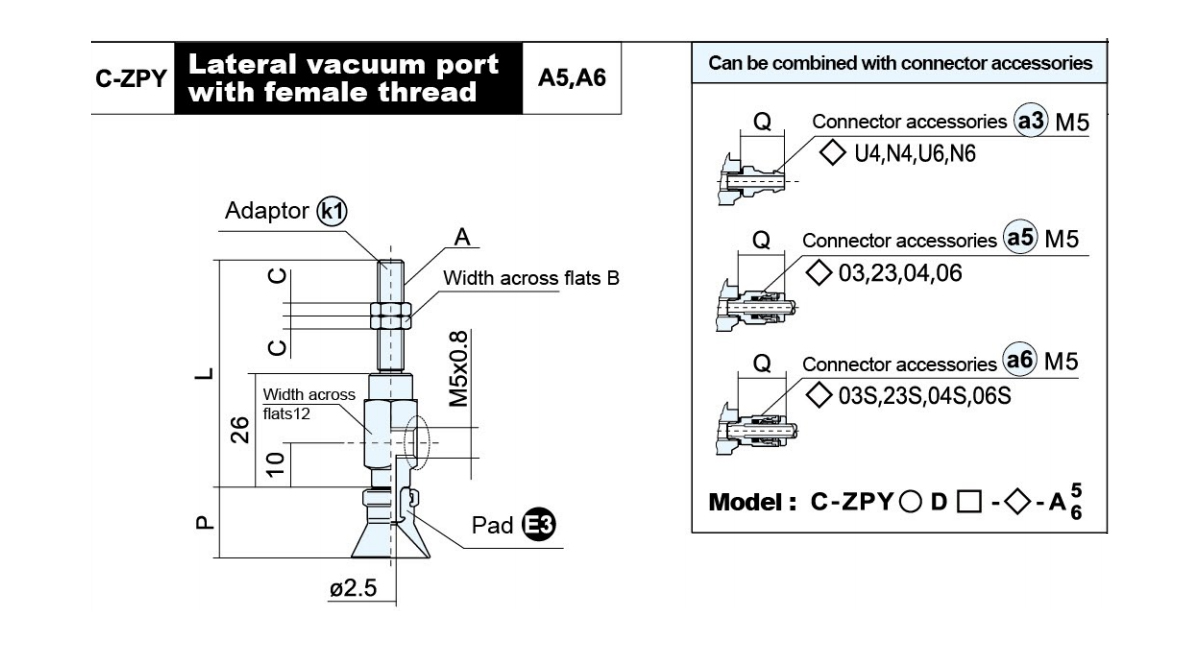

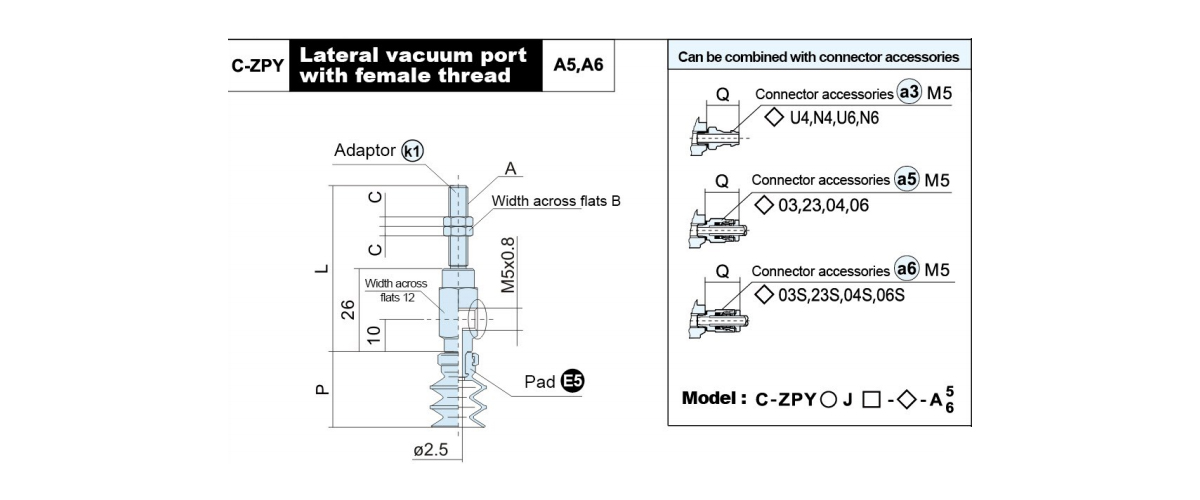

    Model A B C L ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPY○☆□-B5-A5 M5×0.8 7 4 47 12 12 12.5 ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

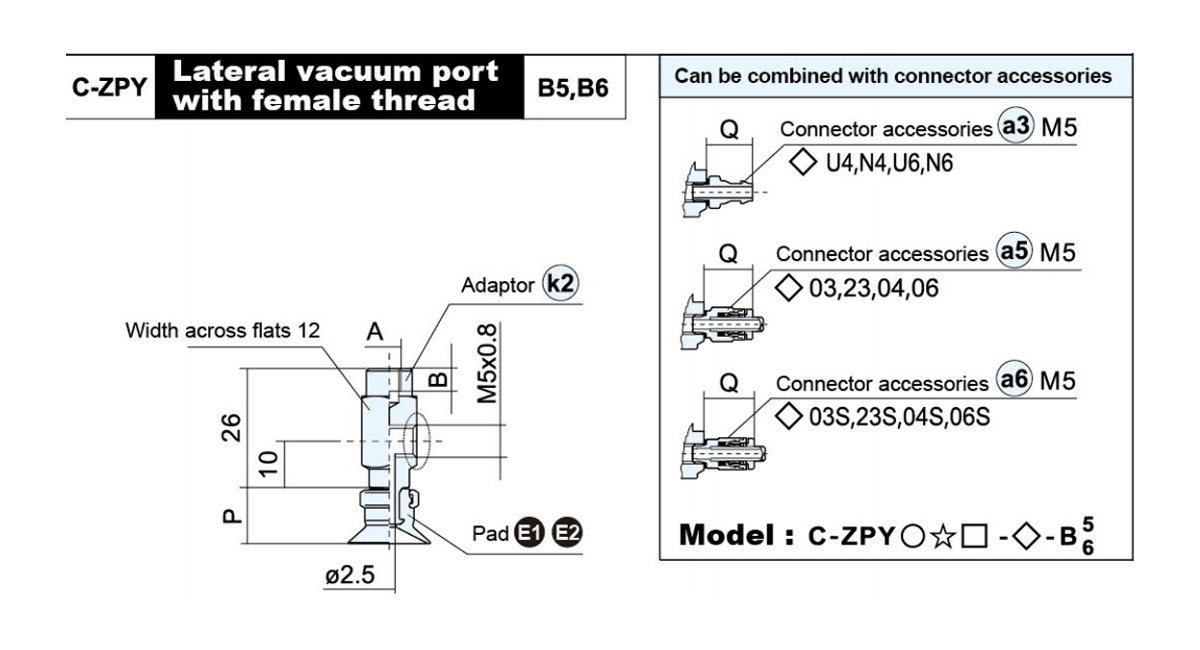

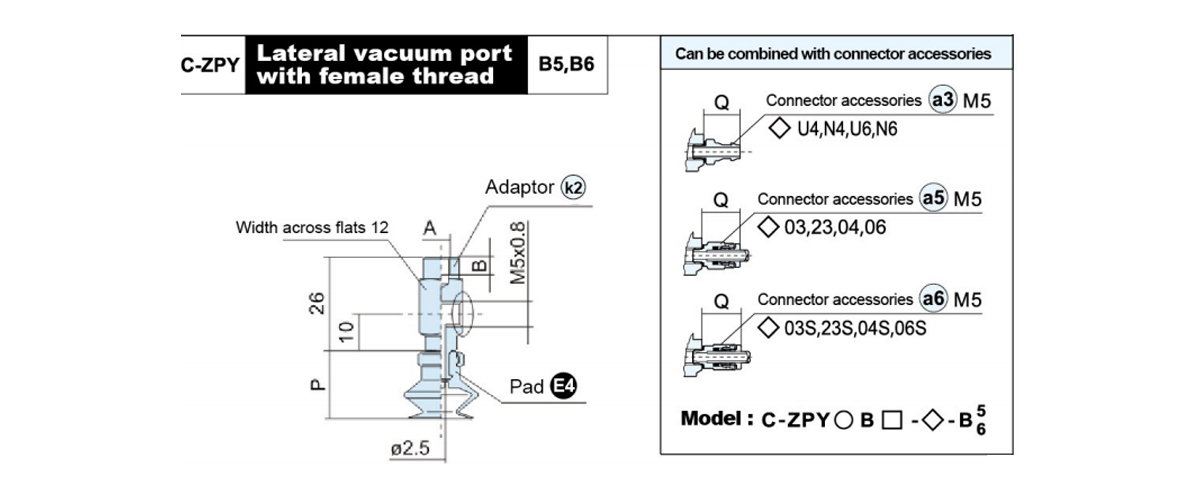

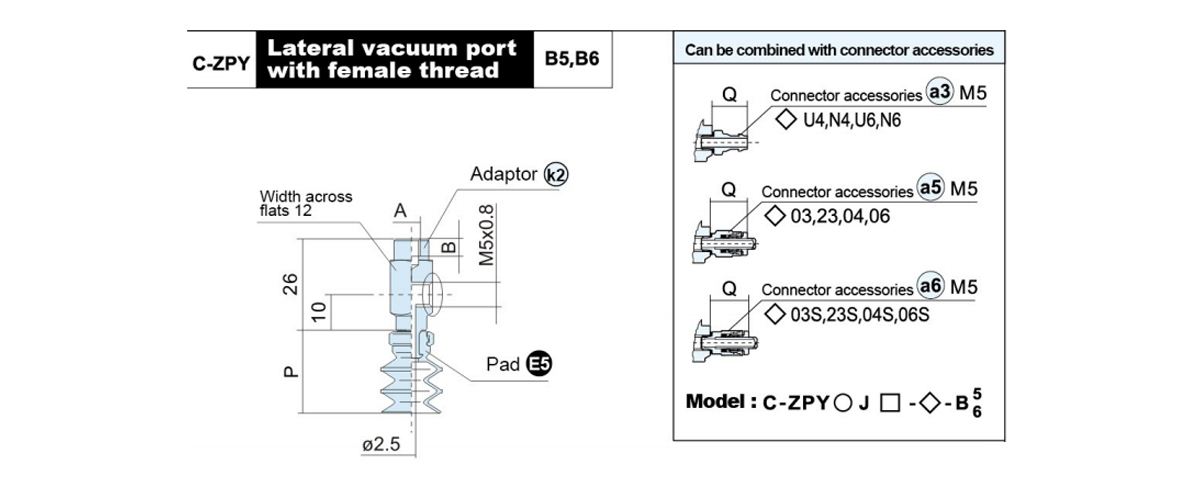

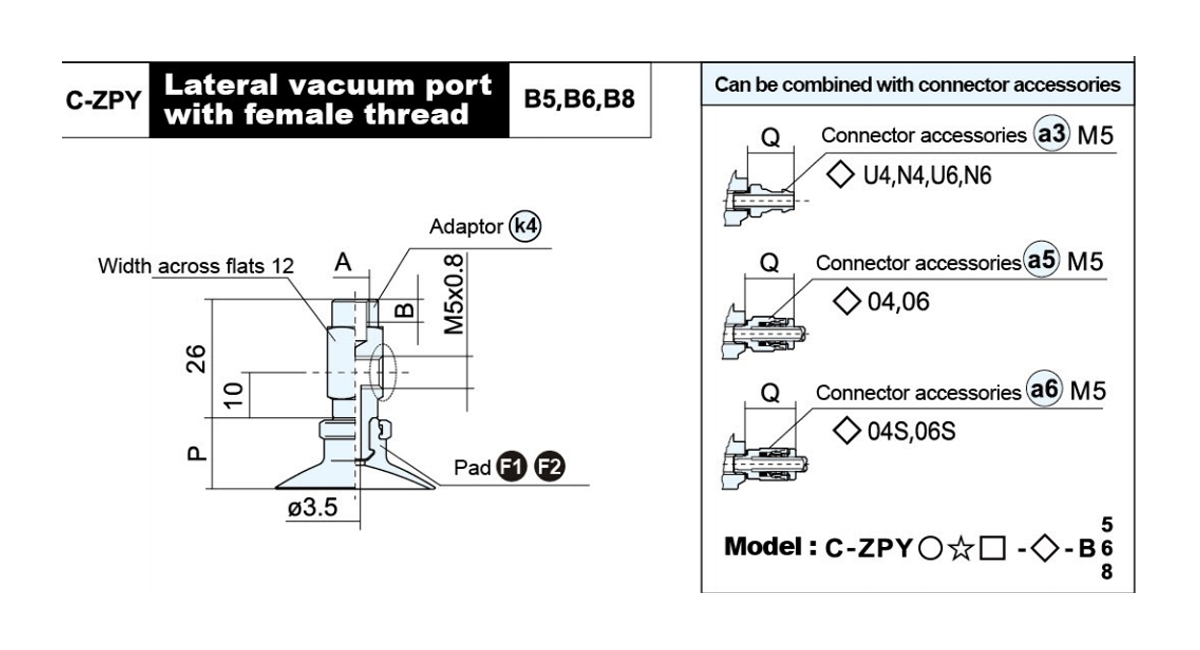

    Model A B ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPY○☆□-B5-B5 M5×0.8 5 12 12 12.5 ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

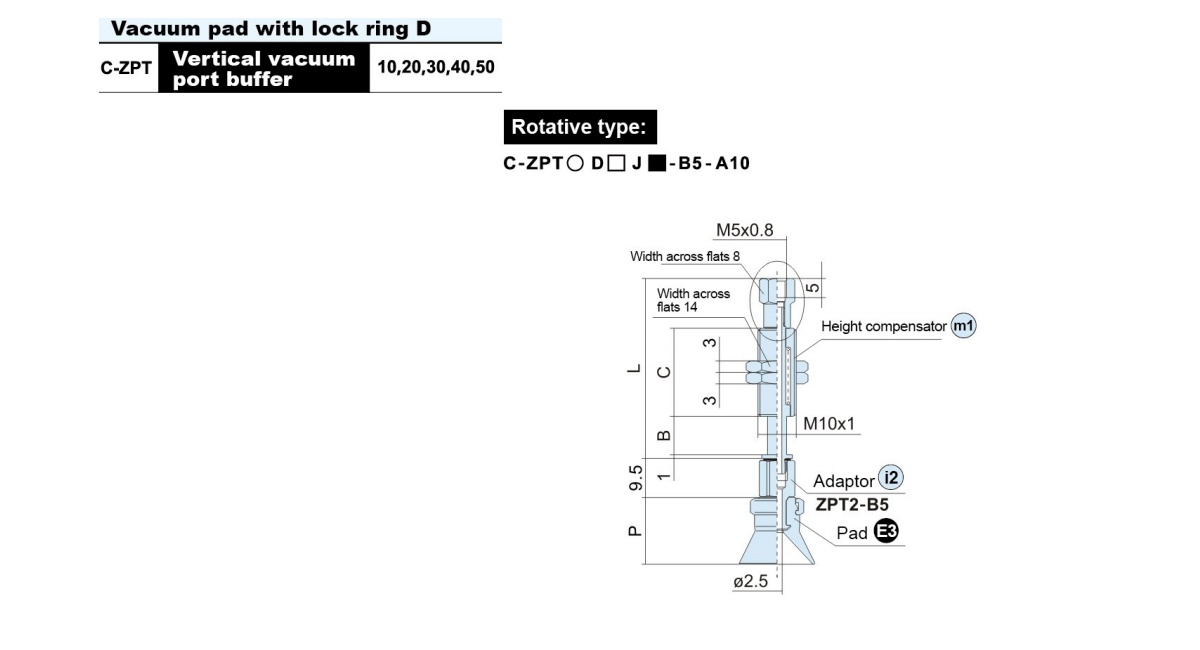

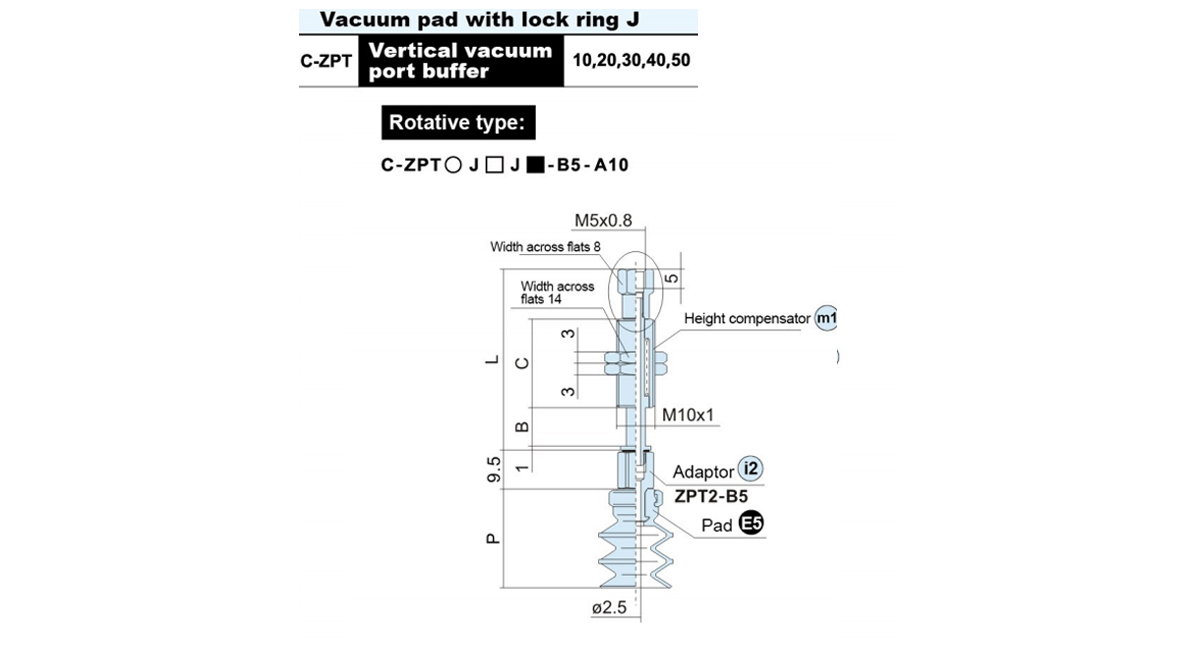

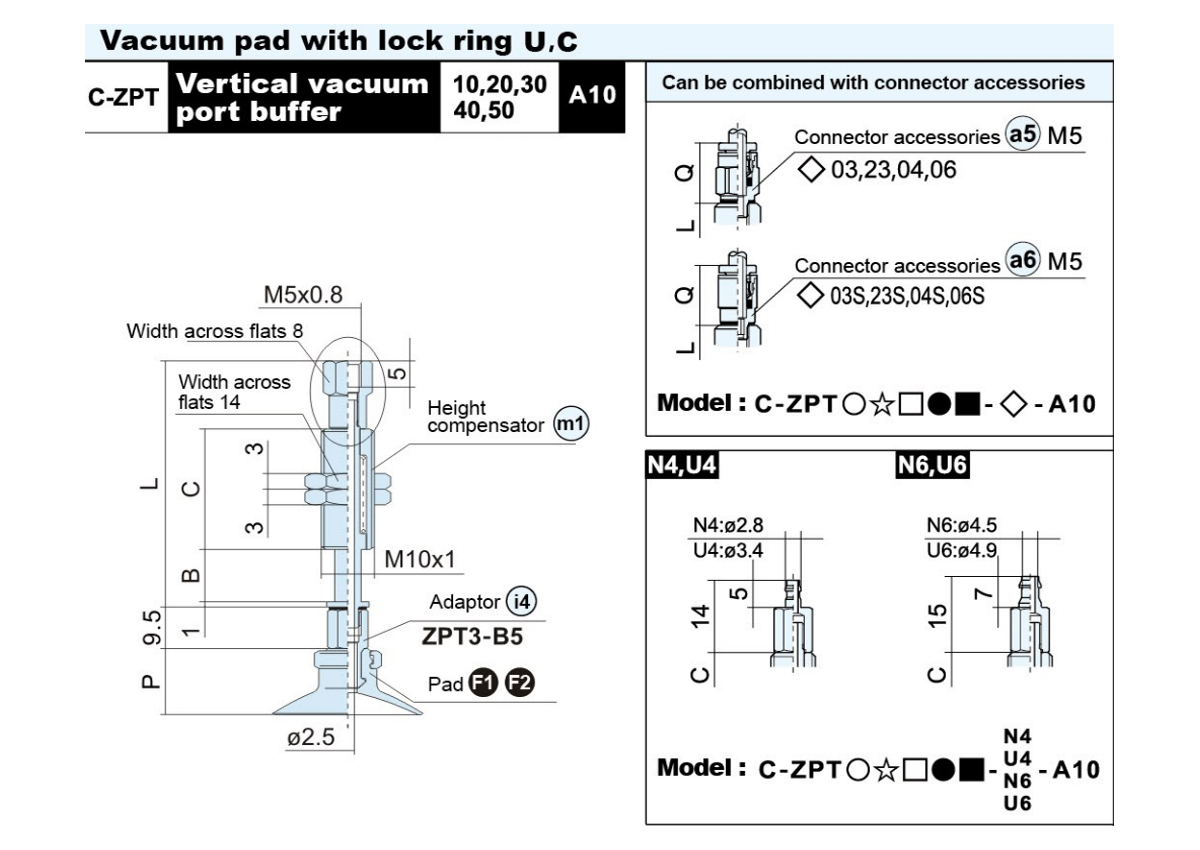

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

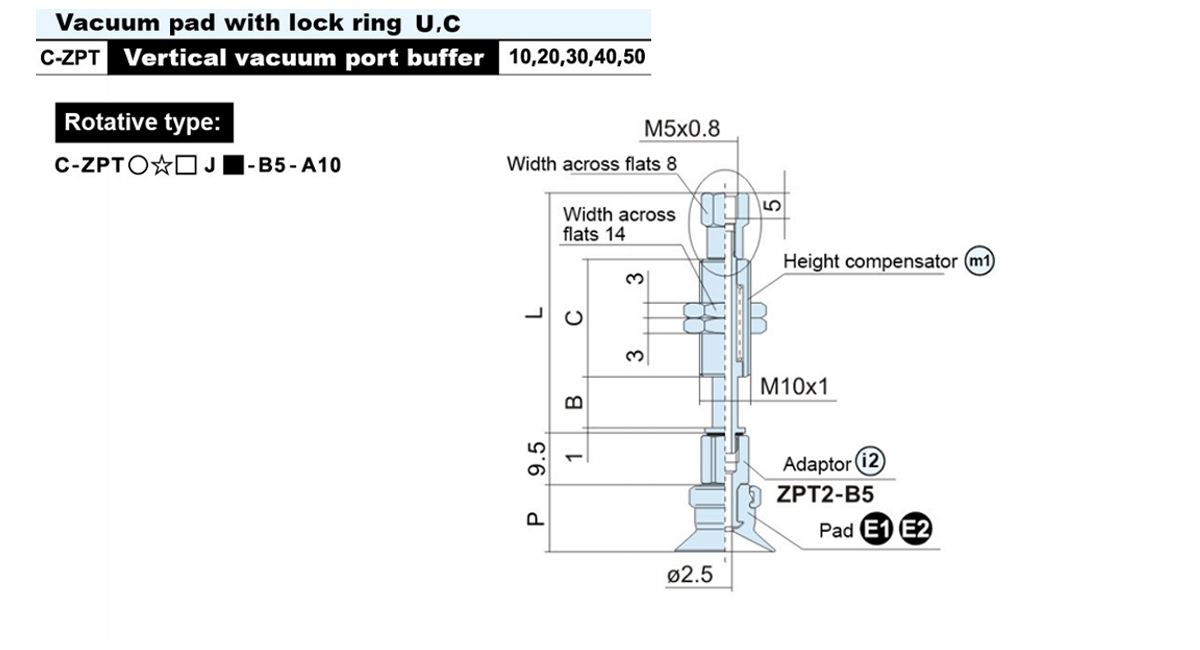

    C-ZPT○☆□J10-B5-A10 10 23 47 12 12 12.5 ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

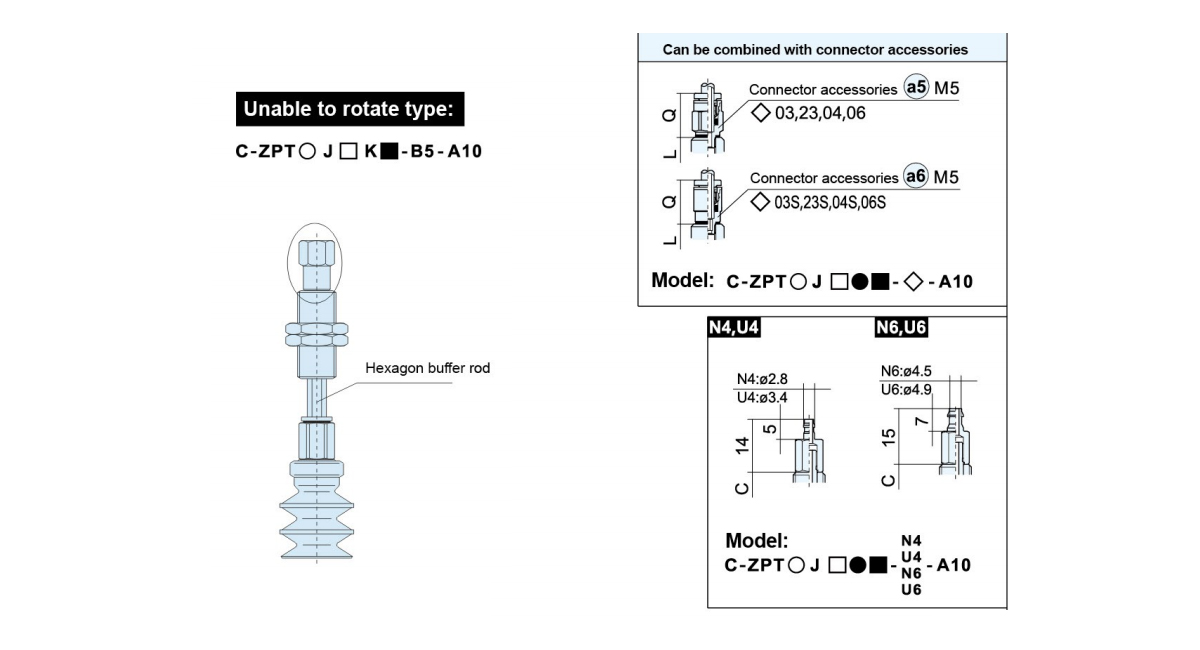

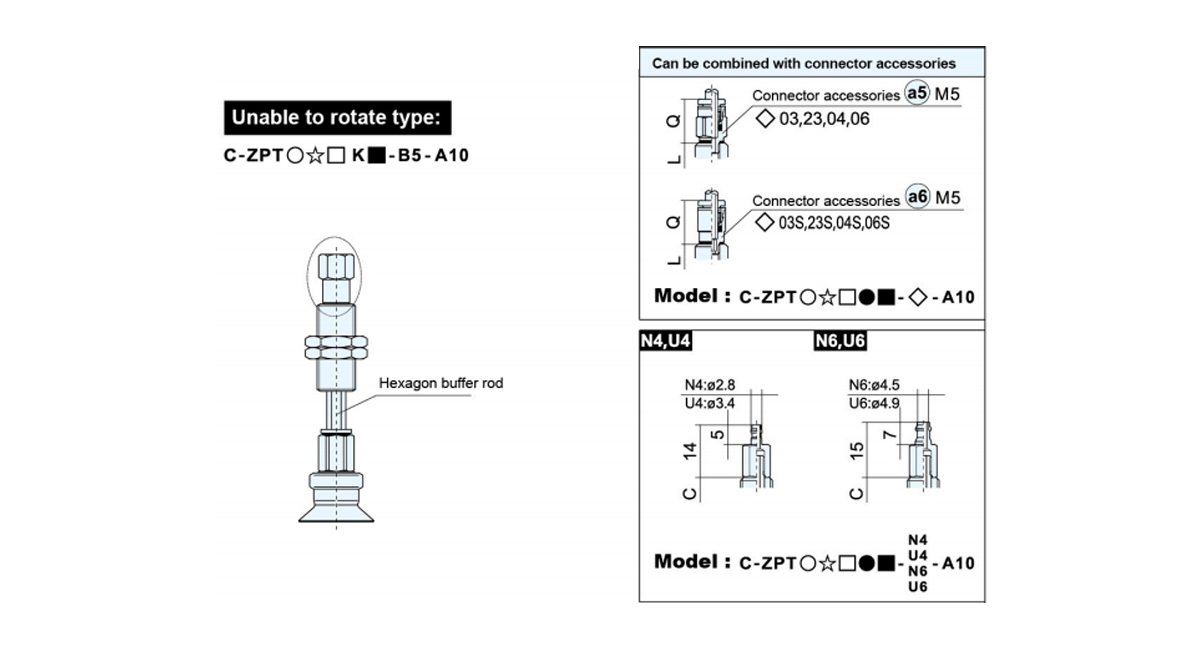

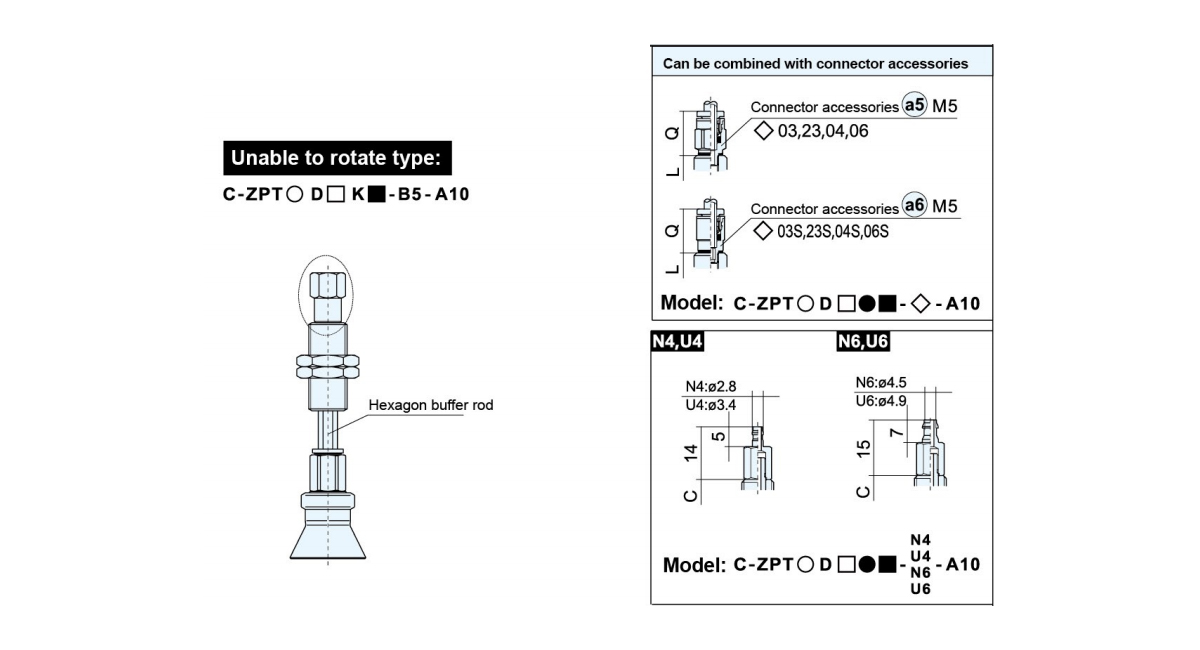

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

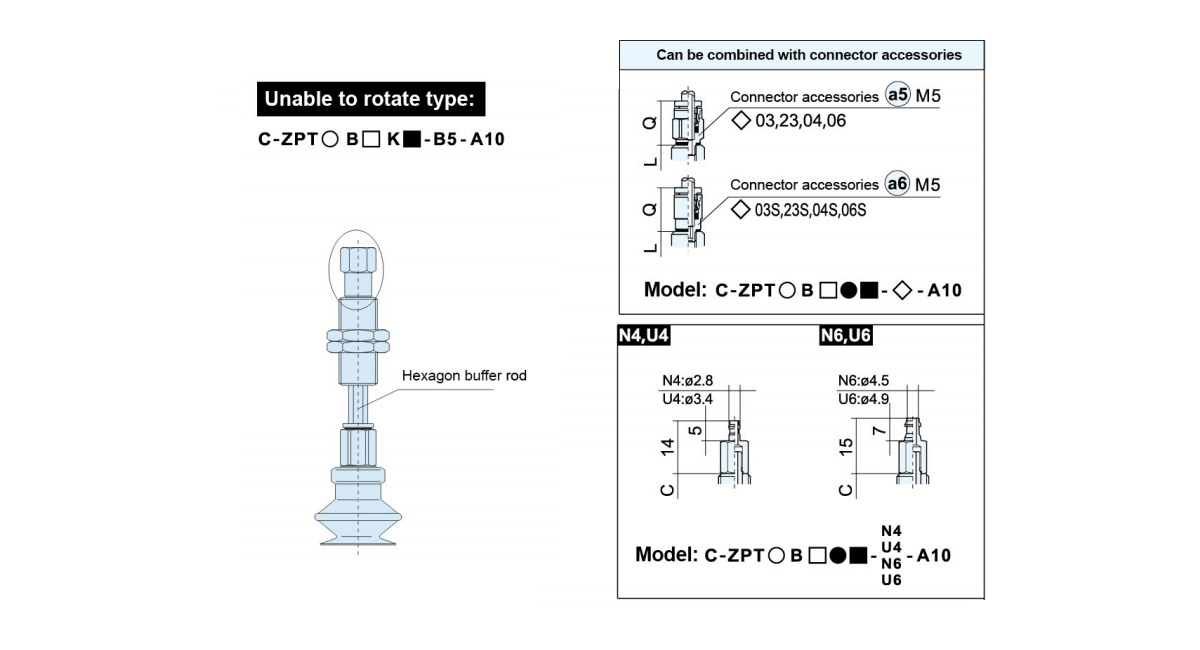

    C-ZPT○☆□K10-B5-A10 10 23 47 12 12 12.5 ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

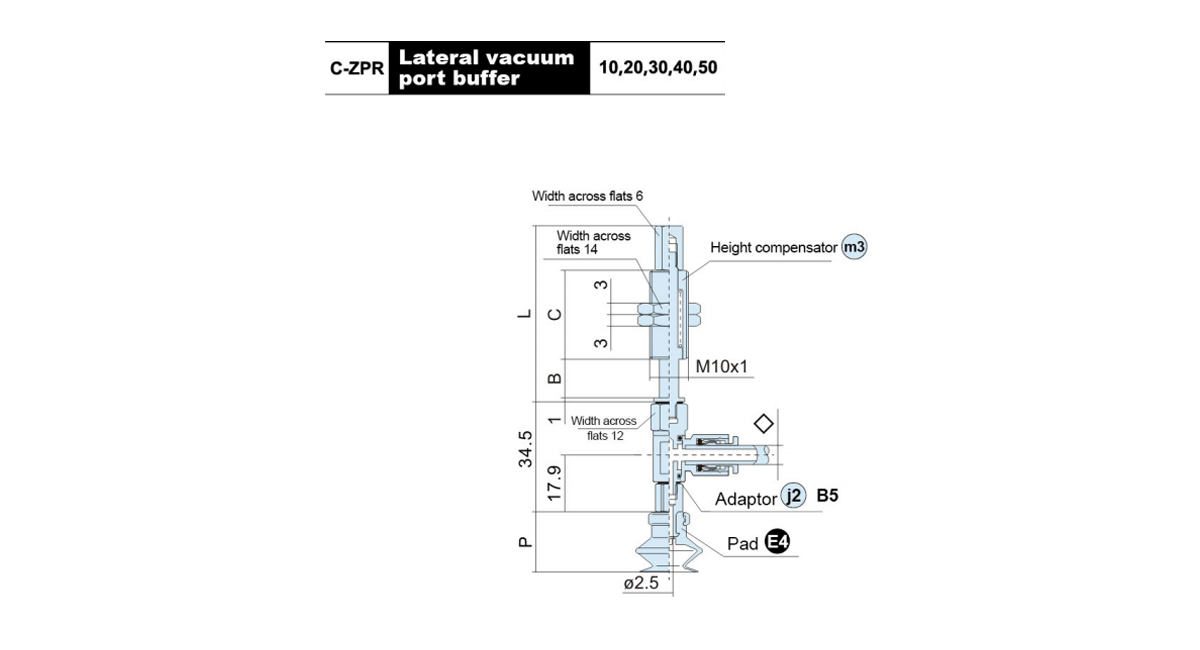

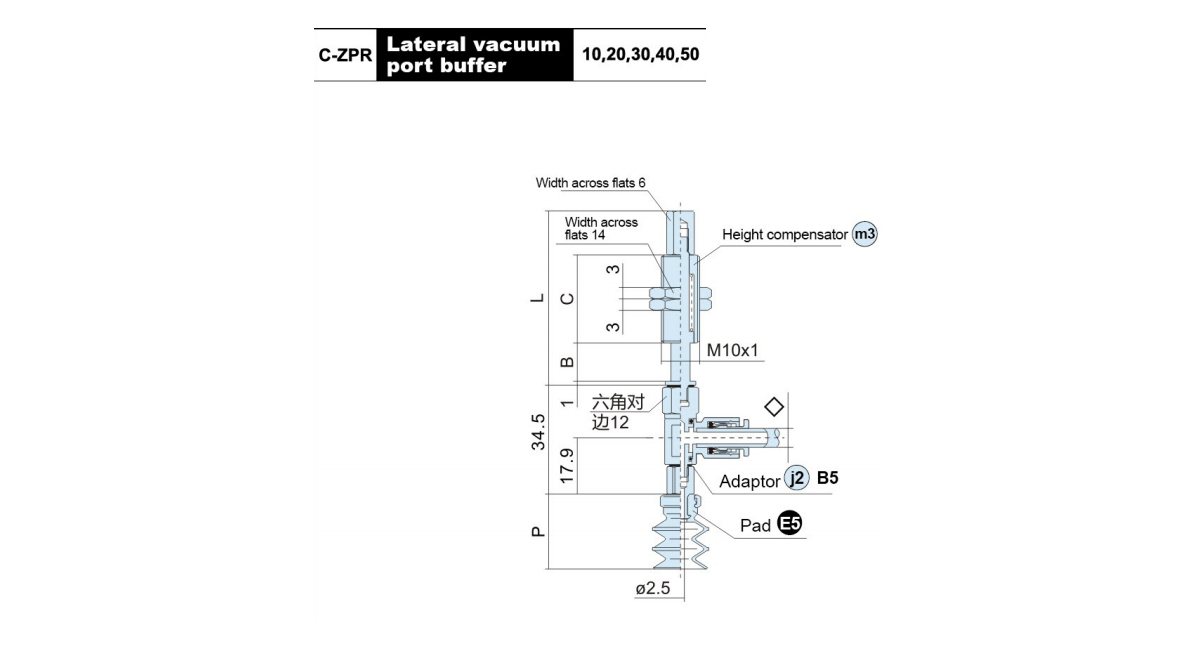

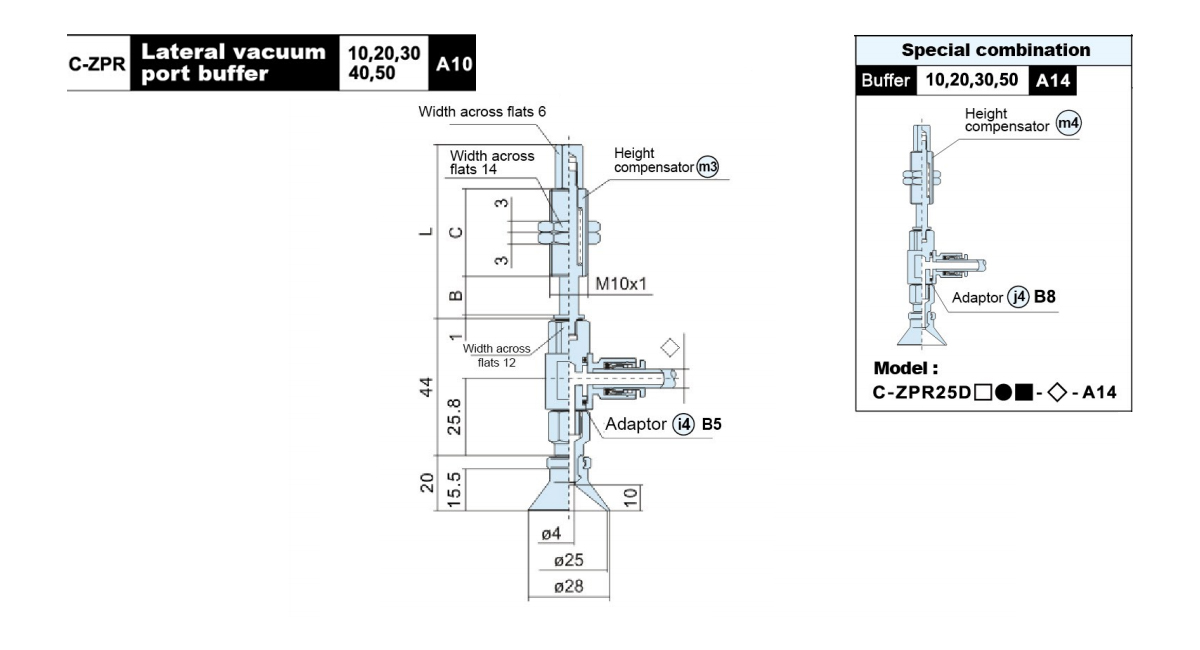

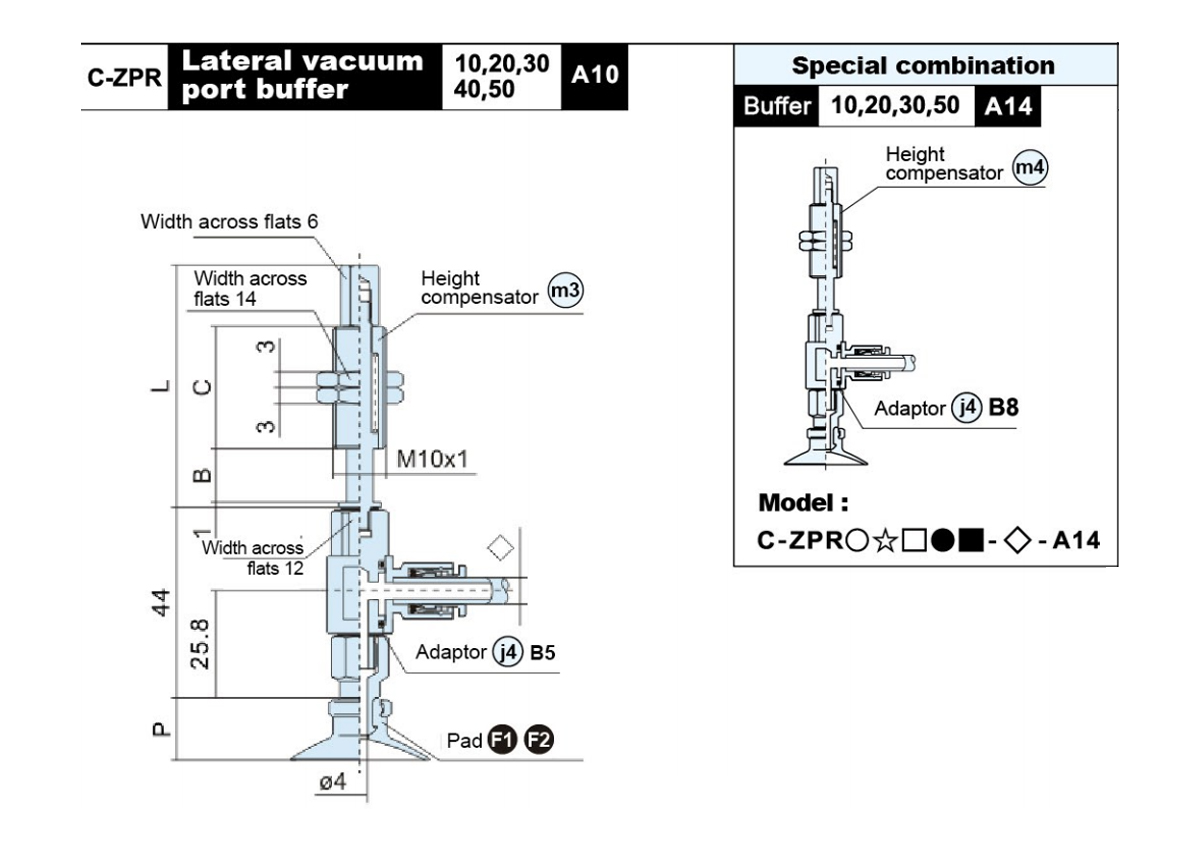

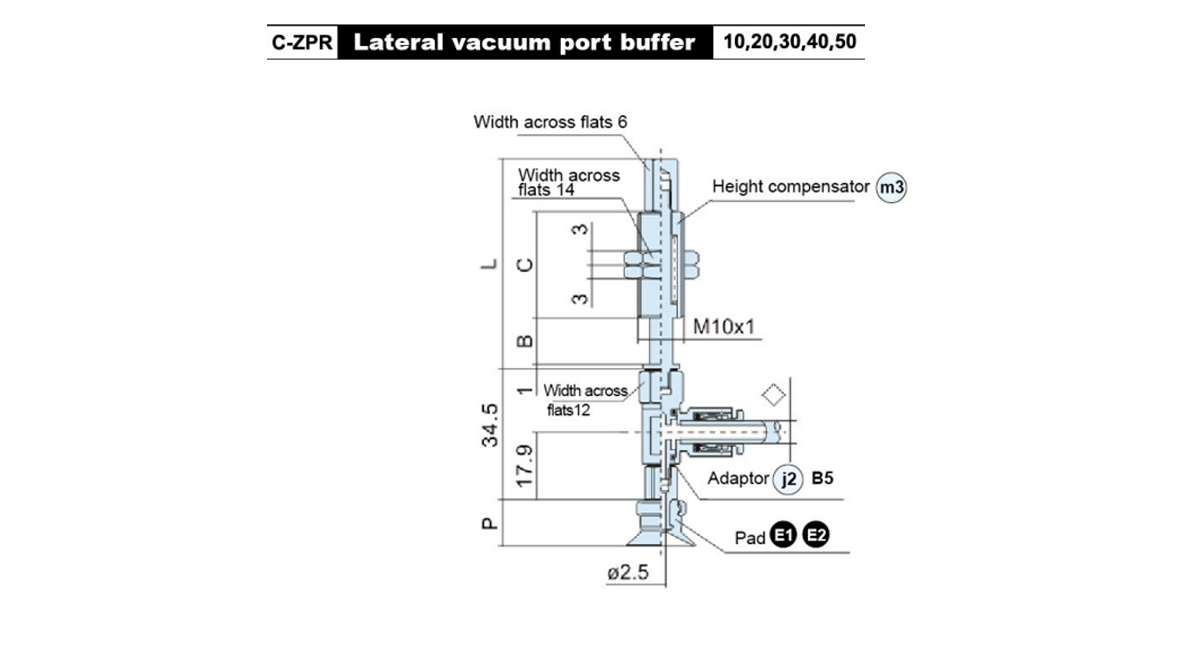

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○☆□●10-◇-A10 10 23 45 12 12 12.5 ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

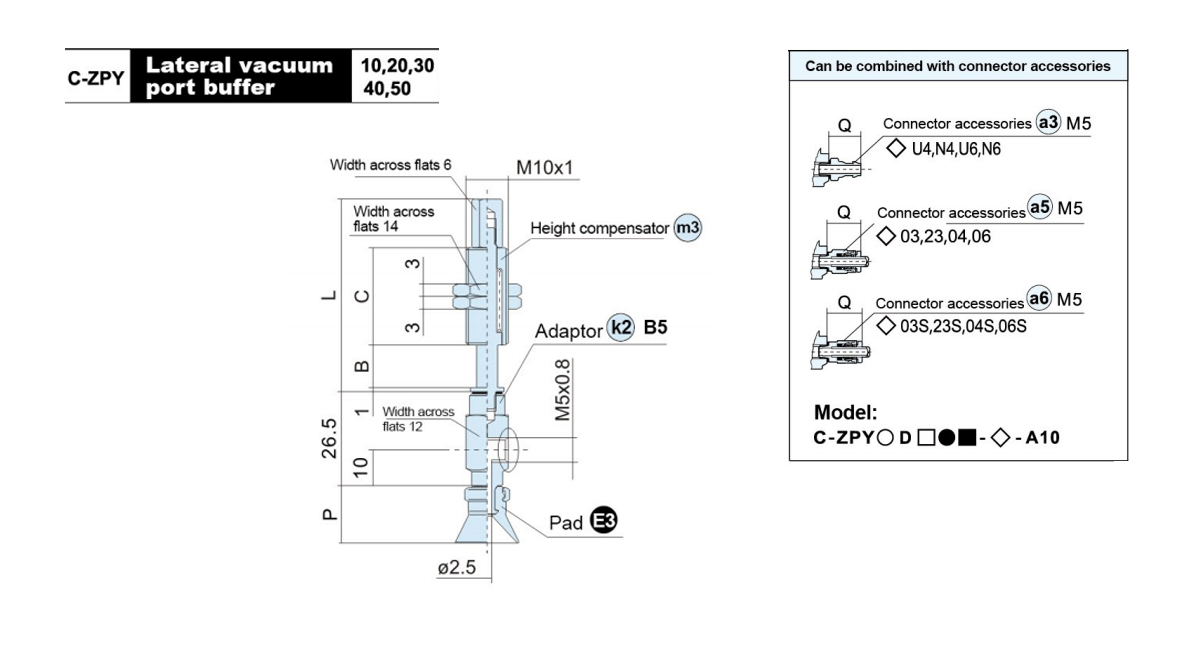

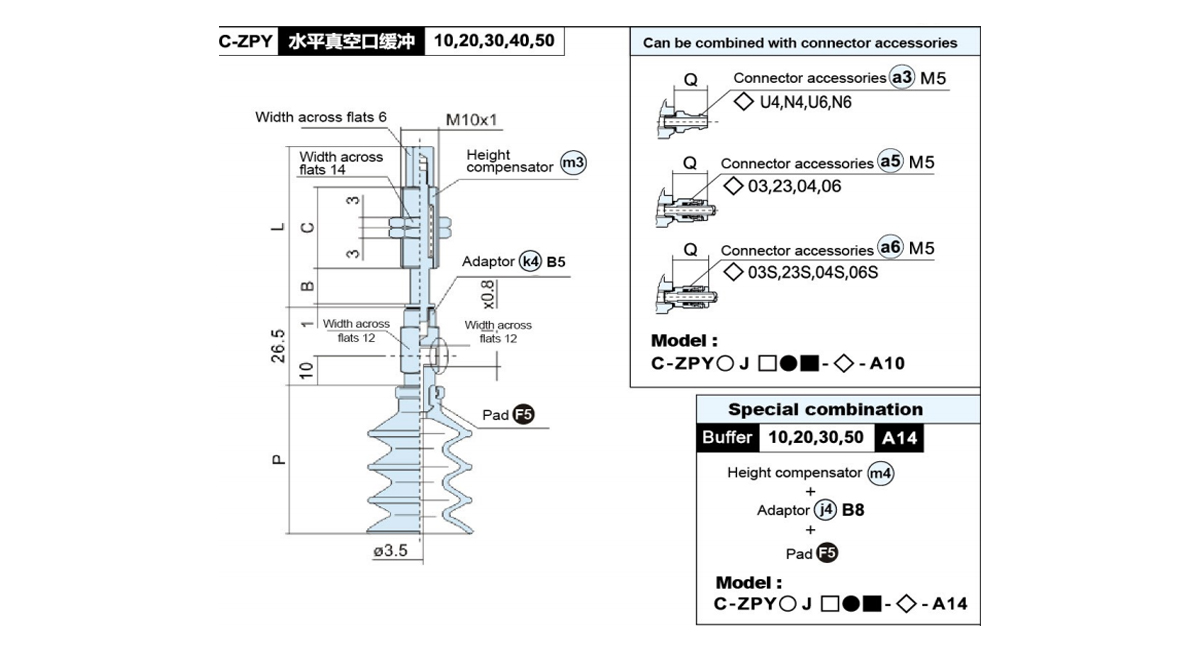

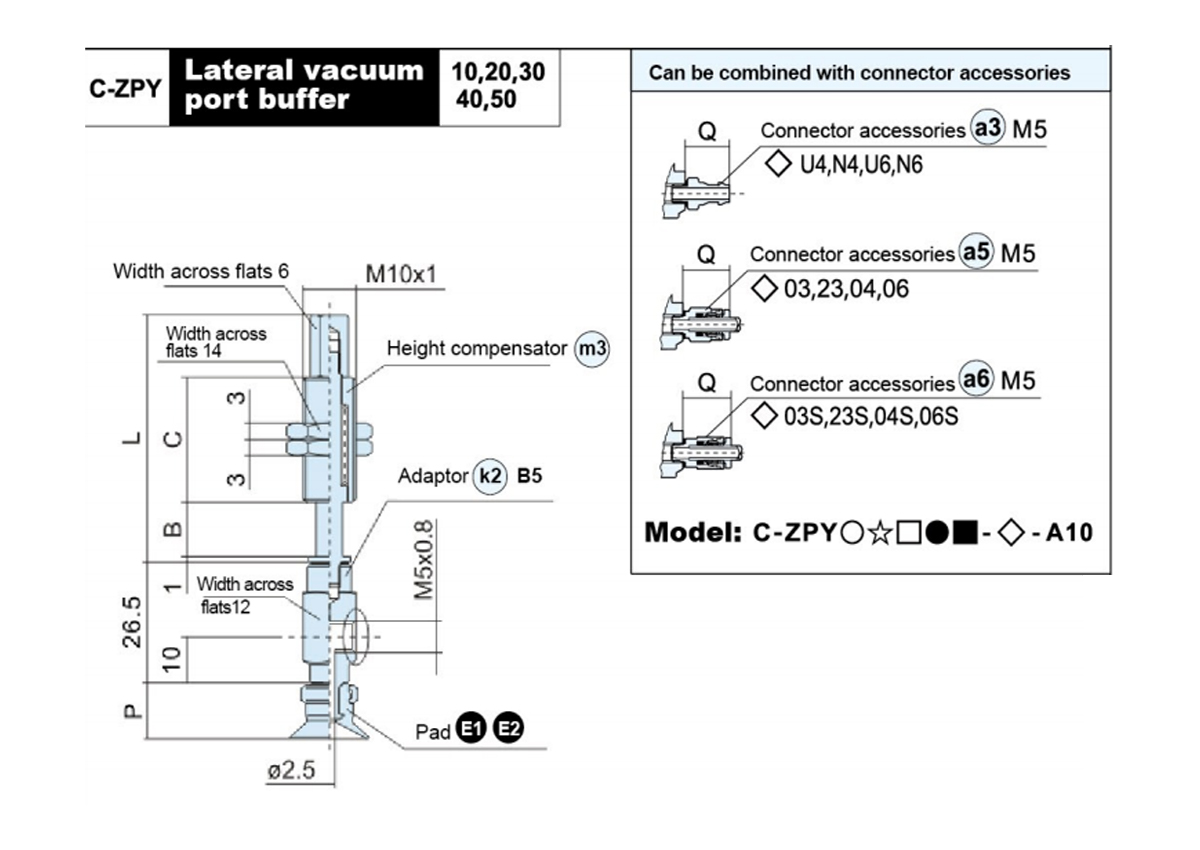

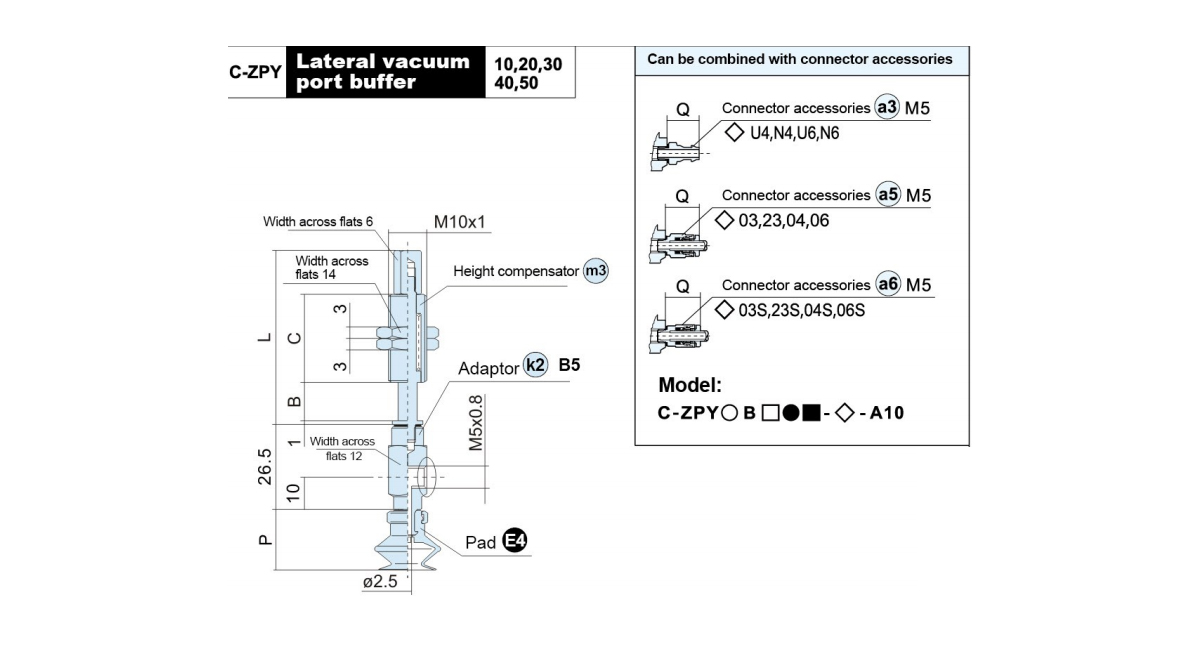

    Model B C L ○Pad Diameter P m3 j⑫
    Bumper Support Model
    10 13 16

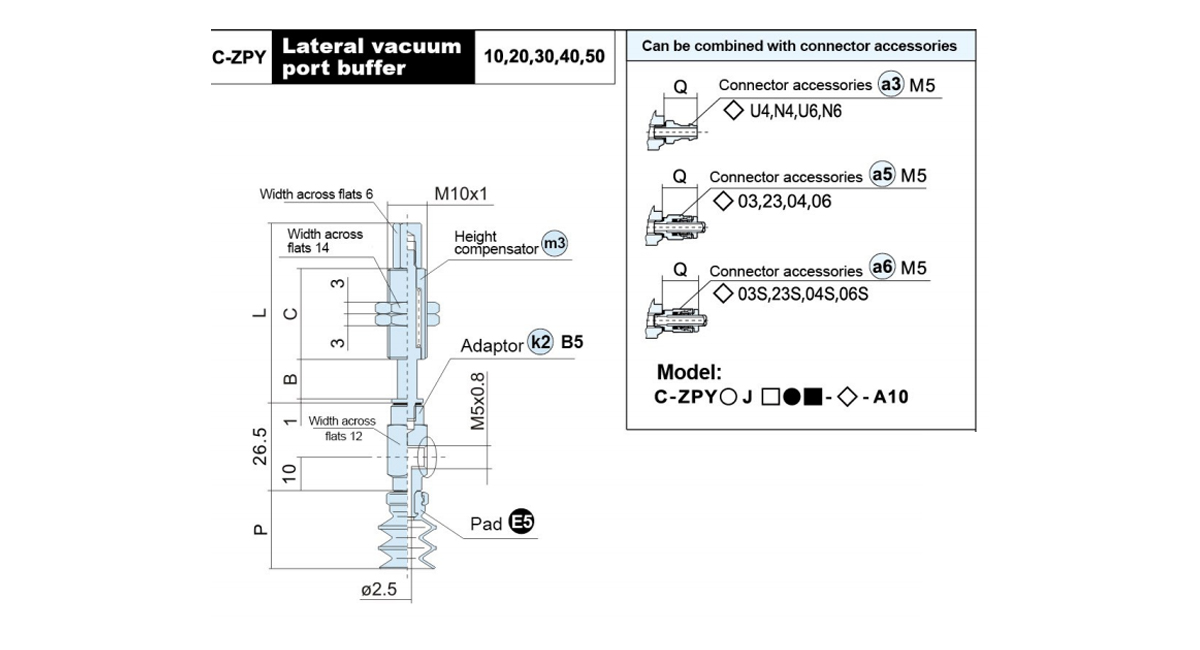

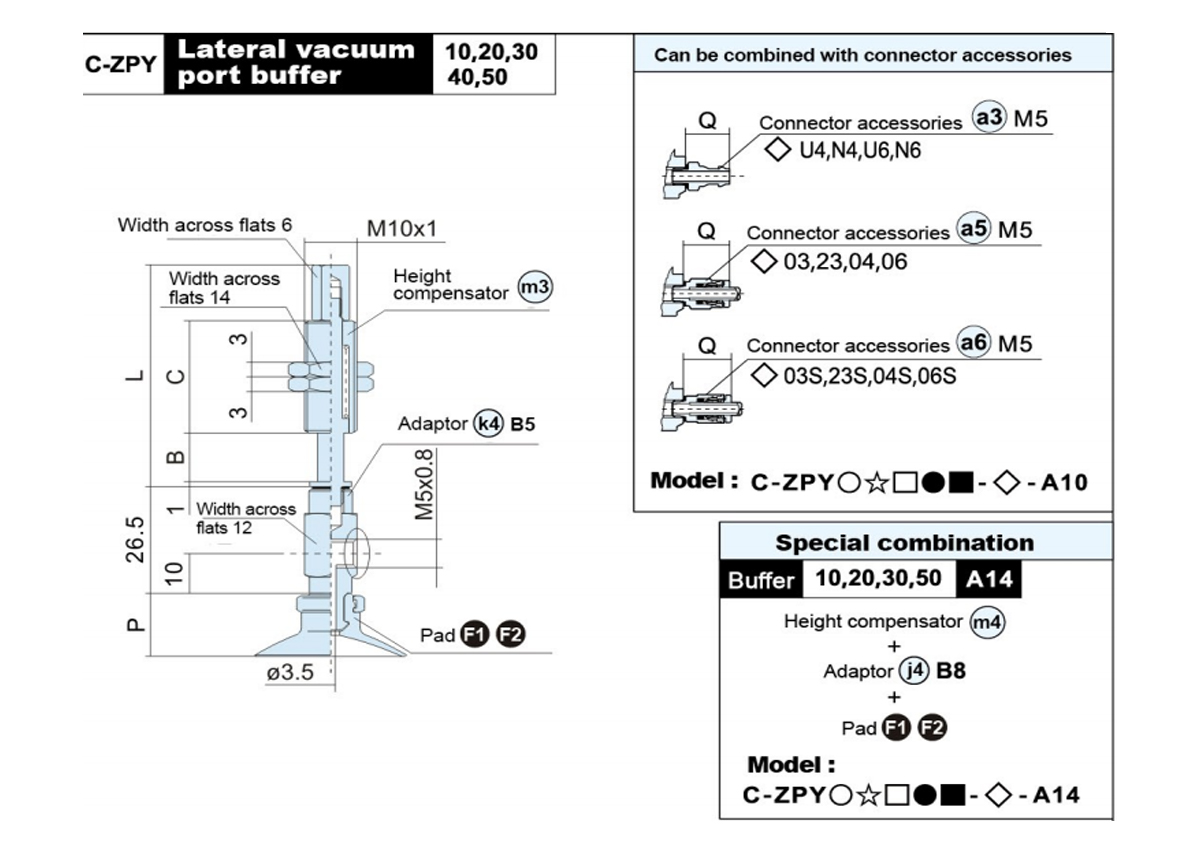

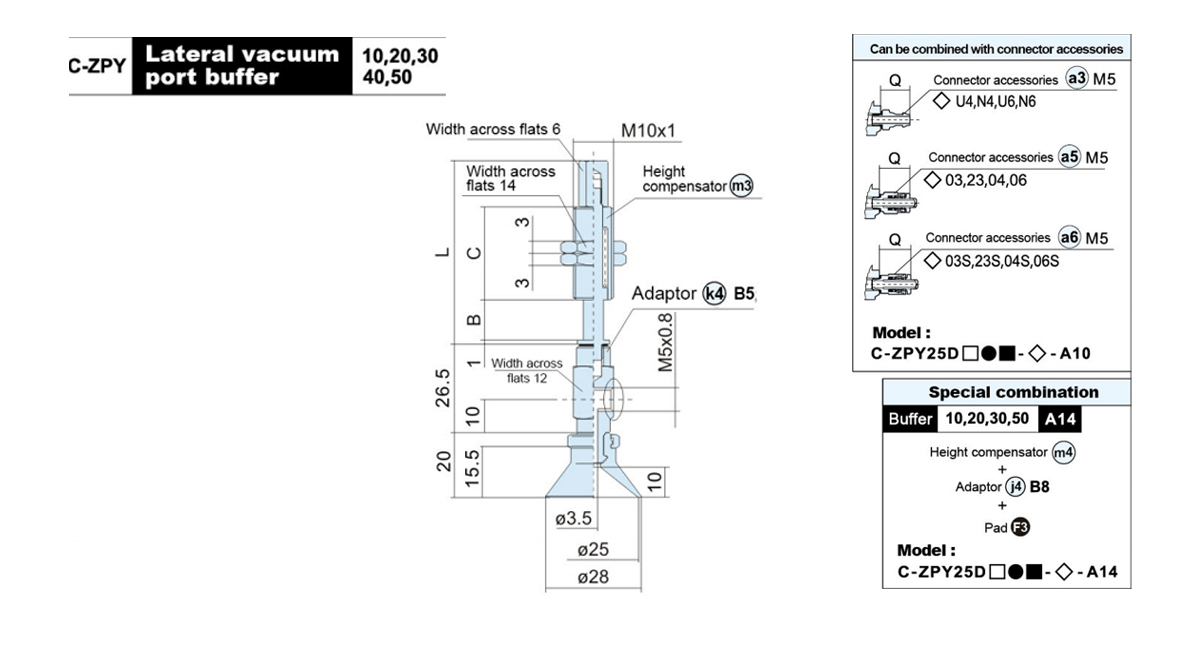

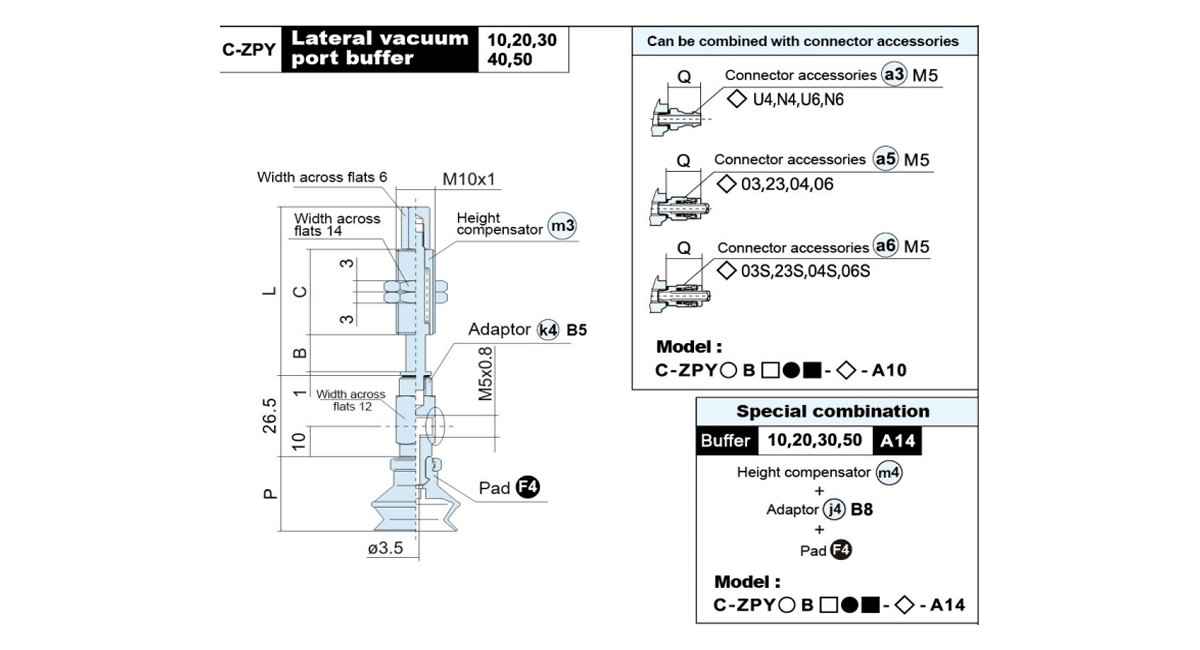

    C-ZPY○☆□●10-B5-A10 10 23 45 12 12 12.5 ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

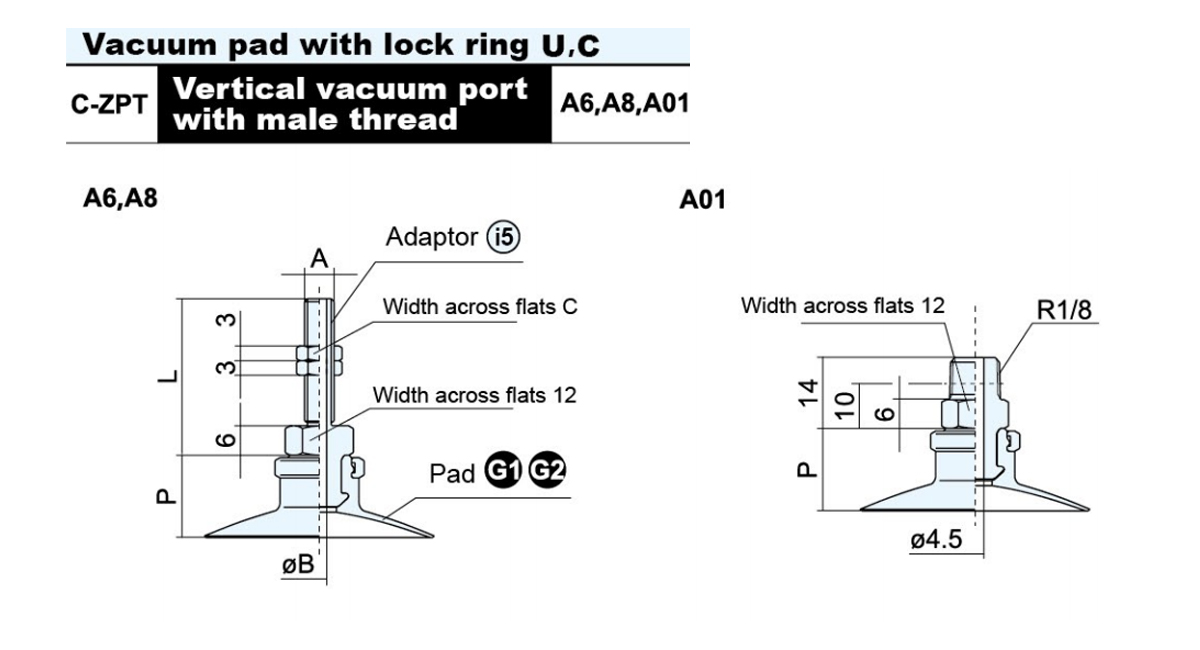

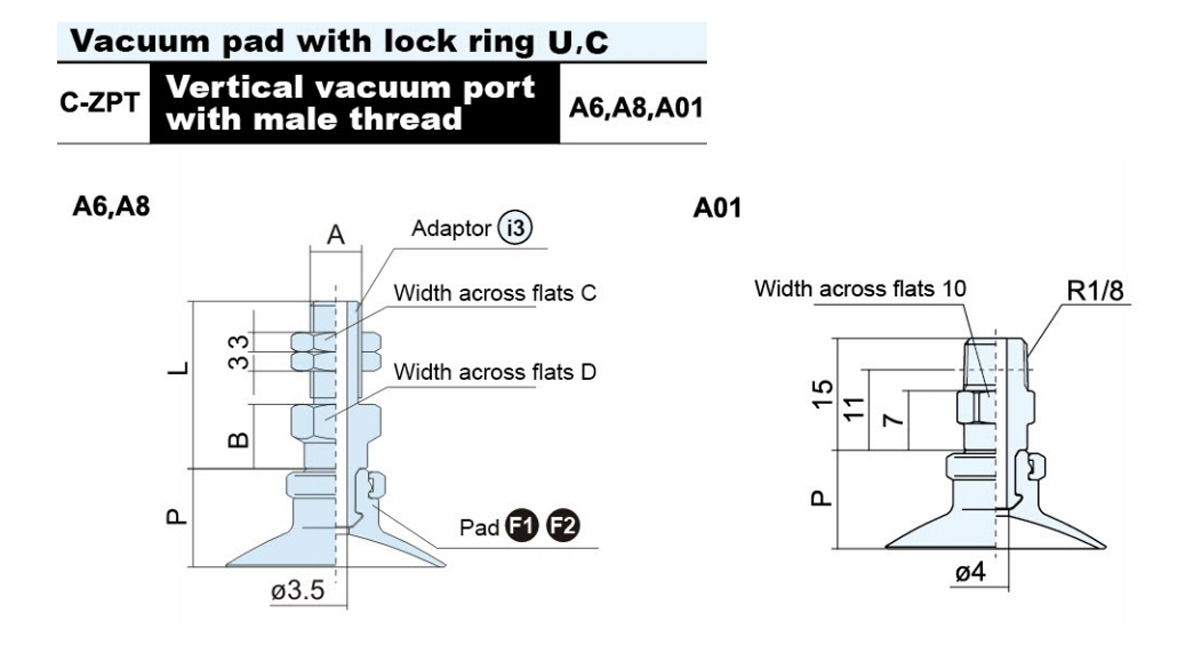

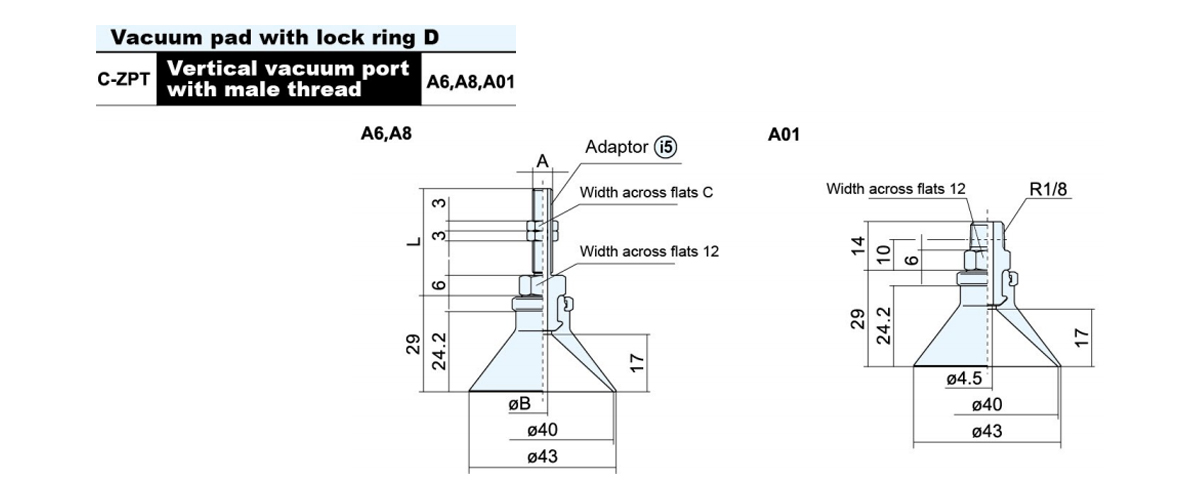

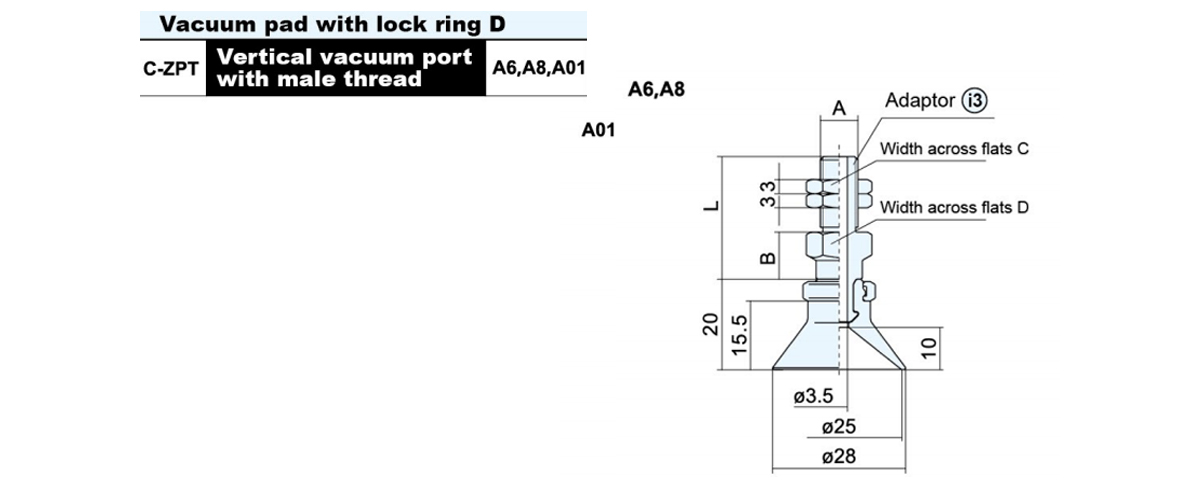

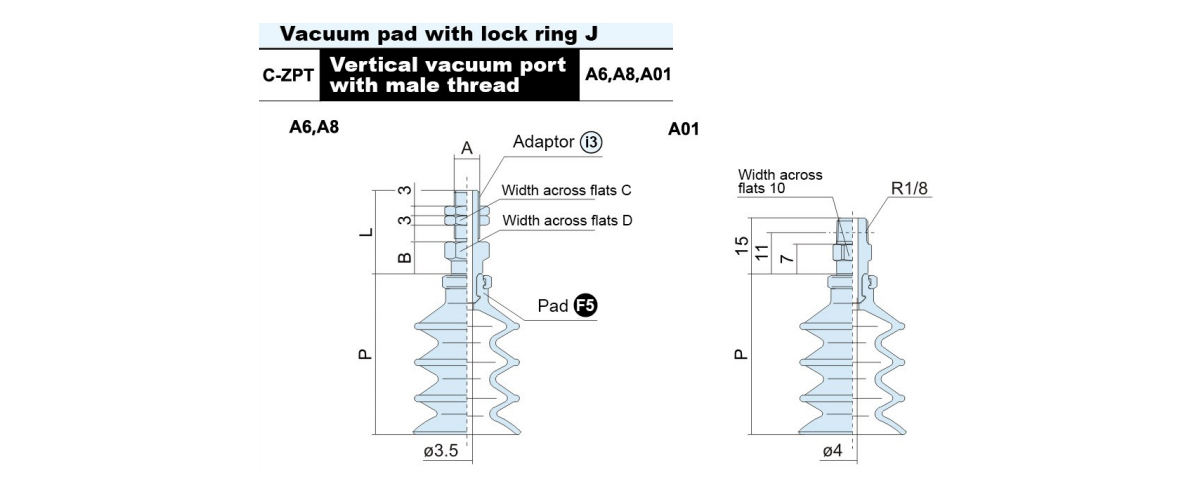

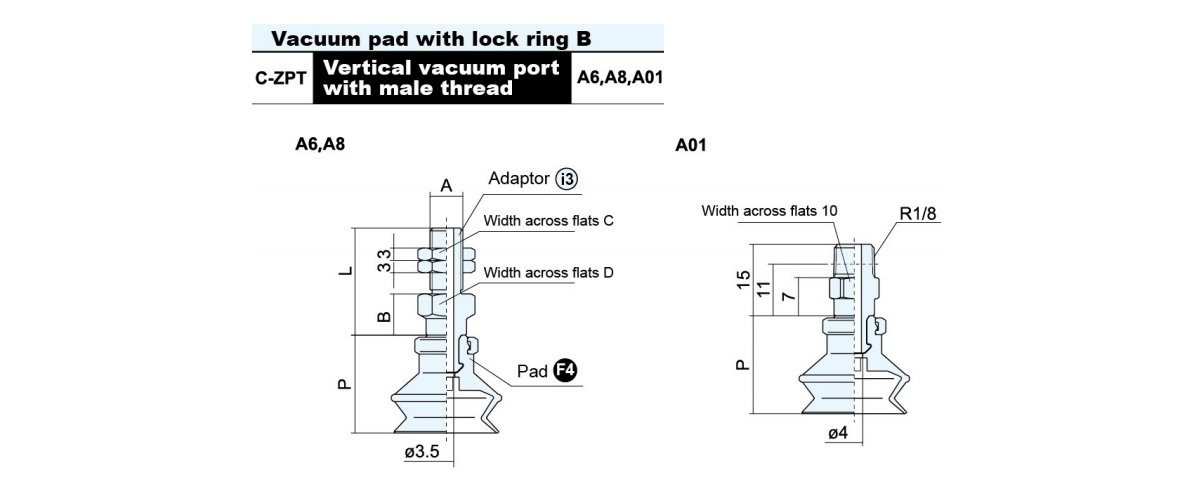

    Model A B C D L ○ Pad diameter P Adaptor Model
    20 25 32

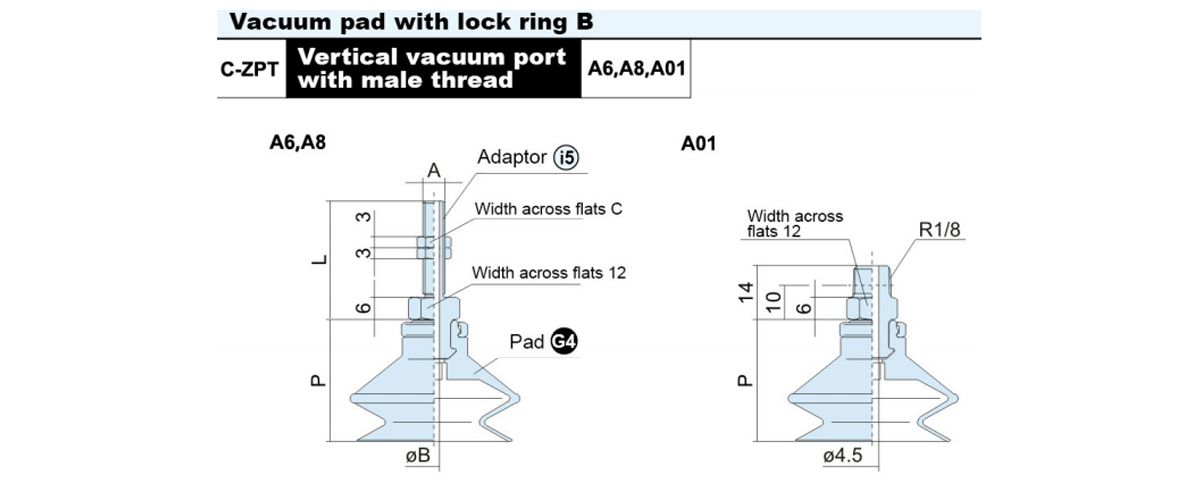

    C-ZPT○☆□-A6 M6×1.0 5 8 8 31 14 14 14.5 ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○☆□-A01 - - - - - ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

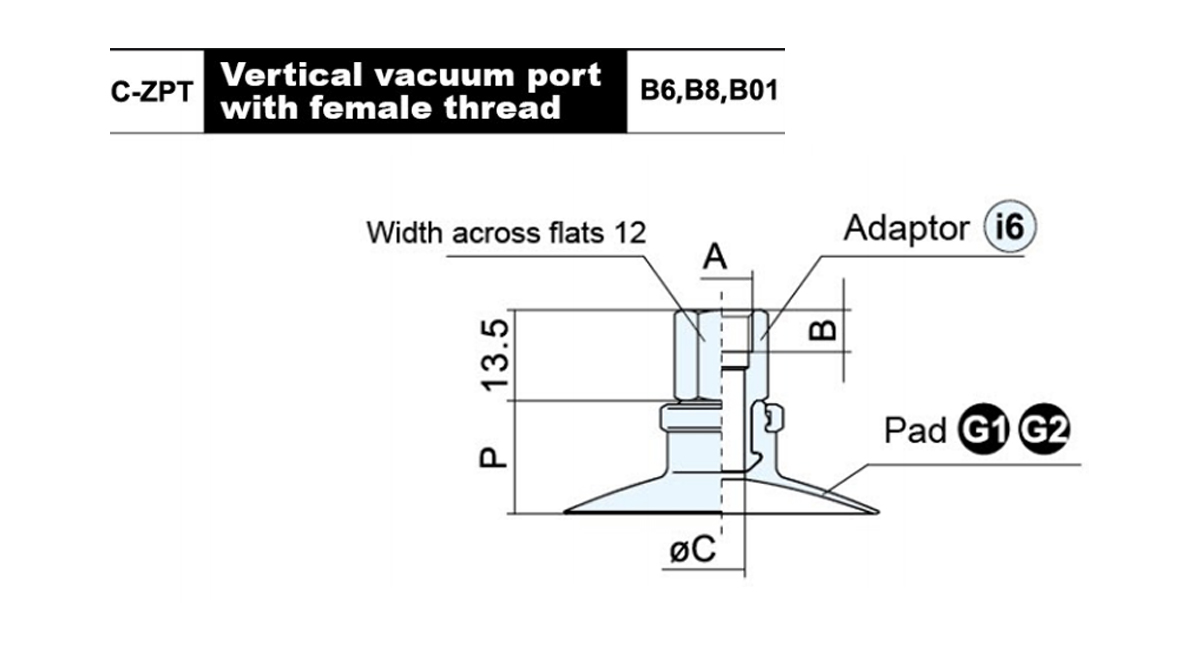

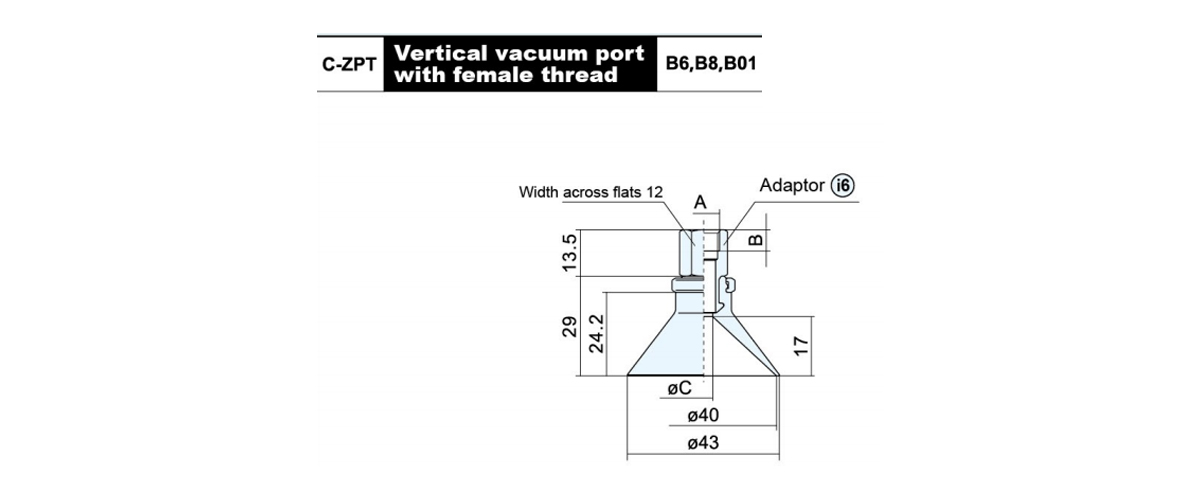

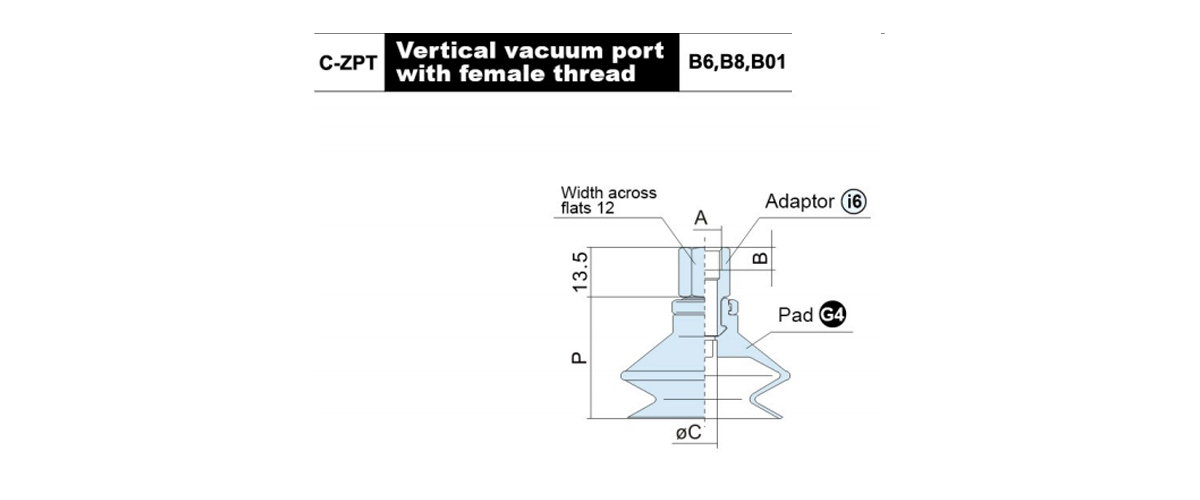

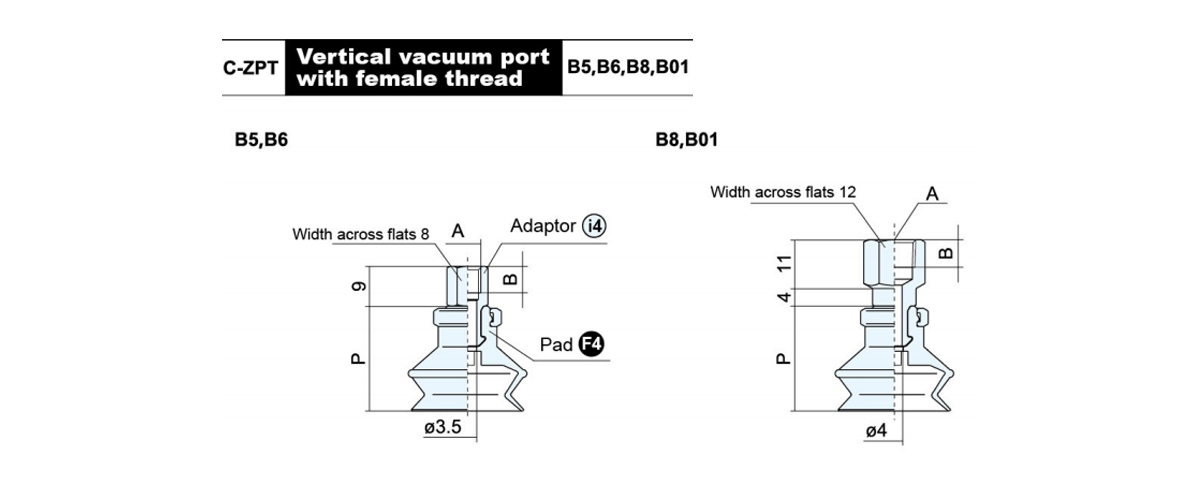

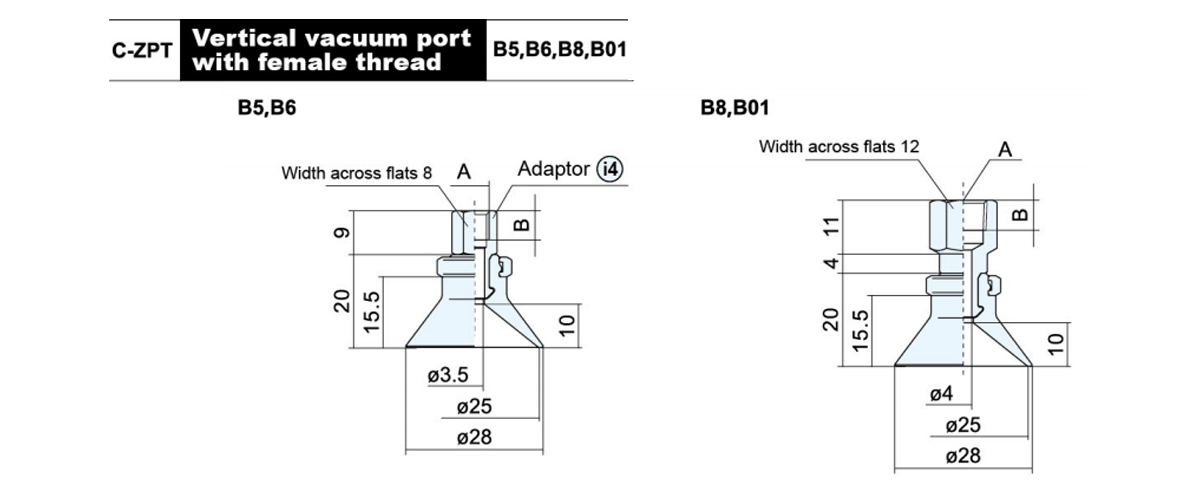

    Model A B ○Pad diameter P Adaptor Model
    20 25 32

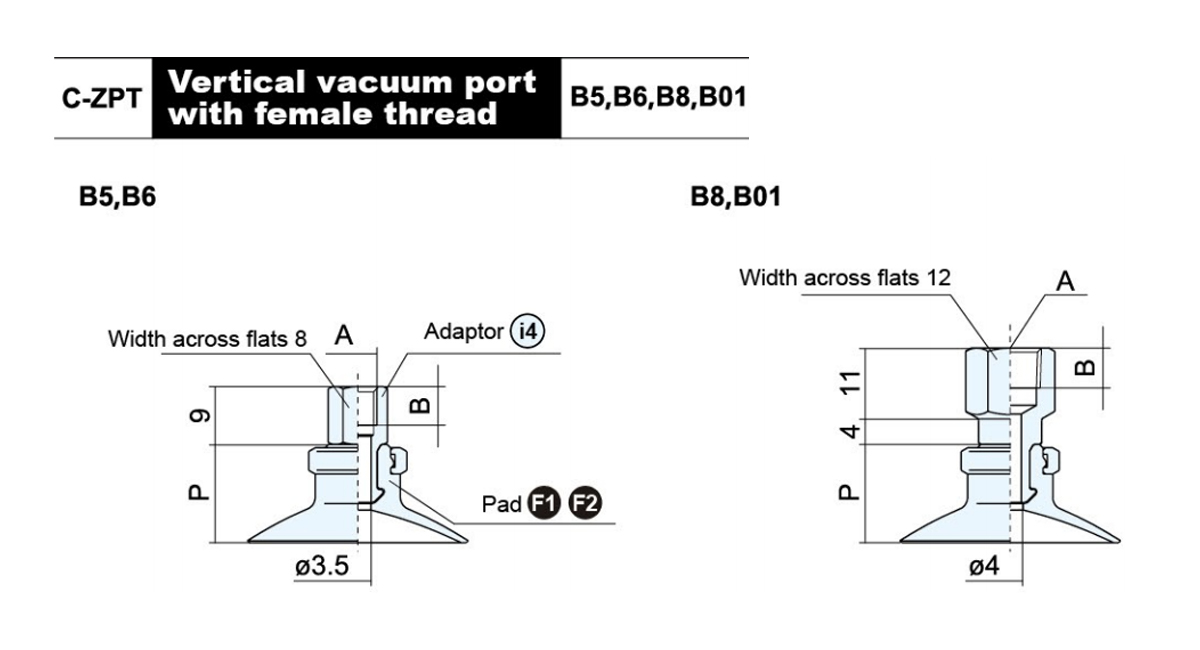

    C-ZPT○☆□-B5 M5×0.8 5 14 14 14.5 ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

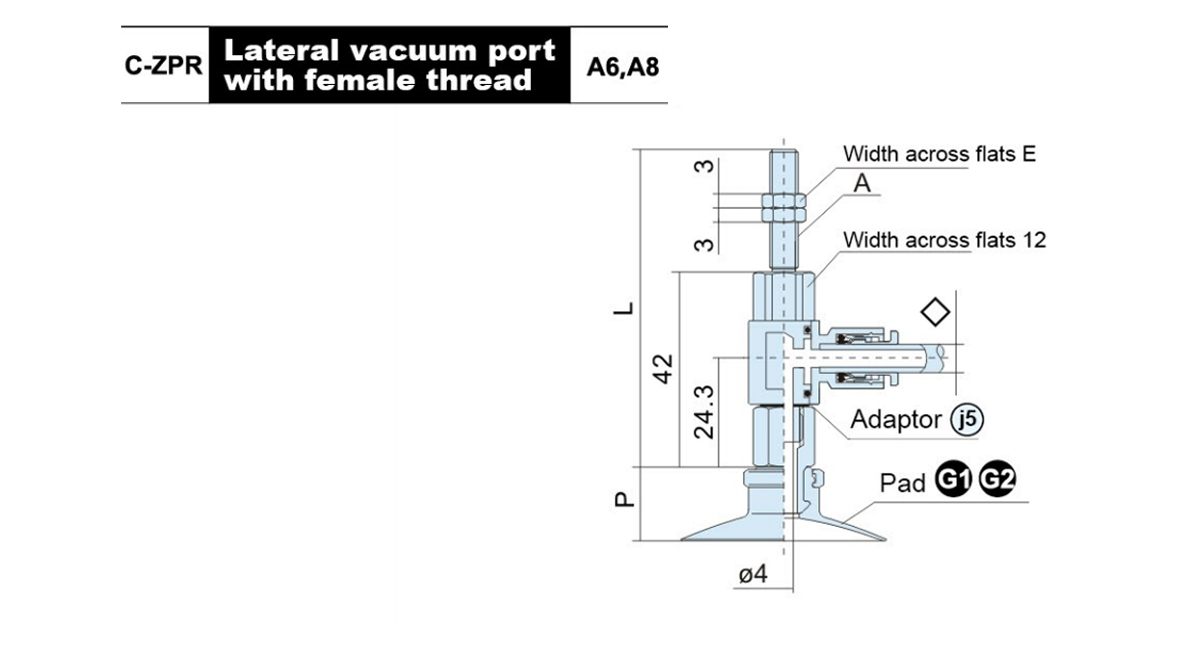

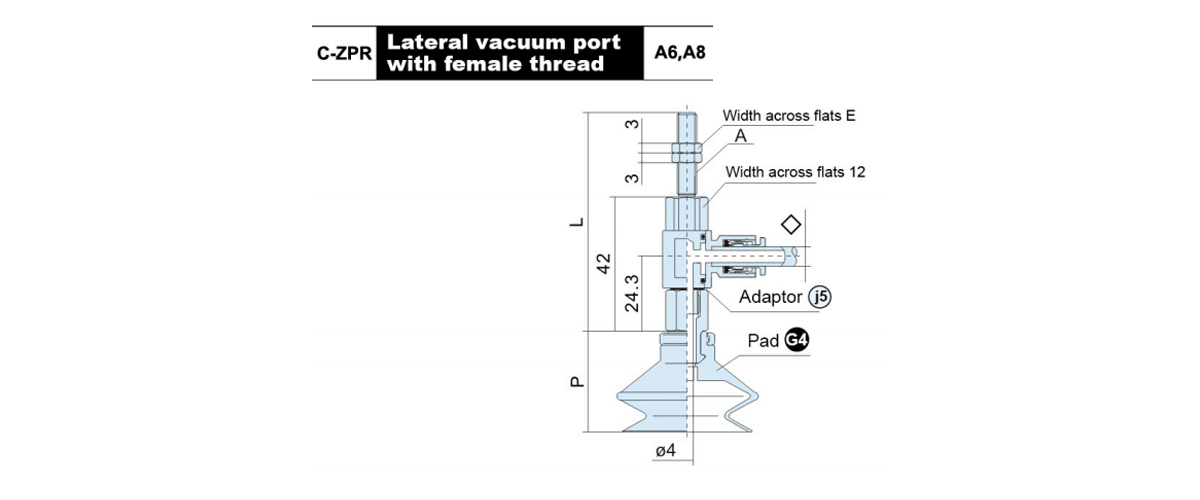

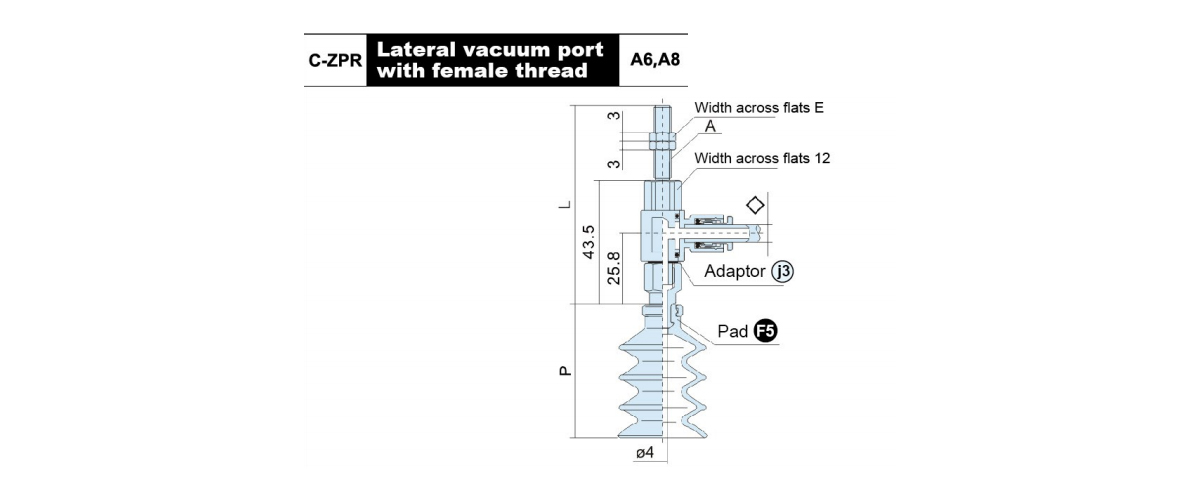

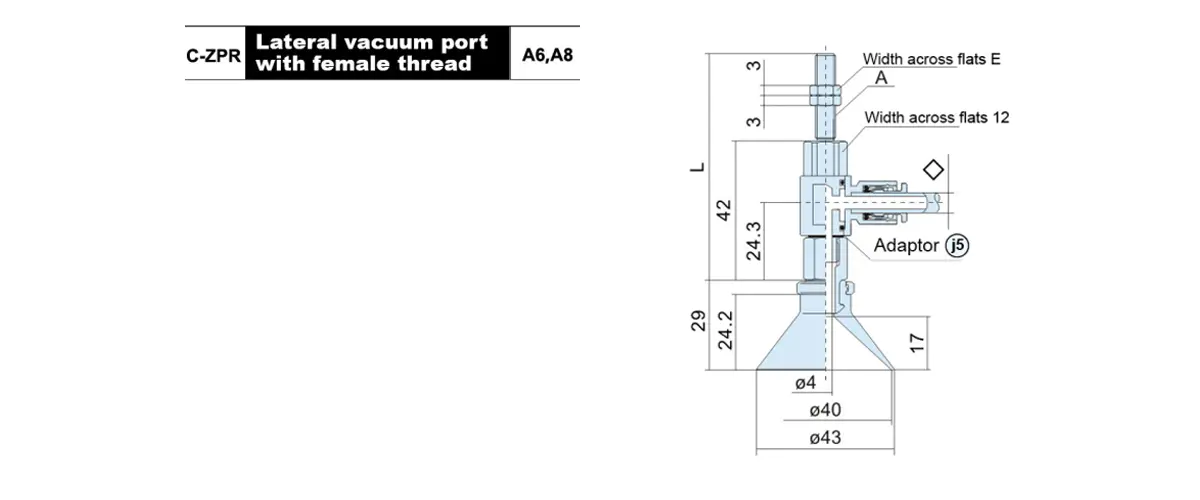

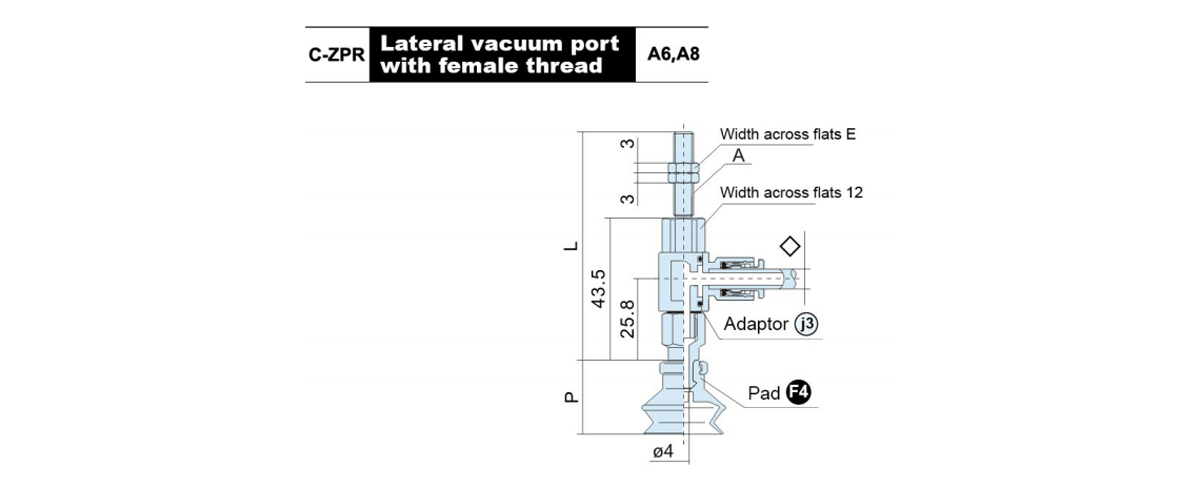

    Model A E L ○Pad diameter P Adaptor Model
    20 25 32

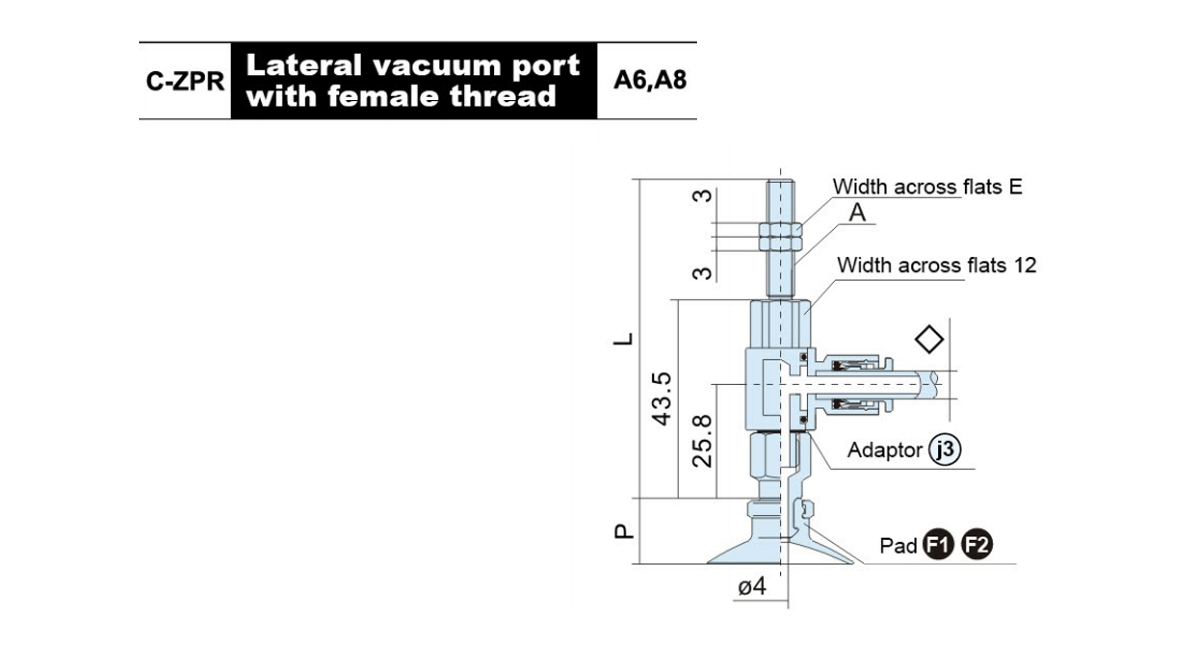

    C-ZPR○☆□-◇-A6 M6×1.0 8 69.5 14 14 14.5 ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

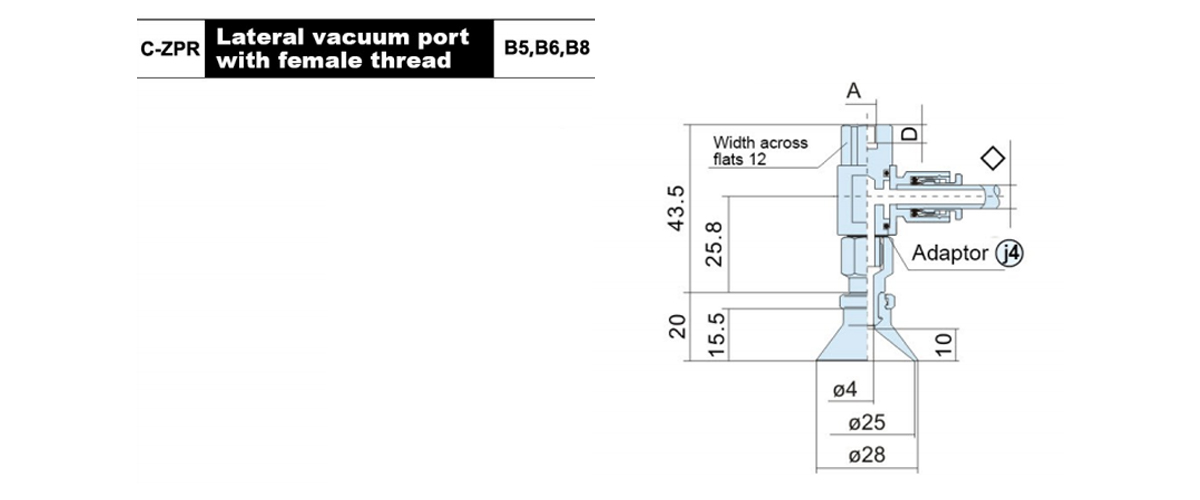

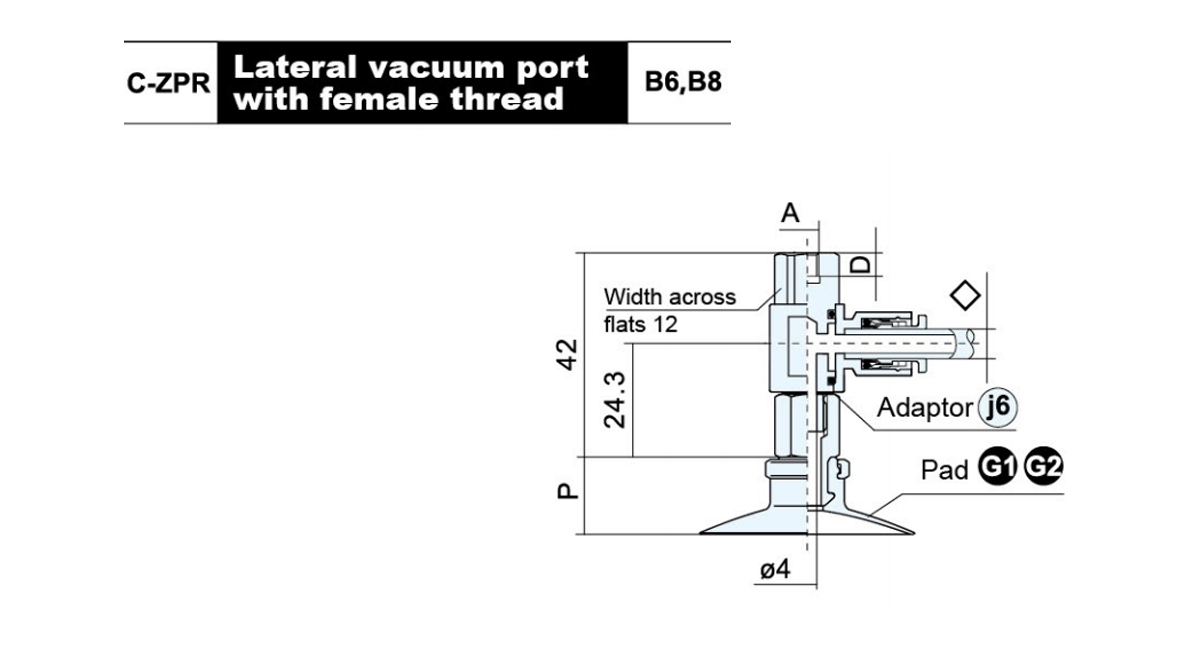

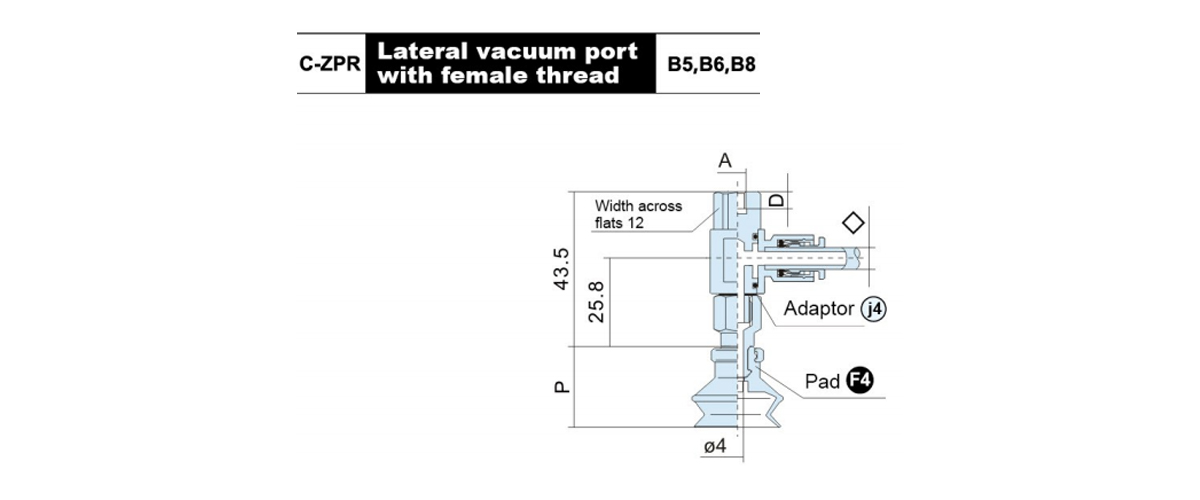

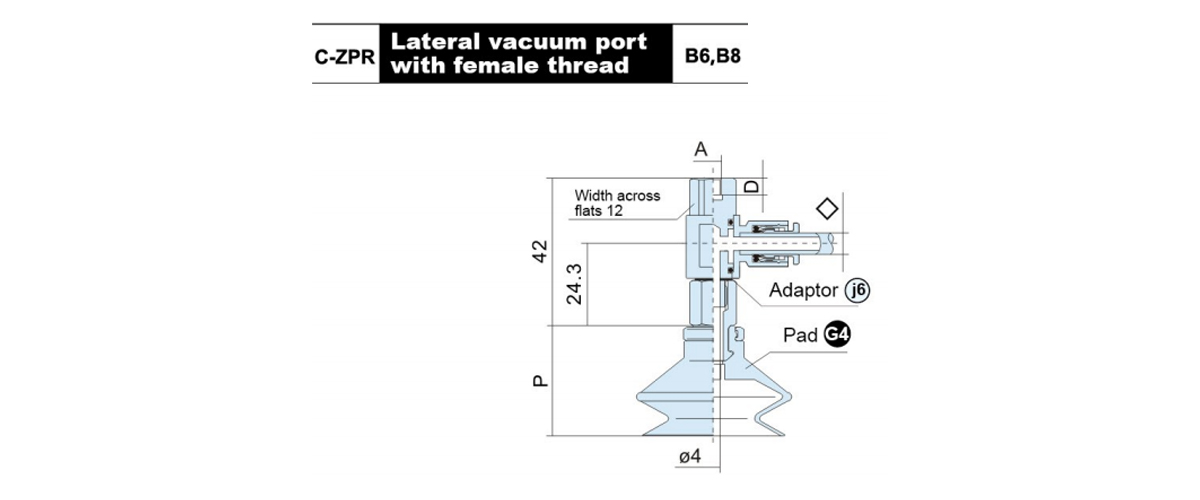

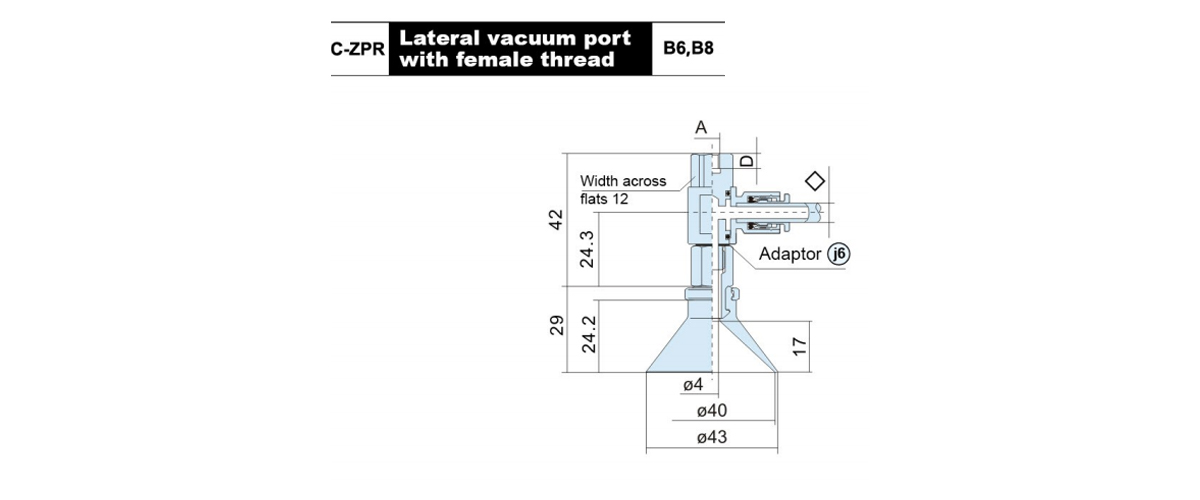

    Model A D ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPR○☆口 - ◇-B5 M5×0.8 5 14 14 14.5 ZPR3-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

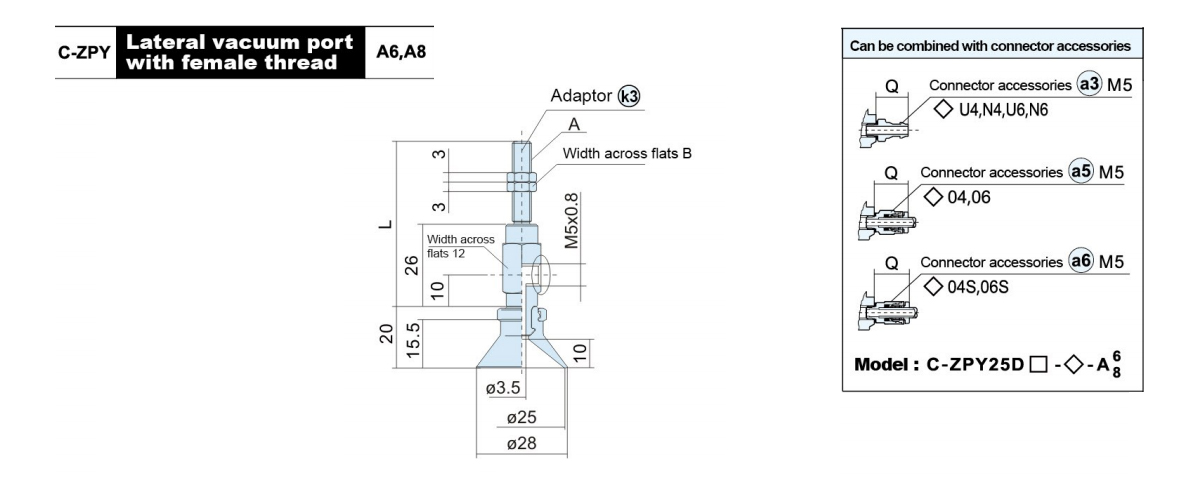

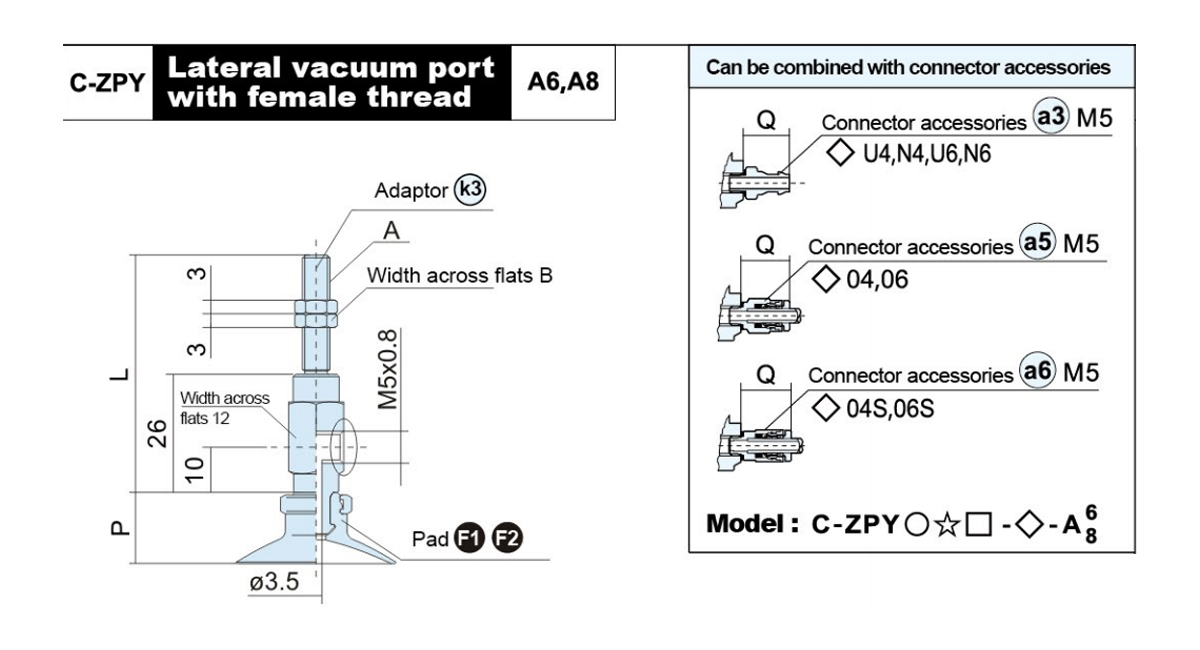

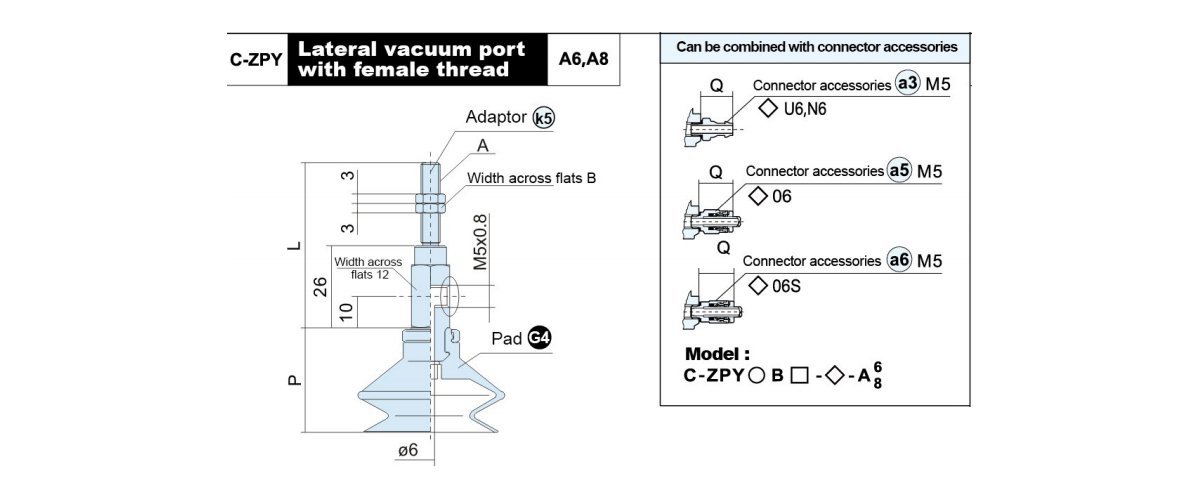

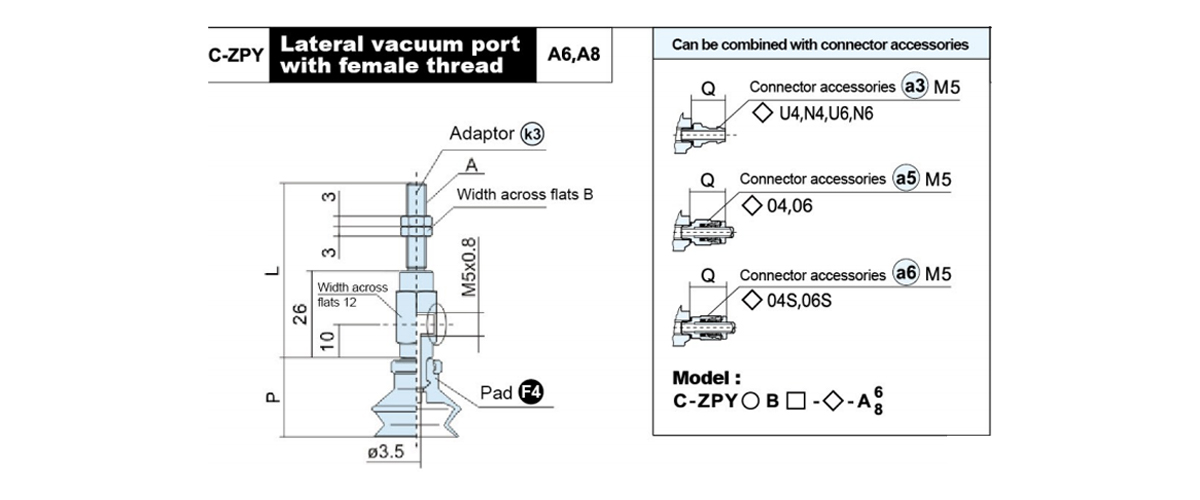

    Model A B L ○Pad diameter P Adaptor Model
    20 25 32

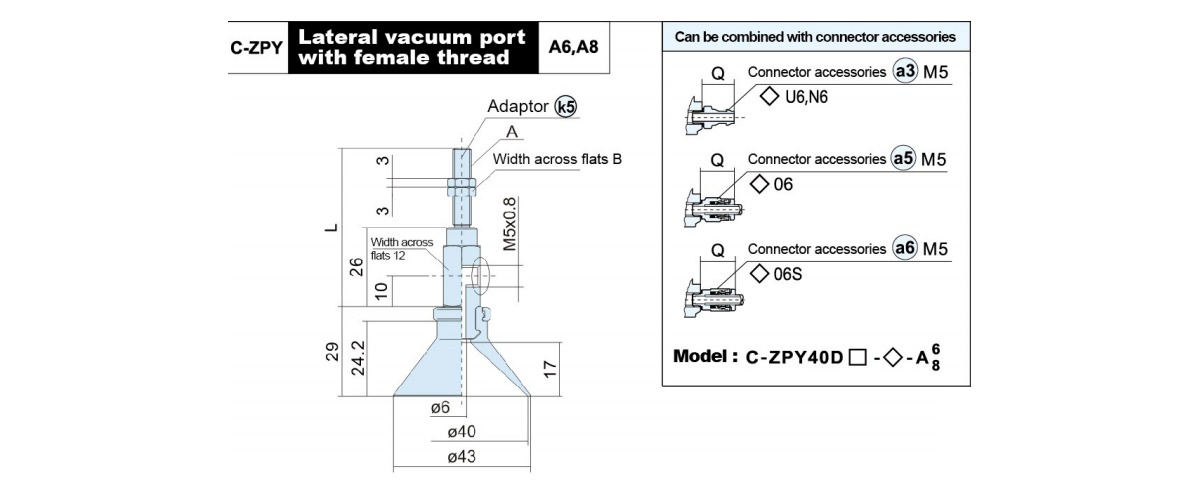

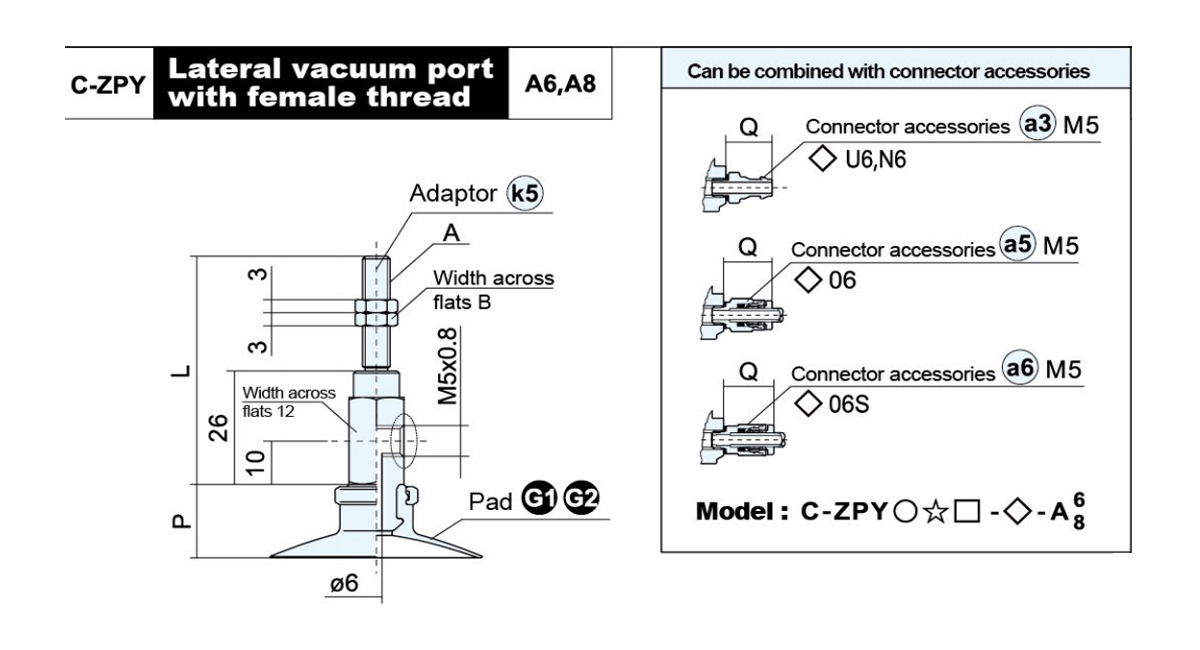

    C-ZPY○☆□-B5-A6 M6×1.0 8 54 14 14 14.5 ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

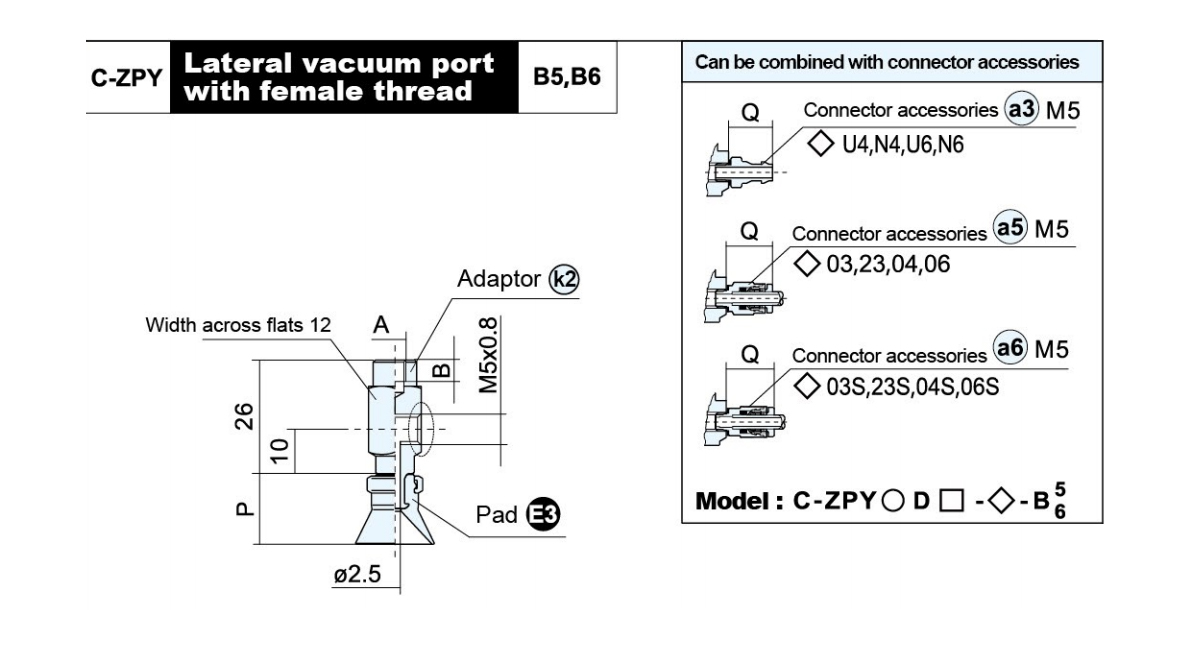

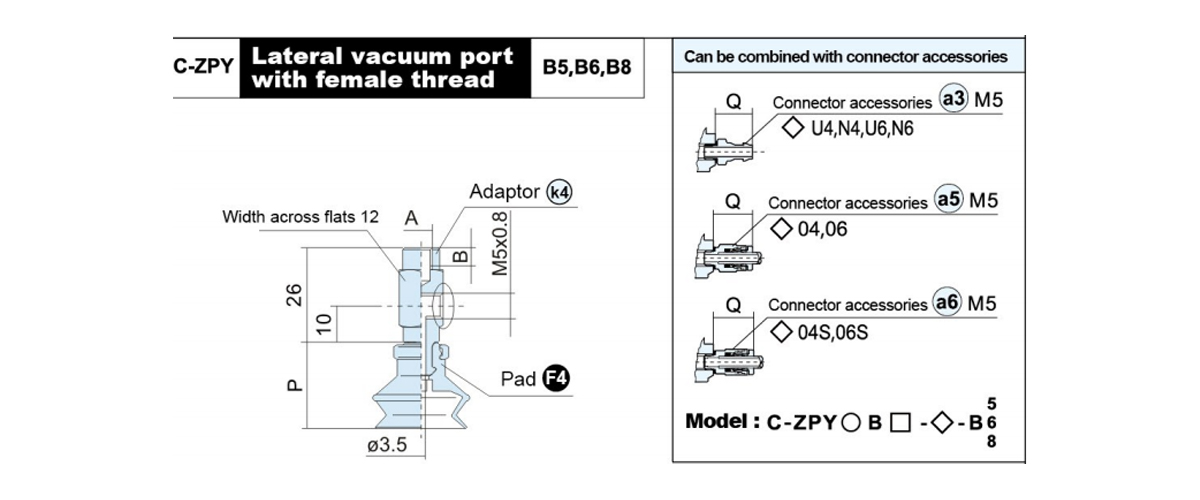

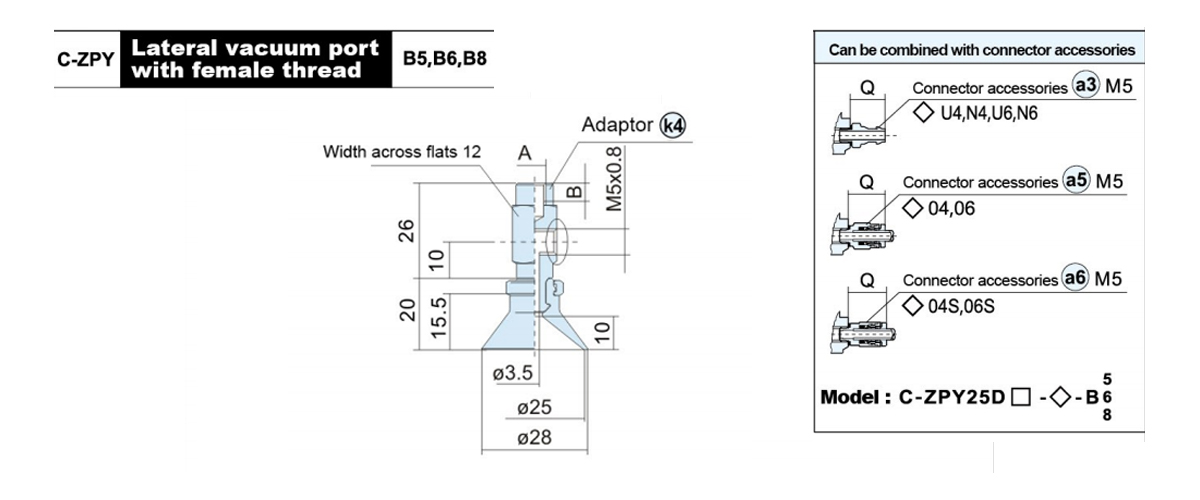

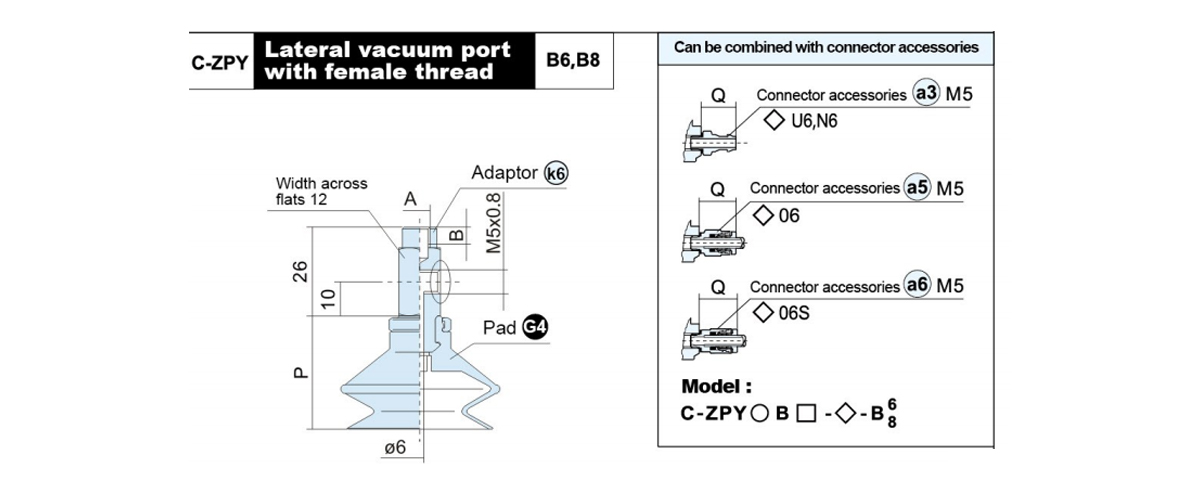

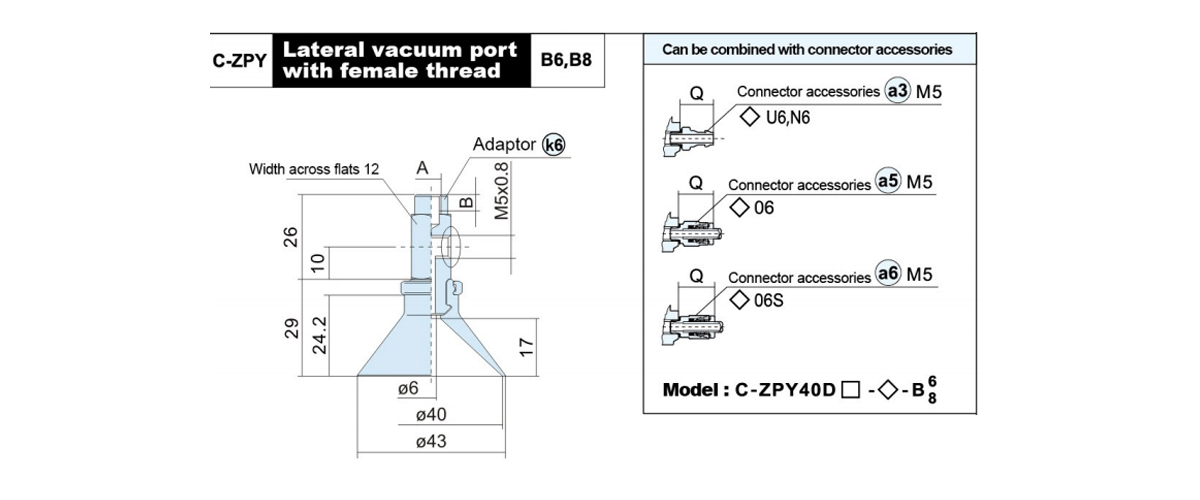

    Model A B ○Pad diameter P Adaptor Model
    20 25 32

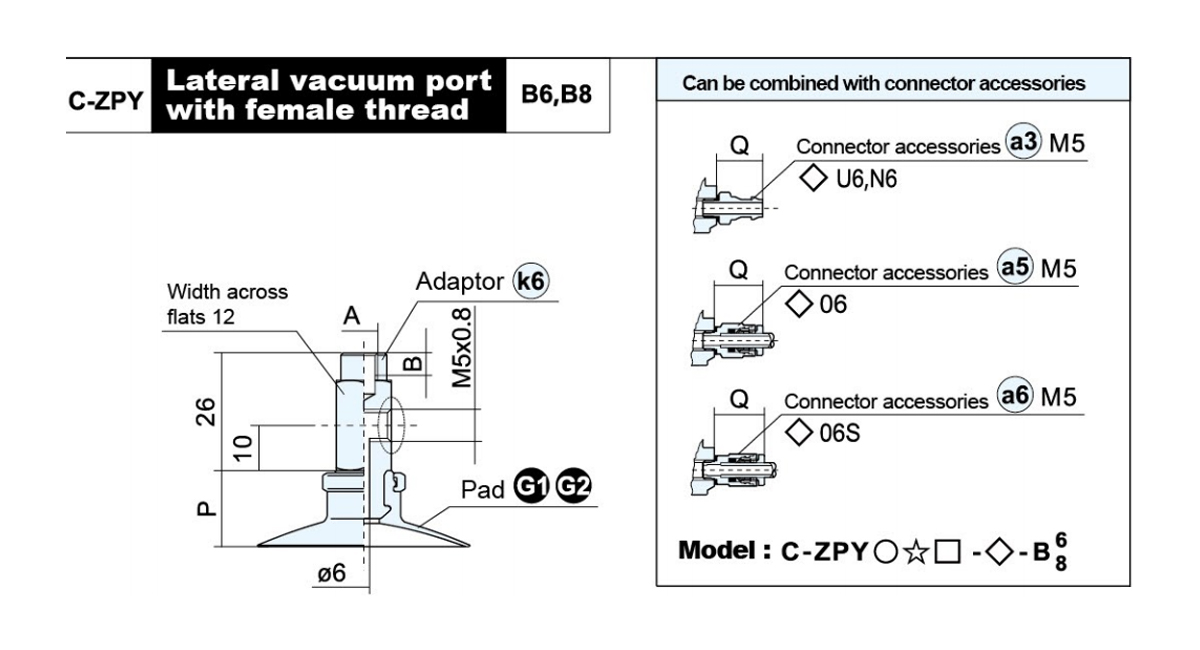

    C-ZPY○☆□-B5-B5 M5×0.8 5 14 14 14.5 ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

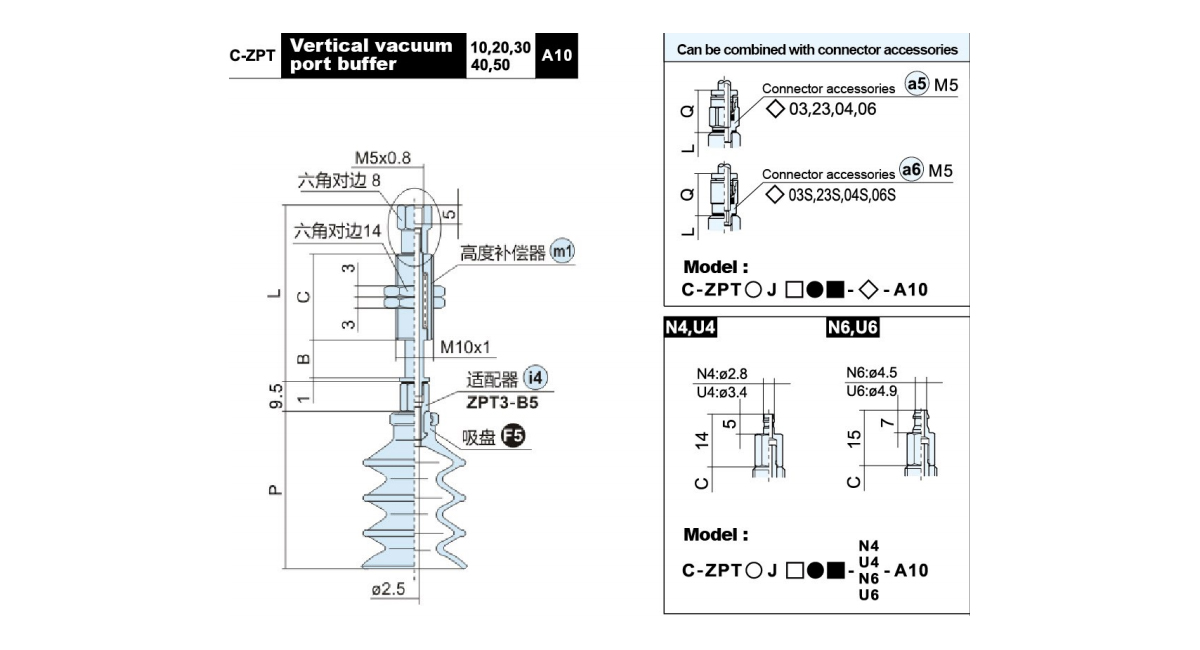

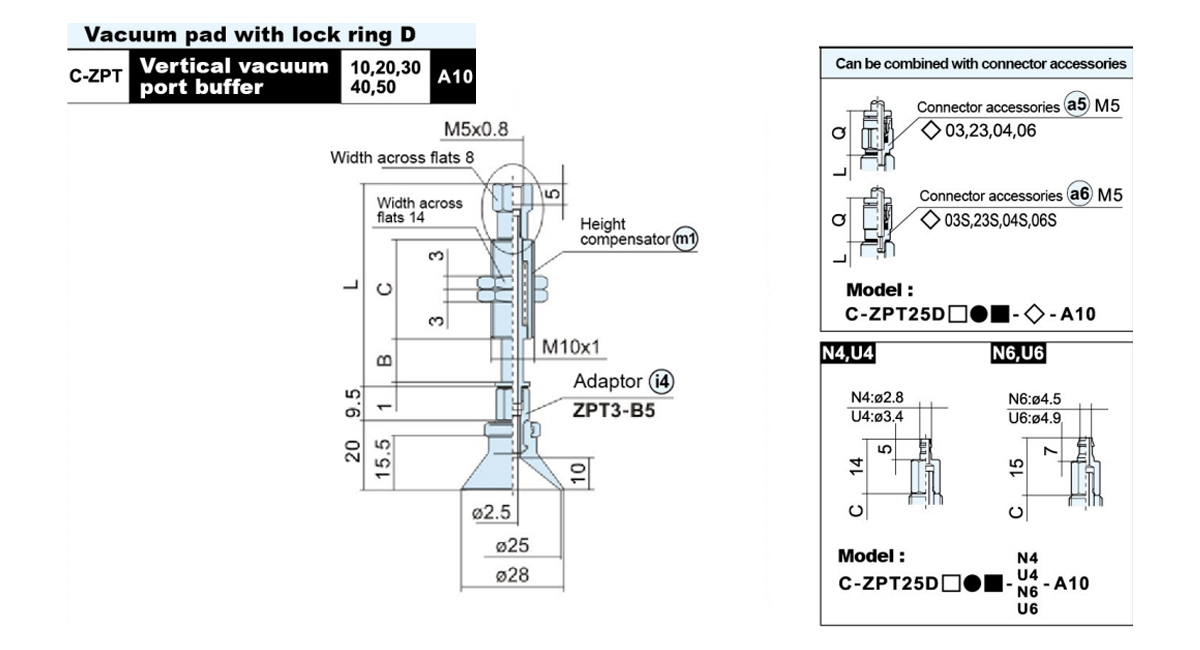

    Model B C L ○Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32

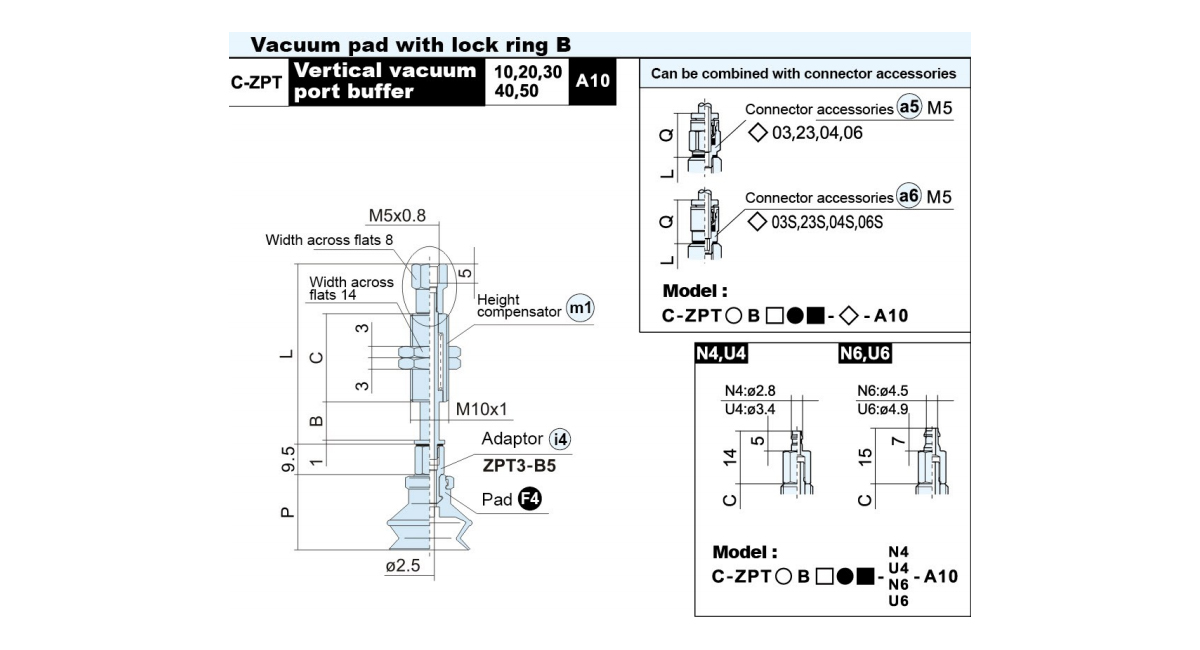

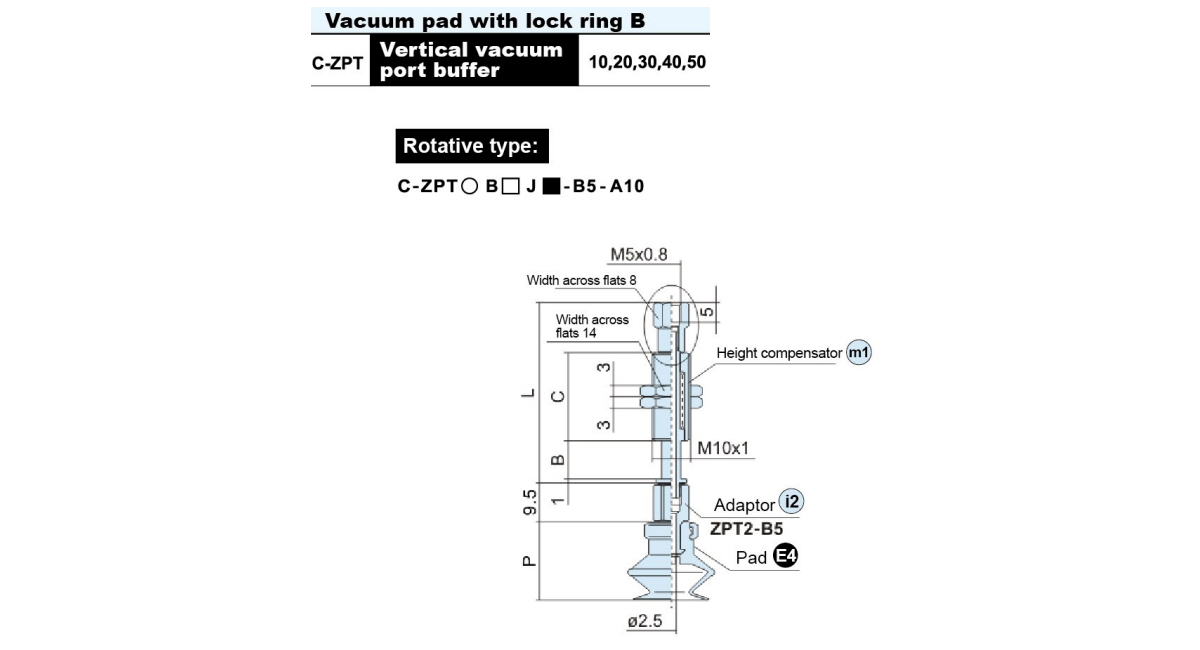

    C-ZPT○☆□●10-B5-A10 10 23 47 14 14 14.5 ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

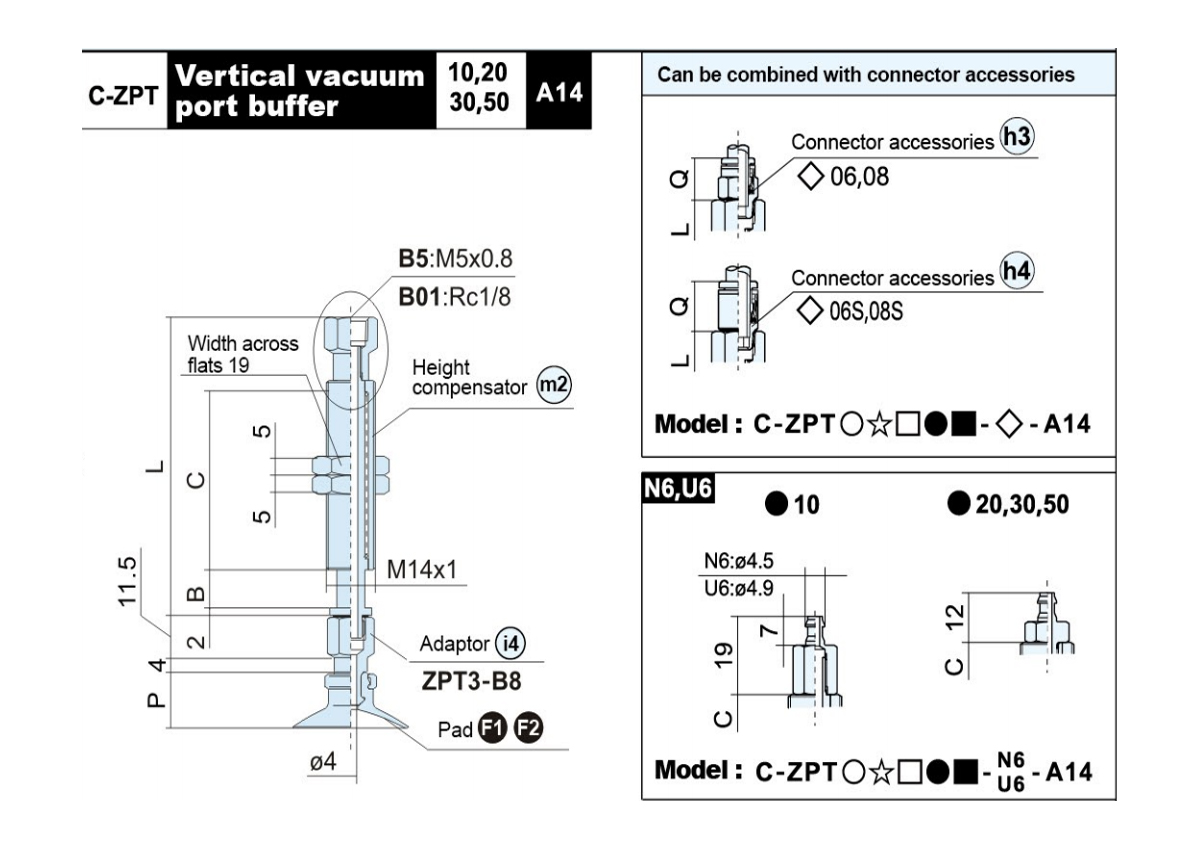

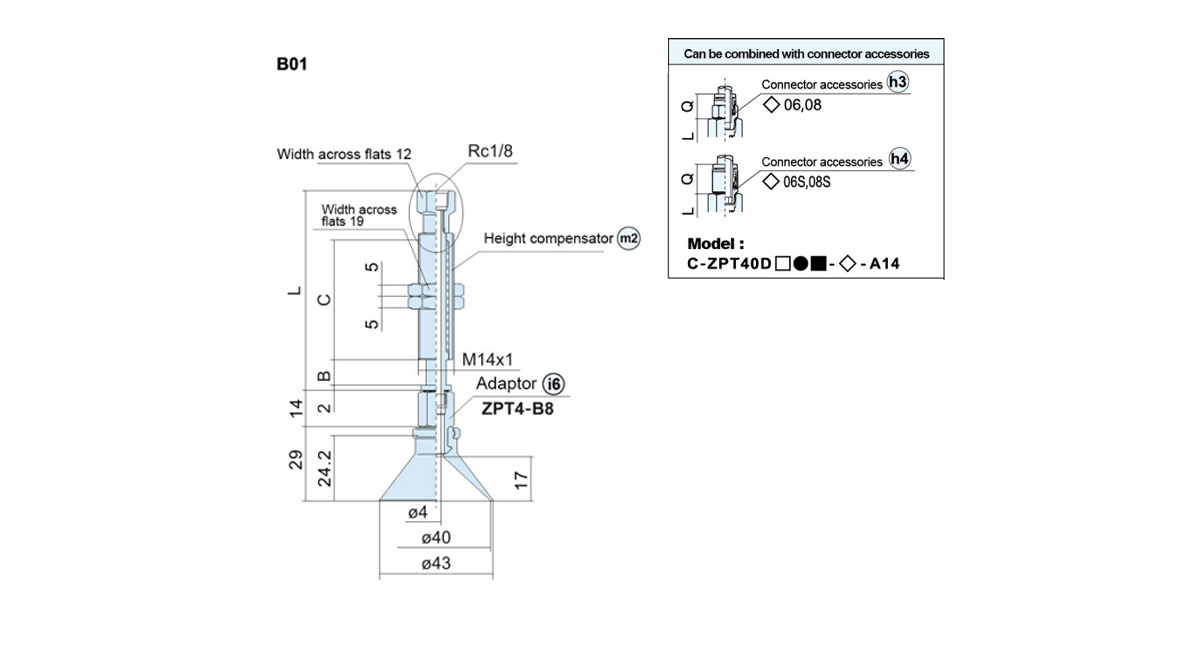

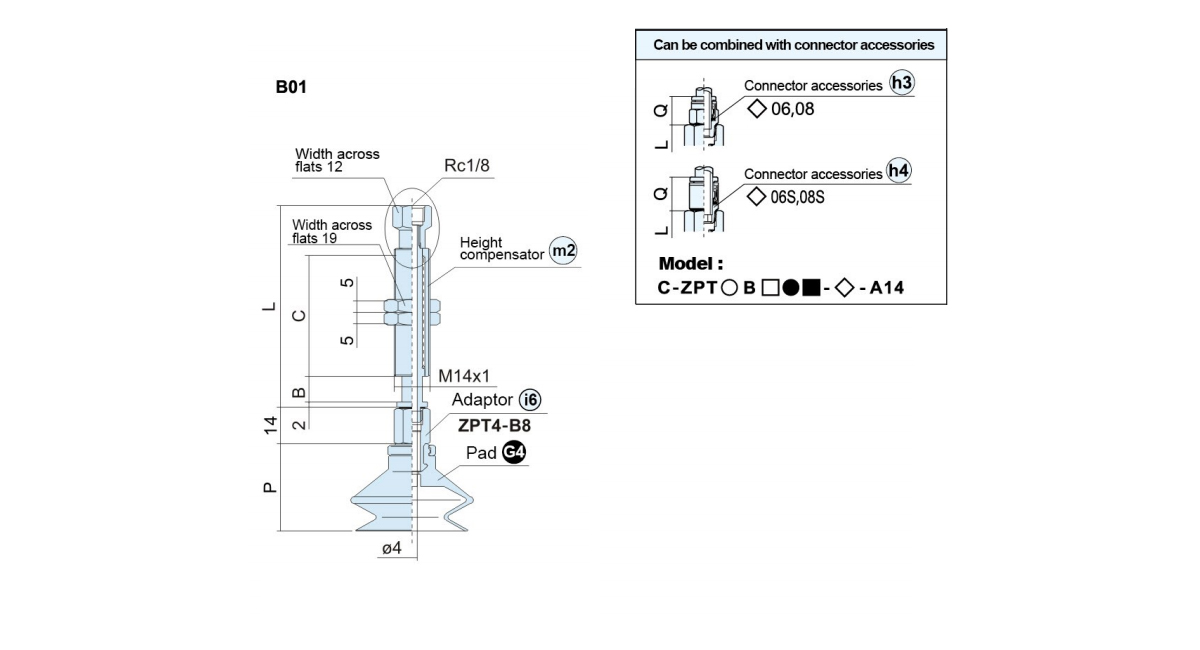

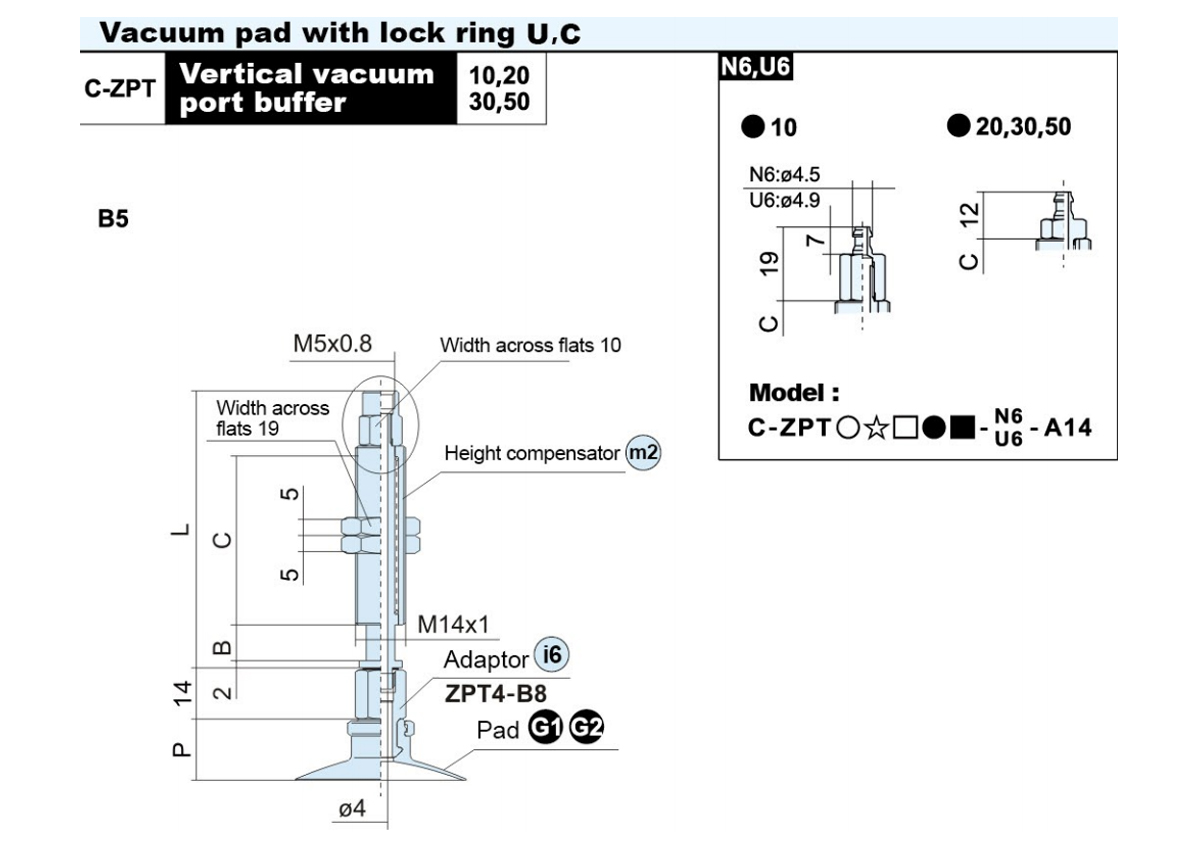

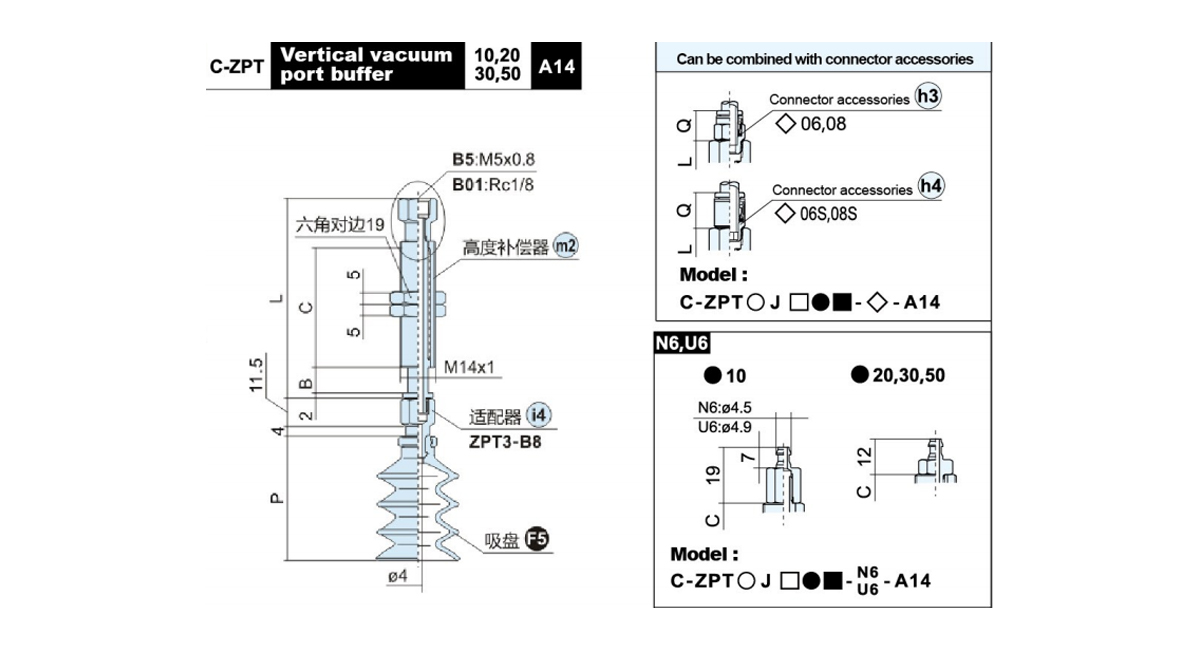

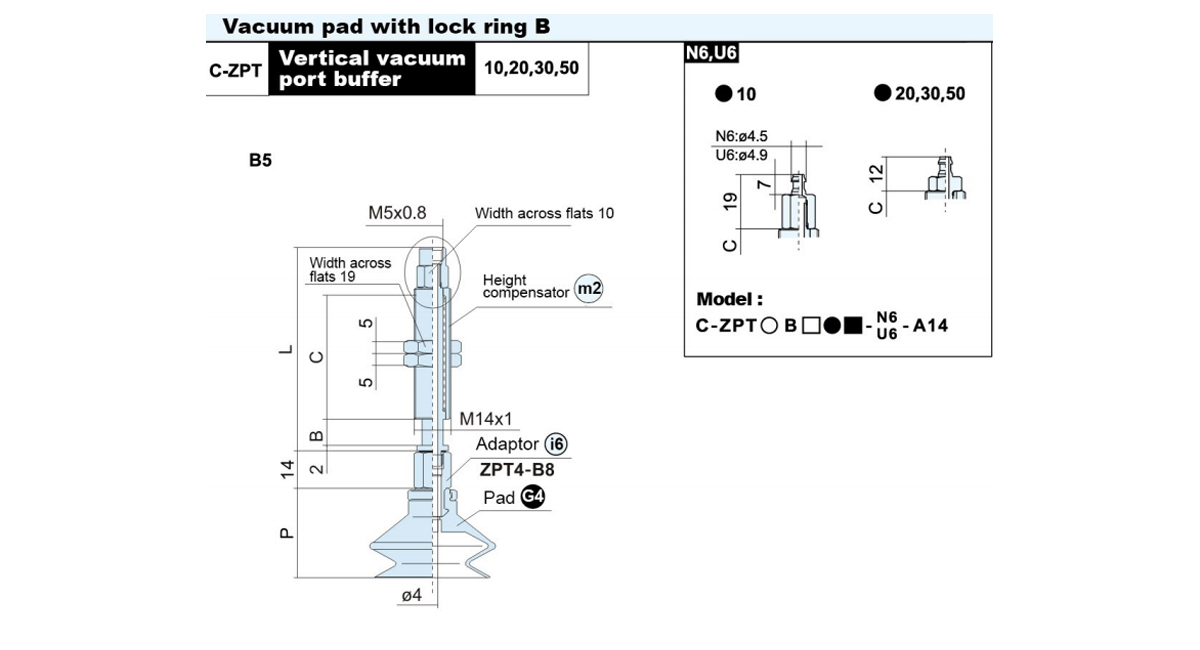

    Model B C L Pad
    U Diame
    Diameter     		P m2 i4
    Bumper Support Model
    20 25 32

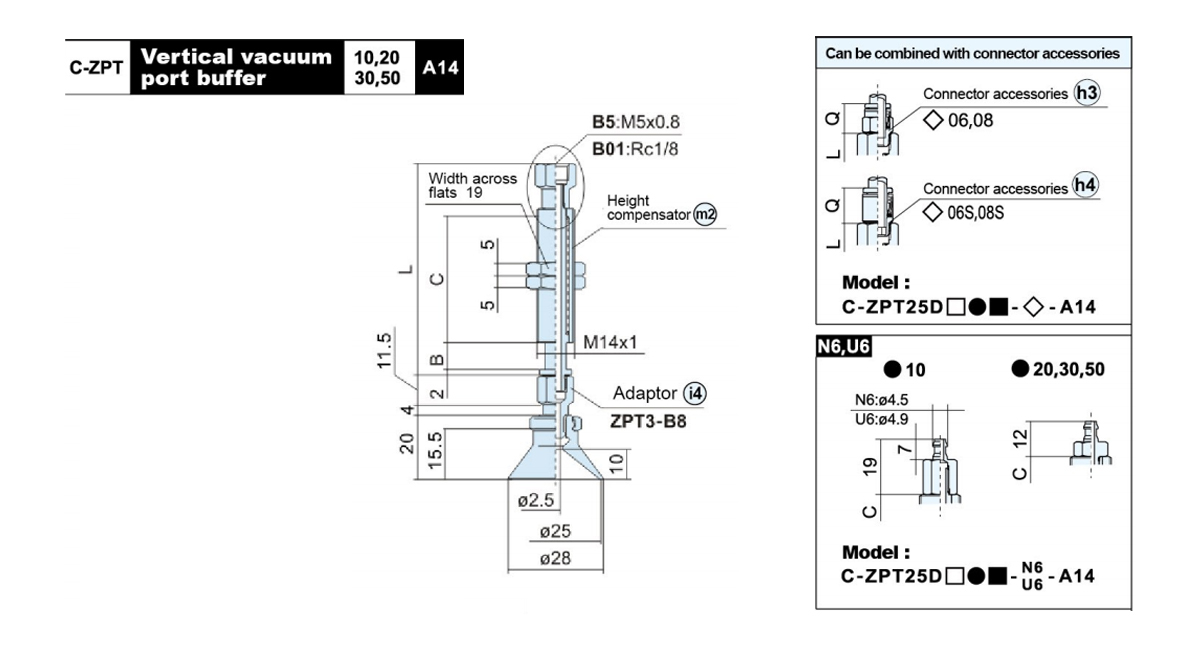

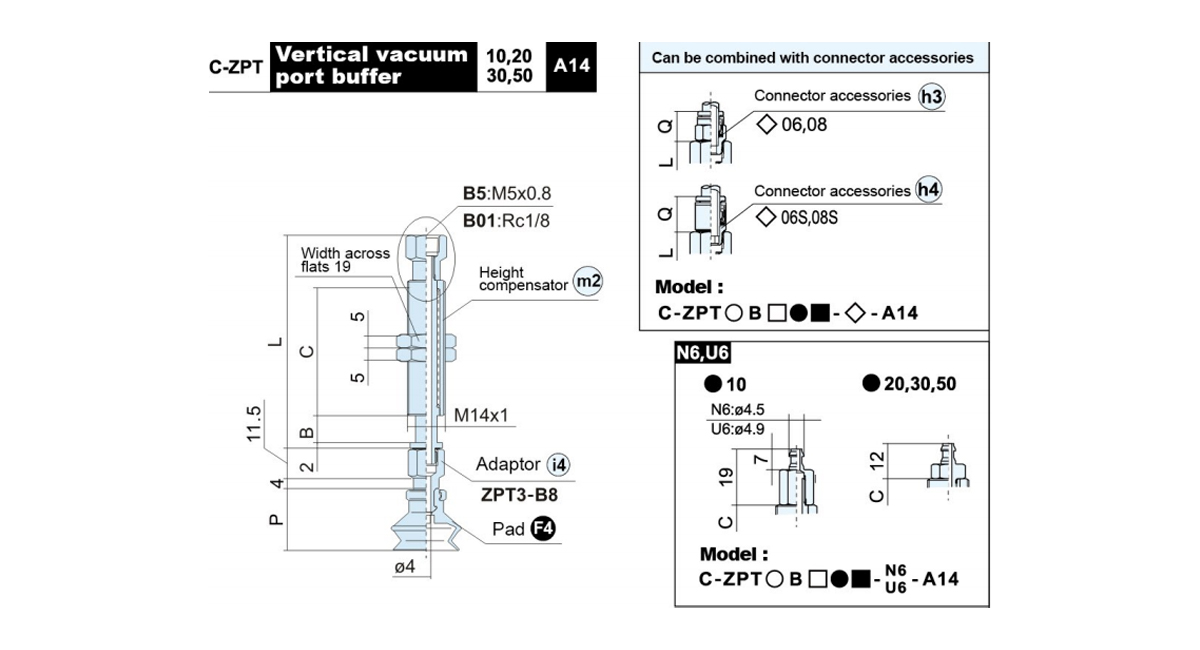

    C-ZPT○☆□●10-B5-A14 10 50 77 14 14 14.5 ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT3-●30-B5-A14

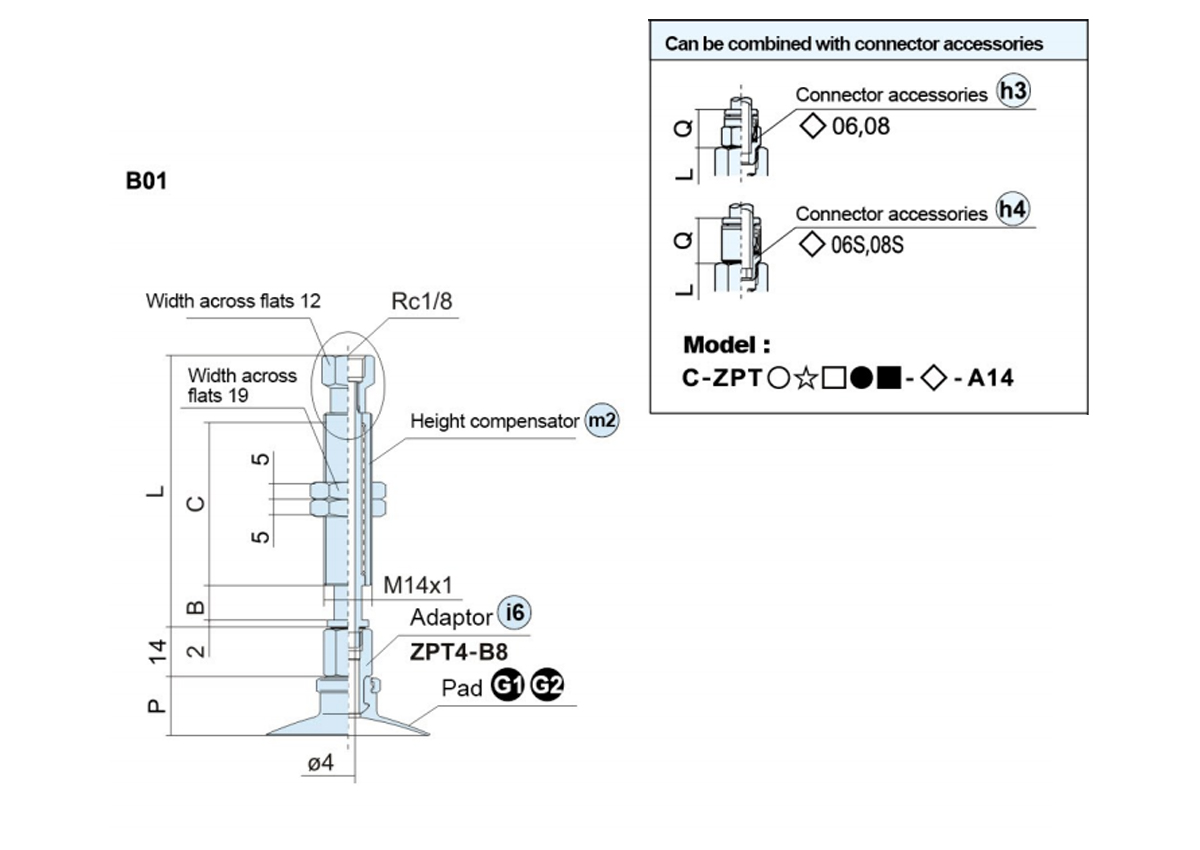

    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○☆□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

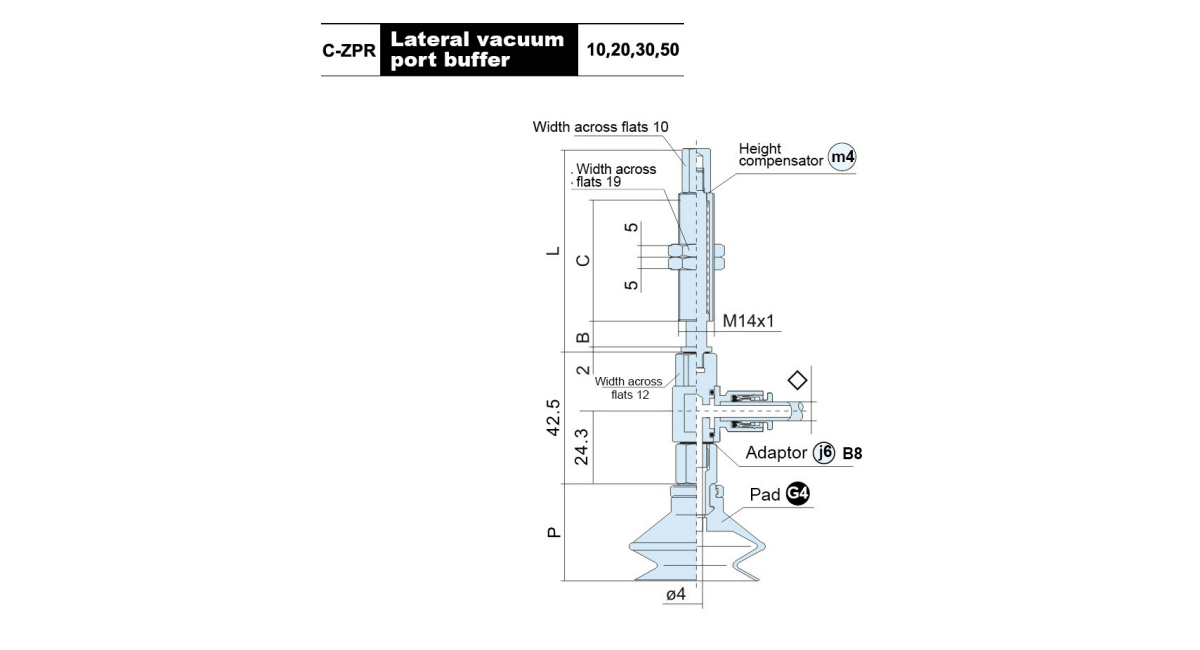

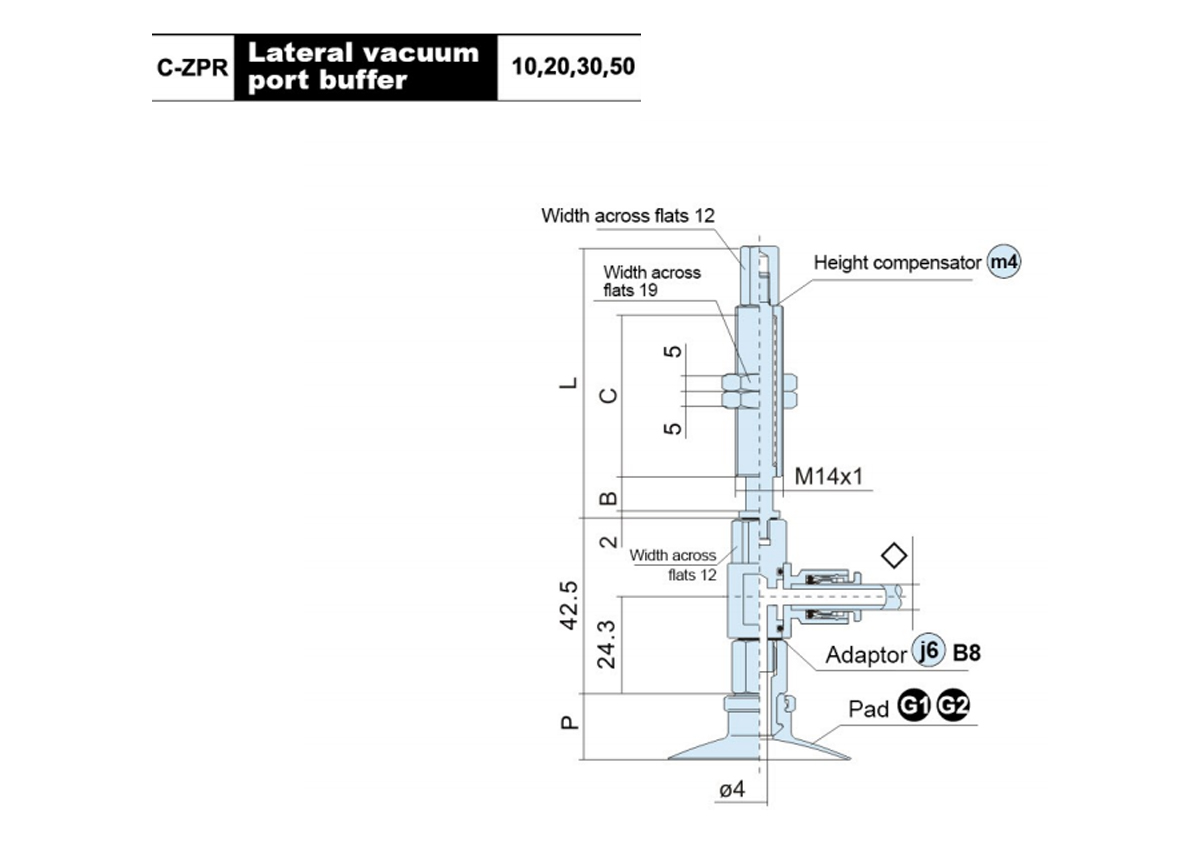

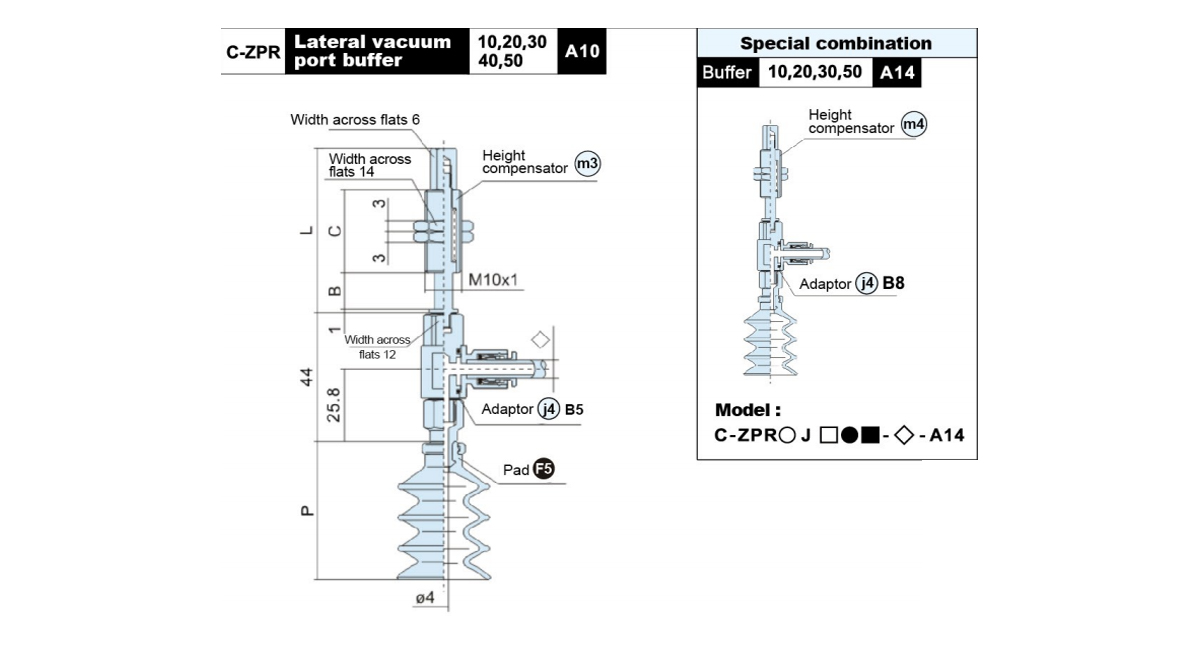

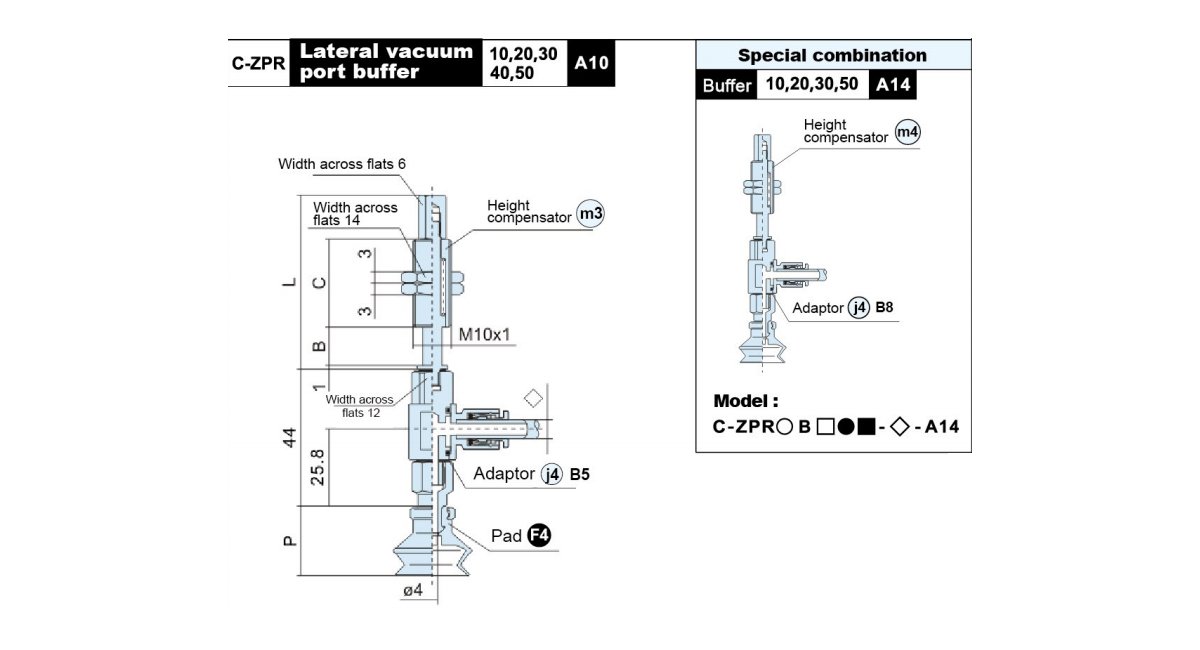

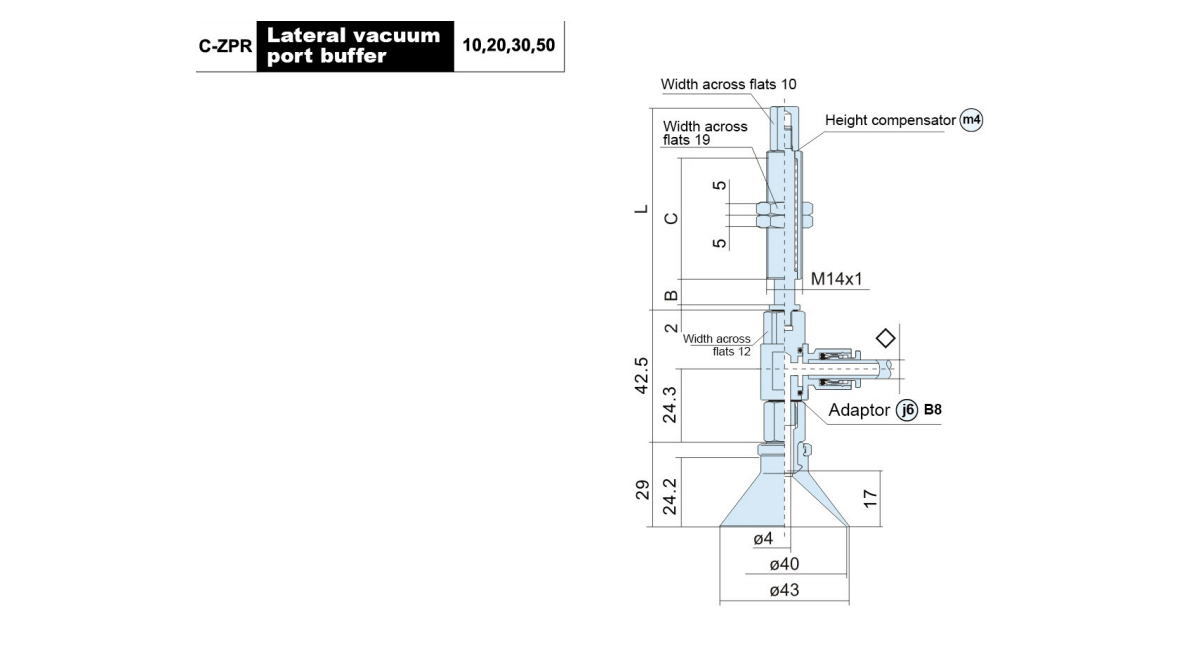

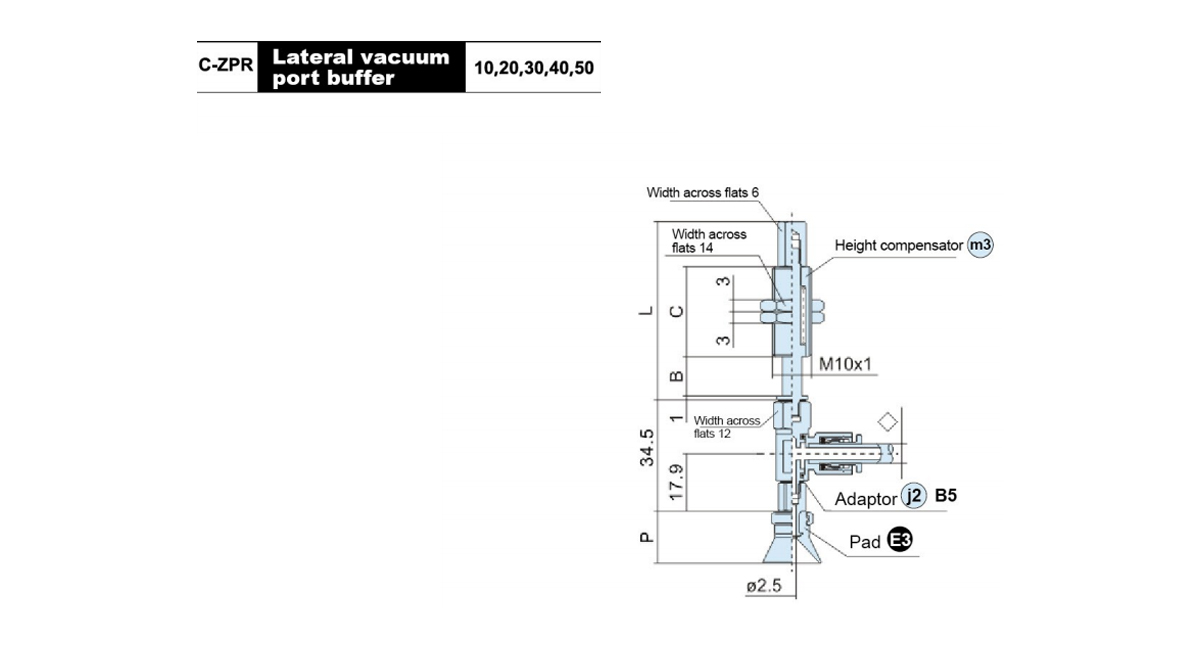

    Model B C L ○Pad Diameter P m3 ④
    Bumper Support Model
    20 25 32
    C-ZPR○☆□●10-◇-A10 10 23 45 14 14 14.5 ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○☆□●10-B5-A10 10 23 45 14 14 14.5 ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPT○☆□-A6 M6×1.0 3.5 8 32 18.5 19.5 ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT○☆□-B6 M6×1.0 6 4.5 18.5 19.5 ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆□-◇-A6 M6×1.0 8 68 18.5 19.5 ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆口 - ◇ -B6 M6×1.0 6 18.5 19.5 ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPY○☆□-B5-A6 M6×1.0 8 54 18.5 19.5 ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    40 50
    C-ZPY○☆□-B5-B6 M6×1.0 6 18.5 19.5 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B5-A14 10 50 77 18.5 19.5 ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B01-A14 10 50 78.5 18.5 19.5 ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

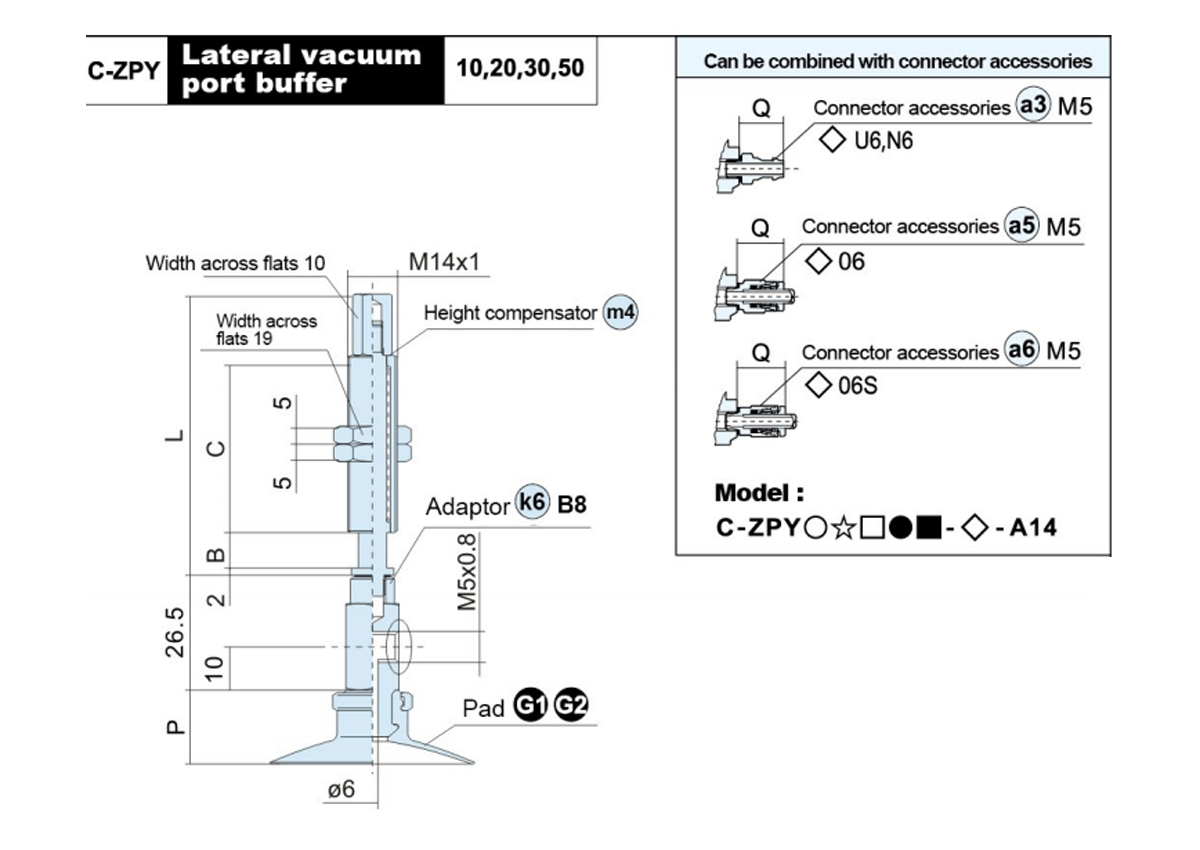

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10 16
    C-ZPT○D□-A5 M5×0.8 7 4 26 15 16 ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter  P Adaptor Model
    10 16
    C-ZPT○D□-B5 M5×0.8 5 15 16 ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-A5 M5×0.8 4 7 55 15 16 ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-B5 M5×0.8 5 15 16 ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

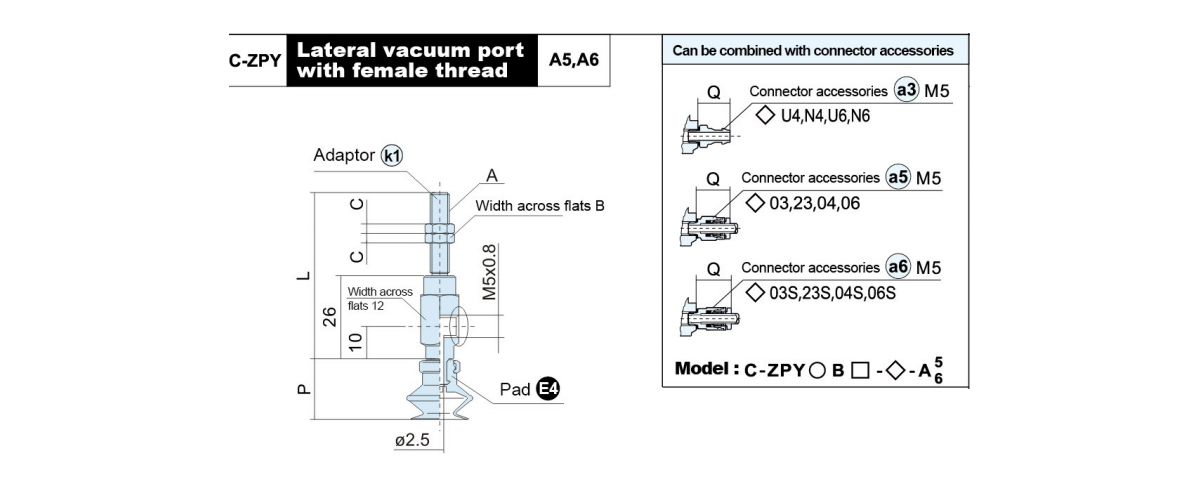

    Model A B C L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-A5 M5×0.8 7 4 47 15 16 ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-B5 M5×0.8 5 15 16 ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□J10-B5-A10 10 23 47 15 16 ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□K10-B5-A10 10 23 47 15 16 ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPR○D□●10-◇-A10 10 23 45 15 16 ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
    □    Material:NBR(N),Silicone(S)
    ●  Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPY○D□●10-B5-A10 10 23 45 15 16 ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5 8 8 31 ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5 ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2 ZPT3-B01
    □ Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8 69.5 ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12 59.5 ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5 ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8 54 ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5 ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

    Model B C L m1 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A10 10 23 47 ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10 50 77 ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m3 j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10 23 45 ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

    Model B C L m3 k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10 23 45 ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50 139 ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5 8 32 ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6 4.5 ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2 ZPT4-B01
    □Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR40D□-◇-A6 M6×1.0 8 68 ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6 ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8 54 ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

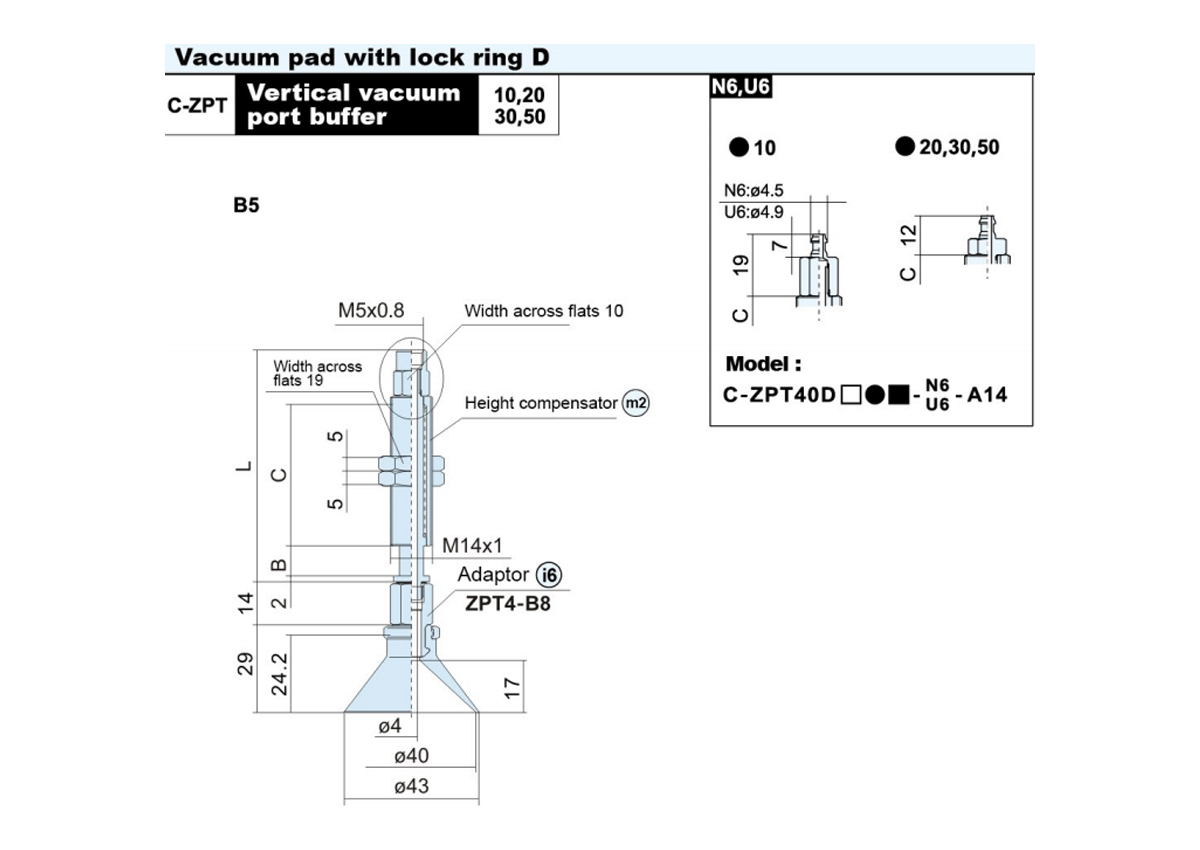

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10 50 77 ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B01-A14 10 50 78.5 ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m4 j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10 50 80 ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

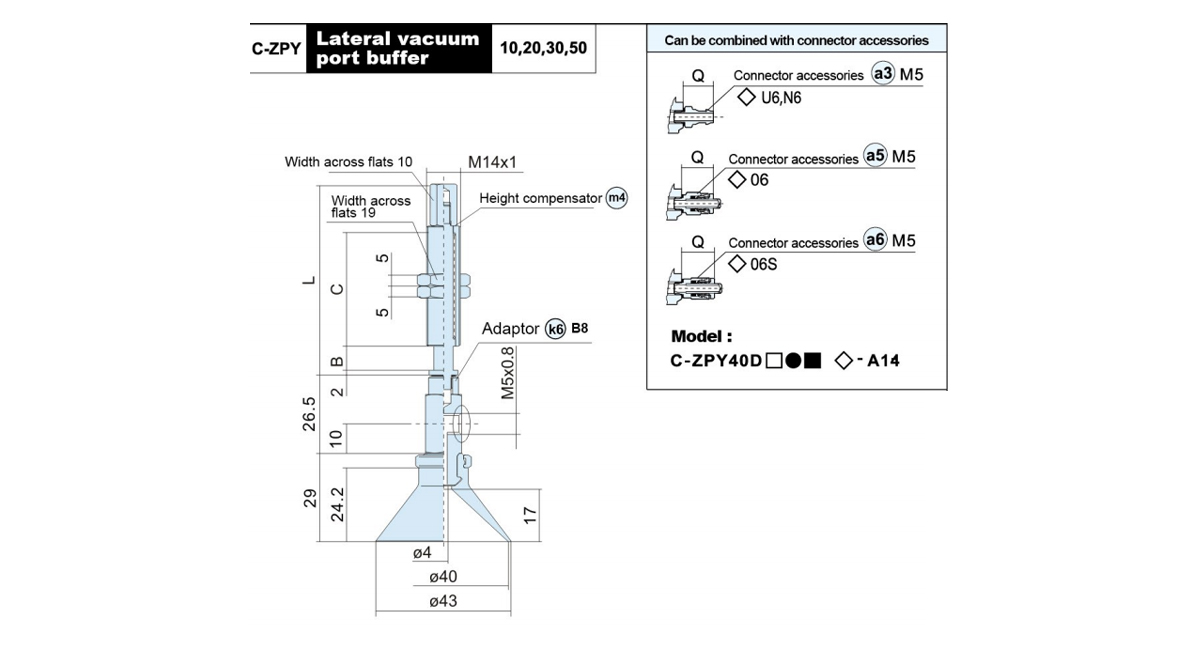

    Model B C L m4 k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10 50 80 ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-A5 M5×0.8 7 4 26 16 18.5 20 ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-B5 M5×0.8 5 16 18.5 20 ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-A5 M5×0.8 4 7 55 16 18.5 20 ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-B5 M5×0.8 5 16 18.5 20 ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-A5 M5×0.8 7 4 47 16 18.5 20 ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-B5 M5×0.8 5 16 18.5 20 ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□ J10-B5-A10 10 23 47 16 18.5 20 ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□K10-B5-A10 10 23 47 16 18.5 20 ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○ B□●10-◇-A10 10 23 45 16 18.5 20 ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
    □ Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPY○B□●10-B5-A10 10 23 45 16 18.5 20 ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-A6 M6×1.0 5 8 8 31 23.5 24 29 ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-B5 M5×0.8 5 23.5 24 29 ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-A6 M6×1.0 8 69.5 23.5 24 29 ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-B5 M5×0.8 5 23.5 24 29 ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

    Model A B L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-A6 M6×1.0 8 54 23.5 24 29 ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-B5 M5×0.8 5 23.5 24 29 ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A10 10 23 47 23.5 24 29 ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A14 10 50 77 23.5 24 29 ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter m3 j4
    Bumper Support Model
    20 25 32
    C-ZPR○B□O10-◇-A10 10 23 45 23.5 24 29 ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○B□●10-B5-A10 10 23 45 23.5 24 29 ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○B□-A6 M6×1.0 3.5 8 32 34 38 ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○OB□-B6 M6×1.0 6 4.5 34 38 ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇ -A6 M6×1.0 8 68 34 38 ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇-B6 M6×1.0 6 34 38 ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-A6 M6×1.0 8 54 34 38 ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter  P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-B6 M6×1.0 6 34 38 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B5-A14 10 50 77 34 38 ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B01-A14 10 50 78.5 34 38 ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○B□●10-◇-A14 10 50 80 34 38 ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○B□●10-◇-A14 10 50 80 34 38 ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-A5 M5×0.8 7 4 26 18 24 24 ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-B5 M5×0.8 5 18 24 24 ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-A5 M5×0.8 4 7 55 18 24 24 ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-B5 M5×0.8 5 18 24 24 ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-A5 M5×0.8 7 4 47 18 24 24 ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-B5 M5×0.8 5 18 24 24 ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□J10-B5-A10 10 23 47 18 24 24 ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□K10-B5-A10 10 23 47 18 24 24 ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPR○J□●10-◇-A10 10 23 45 18 24 24 ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPY○J□●10-B5-A10 10 23 45 18 24 40 ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-A6 M6×1.0 5 8 8 31 42.5 44.5 ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-B5 M5×0.8 5 42.5 44.5 ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-A6 M6×1.0 8 69.5 42.5 44.5 ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-B5 M5×0.8 5 42.5 44.5 ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

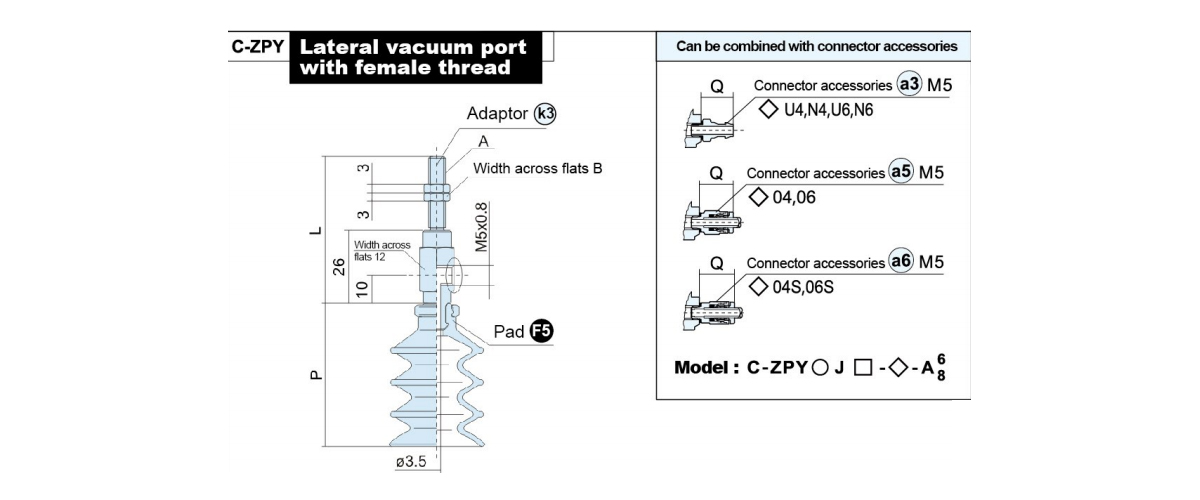

    Model A B L ○ Pad  Diameter       P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-A6 M6×1.0 8 54 42.5 44.5 ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-B5 M5×0.8 5 42.5 44.5 ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A10 10 23 47 42.5 44.5 ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A14 10 50 77 42.5 44.5 ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter     P m3 j4
    Bumper Support Model
    25 30
    C-ZPR○J□●10-◇-A10 10 23 45 42.5 44.5 ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

    Model B C L ○ Pad Diameter     P m3 k4
    Bumper Support Model
    25 30
    C-ZPY○J□●10-B5-A10 10 23 45 42.5 44.5 ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)

Mga Kaugnay na Produkto

Blog at Balita

Ang Aming Pinakabagong Balita at
Blog

Tingnan Pa

Ang Tunay at Maaasahang Kalidad ay Likas na Namumukod-tangi.

Ang pagpili ay nagmumula sa tiwala, at ang pakikipagtulungan ay nagmumula sa katapatan.

  • T: Gaano kabilis kami makakakuha ng tugon pagkatapos naming magpadala sa iyo ng isang pagtatanong?

    Sasagot kami sa iyo sa loob ng 24 na oras pagkatapos matanggap ang pagtatanong sa mga araw ng trabaho.

  • T: Ikaw ba ay isang direktang tagagawa o isang kumpanya ng kalakalan?

    Kami ay isang tagagawa, at mayroon kaming sariling internasyonal na departamento ng pagbebenta. Para makagawa at makapagbenta tayo nang mag-isa.

  • T: Maaari ka bang gumawa ng mga pasadyang produkto?

    Oo, maaari kaming bumuo at gumawa ng mga produkto ayon sa mga guhit o sample na ibinigay ng mga customer.

  • T: Paano ginagarantiya ng iyong kumpanya ang kalidad ng produkto?

    Una sa lahat, gagawin namin ang inspeksyon pagkatapos ng bawat proseso. Para sa mga natapos na produkto, gagawin namin ang 100% na inspeksyon ayon sa mga kinakailangan ng mga customer at ang internasyonal na pamantayan.

  • T: Saan pangunahing iniluluwas ang iyong mga produkto?

    Ang aming mga produkto ay pangunahing ini-export sa Germany, United States, Denmark at higit sa isang dosenang bansa sa Europe at North America
